Artikelnr: F032111598

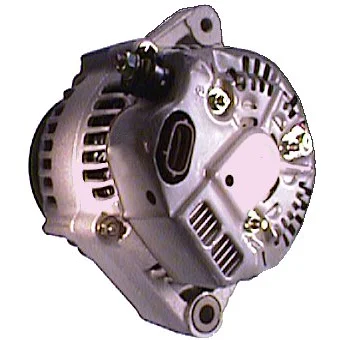

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Pulley dia.: 97.00

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 96.00
Width/holder arm: 53.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: M8
Pulley dia.: 97.00
Grooves/pulley: 1
Radius: 78.50
Radius 2: 85.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 162.00
Pulley: P
Regulator type: IR
Prod. info: Reman
Servicing: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 50
Prod. info Reman
Pulley P
Pulley dia. 97.00
Pulley dist. 96.00
Radius 78.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 1
Voltage 14
Total length 162.00 mm
Width/holder arm 53.00
Amp 80

  • OEM
    F032111598, ja1119ir, 27060-64130, 27060-64150, 101211-5130, 101211-5170

  • Konkurrentreferens
    ALT30139, CAL40173, dra3738, J5112092, lrb00336, QA2526, 8el737074-001, 28-2803, 235.158.802, 5312, 21336R, 111595, 401119RI, 437753, 9051292, 12060423, 0986045871, 944390512920

  • Normaliserat artikelnummer
    alt30139, cal40173, dra3738, f032111598, j5112092, ja1119ir, lrb00336, qa2526, 8el737074001, 5312, 21336r, 111595, 282803, 401119ri, 437753, 9051292, 12060423, 235158802, 0986045871, 1012115130, 1012115170, 2706064130, 2706064150, 944390512920

  • Passar modeller
    Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Estate From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes Manufacture type: sportswago
    Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Hatchback From date: 01-04-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 From date: 01-08-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 96.00
    Width/holder arm: 53.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 97.00
    Grooves/pulley: 1
    Radius: 78.50
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 162.00
    Pulley: P
    Regulator type: IR
    Prod. info: Reman
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL42
    Bracket hole 10.50
    Position/B+ in min. 50
    Prod. info Reman
    Pulley P
    Pulley dia. 97.00
    Pulley dist. 96.00
    Radius 78.50
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 1
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 53.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032111598, ja1119ir, 27060-64130, 27060-64150, 101211-5130, 101211-5170

    • Konkurrentreferens
      ALT30139, CAL40173, dra3738, J5112092, lrb00336, QA2526, 8el737074-001, 28-2803, 235.158.802, 5312, 21336R, 111595, 401119RI, 437753, 9051292, 12060423, 0986045871, 944390512920

    • Normaliserat artikelnummer
      alt30139, cal40173, dra3738, f032111598, j5112092, ja1119ir, lrb00336, qa2526, 8el737074001, 5312, 21336r, 111595, 282803, 401119ri, 437753, 9051292, 12060423, 235158802, 0986045871, 1012115130, 1012115170, 2706064130, 2706064150, 944390512920

    • Passar modeller
      Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Estate From date: 01-01-1993 To date: 01-01-1996 Fuel: Diesel Approved: Yes Manufacture type: sportswago
      Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 Body: Hatchback From date: 01-04-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Toyota Model: Carina Model series: Carina E Type of engine: Diesel Size of motor: 2.0 Brand of engine: 2C Type description: CT190 From date: 01-08-1992 To date: 01-01-1996 Fuel: Diesel Approved: Yes
