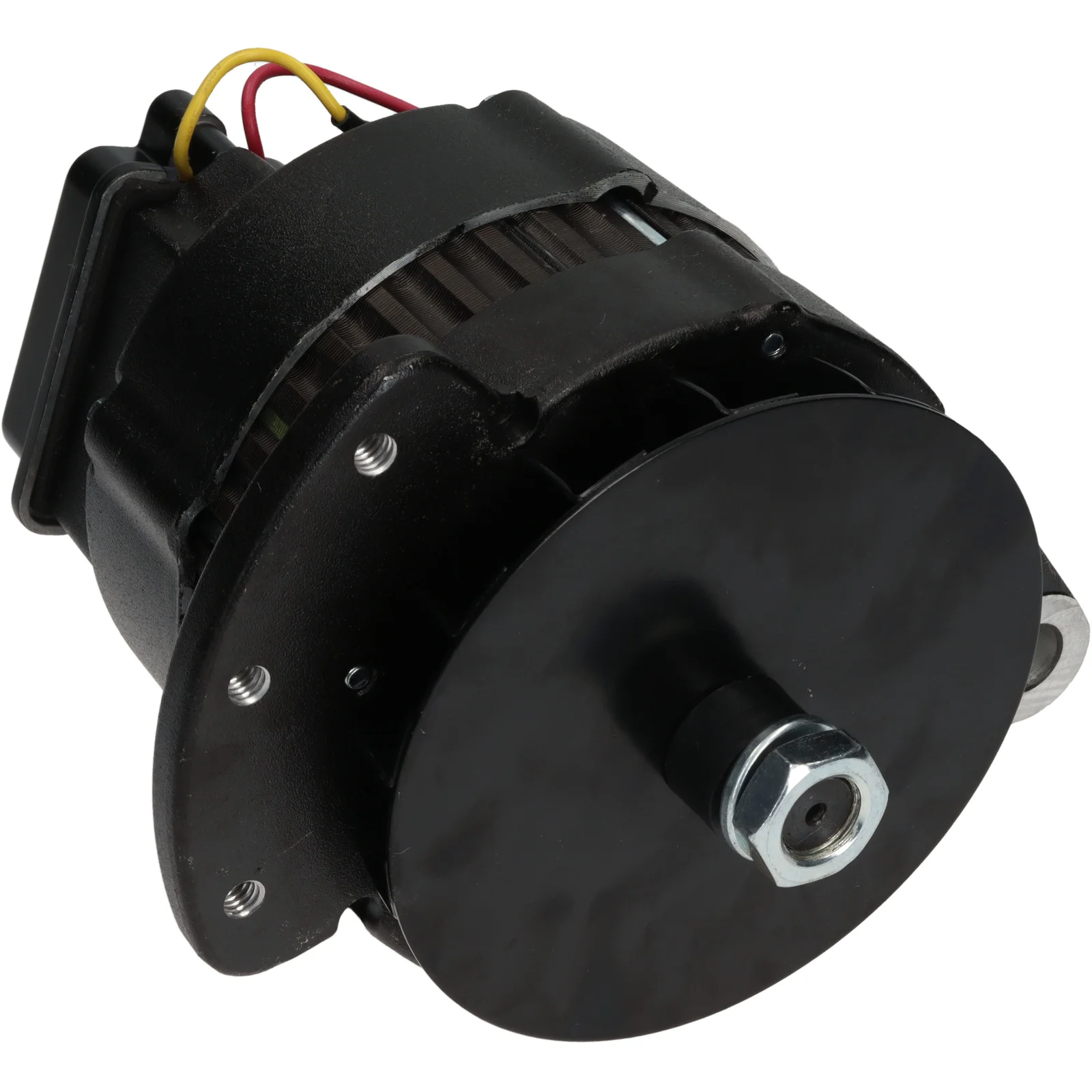

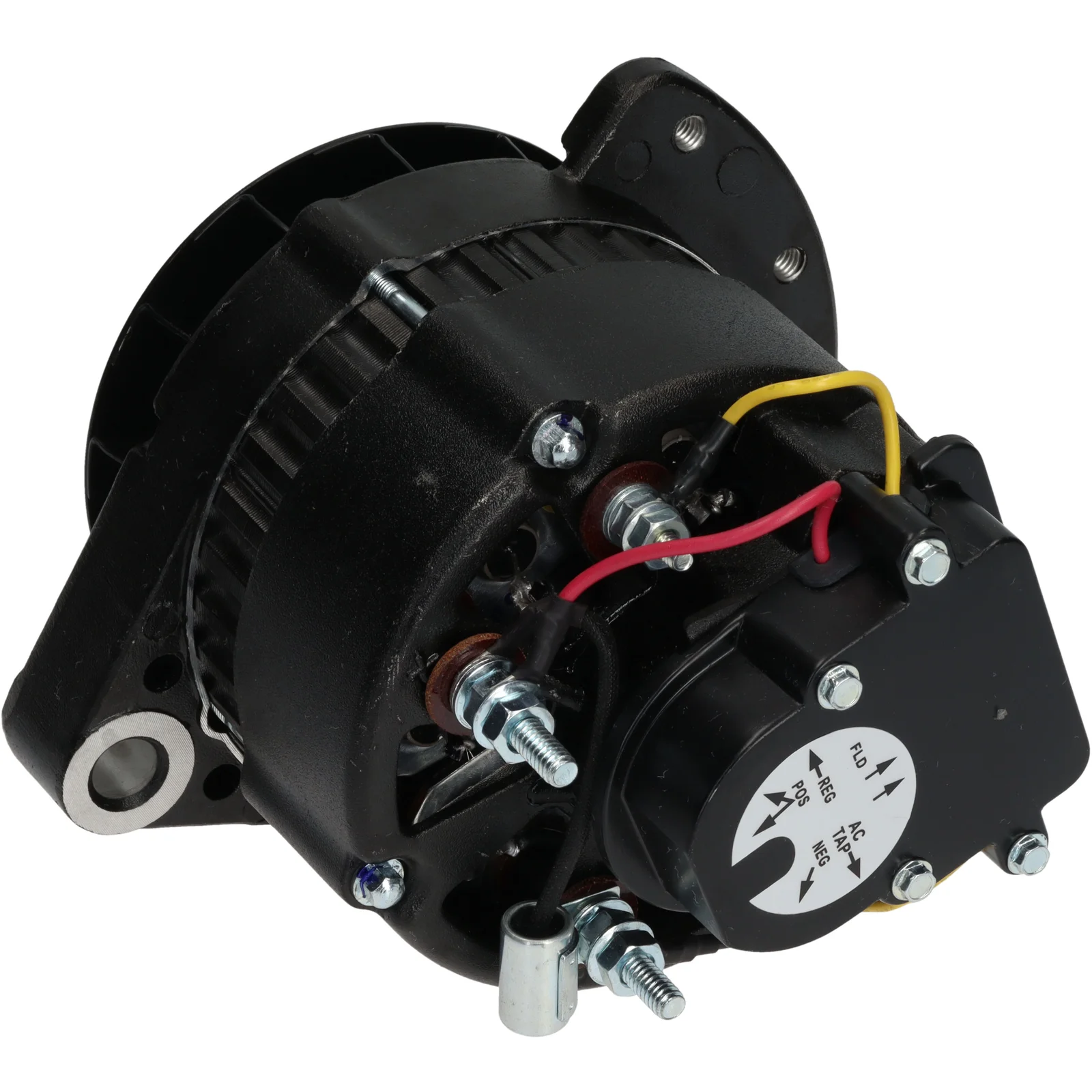

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111576

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW/CCW, Radius: 84.00

Beskrivning

Voltage: 14
Amp: 90
Insulated return: Yes
Terminal: W
Width/holder arm: 27.20
Bracket hole: 13.00
Belt. adj. brackethole pos.: 55
Belt. adj. brackethole pos. 3: 5
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 5/16"
Radius: 84.00
Radius 2: 82.00
Radius 3: 82.00
Radius 4: 82.00
B+: M6
Position/B+ in min.: 36
Rotation: CW/CCW
W plug type: 10-24 UNC
Total length mm: 180.00
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Mercury
Remarks: w/ adjustable regulator. Rotor shaft: 5/8".

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 5/16"
Belt. adj. brackethole pos. 55
Belt. adj. brackethole pos. 2 60
Belt. adj. brackethole pos. 3 5
Bracket hole 13.00
Position/B+ in min. 36
Prod. info BN
Pulley w/o
Radius 84.00
Radius 2 82.00
Radius 3 82.00
Radius 4 82.00
Regulator type IR
Remarks w/ adjustable regulator. Rotor shaft: 5/8".
Rotation CW/CCW
Servicing Mercury
Terminal W
Insulated return Yes
Voltage 14
W plug type 10-24 UNC
Total length 180.00 mm
Width/holder arm 27.20
Amp 90

  • OEM
    F032111576, 8mr2070t, 8mr2070ta, 110-403, 110-603, 796351, 822982

  • Konkurrentreferens
    CAL11109, DRA0272, 8370, 8370N, 119535, 553412RI

  • Normaliserat artikelnummer
    cal11109, dra0272, f032111576, 8mr2070t, 8mr2070ta, 8370, 8370n, 110403, 110603, 119535, 553412ri, 796351, 822982

  • Passar modeller
    Mercury Model: Marine Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 27.20
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 55
    Belt. adj. brackethole pos. 3: 5
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 5/16"
    Radius: 84.00
    Radius 2: 82.00
    Radius 3: 82.00
    Radius 4: 82.00
    B+: M6
    Position/B+ in min.: 36
    Rotation: CW/CCW
    W plug type: 10-24 UNC
    Total length mm: 180.00
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercury
    Remarks: w/ adjustable regulator. Rotor shaft: 5/8".

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 5/16"
    Belt. adj. brackethole pos. 55
    Belt. adj. brackethole pos. 2 60
    Belt. adj. brackethole pos. 3 5
    Bracket hole 13.00
    Position/B+ in min. 36
    Prod. info BN
    Pulley w/o
    Radius 84.00
    Radius 2 82.00
    Radius 3 82.00
    Radius 4 82.00
    Regulator type IR
    Remarks w/ adjustable regulator. Rotor shaft: 5/8".
    Rotation CW/CCW
    Servicing Mercury
    Terminal W
    Insulated return Yes
    Voltage 14
    W plug type 10-24 UNC
    Total length 180.00 mm
    Width/holder arm 27.20
    Amp 90
  • Fordonsmatchning

    • OEM
      F032111576, 8mr2070t, 8mr2070ta, 110-403, 110-603, 796351, 822982

    • Konkurrentreferens
      CAL11109, DRA0272, 8370, 8370N, 119535, 553412RI

    • Normaliserat artikelnummer
      cal11109, dra0272, f032111576, 8mr2070t, 8mr2070ta, 8370, 8370n, 110403, 110603, 119535, 553412ri, 796351, 822982

    • Passar modeller
      Mercury Model: Marine Model series: Various Models Approved: Yes
