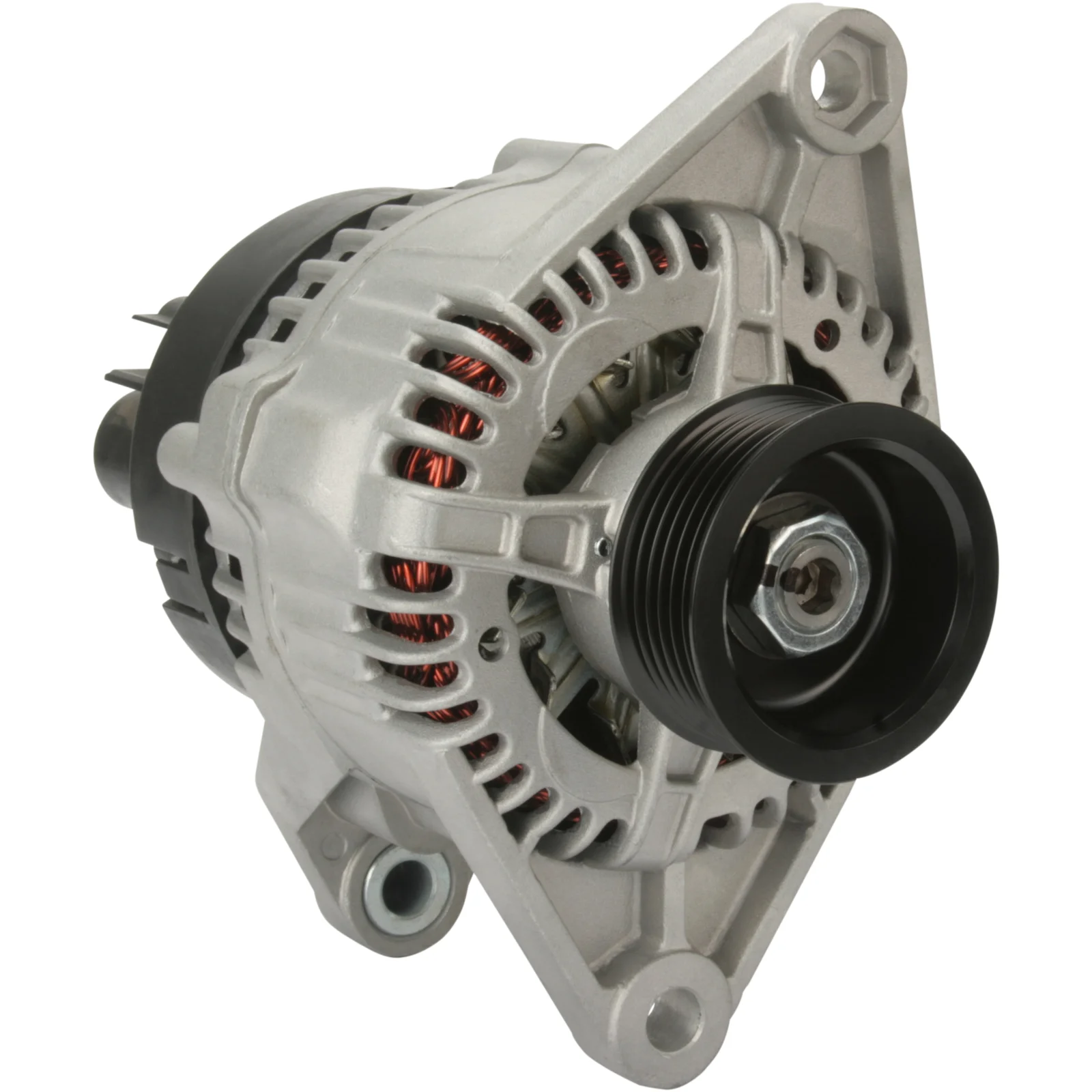

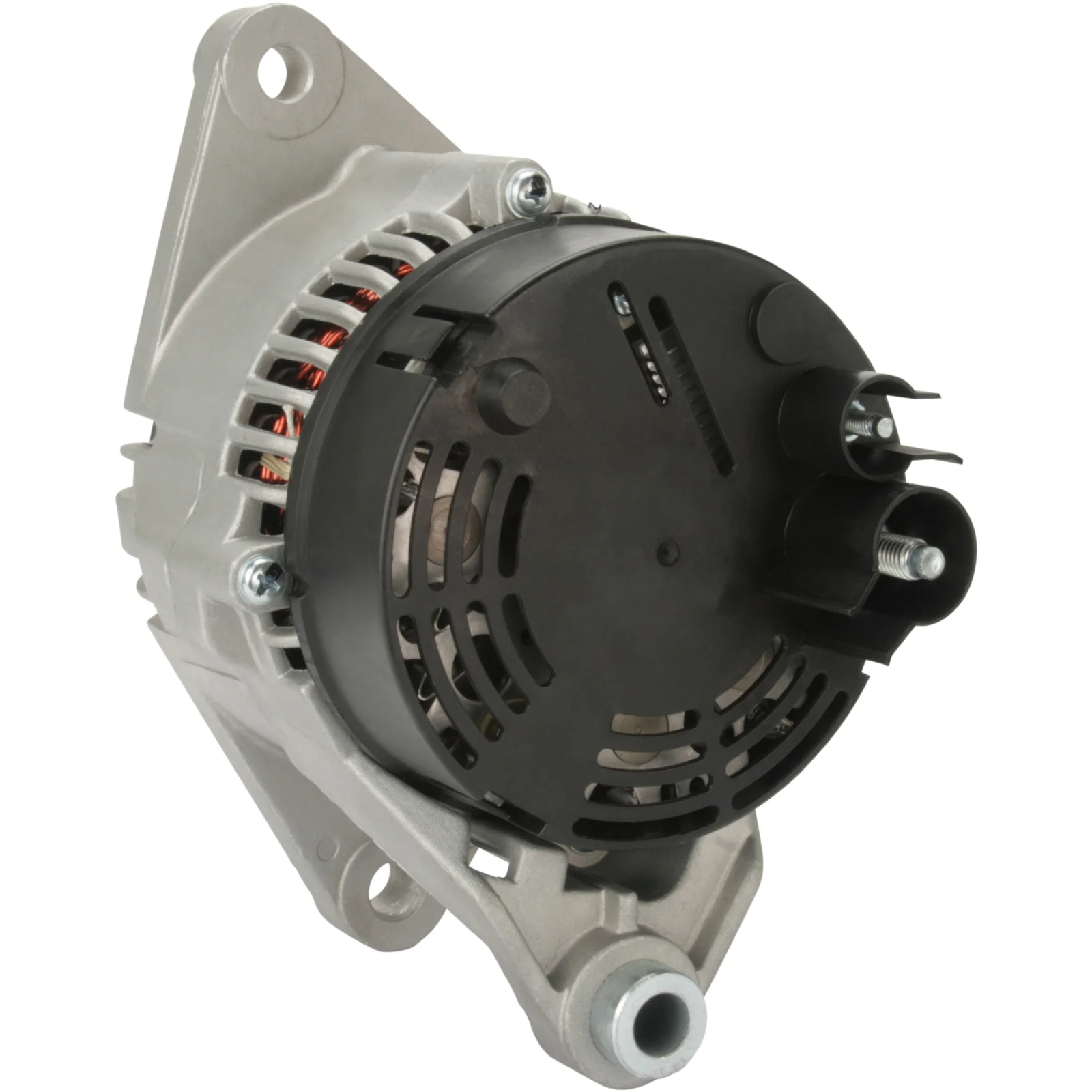

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111568

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 85, Rotation: CW, Mount. bracket dist.: 82.00

Beskrivning

Voltage: 14
Amp: 85
Pulley dist.: 41.00
Width/holder arm: 17.00
Mount. bracket dist.: 82.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 62.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 14
D+ Size: M5
Rotation: CW
Total length mm: 200.50
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Fiat

Filer

Specifikation

B+ M8
Mount. bracket dist. 82.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 4
Bracket hole 12.00
Position/B+ in min. 14
Prod. info BN
Pulley SP
Pulley dia. 62.00
Pulley dist. 41.00
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 6
Voltage 14
Total length 200.50 mm
Width/holder arm 17.00
Amp 85

  • OEM
    F032111568, 1199ir, 859023, 7769840, 46420966, 46425517, 46425518, 46442777, 46532168, 46774413, 63321227, 63321237, 63321331, 63321332, 63321406, 63321453, 63321485, 63321489, 63321792

  • Konkurrentreferens
    A4049, ALT12052, CAL30101, CAL30182, DAN621, DAN624, DENDAN621, DRA3407, dra3766, DRA3936, LRA01779, 8EL011710-181, 8el737219-001, 28-3580, 28-4613, 218.150.1002, 218.150.852, 4616, 5630, 5705gw, 5705S0, 56525, 119519, 210215, 210215A, 437815, 440841, 553015RI, 12046480, 12047770, 12090079, 12090171, 063321331, 063321332, 943321331, 943321453, 0986046480, 063321854010, 944390901280, 944390903280

  • Normaliserat artikelnummer
    a4049, alt12052, cal30101, cal30182, dan621, dan624, dendan621, dra3407, dra3766, dra3936, f032111568, lra01779, 8el011710181, 8el737219001, 1199ir, 4616, 5630, 5705gw, 5705s0, 56525, 119519, 210215, 210215a, 283580, 284613, 437815, 440841, 553015ri, 859023, 7769840, 12046480, 12047770, 12090079, 12090171, 46420966, 46425517, 46425518, 46442777, 46532168, 46774413, 63321227, 63321237, 063321331, 63321331, 063321332, 63321332, 63321406, 63321453, 63321485, 63321489, 63321792, 218150852, 943321331, 943321453, 0986046480, 2181501002, 063321854010, 944390901280, 944390903280

  • Passar modeller
    Citroen Model: Jumpy Model series: Jumpy Size of motor: 1.6 Brand of engine: 1580SPI Body: MPV From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Citroen Model: Jumpy Model series: Jumpy Size of motor: 1.6 Brand of engine: 220A2.000 Body: MPV From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Citroen Model: Jumpy Model series: Jumpy Type of engine: i Size of motor: 1.6 Brand of engine: 1580SPI Type description: BS_, BT_, BY_, BZ_ Body: Van From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Citroen Model: Jumpy Model series: Jumpy Type of engine: i Size of motor: 1.6 Brand of engine: 220A2.000 Type description: BS_, BT_, BY_, BZ_ Body: Van From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: TD Size of motor: 1.7 Brand of engine: 146D7.000 Type description: 146 Body: Pick Up From date: 01-01-1997 To date: 01-05-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Estate From date: 01-04-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Palio Model series: Palio Type of engine: TD Size of motor: 1.7 Brand of engine: 176A3.000 Body: Estate From date: 01-04-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: weekend
    Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176A3.000 Type description: 176 Body: Hatchback From date: 01-01-1994 To date: 01-09-1999 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176A5.000 Type description: 176 Body: Hatchback From date: 01-01-1994 To date: 01-09-1999 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176A5.000 Type description: 176L Body: Van From date: 01-04-1996 To date: 01-02-2000 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176B7.000 Type description: 176 Body: Hatchback From date: 01-09-1996 To date: 01-09-1999 Fuel: Diesel Approved: Yes
    Fiat Model: Scudo Model series: Scudo Size of motor: 1.6 Brand of engine: 220A2.000 Type description: 220 Body: Estate From date: 01-02-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Fiat Model: Scudo Model series: Scudo Size of motor: 1.6 Brand of engine: 220A2.000 Type description: 220L Body: Van From date: 01-02-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Fiat Model: Scudo Model series: Scudo Size of motor: 1.6 Brand of engine: 220A2.000 Type description: 220_ Body: Platform / Chassis From date: 01-09-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Fiat Model: Strada Model series: Strada Type of engine: TD Size of motor: 1.7 Brand of engine: 176A3.000 Body: Pick Up From date: 01-06-1999 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Peugeot Model: Expert Model series: Expert Size of motor: 1.6 Brand of engine: 222A2 Body: Platform / Chassis From date: 01-02-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Peugeot Model: Expert Model series: Expert Size of motor: 1.6 Brand of engine: 222A2 Type description: 222 Body: Van From date: 01-02-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Peugeot Model: Expert Model series: Expert Size of motor: 1.6 Brand of engine: 222A2 Type description: 224 Body: MPV From date: 01-02-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 85
    Pulley dist.: 41.00
    Width/holder arm: 17.00
    Mount. bracket dist.: 82.00
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 62.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 14
    D+ Size: M5
    Rotation: CW
    Total length mm: 200.50
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Fiat

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 82.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 4
    Bracket hole 12.00
    Position/B+ in min. 14
    Prod. info BN
    Pulley SP
    Pulley dia. 62.00
    Pulley dist. 41.00
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Fiat
    Grooves/pulley 6
    Voltage 14
    Total length 200.50 mm
    Width/holder arm 17.00
    Amp 85
  • Fordonsmatchning

    • OEM
      F032111568, 1199ir, 859023, 7769840, 46420966, 46425517, 46425518, 46442777, 46532168, 46774413, 63321227, 63321237, 63321331, 63321332, 63321406, 63321453, 63321485, 63321489, 63321792

    • Konkurrentreferens
      A4049, ALT12052, CAL30101, CAL30182, DAN621, DAN624, DENDAN621, DRA3407, dra3766, DRA3936, LRA01779, 8EL011710-181, 8el737219-001, 28-3580, 28-4613, 218.150.1002, 218.150.852, 4616, 5630, 5705gw, 5705S0, 56525, 119519, 210215, 210215A, 437815, 440841, 553015RI, 12046480, 12047770, 12090079, 12090171, 063321331, 063321332, 943321331, 943321453, 0986046480, 063321854010, 944390901280, 944390903280

    • Normaliserat artikelnummer
      a4049, alt12052, cal30101, cal30182, dan621, dan624, dendan621, dra3407, dra3766, dra3936, f032111568, lra01779, 8el011710181, 8el737219001, 1199ir, 4616, 5630, 5705gw, 5705s0, 56525, 119519, 210215, 210215a, 283580, 284613, 437815, 440841, 553015ri, 859023, 7769840, 12046480, 12047770, 12090079, 12090171, 46420966, 46425517, 46425518, 46442777, 46532168, 46774413, 63321227, 63321237, 063321331, 63321331, 063321332, 63321332, 63321406, 63321453, 63321485, 63321489, 63321792, 218150852, 943321331, 943321453, 0986046480, 2181501002, 063321854010, 944390901280, 944390903280

    • Passar modeller
      Citroen Model: Jumpy Model series: Jumpy Size of motor: 1.6 Brand of engine: 1580SPI Body: MPV From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Citroen Model: Jumpy Model series: Jumpy Size of motor: 1.6 Brand of engine: 220A2.000 Body: MPV From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Citroen Model: Jumpy Model series: Jumpy Type of engine: i Size of motor: 1.6 Brand of engine: 1580SPI Type description: BS_, BT_, BY_, BZ_ Body: Van From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Citroen Model: Jumpy Model series: Jumpy Type of engine: i Size of motor: 1.6 Brand of engine: 220A2.000 Type description: BS_, BT_, BY_, BZ_ Body: Van From date: 01-10-1995 To date: 01-08-2000 Fuel: Gasoline Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Type of engine: TD Size of motor: 1.7 Brand of engine: 146D7.000 Type description: 146 Body: Pick Up From date: 01-01-1997 To date: 01-05-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Palio Model series: Palio Size of motor: 1.2 Brand of engine: 178B5.000 Body: Estate From date: 01-04-1996 To date: 01-02-2001 Fuel: Gasoline Approved: Yes Manufacture type: weekend
      Fiat Model: Palio Model series: Palio Type of engine: TD Size of motor: 1.7 Brand of engine: 176A3.000 Body: Estate From date: 01-04-1996 To date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: weekend
      Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176A3.000 Type description: 176 Body: Hatchback From date: 01-01-1994 To date: 01-09-1999 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176A5.000 Type description: 176 Body: Hatchback From date: 01-01-1994 To date: 01-09-1999 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176A5.000 Type description: 176L Body: Van From date: 01-04-1996 To date: 01-02-2000 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: TD Size of motor: 1.7 Brand of engine: 176B7.000 Type description: 176 Body: Hatchback From date: 01-09-1996 To date: 01-09-1999 Fuel: Diesel Approved: Yes
      Fiat Model: Scudo Model series: Scudo Size of motor: 1.6 Brand of engine: 220A2.000 Type description: 220 Body: Estate From date: 01-02-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Fiat Model: Scudo Model series: Scudo Size of motor: 1.6 Brand of engine: 220A2.000 Type description: 220L Body: Van From date: 01-02-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Fiat Model: Scudo Model series: Scudo Size of motor: 1.6 Brand of engine: 220A2.000 Type description: 220_ Body: Platform / Chassis From date: 01-09-1996 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Fiat Model: Strada Model series: Strada Type of engine: TD Size of motor: 1.7 Brand of engine: 176A3.000 Body: Pick Up From date: 01-06-1999 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Peugeot Model: Expert Model series: Expert Size of motor: 1.6 Brand of engine: 222A2 Body: Platform / Chassis From date: 01-02-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Peugeot Model: Expert Model series: Expert Size of motor: 1.6 Brand of engine: 222A2 Type description: 222 Body: Van From date: 01-02-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Peugeot Model: Expert Model series: Expert Size of motor: 1.6 Brand of engine: 222A2 Type description: 224 Body: MPV From date: 01-02-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
