Artikelnr: F032111363

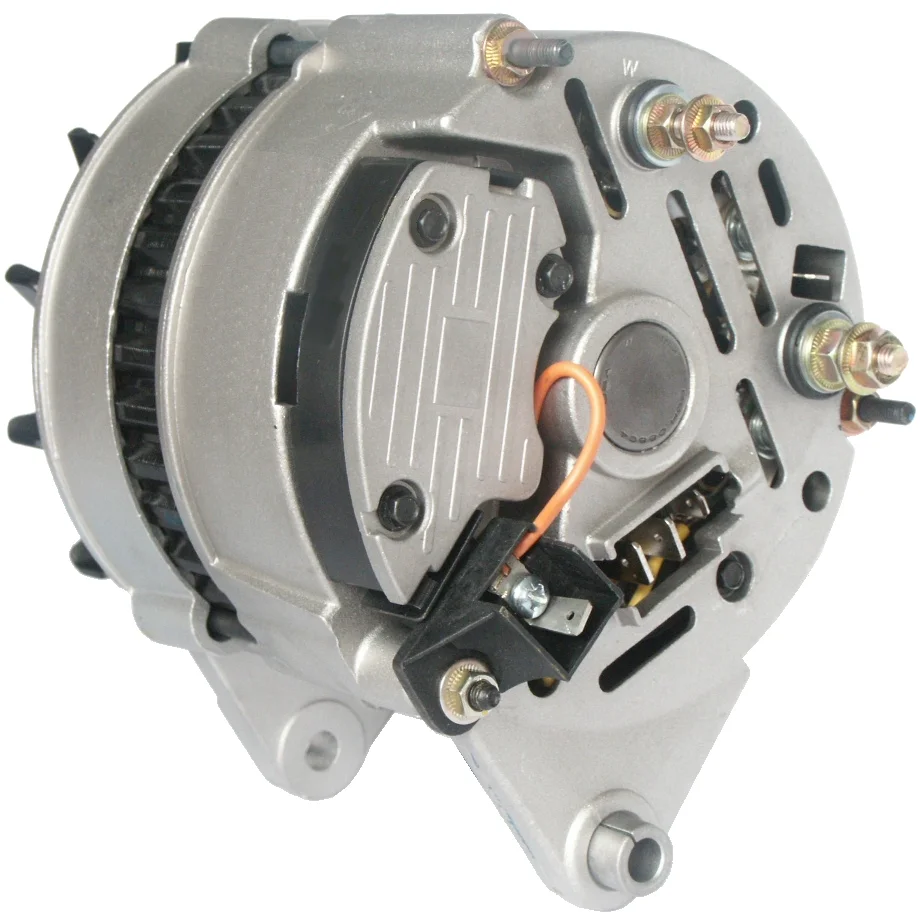

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 45, Rotation: CW, Mount. bracket dist.: 83.00

Beskrivning

Voltage: 14
Amp: 45
Terminal: W
Pulley dist.: 36.70
Width/holder arm: 11.00
Mount. bracket dist.: 83.00
Bracket hole: 8.70
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 79.60
Grooves/pulley: 1
Radius: 85.00
Radius 2: 86.50
B+: M6
Position/B+ in min.: 12
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 165.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: New Holland

Filer

Specifikation

B+ M6
Mount. bracket dist. 83.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 50
Plug no. PL22
Bracket hole 8.70
Position/B+ in min. 12
Prod. info BN
Pulley P
Pulley dia. 79.60
Pulley dist. 36.70
Radius 85.00
D+ Size Plug
Radius 2 86.50
Regulator type IR
Rotation CW
Servicing New Holland
Grooves/pulley 1
Terminal W
Voltage 14
W plug type M5
Total length 165.00 mm
Width/holder arm 11.00
Amp 45

  • OEM
    F032111363, 725ir, 24246, 24246a, 24246B, 24246F, 24246J, 24256, 24256a, 24256B, 24256c, 24327a, 54022292, 54022310, 54022481, 63324327, 63325256

  • Konkurrentreferens
    ALT10022, dra3289, LEA0066, lra00530, 8el730023-001, 28-1840, 220.101.452, 5214, 12089, 12089N, 30725RI, 063324256

  • Normaliserat artikelnummer
    alt10022, dra3289, f032111363, lea0066, lra00530, 8el730023001, 725ir, 5214, 12089, 12089n, 24246, 24246a, 24246b, 24246f, 24246j, 24256, 24256a, 24256b, 24256c, 24327a, 30725ri, 281840, 54022292, 54022310, 54022481, 063324256, 63324327, 63325256, 220101452

  • Passar modeller
    Cummins Model: C30 D5 P Model series: C30 D5 P Model type: Generator Sets Brand of engine: S325 Approved: Yes
    Cummins Model: C35 D5 P Model series: C35 D5 P Model type: Generator Sets Brand of engine: S325 Approved: Yes
    Ford Model: 2000 Series Model series: 2600 Approved: Yes
    Ford Model: 3000 Series Model series: 3600 Brand of engine: 175CID From date: 01-01-1975 To date: 01-12-1981 Fuel: Diesel Approved: Yes
    Ford Model: 3000 Series Model series: 3610 Brand of engine: 192CID From date: 01-01-1981 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: 4000 Series Model series: 4100 Brand of engine: 183CID From date: 01-01-1975 To date: 01-12-1981 Fuel: Diesel Approved: Yes
    Ford Model: 4000 Series Model series: 4110 From date: 01-01-1981 To date: 01-01-1989 Approved: Yes
    Ford Model: 4000 Series Model series: 4130 From date: 01-06-1990 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Ford Model: 4000 Series Model series: 4600 Brand of engine: 201CID From date: 01-01-1975 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Ford Model: 4000 Series Model series: 4610 From date: 01-01-1981 To date: 01-01-1989 Approved: Yes
    Ford Model: 6000 Series Model series: 6600 Brand of engine: 256CID From date: 01-01-1975 To date: 01-01-1981 Fuel: Diesel Approved: Yes
    Ford Model: 6000 Series Model series: 6610 Brand of engine: 401CID From date: 01-01-1981 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: 6000 Series Model series: 6700 Approved: Yes
    Ford Model: 7000 Series Model series: 7600 Approved: Yes
    Ford Model: 7000 Series Model series: 7610 From date: 01-06-1990 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Ford Model: 7000 Series Model series: 7700 Approved: Yes
    Ford Model: 8000 Series Model series: 8600 Brand of engine: 401CID From date: 01-01-1975 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Ford Model: 8000 Series Model series: 8630 From date: 01-06-1990 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 1035 DI Model series: MF 1035 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 241 DI Mahashakti Model series: MF 241 DI Mahashakti Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 241 DI Planetary Plus Model series: MF 241 DI Planetary Plus Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 245 DI Model series: MF 245 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 250-2 Model series: MF 250-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 250-4 Model series: MF 250-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 255-2 Model series: MF 255-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 255-4 Model series: MF 255-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 265-2 Model series: MF 265-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 265-4 Model series: MF 265-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 275-2 Model series: MF 275-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 275-4 Model series: MF 275-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 283-2 Model series: MF 283-2 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 283-4 Model series: MF 283-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 290-4 Model series: MF 290-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 292-4 Model series: MF 292-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 297-4 Model series: MF 297-4 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 298 Model series: MF 298 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 299 Model series: MF 299 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 5245 DI Model series: MF 5245 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 680 Model series: MF 680 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    Massey Ferguson Model: MF 7250 DI Model series: MF 7250 DI Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    New Holland Model: 3037 Model series: 3037 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    New Holland Model: 3130 Model series: 3130 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    New Holland Model: 3230 Model series: 3230 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    New Holland Model: 3600 Model series: 3600 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    New Holland Model: 4000 Model series: 4635 Brand of engine: Ford From date: 01-09-1995 To date: 01-12-1998 Approved: Yes
    New Holland Model: 4010 Model series: 4010 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
    New Holland Model: 4510 Model series: 4510 Model type: Ag Tractors Brand of engine: S325 Approved: Yes
