Artikelnr: F032111342

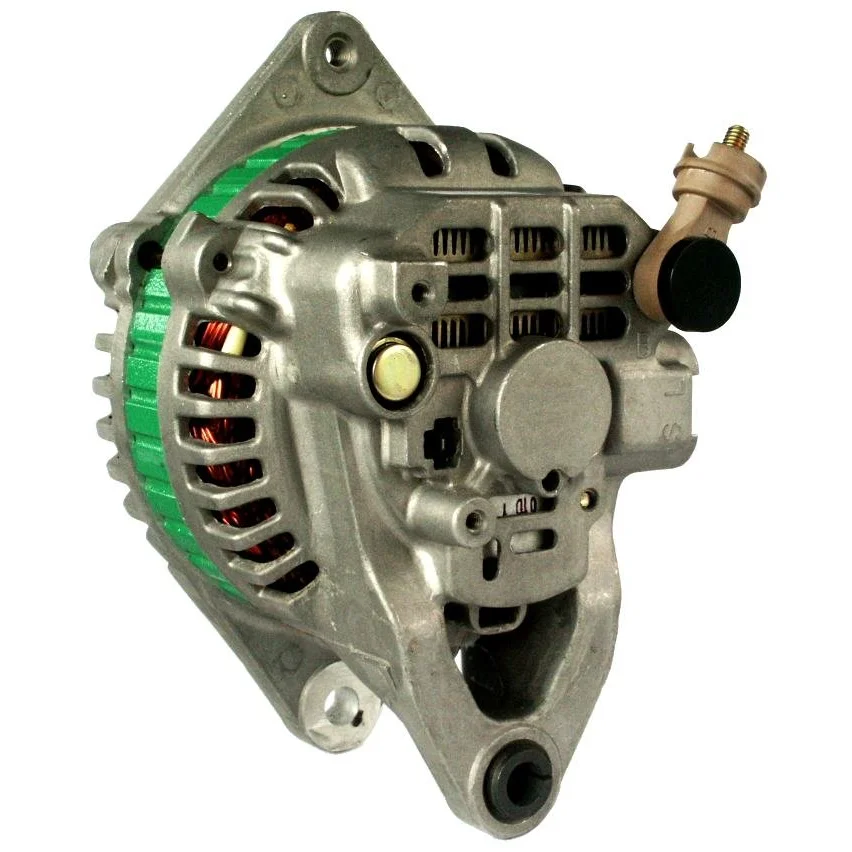

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Mount. bracket dist.: 66.00

Beskrivning

Voltage: 14
Amp: 60
Pulley dist.: 43.00
Width/holder arm: 13.00
Mount. bracket dist.: 66.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 74.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 156.00
Terminal type: L-S
Pulley: P
Fan: IF
Regulator type: IR
Prod. info: BN
Servicing: Mazda

Filer

Specifikation

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 43.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Mazda
Fan IF
Grooves/pulley 1
Terminal type L-S
Voltage 14
Total length 156.00 mm
Width/holder arm 13.00
Amp 60

  • OEM
    A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, B61P-18-300, B61P-18-300E, B61P-18-300F, B64J-18-300A, B64J-18-300B, F032111342, hab160102, ja805ir

  • Konkurrentreferens
    A5265, AL4207X, ALT-H038, ALT31008, ama-386, CAL35148, dra3167, dra3306, DRA4139, F042A0H038, LRA02654, lrb00157, QA4086, 1-1160-01MI, 1-1428-01MI, 8EL011712-071, 8el731746-001, 24-51.312, 24-51.332, 28-1788, 224.121.602, 5434, 13227, 13432, 40805RI, 56364, 119269, 437681, 12060106, 12060107, 0986045501

  • Normaliserat artikelnummer
    a005t01577, a005t01977, a005t03677, a005t03677a, a005t03777, a5265, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, al4207x, alt31008, alth038, ama386, b61p18300, b61p18300e, b61p18300f, b64j18300a, b64j18300b, cal35148, dra3167, dra3306, dra4139, f032111342, f042a0h038, hab160102, ja805ir, lra02654, lrb00157, qa4086, 8el011712071, 8el731746001, 5434, 13227, 13432, 40805ri, 56364, 119269, 281788, 437681, 1116001mi, 1142801mi, 2451312, 2451332, 12060106, 12060107, 224121602, 0986045501

  • Passar modeller
    Mazda Model: Miata Model series: Miata Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B6 Type description: NA Body: Convertible From date: 01-01-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
    Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B64F Type description: NA Body: Convertible From date: 01-05-1990 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 60
    Pulley dist.: 43.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 74.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 156.00
    Terminal type: L-S
    Pulley: P
    Fan: IF
    Regulator type: IR
    Prod. info: BN
    Servicing: Mazda

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 66.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 8
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 43.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Mazda
    Fan IF
    Grooves/pulley 1
    Terminal type L-S
    Voltage 14
    Total length 156.00 mm
    Width/holder arm 13.00
    Amp 60
  • Fordonsmatchning

    • OEM
      A005T01577, A005T01977, A005T03677, A005T03677A, A005T03777, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, B61P-18-300, B61P-18-300E, B61P-18-300F, B64J-18-300A, B64J-18-300B, F032111342, hab160102, ja805ir

    • Konkurrentreferens
      A5265, AL4207X, ALT-H038, ALT31008, ama-386, CAL35148, dra3167, dra3306, DRA4139, F042A0H038, LRA02654, lrb00157, QA4086, 1-1160-01MI, 1-1428-01MI, 8EL011712-071, 8el731746-001, 24-51.312, 24-51.332, 28-1788, 224.121.602, 5434, 13227, 13432, 40805RI, 56364, 119269, 437681, 12060106, 12060107, 0986045501

    • Normaliserat artikelnummer
      a005t01577, a005t01977, a005t03677, a005t03677a, a005t03777, a5265, a5t01577, a5t01977, a5t03677, a5t03677a, a5t03777, al4207x, alt31008, alth038, ama386, b61p18300, b61p18300e, b61p18300f, b64j18300a, b64j18300b, cal35148, dra3167, dra3306, dra4139, f032111342, f042a0h038, hab160102, ja805ir, lra02654, lrb00157, qa4086, 8el011712071, 8el731746001, 5434, 13227, 13432, 40805ri, 56364, 119269, 281788, 437681, 1116001mi, 1142801mi, 2451312, 2451332, 12060106, 12060107, 224121602, 0986045501

    • Passar modeller
      Mazda Model: Miata Model series: Miata Size of motor: 1.6 From date: 01-01-1990 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B6 Type description: NA Body: Convertible From date: 01-01-1995 To date: 01-04-1998 Fuel: Gasoline Approved: Yes
      Mazda Model: MX Model series: MX-5 Size of motor: 1.6 Brand of engine: B64F Type description: NA Body: Convertible From date: 01-05-1990 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
