Artikelnr: F032111232

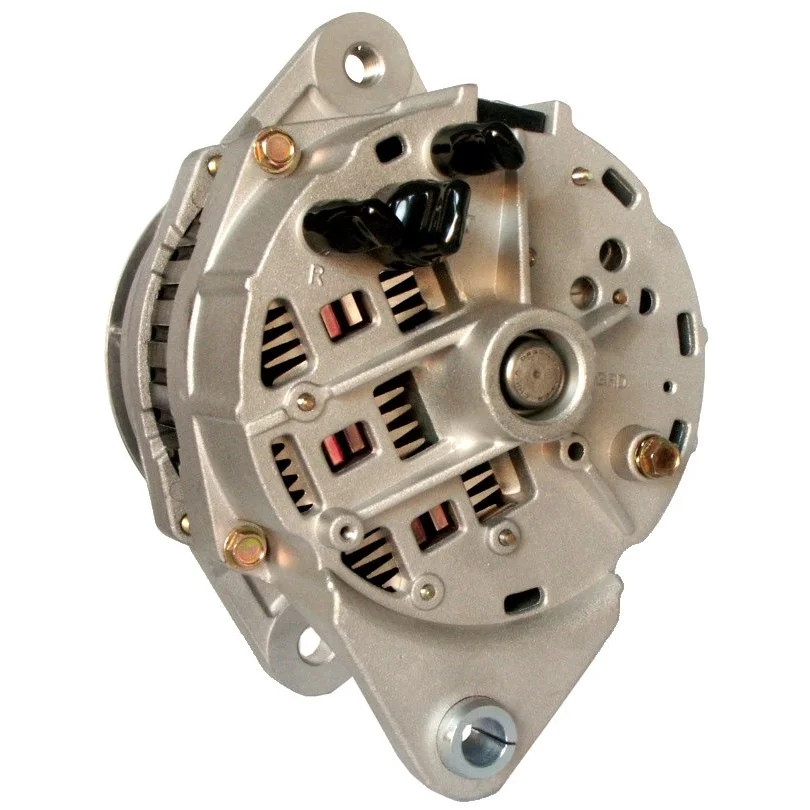

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 115, Rotation: CW, Mount. bracket dist.: 101.80

Beskrivning

Voltage: 14
Amp: 115
Terminal: W
Width/holder arm: 14.30
Mount. bracket dist.: 101.80
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: 1/4" UNF
Position/B+ in min.: 52
D+ Size: 10-24 UNC
Rotation: CW
W plug type: 10-24 UNC
Total length mm: 215.00
Pulley: w/o
Fan: EF
Regulator type: IR
Prod. info: BN
Servicing: Volvo
Remarks: Replacing: 21SI. One-wire system. B+: 1/4".

Specifikation

B+ 1/4" UNF
Mount. bracket dist. 101.80
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 52
Prod. info BN
Pulley w/o
Radius 99.00
D+ Size 10-24 UNC
Radius 2 99.00
Regulator type IR
Remarks Replacing: 21SI. One-wire system. B+: 1/4".
Rotation CW
Servicing Volvo
Fan EF
Terminal W
Voltage 14
W plug type 10-24 UNC
Total length 215.00 mm
Width/holder arm 14.30
Amp 115
  • OEM

    0R3654, F032111232, OR3654, X830100004, 6T1396, 7T2096, 8HC2023K, 8HC2023KS, 110-284, 110-312, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902
  • Konkurrentreferens

    A1017, A1066S, AL9937X, BAO3130, CAL60102, CAL60126, da07644, drz0191, 1-1915-01DR, 1-1915-02DR, 1-1915-03DR, 1-1915-04DR, 1-1915-05DR, 8el737232-001, 28-2881, 645.052.051, 5619, 7669, 7670, 7671, 7673, 7679, 7681N, 7681R, 7685N, 7685R, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049N, 8077N, 220307, 220307A, 501115RI, 553311RI, 553360RI, 553805RI
  • Normaliserat artikelnummer

    0r3654, a1017, a1066s, al9937x, bao3130, cal60102, cal60126, da07644, drz0191, f032111232, or3654, x830100004, 6t1396, 7t2096, 8el737232001, 8hc2023k, 8hc2023ks, 5619, 7669, 7670, 7671, 7673, 7679, 7681n, 7681r, 7685n, 7685r, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049n, 8077n, 110284, 110312, 220307, 220307a, 282881, 501115ri, 553311ri, 553360ri, 553805ri, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 1191501dr, 1191502dr, 1191503dr, 1191504dr, 1191505dr, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902, 645052051
  • Passar modeller

    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 115
    Terminal: W
    Width/holder arm: 14.30
    Mount. bracket dist.: 101.80
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: 1/4" UNF
    Position/B+ in min.: 52
    D+ Size: 10-24 UNC
    Rotation: CW
    W plug type: 10-24 UNC
    Total length mm: 215.00
    Pulley: w/o
    Fan: EF
    Regulator type: IR
    Prod. info: BN
    Servicing: Volvo
    Remarks: Replacing: 21SI. One-wire system. B+: 1/4".
  • Specifikation
    B+ 1/4" UNF
    Mount. bracket dist. 101.80
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 52
    Prod. info BN
    Pulley w/o
    Radius 99.00
    D+ Size 10-24 UNC
    Radius 2 99.00
    Regulator type IR
    Remarks Replacing: 21SI. One-wire system. B+: 1/4".
    Rotation CW
    Servicing Volvo
    Fan EF
    Terminal W
    Voltage 14
    W plug type 10-24 UNC
    Total length 215.00 mm
    Width/holder arm 14.30
    Amp 115
  • Fordonsmatchning
    • OEM

      0R3654, F032111232, OR3654, X830100004, 6T1396, 7T2096, 8HC2023K, 8HC2023KS, 110-284, 110-312, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902
    • Konkurrentreferens

      A1017, A1066S, AL9937X, BAO3130, CAL60102, CAL60126, da07644, drz0191, 1-1915-01DR, 1-1915-02DR, 1-1915-03DR, 1-1915-04DR, 1-1915-05DR, 8el737232-001, 28-2881, 645.052.051, 5619, 7669, 7670, 7671, 7673, 7679, 7681N, 7681R, 7685N, 7685R, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049N, 8077N, 220307, 220307A, 501115RI, 553311RI, 553360RI, 553805RI
    • Normaliserat artikelnummer

      0r3654, a1017, a1066s, al9937x, bao3130, cal60102, cal60126, da07644, drz0191, f032111232, or3654, x830100004, 6t1396, 7t2096, 8el737232001, 8hc2023k, 8hc2023ks, 5619, 7669, 7670, 7671, 7673, 7679, 7681n, 7681r, 7685n, 7685r, 7686, 7976, 8012, 8013, 8019, 8021, 8027, 8049n, 8077n, 110284, 110312, 220307, 220307a, 282881, 501115ri, 553311ri, 553360ri, 553805ri, 712096, 1117880, 1117894, 1117906, 1117907, 1117911, 1117912, 1117923, 1117925, 1117929, 1117931, 1117942, 1117947, 1117949, 1117950, 1117951, 1117953, 1117954, 1117955, 1117956, 1117965, 1117966, 1191501dr, 1191502dr, 1191503dr, 1191504dr, 1191505dr, 3920615, 3920616, 10459052, 10459053, 10459054, 10459133, 10459211, 10499176, 19010100, 19010134, 19010138, 19010153, 19010155, 19010171, 19010172, 19010173, 19010174, 19010175, 19010176, 19010179, 19010189, 19010192, 19010212, 0191216902, 645052051
    • Passar modeller

      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
