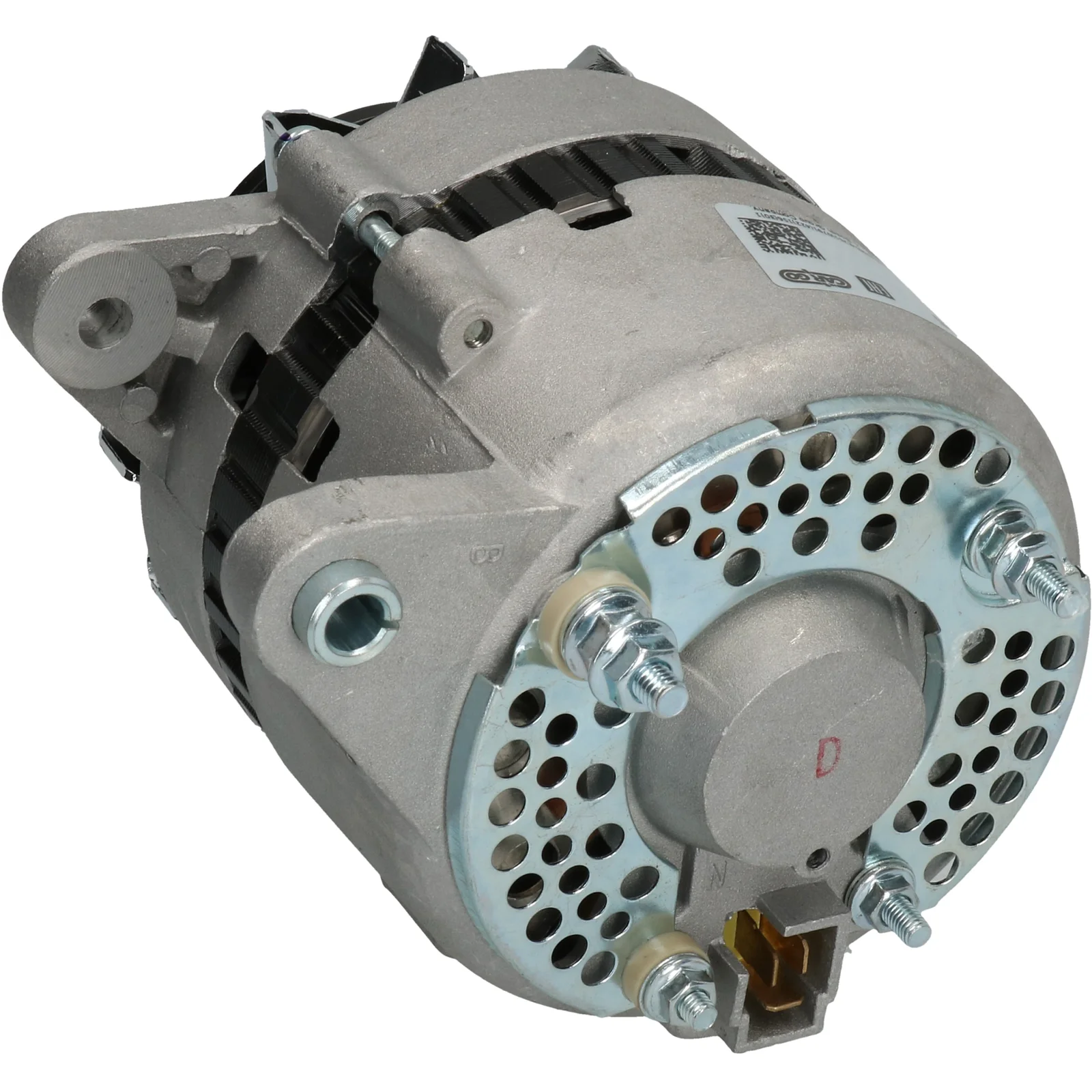

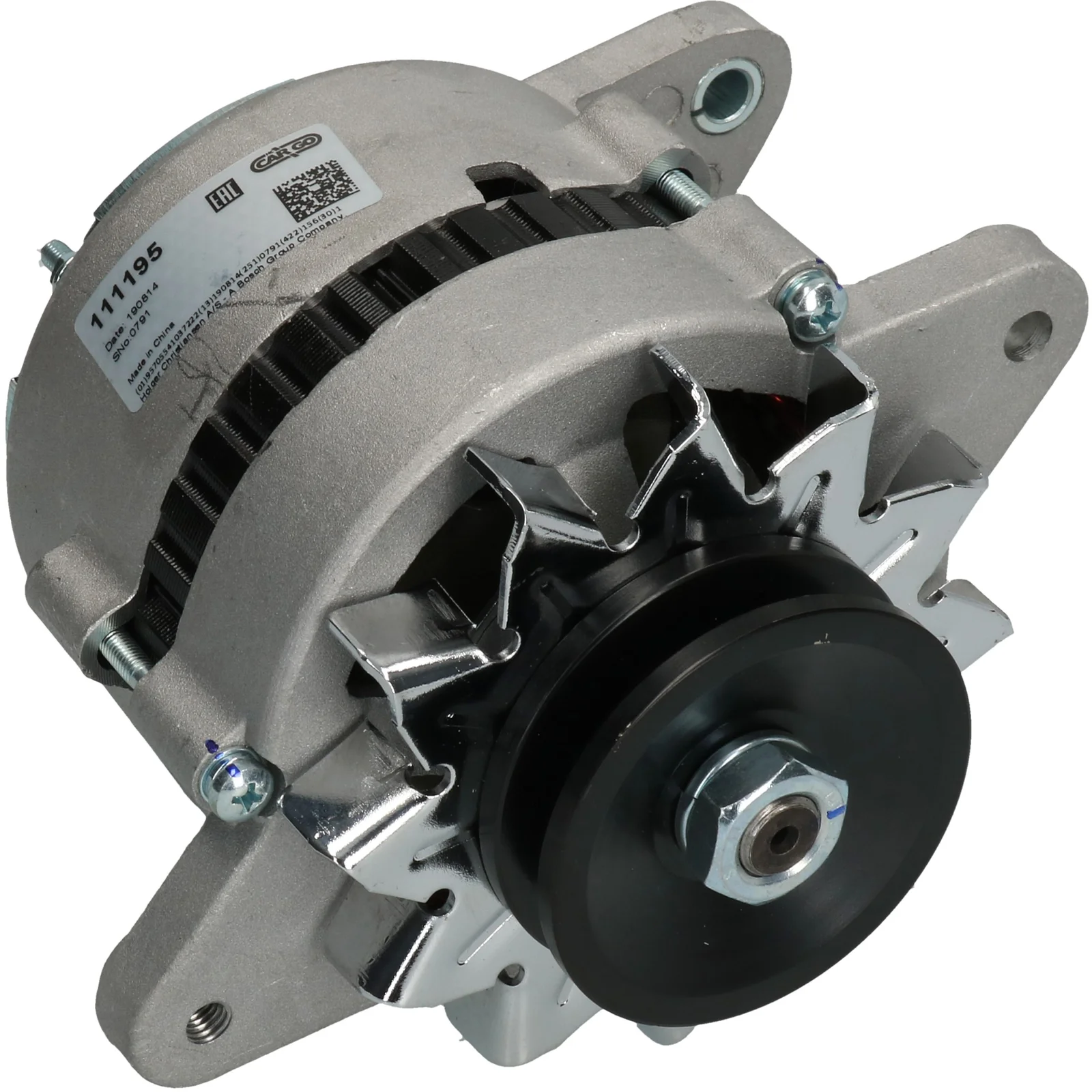

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111195

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 35, Rotation: CW, Mount. bracket dist.: 67.40

Beskrivning

Voltage: 14
Amp: 35
Pulley dist.: 43.50
Width/holder arm: 13.00
Mount. bracket dist.: 67.40
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.70
Pulley dia.: 75.00
Grooves/pulley: 1
Radius: 78.00
Radius 2: 76.00
B+: M6
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL15
Total length mm: 158.00
Pulley: P
Regulator type: ER
Prod. info: BN
Servicing: Kubota
Remarks: Regulator: HC-CARGO 130627.

Filer

Specifikation

B+ M6
Mount. bracket dist. 67.40
Belt. adj. bracket hole 1 8.70
Belt. adj. brackethole pos. 60
Plug no. PL15
Bracket hole 8.50
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 75.00
Pulley dist. 43.50
Radius 78.00
Radius 2 76.00
Regulator type ER
Remarks Regulator: HC-CARGO 130627.
Rotation CW
Servicing Kubota
Grooves/pulley 1
Voltage 14
Total length 158.00 mm
Width/holder arm 13.00
Amp 35

  • OEM
    F032111195, 15253-64010, 15253-64011, 15253-64012, 15471-64010, 15621-64010, 15621-64011, 15763-64010, 15763-64011, 15763-64012, 021000-8660, 27020-23020, 121000-0600, 121000-0980

  • Konkurrentreferens
    AND0207, 27-0595, 583.002.352, 695.002.035, 12055, 12068, 12068N, 32118806

  • Normaliserat artikelnummer
    and0207, f032111195, 12055, 12068, 12068n, 270595, 32118806, 0210008660, 583002352, 695002035, 1210000600, 1210000980, 1525364010, 1525364011, 1525364012, 1547164010, 1562164010, 1562164011, 1576364010, 1576364011, 1576364012, 2702023020

  • Passar modeller
    Kubota Model: Engine Model series: Engine Brand of engine: D1302 From date: 01-01-1986 Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: D1402 From date: 01-01-1979 Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: S2600 Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: S2800 Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 35
    Pulley dist.: 43.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 67.40
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.70
    Pulley dia.: 75.00
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 76.00
    B+: M6
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL15
    Total length mm: 158.00
    Pulley: P
    Regulator type: ER
    Prod. info: BN
    Servicing: Kubota
    Remarks: Regulator: HC-CARGO 130627.

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 67.40
    Belt. adj. bracket hole 1 8.70
    Belt. adj. brackethole pos. 60
    Plug no. PL15
    Bracket hole 8.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 75.00
    Pulley dist. 43.50
    Radius 78.00
    Radius 2 76.00
    Regulator type ER
    Remarks Regulator: HC-CARGO 130627.
    Rotation CW
    Servicing Kubota
    Grooves/pulley 1
    Voltage 14
    Total length 158.00 mm
    Width/holder arm 13.00
    Amp 35
  • Fordonsmatchning

    • OEM
      F032111195, 15253-64010, 15253-64011, 15253-64012, 15471-64010, 15621-64010, 15621-64011, 15763-64010, 15763-64011, 15763-64012, 021000-8660, 27020-23020, 121000-0600, 121000-0980

    • Konkurrentreferens
      AND0207, 27-0595, 583.002.352, 695.002.035, 12055, 12068, 12068N, 32118806

    • Normaliserat artikelnummer
      and0207, f032111195, 12055, 12068, 12068n, 270595, 32118806, 0210008660, 583002352, 695002035, 1210000600, 1210000980, 1525364010, 1525364011, 1525364012, 1547164010, 1562164010, 1562164011, 1576364010, 1576364011, 1576364012, 2702023020

    • Passar modeller
      Kubota Model: Engine Model series: Engine Brand of engine: D1302 From date: 01-01-1986 Fuel: Diesel Approved: Yes
      Kubota Model: Engine Model series: Engine Brand of engine: D1402 From date: 01-01-1979 Fuel: Diesel Approved: Yes
      Kubota Model: Engine Model series: Engine Brand of engine: S2600 Approved: Yes
      Kubota Model: Engine Model series: Engine Brand of engine: S2800 Approved: Yes
