Artikelnr: F032111018

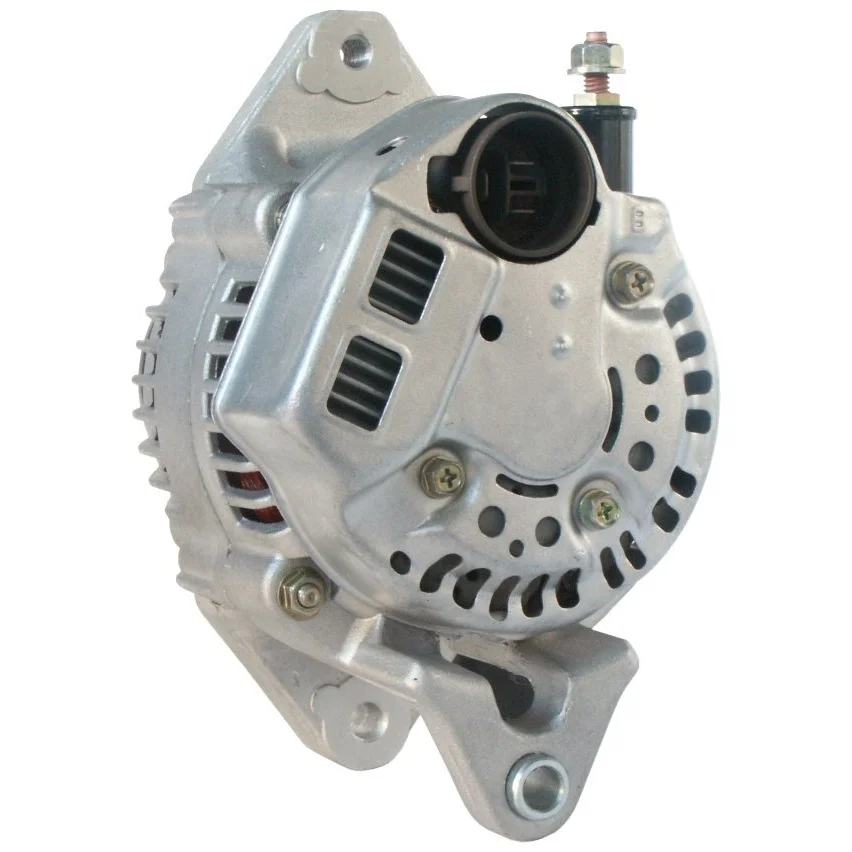

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 50, Rotation: CW, Mount. bracket dist.: 67.00

Beskrivning

Voltage: 14
Amp: 50
Pulley dist.: 44.00
Width/holder arm: 20.00
Mount. bracket dist.: 67.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 74.20
Grooves/pulley: 1
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 156.50
Pulley: P
Fan: IF
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Filer

Specifikation

B+ M6
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL12
Bracket hole 8.50
Position/B+ in min. 3
Prod. info BN
Pulley P
Pulley dia. 74.20
Pulley dist. 44.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing Toyota
Fan IF
Grooves/pulley 1
Voltage 14
Total length 156.50 mm
Width/holder arm 20.00
Amp 50

  • OEM
    F032111018, ja1170ir, 27060-76305, 27060-78305, 27060-78305-71, 27070-23001-71, 100211-6930, 100211-6931, 100211-6960, 100211-6961, 100211-6970, 100211-6971

  • Konkurrentreferens
    A6648S, ALT-5094, ALT5094, aza-416, CAL40202, CAL40203, F042302068, F042A02068, LRA01697, LRA01934, 1-2439-01ND, 8el737225-001, 28-2939, 28-3824, 535.110.402, 535.110.502, 5642, 12183, 12184, 12184N, 12185, 12185N, 56255, 401170RI, 12060575

  • Normaliserat artikelnummer
    a6648s, alt5094, aza416, cal40202, cal40203, f032111018, f042302068, f042a02068, ja1170ir, lra01697, lra01934, 8el737225001, 5642, 12183, 12184, 12184n, 12185, 12185n, 56255, 282939, 283824, 401170ri, 1243901nd, 12060575, 535110402, 535110502, 1002116930, 1002116931, 1002116960, 1002116961, 1002116970, 1002116971, 2706076305, 2706078305, 270607830571, 270702300171

  • Passar modeller
    Toyota Model: 5FD Model series: 5FD40 From date: 01-01-1988 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG23 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG25 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
    Toyota Model: 5FG Model series: 5FG35 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG38 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG40 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FG45 From date: 01-01-1990 Approved: Yes
    Toyota Model: 5FG Model series: 5FG60 From date: 01-01-1990 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL20 From date: 01-01-1989 Approved: Yes
    Toyota Model: 5FG Model series: 5FGL23 From date: 01-01-1989 Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 50
    Pulley dist.: 44.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 67.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 74.20
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 156.50
    Pulley: P
    Fan: IF
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL12
    Bracket hole 8.50
    Position/B+ in min. 3
    Prod. info BN
    Pulley P
    Pulley dia. 74.20
    Pulley dist. 44.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Fan IF
    Grooves/pulley 1
    Voltage 14
    Total length 156.50 mm
    Width/holder arm 20.00
    Amp 50
  • Fordonsmatchning

    • OEM
      F032111018, ja1170ir, 27060-76305, 27060-78305, 27060-78305-71, 27070-23001-71, 100211-6930, 100211-6931, 100211-6960, 100211-6961, 100211-6970, 100211-6971

    • Konkurrentreferens
      A6648S, ALT-5094, ALT5094, aza-416, CAL40202, CAL40203, F042302068, F042A02068, LRA01697, LRA01934, 1-2439-01ND, 8el737225-001, 28-2939, 28-3824, 535.110.402, 535.110.502, 5642, 12183, 12184, 12184N, 12185, 12185N, 56255, 401170RI, 12060575

    • Normaliserat artikelnummer
      a6648s, alt5094, aza416, cal40202, cal40203, f032111018, f042302068, f042a02068, ja1170ir, lra01697, lra01934, 8el737225001, 5642, 12183, 12184, 12184n, 12185, 12185n, 56255, 282939, 283824, 401170ri, 1243901nd, 12060575, 535110402, 535110502, 1002116930, 1002116931, 1002116960, 1002116961, 1002116970, 1002116971, 2706076305, 2706078305, 270607830571, 270702300171

    • Passar modeller
      Toyota Model: 5FD Model series: 5FD40 From date: 01-01-1988 To date: 01-01-1993 Approved: Yes
      Toyota Model: 5FG Model series: 5FG20 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG23 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
      Toyota Model: 5FG Model series: 5FG25 From date: 01-01-1989 To date: 01-01-1993 Approved: Yes
      Toyota Model: 5FG Model series: 5FG35 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG38 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG40 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FG45 From date: 01-01-1990 Approved: Yes
      Toyota Model: 5FG Model series: 5FG60 From date: 01-01-1990 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL20 From date: 01-01-1989 Approved: Yes
      Toyota Model: 5FG Model series: 5FGL23 From date: 01-01-1989 Approved: Yes
