Artikelnr: F032110986

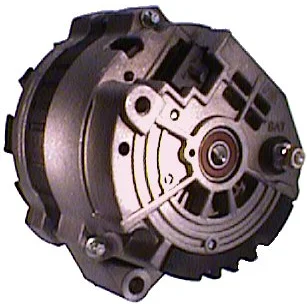

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100/105, Rotation: CW, Pulley dia.: 55.70

Beskrivning

Voltage: 14
Amp: 100/105
Pulley dist.: 73.00
Width/holder arm: 50.80
Bracket hole: 10.20
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 55.70
Grooves/pulley: 6
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL24
Total length mm: 174.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Jeep
Remarks: Replacing: CS130.

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 50
Plug no. PL24
Bracket hole 10.20
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 55.70
Pulley dist. 73.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Remarks Replacing: CS130.
Rotation CW
Servicing Jeep
Grooves/pulley 6
Voltage 14
Total length 174.00 mm
Width/holder arm 50.80
Amp 100/105

  • OEM
    F032110986, JR775126, ua923ir, 1101167, 1101170, 10463035, 10463036, 10463037, 10463041, 53002898

  • Konkurrentreferens
    AL653X, ALT-1315C, ALT1315C, ALT40020, CAL60100, drz0109, F042300105, F042A00105, LRA01525, LRA02090, 1-1645-31DR, 1-1646-31DR, 8el730139-001, 20-170-30, 20-170-31, 20-170-31-1, 28-2604, 28-4530, 570.002.1002, 570.102.1002, 570.102.852, 835.049.100, 5495, 7873, 7897-11, 7902-11, 7902N, 7902R, 56257, 56356, 9090036, 12090014, 32118508

  • Normaliserat artikelnummer
    al653x, alt1315c, alt40020, cal60100, drz0109, f032110986, f042300105, f042a00105, jr775126, lra01525, lra02090, ua923ir, 8el730139001, 5495, 7873, 7902n, 7902r, 56257, 56356, 282604, 284530, 789711, 790211, 1101167, 1101170, 1164531dr, 1164631dr, 2017030, 2017031, 9090036, 10463035, 10463036, 10463037, 10463041, 12090014, 20170311, 32118508, 53002898, 570102852, 835049100, 5700021002, 5701021002

  • Passar modeller
    Jeep Model: Cherokee Model series: Cherokee Model type: Chief Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Limited Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Limited Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Sport Size of motor: 4.0 From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 Type description: XJ From date: 01-10-1986 To date: 01-09-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 4.0 Brand of engine: ERH Type description: XJ From date: 01-01-1988 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Chief Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Eliminator Size of motor: 4.0 From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Eliminator Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Laredo Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: Limited Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: Limited Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 100/105
    Pulley dist.: 73.00
    Width/holder arm: 50.80
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 55.70
    Grooves/pulley: 6
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL24
    Total length mm: 174.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Jeep
    Remarks: Replacing: CS130.

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 50
    Plug no. PL24
    Bracket hole 10.20
    Position/B+ in min. 15
    Prod. info BN
    Pulley SP
    Pulley dia. 55.70
    Pulley dist. 73.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Remarks Replacing: CS130.
    Rotation CW
    Servicing Jeep
    Grooves/pulley 6
    Voltage 14
    Total length 174.00 mm
    Width/holder arm 50.80
    Amp 100/105
  • Fordonsmatchning

    • OEM
      F032110986, JR775126, ua923ir, 1101167, 1101170, 10463035, 10463036, 10463037, 10463041, 53002898

    • Konkurrentreferens
      AL653X, ALT-1315C, ALT1315C, ALT40020, CAL60100, drz0109, F042300105, F042A00105, LRA01525, LRA02090, 1-1645-31DR, 1-1646-31DR, 8el730139-001, 20-170-30, 20-170-31, 20-170-31-1, 28-2604, 28-4530, 570.002.1002, 570.102.1002, 570.102.852, 835.049.100, 5495, 7873, 7897-11, 7902-11, 7902N, 7902R, 56257, 56356, 9090036, 12090014, 32118508

    • Normaliserat artikelnummer
      al653x, alt1315c, alt40020, cal60100, drz0109, f032110986, f042300105, f042a00105, jr775126, lra01525, lra02090, ua923ir, 8el730139001, 5495, 7873, 7902n, 7902r, 56257, 56356, 282604, 284530, 789711, 790211, 1101167, 1101170, 1164531dr, 1164631dr, 2017030, 2017031, 9090036, 10463035, 10463036, 10463037, 10463041, 12090014, 20170311, 32118508, 53002898, 570102852, 835049100, 5700021002, 5701021002

    • Passar modeller
      Jeep Model: Cherokee Model series: Cherokee Model type: Chief Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Limited Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Limited Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Sport Size of motor: 4.0 From date: 01-01-1990 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 4.0 Type description: XJ From date: 01-10-1986 To date: 01-09-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 4.0 Brand of engine: ERH Type description: XJ From date: 01-01-1988 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Chief Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Eliminator Size of motor: 4.0 From date: 01-01-1988 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Eliminator Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Laredo Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Wagoneer Model series: Wagoneer Model type: Limited Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Wagoneer Model series: Wagoneer Model type: Limited Size of motor: 4.0 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Wagoneer Model series: Wagoneer Size of motor: 4.0 From date: 01-01-1987 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
      1 / 5
