Artikelnr: F032110976

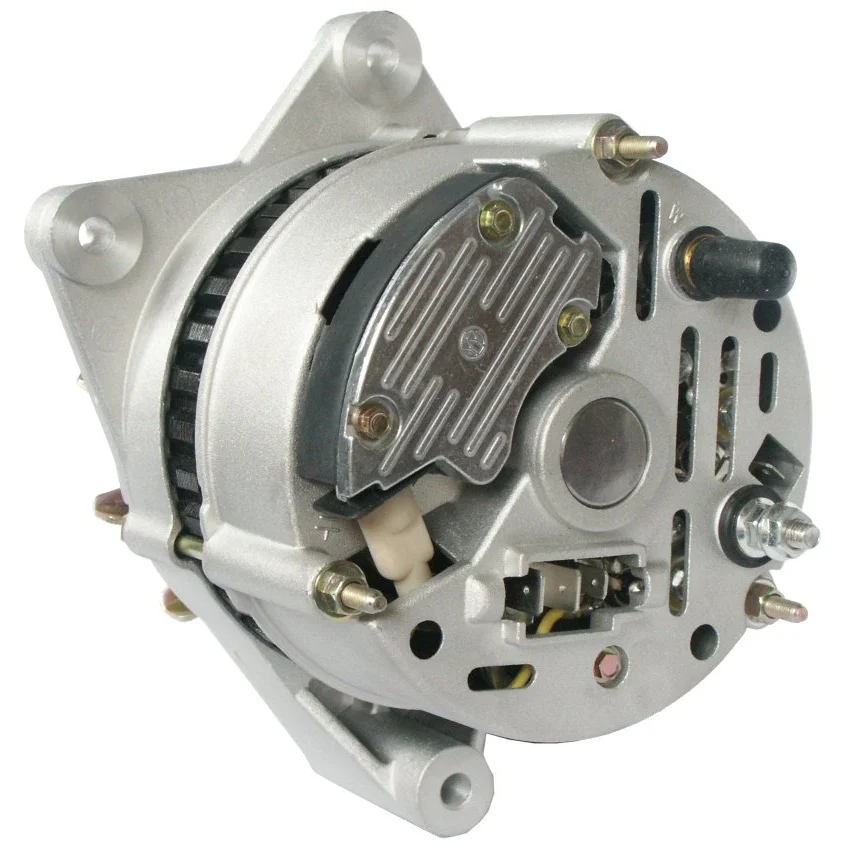

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 65, Rotation: CW, Radius: 85.00

Beskrivning

Voltage: 14
Amp: 65
Terminal: W
Width/holder arm: 56.00
Bracket hole: 8.30
Belt. adj. brackethole pos.: 50
Belt. adj. brackethole pos. 3: 10
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 8.30
Belt. adj. bracket hole 2: 8.30
Belt. adj. bracket hole 3: 8.30
Grooves/pulley: 1
Radius: 85.00
Radius 2: 86.50
Radius 3: 86.00
Radius 4: 86.50
B+: M6
Position/B+ in min.: 22
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 168.00
Pulley: P
Regulator type: IR
Prod. info: BN
Info: Not Insulated return
Remarks: w/ mounting bearing bracket for left and right engine side. Universal Alternator.

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.30
Belt. adj. bracket hole 2 8.30
Belt. adj. bracket hole 3 8.30
Belt. adj. brackethole pos. 50
Belt. adj. brackethole pos. 2 60
Belt. adj. brackethole pos. 3 10
Plug no. PL22
Bracket hole 8.30
Position/B+ in min. 22
Prod. info BN
Pulley P
Radius 85.00
D+ Size Plug
Radius 2 86.50
Radius 3 86.00
Radius 4 86.50
Regulator type IR
Remarks w/ mounting bearing bracket for left and right engine side. Universal Alternator.
Rotation CW
Grooves/pulley 1
Terminal W
Info Not Insulated return
Voltage 14
W plug type M5
Total length 168.00 mm
Width/holder arm 56.00
Amp 65

  • OEM
    F032110976, nab902, nab904

  • Konkurrentreferens
    CAL11122, 8el737672-001, 8el737698-001, 635.014.070, 5774, 5790, 12746N-OE, 301467RI, 301479RI, 66021153, 66021160, 66021485

  • Normaliserat artikelnummer
    cal11122, f032110976, nab902, nab904, 8el737672001, 8el737698001, 5774, 5790, 12746noe, 301467ri, 301479ri, 66021153, 66021160, 66021485, 635014070

  • Passar modeller
    Various Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 65
    Terminal: W
    Width/holder arm: 56.00
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 50
    Belt. adj. brackethole pos. 3: 10
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 8.30
    Belt. adj. bracket hole 2: 8.30
    Belt. adj. bracket hole 3: 8.30
    Grooves/pulley: 1
    Radius: 85.00
    Radius 2: 86.50
    Radius 3: 86.00
    Radius 4: 86.50
    B+: M6
    Position/B+ in min.: 22
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 168.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Info: Not Insulated return
    Remarks: w/ mounting bearing bracket for left and right engine side. Universal Alternator.

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 8.30
    Belt. adj. bracket hole 2 8.30
    Belt. adj. bracket hole 3 8.30
    Belt. adj. brackethole pos. 50
    Belt. adj. brackethole pos. 2 60
    Belt. adj. brackethole pos. 3 10
    Plug no. PL22
    Bracket hole 8.30
    Position/B+ in min. 22
    Prod. info BN
    Pulley P
    Radius 85.00
    D+ Size Plug
    Radius 2 86.50
    Radius 3 86.00
    Radius 4 86.50
    Regulator type IR
    Remarks w/ mounting bearing bracket for left and right engine side. Universal Alternator.
    Rotation CW
    Grooves/pulley 1
    Terminal W
    Info Not Insulated return
    Voltage 14
    W plug type M5
    Total length 168.00 mm
    Width/holder arm 56.00
    Amp 65
  • Fordonsmatchning

    • OEM
      F032110976, nab902, nab904

    • Konkurrentreferens
      CAL11122, 8el737672-001, 8el737698-001, 635.014.070, 5774, 5790, 12746N-OE, 301467RI, 301479RI, 66021153, 66021160, 66021485

    • Normaliserat artikelnummer
      cal11122, f032110976, nab902, nab904, 8el737672001, 8el737698001, 5774, 5790, 12746noe, 301467ri, 301479ri, 66021153, 66021160, 66021485, 635014070

    • Passar modeller
      Various Model: Various Models Model series: Various Models Approved: Yes
