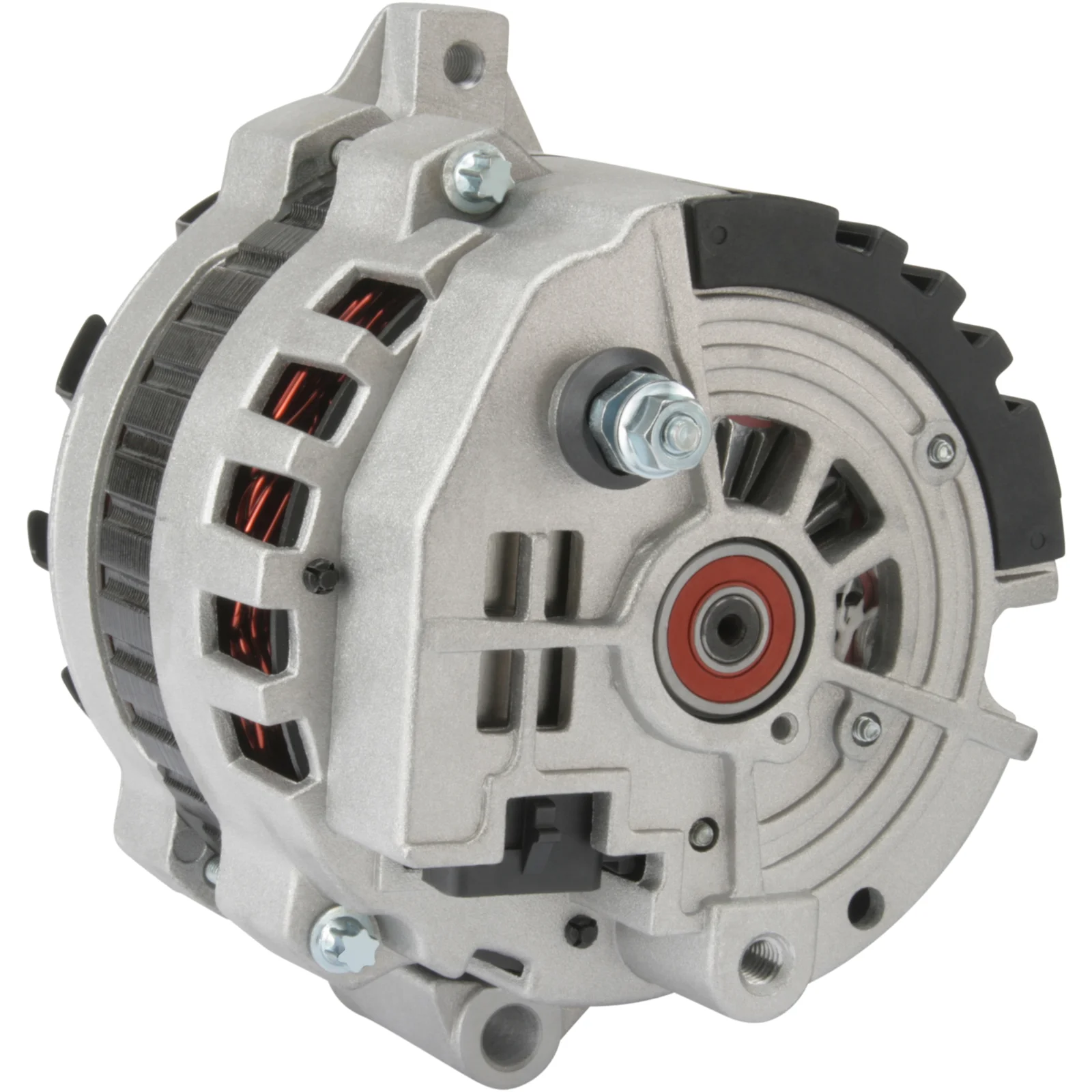

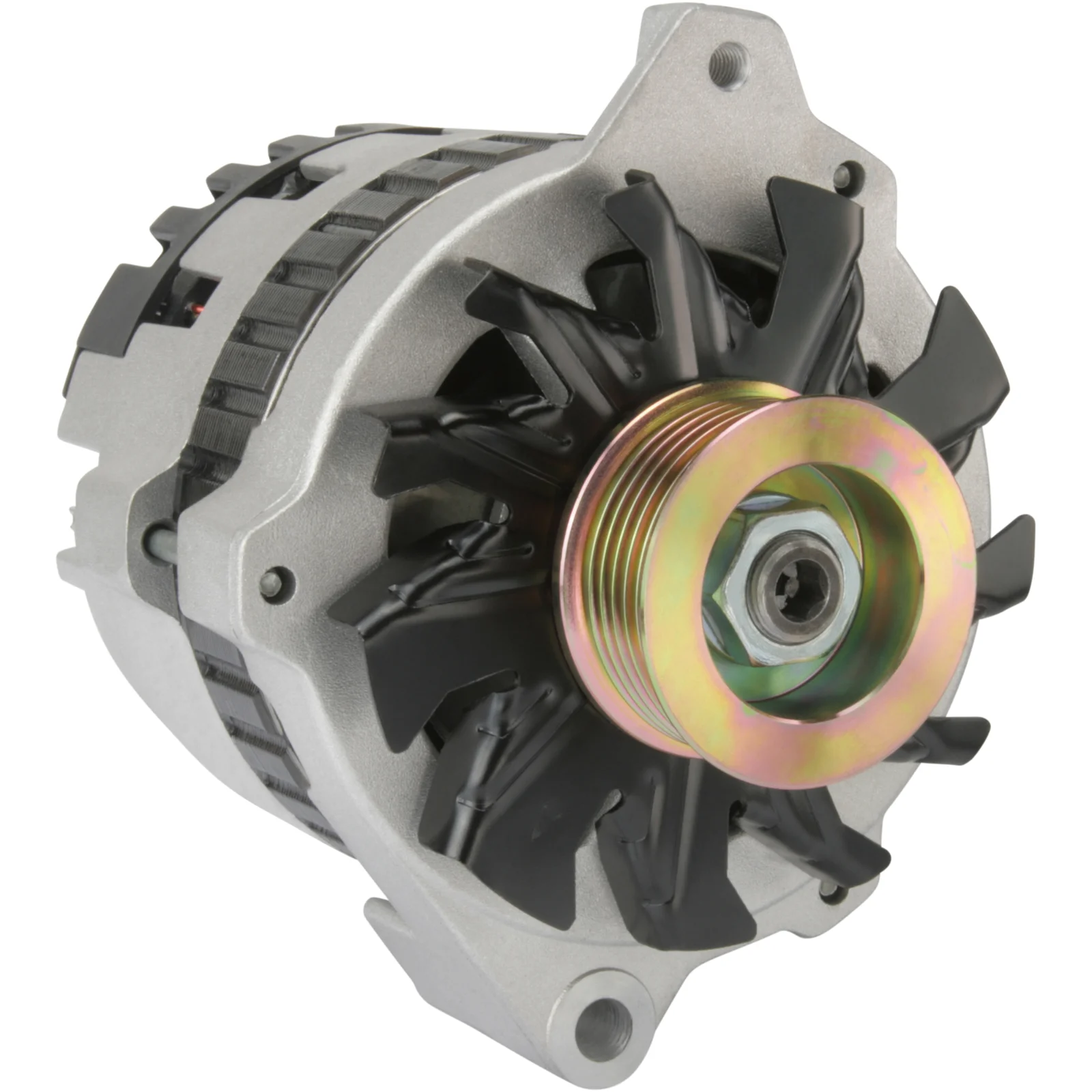

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032110724

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Radius: 77.00

Beskrivning

Voltage: 14
Amp: 60
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Radius: 77.00
Radius 2: 77.00
B+: M6
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL24
Total length mm: 169.00
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Buick
Remarks: Replacing: CS121.

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL24
Bracket hole 10.00
Position/B+ in min. 50
Prod. info BN
Pulley w/o
Radius 77.00
D+ Size Plug
Radius 2 77.00
Regulator type IR
Remarks Replacing: CS121.
Rotation CW
Servicing Buick
Voltage 14
Total length 169.00 mm
Width/holder arm 51.00
Amp 60

  • OEM
    F032110724, ua947ir, 321-409, 1101176, 1101291, 1101483, 1102615, 3062436, 10463118, 10465016, 10479916, 53350906

  • Konkurrentreferens
    a1785-7, adr0048, AL8605X, ALT-1612, ALT22021, BAO3161, CAL60112, da00184-7, drz0133, F042304008, F042A04008, LRA01651, 1-1668-22dr, 1-1707-12DR, 1-2032-20DR, 8el730163-001, 20-173-11-9, 20-173-21, 20-173-21-9, 28-2855, 29-1398, 90-01-4053, 90-01-4053n, 528.109.612, 528.109.742, 528.110.802, 835.044.074, 5519, 7233, 7288-12R, 7801-11N, 7801-7N, 7801-7R, 7817-3, 7937-7, 7938-7, 20409, 50947RI, 32992868

  • Normaliserat artikelnummer
    a17857, adr0048, al8605x, alt1612, alt22021, bao3161, cal60112, da001847, drz0133, f032110724, f042304008, f042a04008, lra01651, ua947ir, 8el730163001, 5519, 7233, 20409, 50947ri, 78017n, 78017r, 78173, 79377, 79387, 282855, 291398, 321409, 728812r, 780111n, 1101176, 1101291, 1101483, 1102615, 1166822dr, 1170712dr, 1203220dr, 2017321, 3062436, 10463118, 10465016, 10479916, 20173119, 20173219, 32992868, 53350906, 90014053, 90014053n, 528109612, 528109742, 528110802, 835044074

  • Passar modeller
    Buick Model: Skyhawk Model series: Skyhawk Size of motor: 2.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Buick Model: Skyhawk Model series: Skyhawk Size of motor: 2.0 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Buick Model: Skylark Model series: Skylark Coupe Size of motor: 3.3 Brand of engine: LG7 Body: Coupe From date: 01-09-1991 To date: 01-12-1993 Fuel: Petrol Approved: Yes
    Buick Model: Skylark Model series: Skylark Model type: Custom Size of motor: 3.3 From date: 01-01-1989 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Buick Model: Skylark Model series: Skylark Model type: Limited Size of motor: 3.3 From date: 01-01-1989 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Buick Model: Skylark Model series: Skylark Model type: Luxury Edition Size of motor: 3.3 From date: 01-01-1990 To date: 01-01-1991 Fuel: Gasoline Approved: Yes
    Buick Model: Skylark Model series: Skylark Size of motor: 3.3 Brand of engine: LG7 Body: Saloon From date: 01-09-1991 To date: 01-12-1993 Fuel: Petrol Approved: Yes
    Buick Model: Skylark Model series: Skylark Size of motor: 3.3 From date: 01-01-1991 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
    Buick Model: Skylark Model series: Skylark Type of engine: V6 Size of motor: 3.3 Brand of engine: LG7 Type description: N From date: 01-09-1989 To date: 01-12-1991 Fuel: Gasoline Approved: Yes
    Buick Model: Somerset Model series: Somerset Model type: Limited Size of motor: 3.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Chief Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Chief Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Laredo Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Jeep Model: Comanche Model series: Comanche Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 14
    Amp: 60
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Radius: 77.00
    Radius 2: 77.00
    B+: M6
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL24
    Total length mm: 169.00
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: Buick
    Remarks: Replacing: CS121.

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL24
    Bracket hole 10.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley w/o
    Radius 77.00
    D+ Size Plug
    Radius 2 77.00
    Regulator type IR
    Remarks Replacing: CS121.
    Rotation CW
    Servicing Buick
    Voltage 14
    Total length 169.00 mm
    Width/holder arm 51.00
    Amp 60
  • Fordonsmatchning

    • OEM
      F032110724, ua947ir, 321-409, 1101176, 1101291, 1101483, 1102615, 3062436, 10463118, 10465016, 10479916, 53350906

    • Konkurrentreferens
      a1785-7, adr0048, AL8605X, ALT-1612, ALT22021, BAO3161, CAL60112, da00184-7, drz0133, F042304008, F042A04008, LRA01651, 1-1668-22dr, 1-1707-12DR, 1-2032-20DR, 8el730163-001, 20-173-11-9, 20-173-21, 20-173-21-9, 28-2855, 29-1398, 90-01-4053, 90-01-4053n, 528.109.612, 528.109.742, 528.110.802, 835.044.074, 5519, 7233, 7288-12R, 7801-11N, 7801-7N, 7801-7R, 7817-3, 7937-7, 7938-7, 20409, 50947RI, 32992868

    • Normaliserat artikelnummer
      a17857, adr0048, al8605x, alt1612, alt22021, bao3161, cal60112, da001847, drz0133, f032110724, f042304008, f042a04008, lra01651, ua947ir, 8el730163001, 5519, 7233, 20409, 50947ri, 78017n, 78017r, 78173, 79377, 79387, 282855, 291398, 321409, 728812r, 780111n, 1101176, 1101291, 1101483, 1102615, 1166822dr, 1170712dr, 1203220dr, 2017321, 3062436, 10463118, 10465016, 10479916, 20173119, 20173219, 32992868, 53350906, 90014053, 90014053n, 528109612, 528109742, 528110802, 835044074

    • Passar modeller
      Buick Model: Skyhawk Model series: Skyhawk Size of motor: 2.0 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Buick Model: Skyhawk Model series: Skyhawk Size of motor: 2.0 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Buick Model: Skylark Model series: Skylark Coupe Size of motor: 3.3 Brand of engine: LG7 Body: Coupe From date: 01-09-1991 To date: 01-12-1993 Fuel: Petrol Approved: Yes
      Buick Model: Skylark Model series: Skylark Model type: Custom Size of motor: 3.3 From date: 01-01-1989 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Buick Model: Skylark Model series: Skylark Model type: Limited Size of motor: 3.3 From date: 01-01-1989 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Buick Model: Skylark Model series: Skylark Model type: Luxury Edition Size of motor: 3.3 From date: 01-01-1990 To date: 01-01-1991 Fuel: Gasoline Approved: Yes
      Buick Model: Skylark Model series: Skylark Size of motor: 3.3 Brand of engine: LG7 Body: Saloon From date: 01-09-1991 To date: 01-12-1993 Fuel: Petrol Approved: Yes
      Buick Model: Skylark Model series: Skylark Size of motor: 3.3 From date: 01-01-1991 To date: 01-01-1992 Fuel: Gasoline Approved: Yes
      Buick Model: Skylark Model series: Skylark Type of engine: V6 Size of motor: 3.3 Brand of engine: LG7 Type description: N From date: 01-09-1989 To date: 01-12-1991 Fuel: Gasoline Approved: Yes
      Buick Model: Somerset Model series: Somerset Model type: Limited Size of motor: 3.0 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Chief Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Laredo Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: Pioneer Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Chief Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Laredo Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Model type: Pioneer Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Size of motor: 2.5 From date: 01-01-1987 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Jeep Model: Comanche Model series: Comanche Size of motor: 2.5 From date: 01-01-1989 To date: 01-01-1990 Fuel: Gasoline Approved: Yes
      1 / 5
