Artikelnr: F032110701

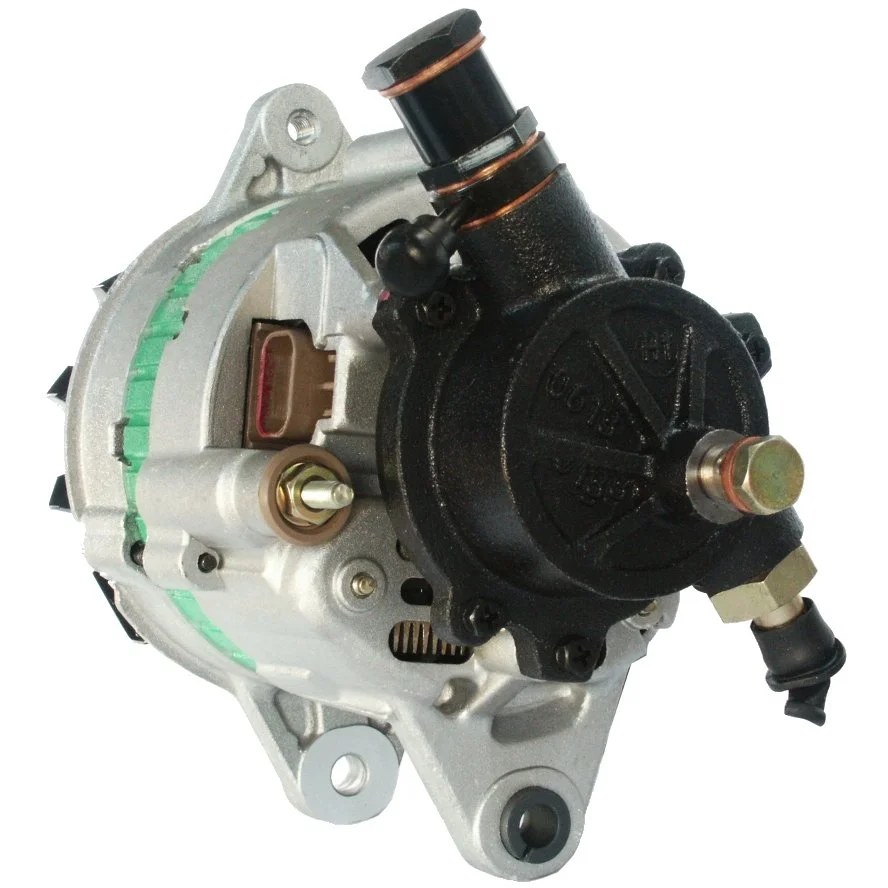

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 50, Rotation: CW, Mount. bracket dist.: 80.50

Beskrivning

Voltage: 14
Amp: 50
Pulley dist.: 41.80
Width/holder arm: 13.30
Mount. bracket dist.: 80.50
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 86.00
Grooves/pulley: 2
Radius: 88.50
Radius 2: 84.00
B+: M6
Position/B+ in min.: 43
Rotation: CW
Plug no.: PL07
Total length mm: 258.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.40
Position/B+ in min. 43
Prod. info BN
Pulley DP
Pulley dia. 86.00
Pulley dist. 41.80
Radius 88.50
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 258.00 mm
Width/holder arm 13.30
Amp 50

  • OEM
    F032110701, ja185ir, lr150-430, lr150-430c, lr150-430s, lr150-430t, lr150-435, lr150-435s, lr150-435t, 23100-02n12, 23100-02n16, 23100-02n20, 23100-11t10, 23100-11t13

  • Konkurrentreferens
    ALTV036, CAL20112, dra3215, DRA3215N, LRA02614, lrb00342, MG491, QA1922, 8el726330-001, 28-1500, 28-1940, 28-51.143, 227.112.502, 227.140.502, 3391, 22296R, 40185RI, 56433, 56448, 111077, 119107, 210135, 210135A, 437777, 9051160, 12060275, 20404080, 0986038501, 943354024010, 944390511600

  • Normaliserat artikelnummer
    altv036, cal20112, dra3215, dra3215n, f032110701, ja185ir, lr150430, lr150430c, lr150430s, lr150430t, lr150435, lr150435s, lr150435t, lra02614, lrb00342, mg491, qa1922, 8el726330001, 3391, 22296r, 40185ri, 56433, 56448, 111077, 119107, 210135, 210135a, 281500, 281940, 437777, 2310002n12, 2310002n16, 2310002n20, 2310011t10, 2310011t13, 2851143, 9051160, 12060275, 20404080, 227112502, 227140502, 0986038501, 943354024010, 944390511600

  • Passar modeller
    Nissan Model: Cabstar Model series: Cabstar Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: F23, H41, H42 Body: Platform / Chassis From date: 01-07-1992 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    Nissan Model: King Van Model series: King Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 From date: 01-11-1986 To date: 01-03-1989 Fuel: Diesel Approved: Yes
    Nissan Model: King Van Model series: King Van Type of engine: TD Size of motor: 2.5 Brand of engine: TD25 Type description: E24 From date: 01-12-1988 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 Body: Van From date: 01-01-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24 Body: Van From date: 01-12-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24L Body: Bus From date: 01-05-1989 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 50
    Pulley dist.: 41.80
    Width/holder arm: 13.30
    Mount. bracket dist.: 80.50
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 86.00
    Grooves/pulley: 2
    Radius: 88.50
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 43
    Rotation: CW
    Plug no.: PL07
    Total length mm: 258.00
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Nissan

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.40
    Position/B+ in min. 43
    Prod. info BN
    Pulley DP
    Pulley dia. 86.00
    Pulley dist. 41.80
    Radius 88.50
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 258.00 mm
    Width/holder arm 13.30
    Amp 50
  • Fordonsmatchning

    • OEM
      F032110701, ja185ir, lr150-430, lr150-430c, lr150-430s, lr150-430t, lr150-435, lr150-435s, lr150-435t, 23100-02n12, 23100-02n16, 23100-02n20, 23100-11t10, 23100-11t13

    • Konkurrentreferens
      ALTV036, CAL20112, dra3215, DRA3215N, LRA02614, lrb00342, MG491, QA1922, 8el726330-001, 28-1500, 28-1940, 28-51.143, 227.112.502, 227.140.502, 3391, 22296R, 40185RI, 56433, 56448, 111077, 119107, 210135, 210135A, 437777, 9051160, 12060275, 20404080, 0986038501, 943354024010, 944390511600

    • Normaliserat artikelnummer
      altv036, cal20112, dra3215, dra3215n, f032110701, ja185ir, lr150430, lr150430c, lr150430s, lr150430t, lr150435, lr150435s, lr150435t, lra02614, lrb00342, mg491, qa1922, 8el726330001, 3391, 22296r, 40185ri, 56433, 56448, 111077, 119107, 210135, 210135a, 281500, 281940, 437777, 2310002n12, 2310002n16, 2310002n20, 2310011t10, 2310011t13, 2851143, 9051160, 12060275, 20404080, 227112502, 227140502, 0986038501, 943354024010, 944390511600

    • Passar modeller
      Nissan Model: Cabstar Model series: Cabstar Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: F23, H41, H42 Body: Platform / Chassis From date: 01-07-1992 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      Nissan Model: King Van Model series: King Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 From date: 01-11-1986 To date: 01-03-1989 Fuel: Diesel Approved: Yes
      Nissan Model: King Van Model series: King Van Type of engine: TD Size of motor: 2.5 Brand of engine: TD25 Type description: E24 From date: 01-12-1988 To date: 01-07-1994 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: TD23 Type description: E24 Body: Van From date: 01-01-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24 Body: Van From date: 01-12-1988 To date: 01-05-1997 Fuel: Diesel Approved: Yes
      Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.5 Brand of engine: TD25 Type description: E24L Body: Bus From date: 01-05-1989 To date: 01-10-1996 Fuel: Diesel Approved: Yes
