Artikelnr: F032110621

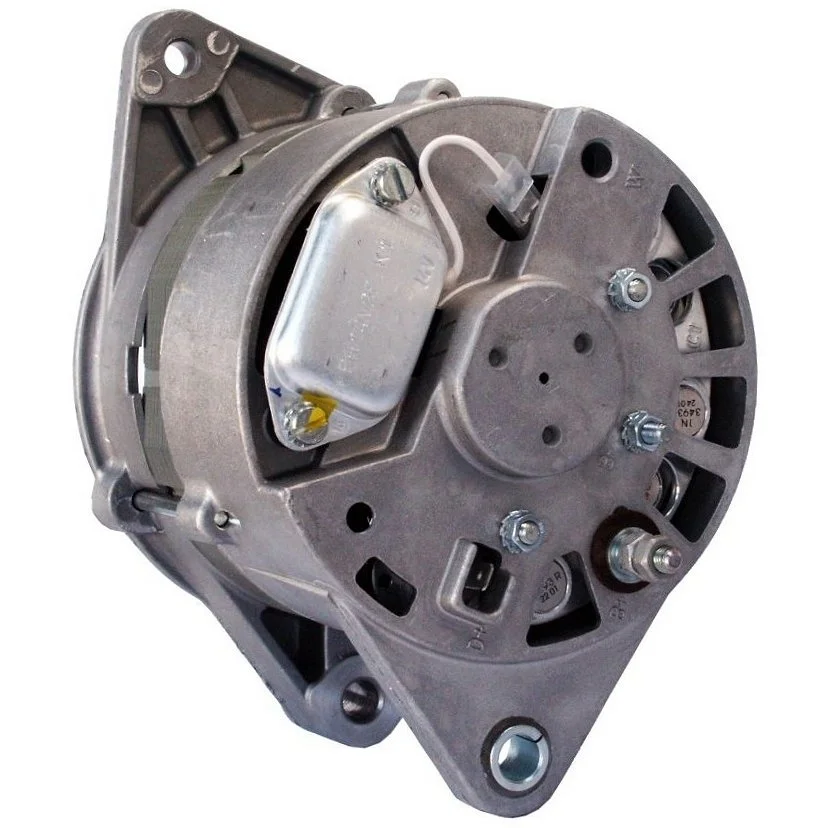

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 55, Rotation: CW, Mount. bracket dist.: 66.00

Beskrivning

Voltage: 14
Amp: 55
Pulley dist.: 52.50
Width/holder arm: 27.00
Mount. bracket dist.: 66.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 74.00
Grooves/pulley: 2
Radius: 85.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 25
D+ Size: 6.30
Rotation: CW
Total length mm: 174.00
Pulley: DP
Fan: EF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 66.00
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 5
Bracket hole 10.30
Position/B+ in min. 25
Prod. info BN
Pulley DP
Pulley dia. 74.00
Pulley dist. 52.50
Radius 85.00
D+ Size 6.30
Radius 2 90.00
Regulator type IR
Rotation CW
Fan EF
Grooves/pulley 2
Voltage 14
Total length 174.00 mm
Width/holder arm 27.00
Amp 55

  • OEM
    F032110621, 9516650, 9516653, 334113516653, 443113516650, 443113516653

  • Konkurrentreferens
    ALT31001, 2-1035-ND, 8el731721-001, 28-1957, 512.101.552, 5275, 12367, 30860RI

  • Normaliserat artikelnummer
    alt31001, f032110621, 8el731721001, 5275, 12367, 21035nd, 30860ri, 281957, 9516650, 9516653, 512101552, 334113516653, 443113516650, 443113516653

  • Passar modeller
    Chang Feng (Liebao) Model: 3300 Series Model series: 3320 From date: 01-01-1992 Approved: Yes
    Zetor Model: 10000 Series Model series: 10540 From date: 01-01-1995 Approved: Yes
    Zetor Model: 3000 Series Model series: 3320 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Zetor Model: 3000 Series Model series: 3321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 3000 Series Model series: 3340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 3000 Series Model series: 3341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 4000 Series Model series: 4320 From date: 01-01-1992 Approved: Yes
    Zetor Model: 4000 Series Model series: 4321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 4000 Series Model series: 4340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 4000 Series Model series: 4341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 5000 Series Model series: 5211 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Zetor Model: 5000 Series Model series: 5245 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Zetor Model: 5000 Series Model series: 5320 From date: 01-01-1992 Approved: Yes
    Zetor Model: 5000 Series Model series: 5321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 5000 Series Model series: 5340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 5000 Series Model series: 5341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 6000 Series Model series: 6211 Fuel: Diesel Approved: Yes
    Zetor Model: 6000 Series Model series: 6245 Fuel: Diesel Approved: Yes
    Zetor Model: 6000 Series Model series: 6320 From date: 01-01-1992 Approved: Yes
    Zetor Model: 6000 Series Model series: 6321 From date: 01-01-1997 Approved: Yes
    Zetor Model: 6000 Series Model series: 6340 From date: 01-01-1992 Approved: Yes
    Zetor Model: 6000 Series Model series: 6341 From date: 01-01-1997 Approved: Yes
    Zetor Model: 7000 Series Model series: 7211 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7245 Size of motor: 3.6 From date: 01-01-1984 To date: 01-01-2003 Approved: Yes
    Zetor Model: 7000 Series Model series: 7320 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7321 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7340 From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7341 From date: 01-01-1997 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7520 From date: 01-01-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7540 From date: 01-01-1991 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7711 Fuel: Diesel Approved: Yes
    Zetor Model: 7000 Series Model series: 7745 Size of motor: 3.9 From date: 01-01-1988 To date: 01-01-2003 Fuel: Diesel Approved: Yes
    Zetor Model: 8000 Series Model series: 8520 From date: 01-01-1991 Fuel: Natural gas Approved: Yes
    Zetor Model: 8000 Series Model series: 8540 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    Zetor Model: 9000 Series Model series: 9520 From date: 01-01-1991 To date: 01-01-2000 Fuel: Diesel Approved: Yes
    Zetor Model: 9000 Series Model series: 9540 From date: 01-01-1991 To date: 01-01-2000 Fuel: Diesel Approved: Yes
    Zetor Model: Various Models Model series: Various Models Approved: Yes
    ZTS Tees Model: Various Models Model series: Various Models Approved: Yes
