Artikelnr: F032110620

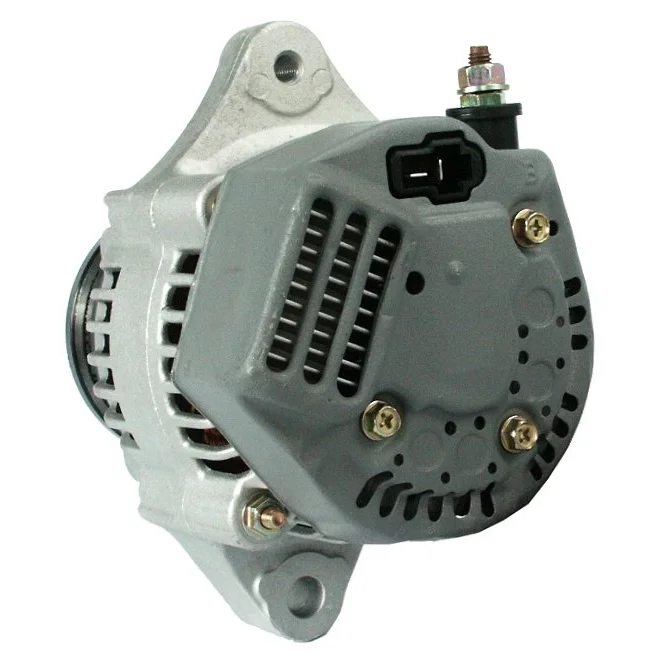

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 35, Rotation: CW, Pulley dia.: 74.70

Beskrivning

Voltage: 14
Amp: 35
Pulley dist.: 44.00
Width/holder arm: 23.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 74.70
Grooves/pulley: 1
Radius: 69.50
Radius 2: 66.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 143.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Kubota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley P
Pulley dia. 74.70
Pulley dist. 44.00
Radius 69.50
D+ Size Plug
Radius 2 66.00
Regulator type IR
Rotation CW
Servicing Kubota
Grooves/pulley 1
Voltage 14
Total length 143.00 mm
Width/holder arm 23.50
Amp 35

  • OEM
    am877740, F032110620, ja971ir, MIA884637, RE42778, re72915, 16771-64010, 16771-64012, 17580-64012, 27060-78001, 27060-78001-71, 27060-96001, 100211-1660, 100211-1661, 100211-1662, 100211-4530, 100211-4531, 100211-4700, 100211-4701, 101211-1070, 102211-5350, 119620-77201, 119620-77202, 501824

  • Konkurrentreferens
    A6022, A6022R, A6363, ALT-5305, ALT-5306, ALT30004, CAL40100, CAL40248, CAL40A12, DAN2040, dra3453, dra6641, dra7271, F042302116, F042302117, F042302165, F042A02116, F042A02165, LRA01980, LRA02615, lrb00344, 1-2119-11HD, 1-2119-11ND, 1-2335-01nd, 8el732736-001, 28-0934, 28-1503, 28-3881, 535.103.352, 985.503.040, 2212, 2335, 3204R, 5461, 12080, 12080N, 12080R, 12180, 12180-SECN, 12180-SEN, 12188, 12188N, 12188R, 12196N, 12206N, 40971RI, 119093, 554432RI, 9212976, 12060564, 0986036641

  • Normaliserat artikelnummer
    a6022, a6022r, a6363, alt30004, alt5305, alt5306, am877740, cal40100, cal40248, cal40a12, dan2040, dra3453, dra6641, dra7271, f032110620, f042302116, f042302117, f042302165, f042a02116, f042a02165, ja971ir, lra01980, lra02615, lrb00344, mia884637, re42778, re72915, 8el732736001, 2212, 2335, 3204r, 5461, 12080, 12080n, 12080r, 12180, 12180secn, 12180sen, 12188, 12188n, 12188r, 12196n, 12206n, 40971ri, 119093, 280934, 281503, 283881, 501824, 554432ri, 1211911hd, 1211911nd, 1233501nd, 9212976, 12060564, 535103352, 985503040, 0986036641, 1002111660, 1002111661, 1002111662, 1002114530, 1002114531, 1002114700, 1002114701, 1012111070, 1022115350, 1677164010, 1677164012, 1758064012, 2706078001, 2706096001, 11962077201, 11962077202, 270607800171

  • Passar modeller
    Kubota Model: Engine Model series: Engine Brand of engine: V1502 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Yanmar Model: 2TN66E 3TNA72 Model series: 2TN66E 3TNA72 From date: 01-01-1991 To date: 01-12-2005 Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 35
    Pulley dist.: 44.00
    Width/holder arm: 23.50
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 74.70
    Grooves/pulley: 1
    Radius: 69.50
    Radius 2: 66.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 143.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Kubota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info BN
    Pulley P
    Pulley dia. 74.70
    Pulley dist. 44.00
    Radius 69.50
    D+ Size Plug
    Radius 2 66.00
    Regulator type IR
    Rotation CW
    Servicing Kubota
    Grooves/pulley 1
    Voltage 14
    Total length 143.00 mm
    Width/holder arm 23.50
    Amp 35
  • Fordonsmatchning

    • OEM
      am877740, F032110620, ja971ir, MIA884637, RE42778, re72915, 16771-64010, 16771-64012, 17580-64012, 27060-78001, 27060-78001-71, 27060-96001, 100211-1660, 100211-1661, 100211-1662, 100211-4530, 100211-4531, 100211-4700, 100211-4701, 101211-1070, 102211-5350, 119620-77201, 119620-77202, 501824

    • Konkurrentreferens
      A6022, A6022R, A6363, ALT-5305, ALT-5306, ALT30004, CAL40100, CAL40248, CAL40A12, DAN2040, dra3453, dra6641, dra7271, F042302116, F042302117, F042302165, F042A02116, F042A02165, LRA01980, LRA02615, lrb00344, 1-2119-11HD, 1-2119-11ND, 1-2335-01nd, 8el732736-001, 28-0934, 28-1503, 28-3881, 535.103.352, 985.503.040, 2212, 2335, 3204R, 5461, 12080, 12080N, 12080R, 12180, 12180-SECN, 12180-SEN, 12188, 12188N, 12188R, 12196N, 12206N, 40971RI, 119093, 554432RI, 9212976, 12060564, 0986036641

    • Normaliserat artikelnummer
      a6022, a6022r, a6363, alt30004, alt5305, alt5306, am877740, cal40100, cal40248, cal40a12, dan2040, dra3453, dra6641, dra7271, f032110620, f042302116, f042302117, f042302165, f042a02116, f042a02165, ja971ir, lra01980, lra02615, lrb00344, mia884637, re42778, re72915, 8el732736001, 2212, 2335, 3204r, 5461, 12080, 12080n, 12080r, 12180, 12180secn, 12180sen, 12188, 12188n, 12188r, 12196n, 12206n, 40971ri, 119093, 280934, 281503, 283881, 501824, 554432ri, 1211911hd, 1211911nd, 1233501nd, 9212976, 12060564, 535103352, 985503040, 0986036641, 1002111660, 1002111661, 1002111662, 1002114530, 1002114531, 1002114700, 1002114701, 1012111070, 1022115350, 1677164010, 1677164012, 1758064012, 2706078001, 2706096001, 11962077201, 11962077202, 270607800171

    • Passar modeller
      Kubota Model: Engine Model series: Engine Brand of engine: V1502 Fuel: Diesel Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Yanmar Model: 2TN66E 3TNA72 Model series: 2TN66E 3TNA72 From date: 01-01-1991 To date: 01-12-2005 Approved: Yes
