Artikelnr: F032110564

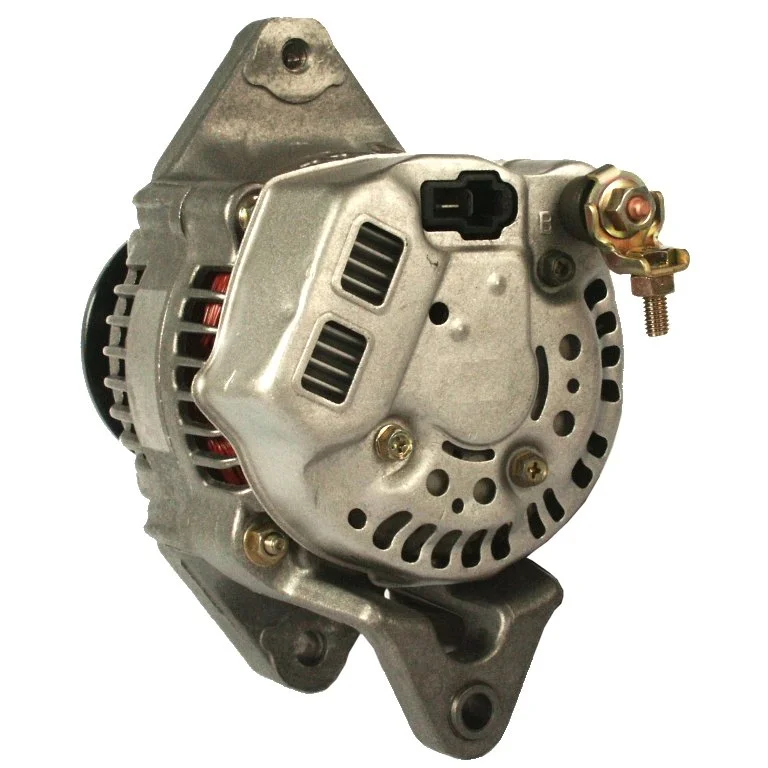

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 40, Rotation: CW, Mount. bracket dist.: 67.00

Beskrivning

Voltage: 14
Amp: 40
Pulley dist.: 48.50
Width/holder arm: 20.00
Mount. bracket dist.: 67.00
Bracket hole: 8.50
Belt. adj. bracket hole 1: M8
Pulley dia.: 75.40
Grooves/pulley: 1
Radius: 77.50
Radius 2: 76.00
B+: M6
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL10
Total length mm: 150.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Komatsu

Filer

Specifikation

B+ M6
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 M8
Plug no. PL10
Bracket hole 8.50
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 75.40
Pulley dist. 48.50
Radius 77.50
Radius 2 76.00
Regulator type IR
Rotation CW
Servicing Komatsu
Grooves/pulley 1
Voltage 14
Total length 150.50 mm
Width/holder arm 20.00
Amp 40

  • OEM
    F032110564, ja792ir, 27060-78301-71, 100211-4000, 100211-4001, 100211-4002, 100211-4003, 100211-4004

  • Konkurrentreferens
    A6020, ALT-5095, ALT30011, CAL40111, dra3449, F042302070, F042A02070, 1-1946-01ND, 8el730126-001, 28-1573, 535.109.402, 2323, 5422, 12182, 12182N, 40792RI, 9212259, 12060571

  • Normaliserat artikelnummer
    a6020, alt30011, alt5095, cal40111, dra3449, f032110564, f042302070, f042a02070, ja792ir, 8el730126001, 2323, 5422, 12182, 12182n, 40792ri, 281573, 1194601nd, 9212259, 12060571, 535109402, 1002114000, 1002114001, 1002114002, 1002114003, 1002114004, 270607830171

  • Passar modeller
    Komatsu Model: Various Models Model series: Various Models Brand of engine: Nippondenso equipped Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 40
    Pulley dist.: 48.50
    Width/holder arm: 20.00
    Mount. bracket dist.: 67.00
    Bracket hole: 8.50
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 75.40
    Grooves/pulley: 1
    Radius: 77.50
    Radius 2: 76.00
    B+: M6
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL10
    Total length mm: 150.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Komatsu

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 M8
    Plug no. PL10
    Bracket hole 8.50
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 75.40
    Pulley dist. 48.50
    Radius 77.50
    Radius 2 76.00
    Regulator type IR
    Rotation CW
    Servicing Komatsu
    Grooves/pulley 1
    Voltage 14
    Total length 150.50 mm
    Width/holder arm 20.00
    Amp 40
  • Fordonsmatchning

    • OEM
      F032110564, ja792ir, 27060-78301-71, 100211-4000, 100211-4001, 100211-4002, 100211-4003, 100211-4004

    • Konkurrentreferens
      A6020, ALT-5095, ALT30011, CAL40111, dra3449, F042302070, F042A02070, 1-1946-01ND, 8el730126-001, 28-1573, 535.109.402, 2323, 5422, 12182, 12182N, 40792RI, 9212259, 12060571

    • Normaliserat artikelnummer
      a6020, alt30011, alt5095, cal40111, dra3449, f032110564, f042302070, f042a02070, ja792ir, 8el730126001, 2323, 5422, 12182, 12182n, 40792ri, 281573, 1194601nd, 9212259, 12060571, 535109402, 1002114000, 1002114001, 1002114002, 1002114003, 1002114004, 270607830171

    • Passar modeller
      Komatsu Model: Various Models Model series: Various Models Brand of engine: Nippondenso equipped Approved: Yes
