Artikelnr: F032114186

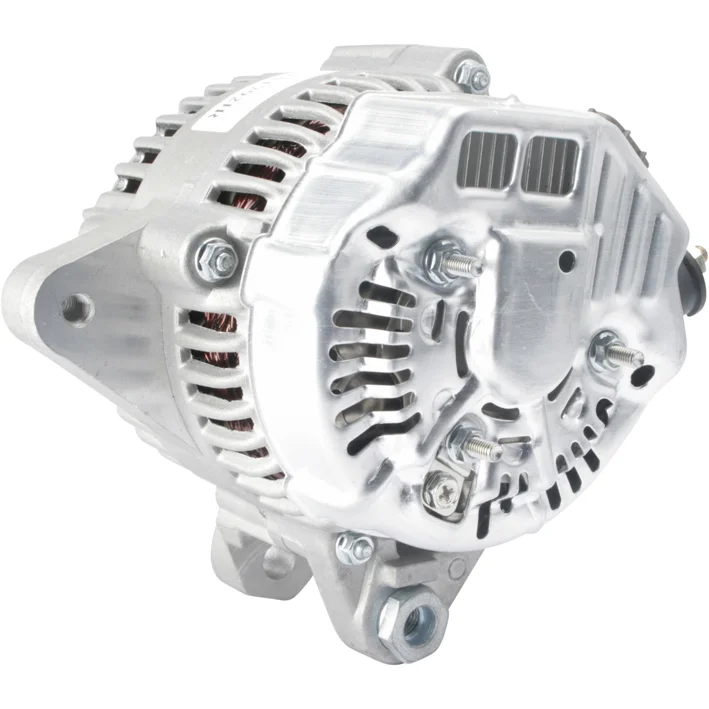

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 46.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 34.00
Width/holder arm: 17.00
Mount. bracket dist.: 46.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 84.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 170.00
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 46.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL42
Bracket hole 11.00
Position/B+ in min. 13
Pulley SP
Pulley dia. 55.00
Pulley dist. 34.00
Radius 84.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 170.00 mm
Width/holder arm 17.00
Amp 90

  • OEM
    F032114186, ja1792ir, 1986A01733, 27060-0H010, 27060-28110, 27060-28120, 27060-28170, 27060-28180, 102211-2120, 102211-2250, 102211-2380, 102211-2480

  • Konkurrentreferens
    A6102, AL3304X, ALT-H200, CAL40354, DAN951, DENDAN951, DRA4274, F042205043, F042205072, F042205106, F042A0H200, 28-4679, 235.186.902, 13957R, 13958N, 13958R, 112732, 209384, 209384A, 401792RI, 443304, 444230, 12060820, 063377434, 0986082770, 063377434010

  • Normaliserat artikelnummer
    a6102, al3304x, alth200, cal40354, dan951, dendan951, dra4274, f032114186, f042205043, f042205072, f042205106, f042a0h200, ja1792ir, 1986a01733, 13957r, 13958n, 13958r, 112732, 209384, 209384a, 270600h010, 284679, 401792ri, 443304, 444230, 12060820, 063377434, 235186902, 0986082770, 1022112120, 1022112250, 1022112380, 1022112480, 2706028110, 2706028120, 2706028170, 2706028180, 063377434010

  • Passar modeller
    Toyota Model: Camry Model series: Camry Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _V3_ Body: Saloon From date: 01-03-2002 To date: 01-11-2006 Fuel: Petrol Approved: Yes
    Toyota Model: Camry Model series: Camry Size of motor: 2.4 Type description: _V2_ Body: Convertible From date: 01-04-2000 To date: 01-09-2003 Fuel: Petrol Approved: Yes
    Toyota Model: Camry Model series: Camry Solara Size of motor: 2.4 Brand of engine: 2AZ-FE Body: Coupe From date: 01-07-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Camry Model series: Camry Type of engine: 16V Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: V3 From date: 01-11-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: XA2 From date: 01-05-2000 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 34.00
    Width/holder arm: 17.00
    Mount. bracket dist.: 46.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 13
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 170.00
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 46.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL42
    Bracket hole 11.00
    Position/B+ in min. 13
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 34.00
    Radius 84.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 17.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032114186, ja1792ir, 1986A01733, 27060-0H010, 27060-28110, 27060-28120, 27060-28170, 27060-28180, 102211-2120, 102211-2250, 102211-2380, 102211-2480

    • Konkurrentreferens
      A6102, AL3304X, ALT-H200, CAL40354, DAN951, DENDAN951, DRA4274, F042205043, F042205072, F042205106, F042A0H200, 28-4679, 235.186.902, 13957R, 13958N, 13958R, 112732, 209384, 209384A, 401792RI, 443304, 444230, 12060820, 063377434, 0986082770, 063377434010

    • Normaliserat artikelnummer
      a6102, al3304x, alth200, cal40354, dan951, dendan951, dra4274, f032114186, f042205043, f042205072, f042205106, f042a0h200, ja1792ir, 1986a01733, 13957r, 13958n, 13958r, 112732, 209384, 209384a, 270600h010, 284679, 401792ri, 443304, 444230, 12060820, 063377434, 235186902, 0986082770, 1022112120, 1022112250, 1022112380, 1022112480, 2706028110, 2706028120, 2706028170, 2706028180, 063377434010

    • Passar modeller
      Toyota Model: Camry Model series: Camry Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _V3_ Body: Saloon From date: 01-03-2002 To date: 01-11-2006 Fuel: Petrol Approved: Yes
      Toyota Model: Camry Model series: Camry Size of motor: 2.4 Type description: _V2_ Body: Convertible From date: 01-04-2000 To date: 01-09-2003 Fuel: Petrol Approved: Yes
      Toyota Model: Camry Model series: Camry Solara Size of motor: 2.4 Brand of engine: 2AZ-FE Body: Coupe From date: 01-07-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Camry Model series: Camry Type of engine: 16V Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: V3 From date: 01-11-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: XA2 From date: 01-05-2000 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
