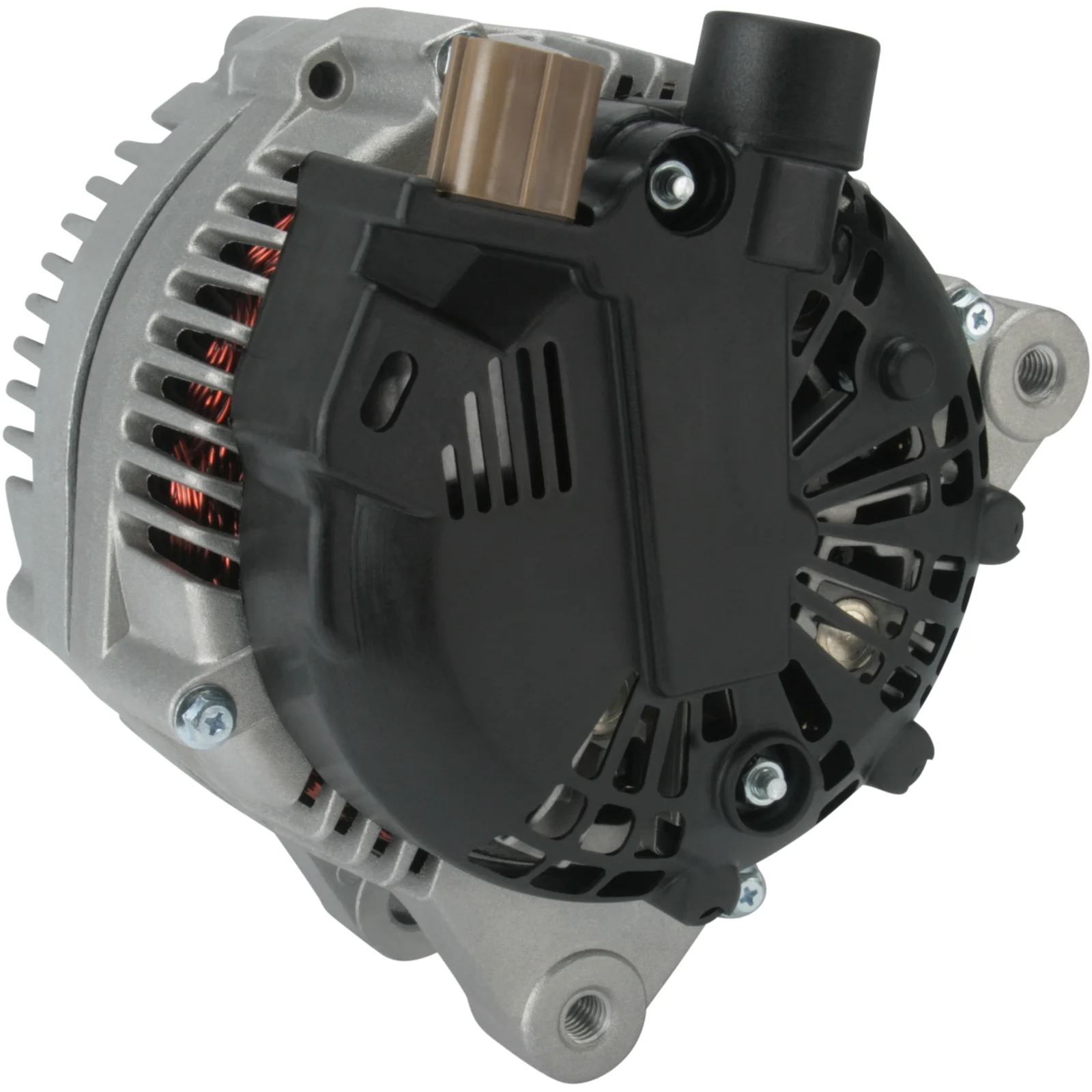

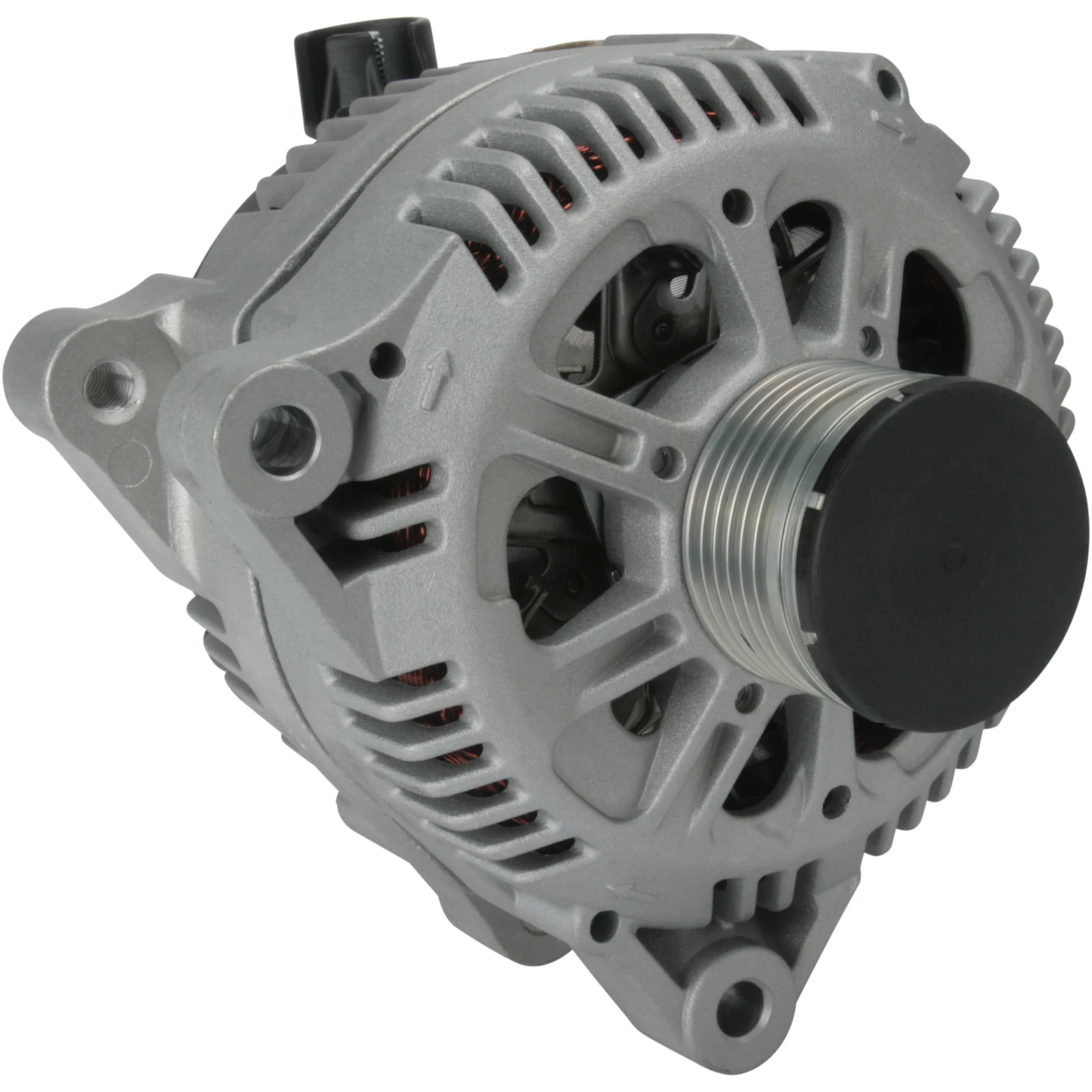

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114128

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 45.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 45.00
Bracket hole: 10.50
Bracket hole 2: 10.00
Belt. adj. brackethole pos.: 13
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 18
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 13
Plug no. PL57
Bracket hole 10.50
Bracket hole 2 10.00
Position/B+ in min. 18
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 21.00
Amp 150

  • OEM
    F032114128, SG15S019, SG15S037, Y402-18-300, 2s6t10300ba, 2S6T10300BB, 2S6T10300BC, 1778ir, 1140136, 1485762, 1519795, 2542565, 2542565A, 2542565B, 2613270, 2613270A, 5190803, 9643001680

  • Konkurrentreferens
    A3105, CAL15287, DRA4248, LRA02332, LRA04315, 8EL012429-511, 8EL738188-001, 27-4829, 27-7924, 28-4829, 219.163.1502, 4715, 23332N, 23332R, 112187, 200176, 210433, 210433A, 301778RI, 437432, 439473, 439767, 747042, 9213268, 12049160, 0986049161, 944390904190

  • Normaliserat artikelnummer
    a3105, cal15287, dra4248, f032114128, lra02332, lra04315, sg15s019, sg15s037, y40218300, 2s6t10300ba, 2s6t10300bb, 2s6t10300bc, 8el012429511, 8el738188001, 1778ir, 4715, 23332n, 23332r, 112187, 200176, 210433, 210433a, 274829, 277924, 284829, 301778ri, 437432, 439473, 439767, 747042, 1140136, 1485762, 1519795, 2542565, 2542565a, 2542565b, 2613270, 2613270a, 5190803, 9213268, 12049160, 0986049161, 2191631502, 9643001680, 944390904190

  • Passar modeller
    Ford Model: Ecosport Model series: Ecosport Type of engine: TDCi Size of motor: 1.4 Body: SUV From date: 01-01-2003 To date: 01-05-2011 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Mazda Model: 2 Model series: 2 Type of engine: CD Size of motor: 1.4 Brand of engine: F6JA Body: Hatchback From date: 01-04-2003 To date: 01-06-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 2 Model series: 2 Type of engine: CD Size of motor: 1.4 Brand of engine: F6JB Body: Hatchback From date: 01-04-2003 To date: 01-06-2007 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 42.50
    Width/holder arm: 21.00
    Mount. bracket dist.: 45.00
    Bracket hole: 10.50
    Bracket hole 2: 10.00
    Belt. adj. brackethole pos.: 13
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 18
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 45.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 13
    Plug no. PL57
    Bracket hole 10.50
    Bracket hole 2 10.00
    Position/B+ in min. 18
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 42.50
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 21.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032114128, SG15S019, SG15S037, Y402-18-300, 2s6t10300ba, 2S6T10300BB, 2S6T10300BC, 1778ir, 1140136, 1485762, 1519795, 2542565, 2542565A, 2542565B, 2613270, 2613270A, 5190803, 9643001680

    • Konkurrentreferens
      A3105, CAL15287, DRA4248, LRA02332, LRA04315, 8EL012429-511, 8EL738188-001, 27-4829, 27-7924, 28-4829, 219.163.1502, 4715, 23332N, 23332R, 112187, 200176, 210433, 210433A, 301778RI, 437432, 439473, 439767, 747042, 9213268, 12049160, 0986049161, 944390904190

    • Normaliserat artikelnummer
      a3105, cal15287, dra4248, f032114128, lra02332, lra04315, sg15s019, sg15s037, y40218300, 2s6t10300ba, 2s6t10300bb, 2s6t10300bc, 8el012429511, 8el738188001, 1778ir, 4715, 23332n, 23332r, 112187, 200176, 210433, 210433a, 274829, 277924, 284829, 301778ri, 437432, 439473, 439767, 747042, 1140136, 1485762, 1519795, 2542565, 2542565a, 2542565b, 2613270, 2613270a, 5190803, 9213268, 12049160, 0986049161, 2191631502, 9643001680, 944390904190

    • Passar modeller
      Ford Model: Ecosport Model series: Ecosport Type of engine: TDCi Size of motor: 1.4 Body: SUV From date: 01-01-2003 To date: 01-05-2011 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Mazda Model: 2 Model series: 2 Type of engine: CD Size of motor: 1.4 Brand of engine: F6JA Body: Hatchback From date: 01-04-2003 To date: 01-06-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 2 Model series: 2 Type of engine: CD Size of motor: 1.4 Brand of engine: F6JB Body: Hatchback From date: 01-04-2003 To date: 01-06-2007 Fuel: Diesel Approved: Yes
