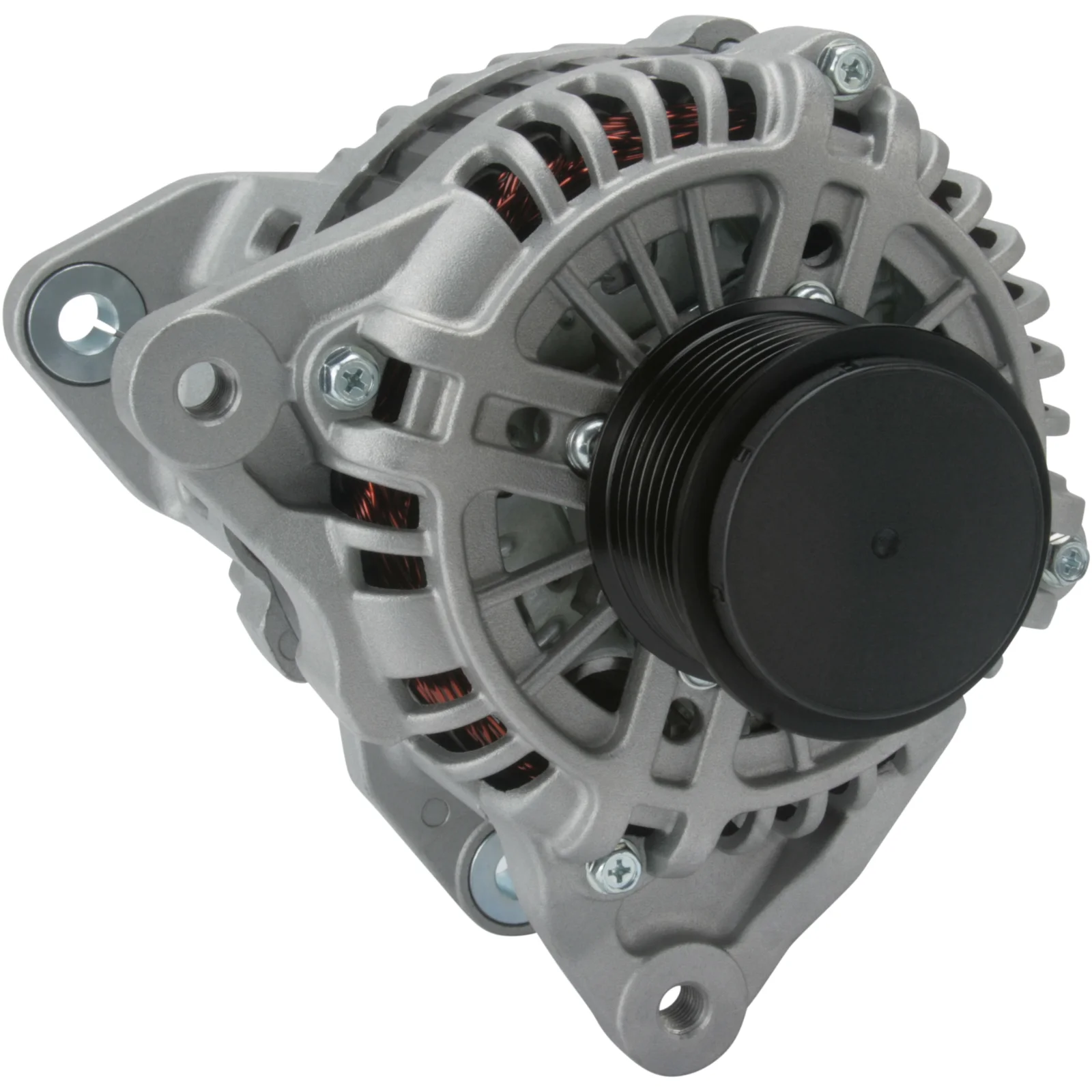

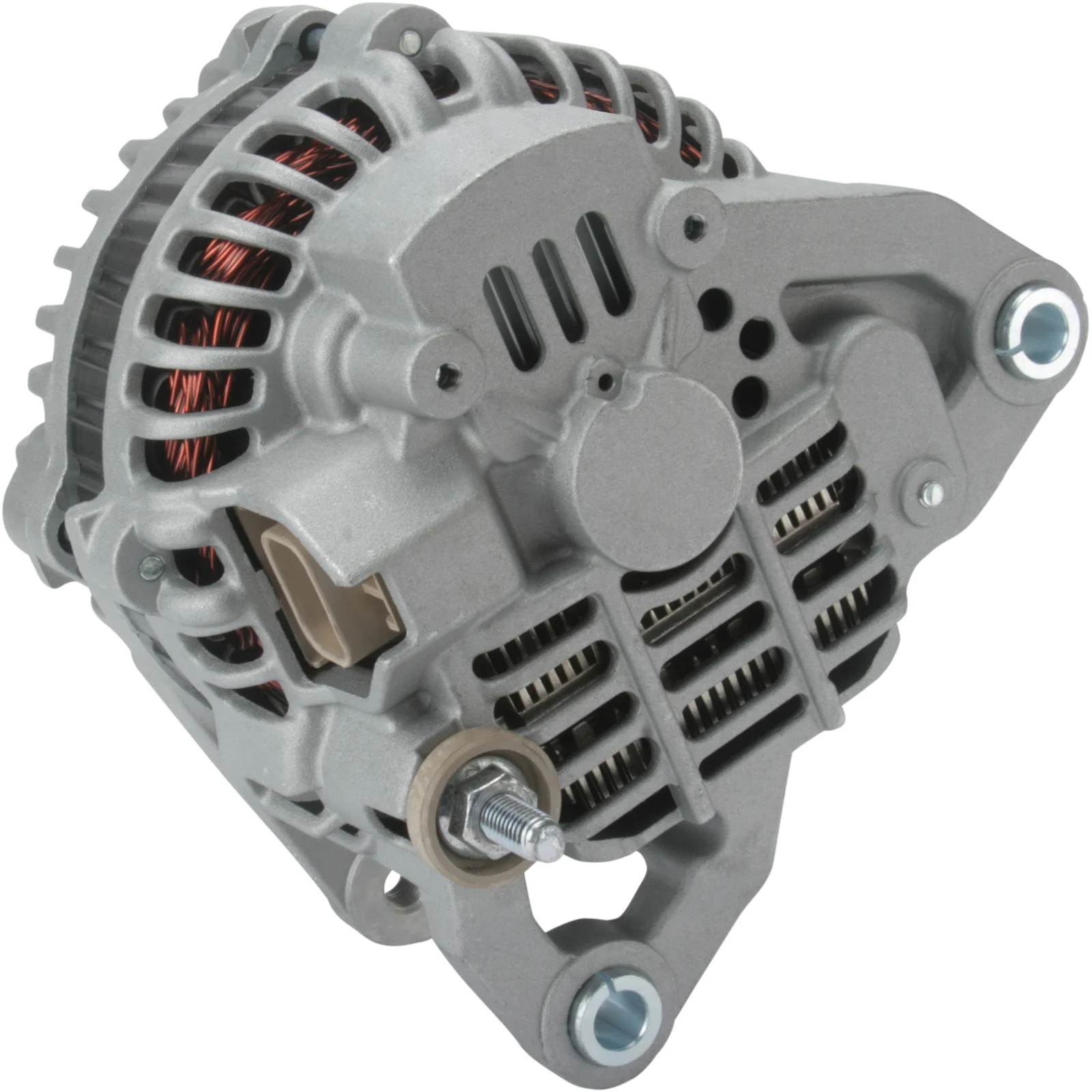

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114112

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 65.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 39.00
Width/holder arm: 13.00
Mount. bracket dist.: 65.00
Bracket hole: M10
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: M10
Pulley dia.: 59.50
Grooves/pulley: 8
Radius: 89.00
Radius 2: 99.00
B+: M8
Position/B+ in min.: 37
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Pulley: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 65.00
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 45
Plug no. PL07
Bracket hole M10
Position/B+ in min. 37
Pulley SP/FW
Pulley dia. 59.50
Pulley dist. 39.00
Radius 89.00
D+ Size Plug
Radius 2 99.00
Regulator type IR
Rotation CW
Grooves/pulley 8
Voltage 14
Width/holder arm 13.00
Amp 90

  • OEM
    A003TB4981, A3TB4981, F032114112, ja1896ir, RF5C-18-300

  • Konkurrentreferens
    A5022, CAL35170, DRA0115, J5113056, LRA02309, 8EL011711-381, 8EL738211-461, 28-4799, 224.162.902, 23309R, 112469, 401896RI, 12060817, 0986083480

  • Normaliserat artikelnummer
    a003tb4981, a3tb4981, a5022, cal35170, dra0115, f032114112, j5113056, ja1896ir, lra02309, rf5c18300, 8el011711381, 8el738211461, 23309r, 112469, 284799, 401896ri, 12060817, 224162902, 0986083480

  • Passar modeller
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG Body: Hatchback From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG From date: 01-06-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GY Body: Estate From date: 01-08-2002 To date: 01-02-2005 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GY Body: Estate From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: MPV Model series: MPV Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: LW Body: MPV From date: 01-07-2002 To date: 01-02-2006 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 39.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 65.00
    Bracket hole: M10
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 59.50
    Grooves/pulley: 8
    Radius: 89.00
    Radius 2: 99.00
    B+: M8
    Position/B+ in min.: 37
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Pulley: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 65.00
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 45
    Plug no. PL07
    Bracket hole M10
    Position/B+ in min. 37
    Pulley SP/FW
    Pulley dia. 59.50
    Pulley dist. 39.00
    Radius 89.00
    D+ Size Plug
    Radius 2 99.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 8
    Voltage 14
    Width/holder arm 13.00
    Amp 90
  • Fordonsmatchning

    • OEM
      A003TB4981, A3TB4981, F032114112, ja1896ir, RF5C-18-300

    • Konkurrentreferens
      A5022, CAL35170, DRA0115, J5113056, LRA02309, 8EL011711-381, 8EL738211-461, 28-4799, 224.162.902, 23309R, 112469, 401896RI, 12060817, 0986083480

    • Normaliserat artikelnummer
      a003tb4981, a3tb4981, a5022, cal35170, dra0115, f032114112, j5113056, ja1896ir, lra02309, rf5c18300, 8el011711381, 8el738211461, 23309r, 112469, 284799, 401896ri, 12060817, 224162902, 0986083480

    • Passar modeller
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG Body: Hatchback From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG From date: 01-06-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GY Body: Estate From date: 01-08-2002 To date: 01-02-2005 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GY Body: Estate From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: MPV Model series: MPV Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: LW Body: MPV From date: 01-07-2002 To date: 01-02-2006 Fuel: Diesel Approved: Yes
