Artikelnr: F032112419

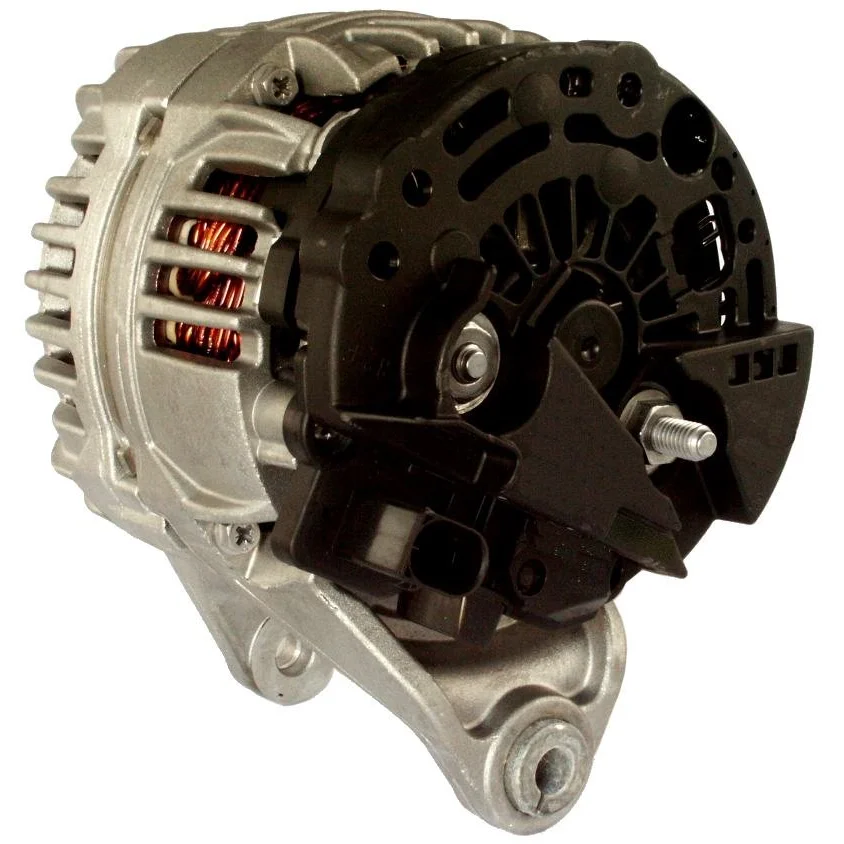

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 81.60

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 35.00
Width/holder arm: 14.00
Mount. bracket dist.: 81.60
Bracket hole: 10.30
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M10
Pulley dia.: 50.00
Grooves/pulley: 5
Radius: 92.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 177.00
Pulley: SP
Regulator type: IR
Prod. info: BN/OE
Servicing: Seat

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.60
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 50
Plug no. PL61
Bracket hole 10.30
Position/B+ in min. 20
Prod. info BN/OE
Pulley SP
Pulley dia. 50.00
Pulley dist. 35.00
Radius 92.00
D+ Size Plug
Radius 2 95.00
Regulator type IR
Rotation CW
Servicing Seat
Grooves/pulley 5
Voltage 14
Total length 177.00 mm
Width/holder arm 14.00
Amp 70

  • OEM
    F032112419, 1586ir, 9517241, 046903015Q, 047903015q, 047903015QX, 047903017, 0124315014

  • Konkurrentreferens
    A0158, ALT-H109, ALT10368, CAL10460, DRB2640, F042A0H109, LRA02060, 8EL012428-221, 8EL737871-001, 28-3989, 211.318.702, 21490R, 119910, 210600, 210600A, 301586RI, 437710, 439255, 9042640, 12042640, 0986042640

  • Normaliserat artikelnummer
    a0158, alt10368, alth109, cal10460, drb2640, f032112419, f042a0h109, lra02060, 8el012428221, 8el737871001, 1586ir, 21490r, 119910, 210600, 210600a, 283989, 301586ri, 437710, 439255, 9042640, 9517241, 12042640, 046903015q, 047903015q, 047903015qx, 047903017, 0124315014, 211318702, 0986042640

  • Passar modeller
    Seat Model: Arosa Model series: Arosa Size of motor: 1.0 Brand of engine: AHT Body: Hatchback From date: 01-05-1997 To date: 01-06-2004 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: AME Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
    Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: AQW Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
    Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: ATZ Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: AQV Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AME Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AME Type description: 6Y5 Body: Estate From date: 01-04-2000 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AQW Type description: 6Y2 Body: Hatchback From date: 01-08-1999 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AQW Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: ATZ Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Body: Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Type description: 6Y2 Body: Hatchback From date: 01-08-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Type description: 6Y3 From date: 01-04-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Body: Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Type description: 6Y2 Body: Hatchback From date: 01-08-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Type description: 6Y3 From date: 01-04-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF,AZE Type description: 6Y5 Body: Box Body / Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 35.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 81.60
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 50.00
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 177.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN/OE
    Servicing: Seat

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.60
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 50
    Plug no. PL61
    Bracket hole 10.30
    Position/B+ in min. 20
    Prod. info BN/OE
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 35.00
    Radius 92.00
    D+ Size Plug
    Radius 2 95.00
    Regulator type IR
    Rotation CW
    Servicing Seat
    Grooves/pulley 5
    Voltage 14
    Total length 177.00 mm
    Width/holder arm 14.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F032112419, 1586ir, 9517241, 046903015Q, 047903015q, 047903015QX, 047903017, 0124315014

    • Konkurrentreferens
      A0158, ALT-H109, ALT10368, CAL10460, DRB2640, F042A0H109, LRA02060, 8EL012428-221, 8EL737871-001, 28-3989, 211.318.702, 21490R, 119910, 210600, 210600A, 301586RI, 437710, 439255, 9042640, 12042640, 0986042640

    • Normaliserat artikelnummer
      a0158, alt10368, alth109, cal10460, drb2640, f032112419, f042a0h109, lra02060, 8el012428221, 8el737871001, 1586ir, 21490r, 119910, 210600, 210600a, 283989, 301586ri, 437710, 439255, 9042640, 9517241, 12042640, 046903015q, 047903015q, 047903015qx, 047903017, 0124315014, 211318702, 0986042640

    • Passar modeller
      Seat Model: Arosa Model series: Arosa Size of motor: 1.0 Brand of engine: AHT Body: Hatchback From date: 01-05-1997 To date: 01-06-2004 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: AME Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
      Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: AQW Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
      Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: ATZ Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: AQV Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AME Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AME Type description: 6Y5 Body: Estate From date: 01-04-2000 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AQW Type description: 6Y2 Body: Hatchback From date: 01-08-1999 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AQW Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: ATZ Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Body: Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Type description: 6Y2 Body: Hatchback From date: 01-08-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Type description: 6Y3 From date: 01-04-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Body: Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Type description: 6Y2 Body: Hatchback From date: 01-08-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Type description: 6Y3 From date: 01-04-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
      Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF,AZE Type description: 6Y5 Body: Box Body / Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
      1 / 4
