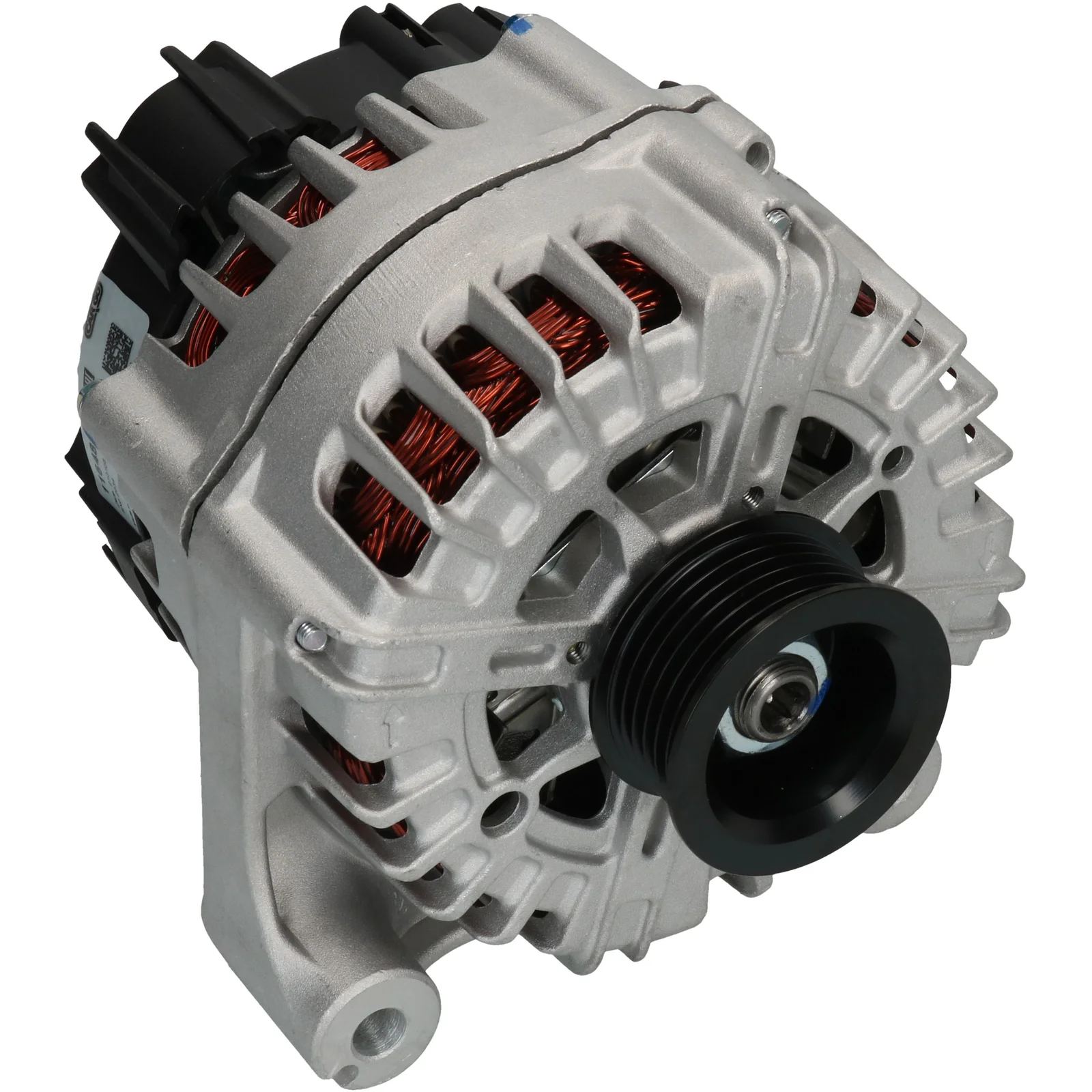

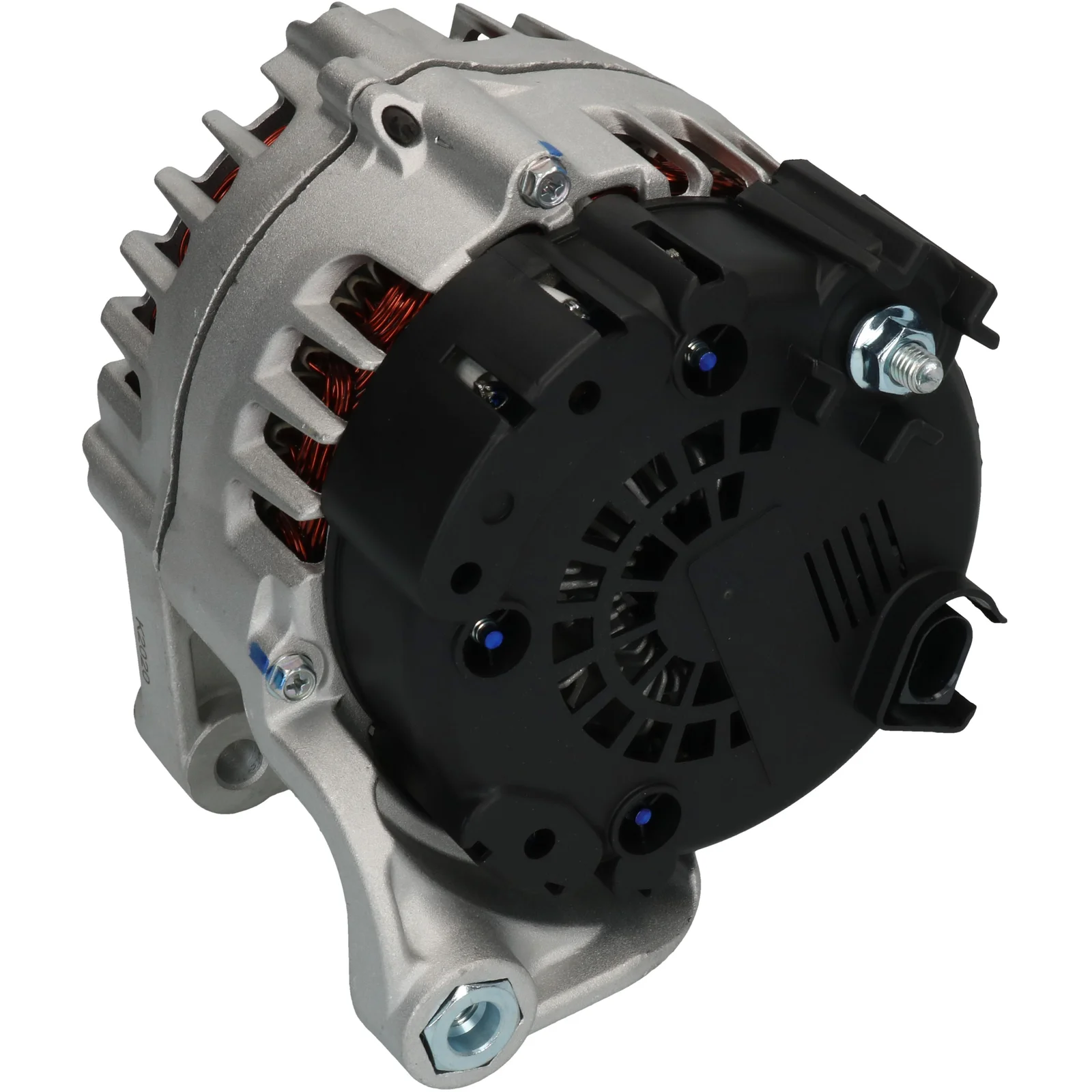

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116488

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 75.40

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 60.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.40
Bracket hole: 11.00
Belt. adj. brackethole pos.: 44
Belt. adj. bracket hole 1: M10
Pulley dia.: 52.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 59
Rotation: CW
Plug no.: PL125
Total length mm: 180.50
Terminal type: COM
ID Code: 53
Communication: BSS
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 75.40
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 44
Plug no. PL125
Bracket hole 11.00
Position/B+ in min. 59
Pulley SP
Pulley dia. 52.00
Pulley dist. 60.00
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 53
Terminal type COM
Voltage 14
Total length 180.50 mm
Width/holder arm 28.00
Amp 180

  • OEM
    F032116488, FG18S014, FGN18S014, 2543424, 2543424A, 2543424C, 12317837981, 12317838656

  • Konkurrentreferens
    A3438S, CAL15484, DRA0758, LRA03300, 28-5912, 215.190.1802, 215.541.180, 11450R, 209171, 209171A, 439675, 440252, 554216RI, 9090715, 12090456

  • Normaliserat artikelnummer
    a3438s, cal15484, dra0758, f032116488, fg18s014, fgn18s014, lra03300, 11450r, 209171, 209171a, 285912, 439675, 440252, 554216ri, 2543424, 2543424a, 2543424c, 9090715, 12090456, 215541180, 2151901802, 12317837981, 12317838656

  • Passar modeller
    BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E90 From date: 01-12-2007 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
    BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E92 Body: Coupe From date: 01-06-2007 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E93 Body: Convertible From date: 01-03-2008 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
    BMW Model: M3 Model series: M3 Size of motor: 4.4 Brand of engine: S65B44A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 60.00
    Width/holder arm: 28.00
    Mount. bracket dist.: 75.40
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 44
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 52.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 59
    Rotation: CW
    Plug no.: PL125
    Total length mm: 180.50
    Terminal type: COM
    ID Code: 53
    Communication: BSS
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.40
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 44
    Plug no. PL125
    Bracket hole 11.00
    Position/B+ in min. 59
    Pulley SP
    Pulley dia. 52.00
    Pulley dist. 60.00
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 53
    Terminal type COM
    Voltage 14
    Total length 180.50 mm
    Width/holder arm 28.00
    Amp 180
  • Fordonsmatchning

    • OEM
      F032116488, FG18S014, FGN18S014, 2543424, 2543424A, 2543424C, 12317837981, 12317838656

    • Konkurrentreferens
      A3438S, CAL15484, DRA0758, LRA03300, 28-5912, 215.190.1802, 215.541.180, 11450R, 209171, 209171A, 439675, 440252, 554216RI, 9090715, 12090456

    • Normaliserat artikelnummer
      a3438s, cal15484, dra0758, f032116488, fg18s014, fgn18s014, lra03300, 11450r, 209171, 209171a, 285912, 439675, 440252, 554216ri, 2543424, 2543424a, 2543424c, 9090715, 12090456, 215541180, 2151901802, 12317837981, 12317838656

    • Passar modeller
      BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E90 From date: 01-12-2007 To date: 01-10-2011 Fuel: Gasoline Approved: Yes
      BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E92 Body: Coupe From date: 01-06-2007 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      BMW Model: M3 Model series: M3 Size of motor: 4.0 Brand of engine: S65B40A Type description: E93 Body: Convertible From date: 01-03-2008 To date: 01-10-2013 Fuel: Gasoline Approved: Yes
      BMW Model: M3 Model series: M3 Size of motor: 4.4 Brand of engine: S65B44A Type description: E92 Body: Coupe From date: 01-03-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
