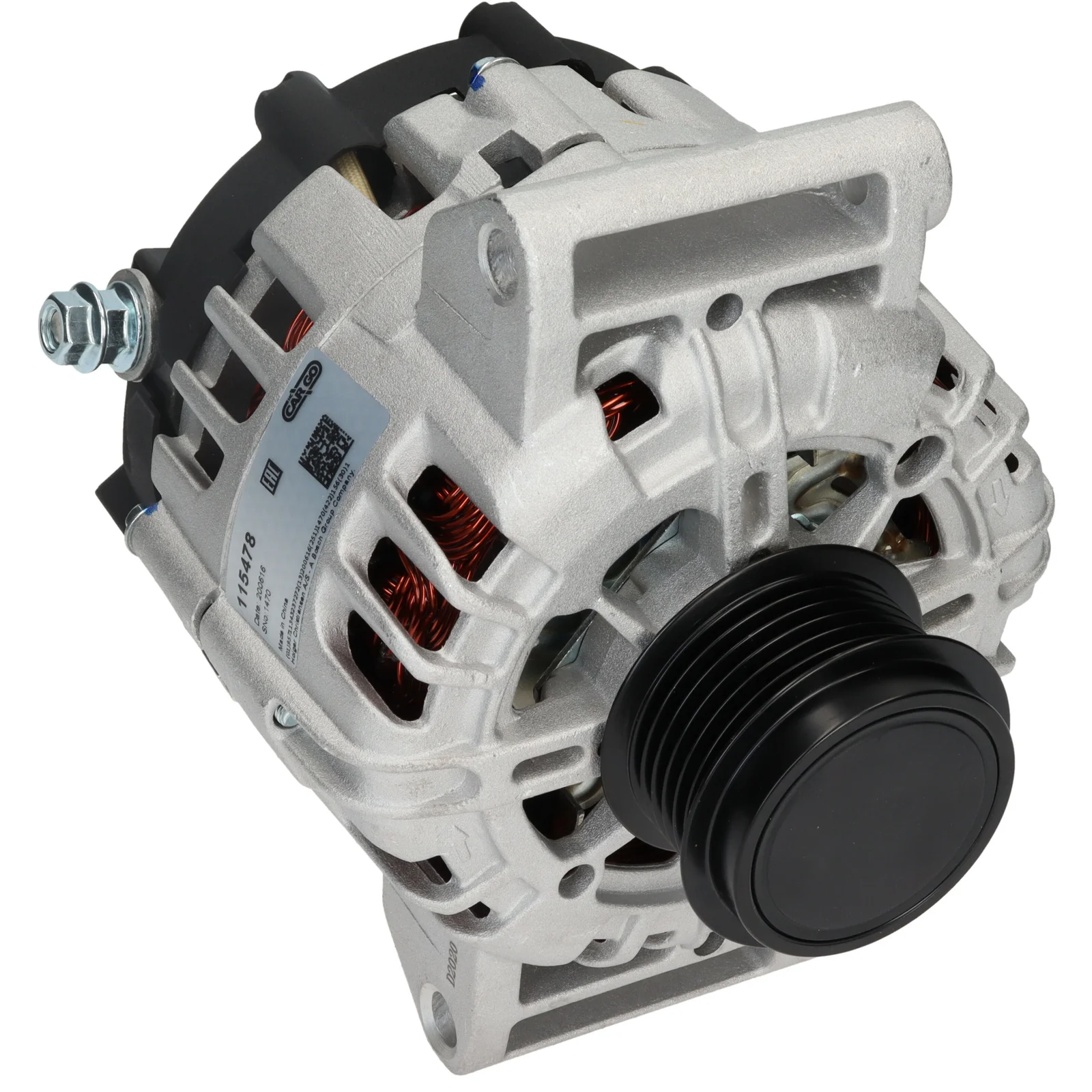

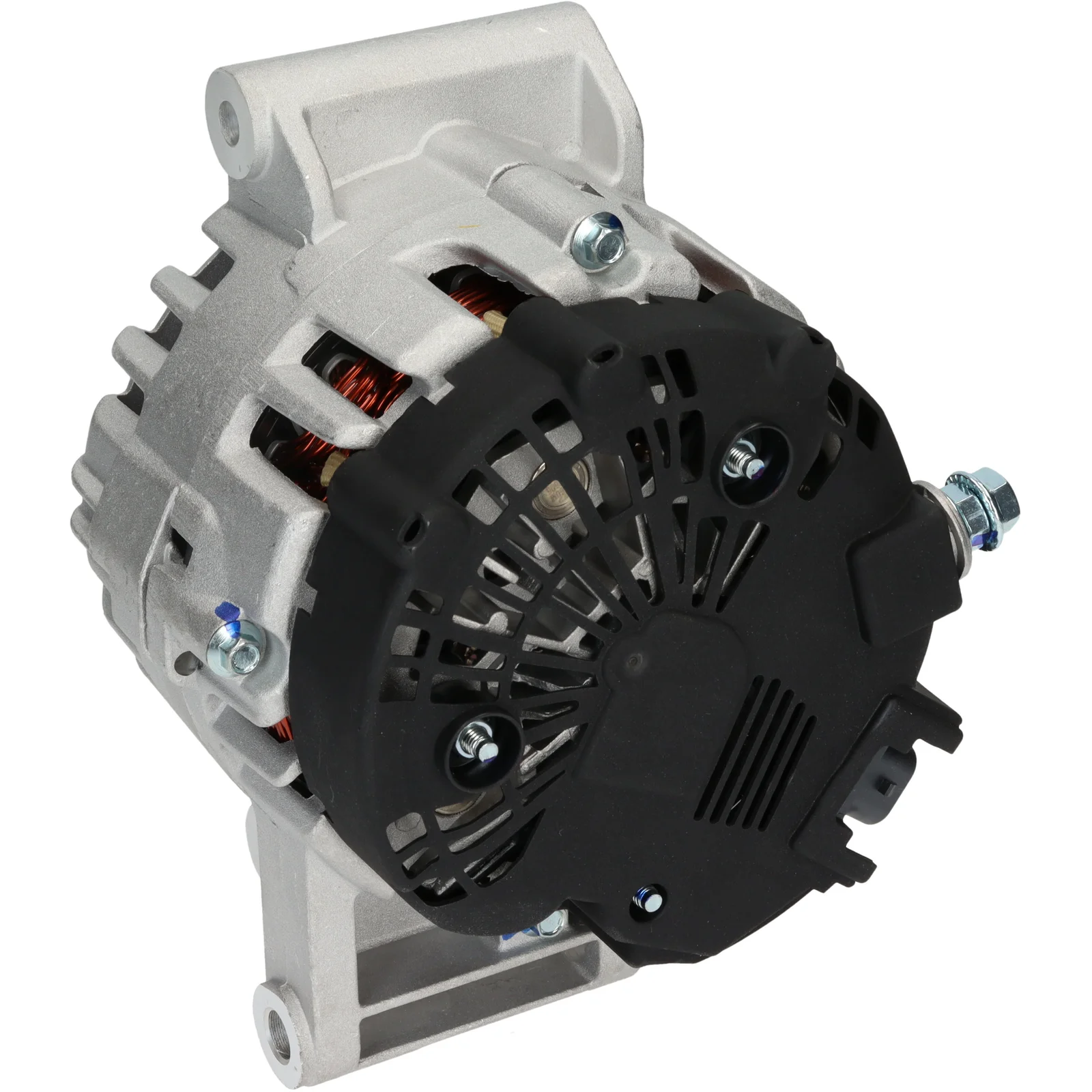

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115478

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 52.00

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 32.00
Width/holder arm: 79.00
Mount. bracket dist.: 52.00
Bracket hole: 8.50
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 78.00
Radius 2: 81.50
B+: M8
Position/B+ in min.: 22
Rotation: CW
Plug no.: PL180
Total length mm: 175.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Fan: IF
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 52.00
Belt. adj. bracket hole 1 9.00
Plug no. PL180
Bracket hole 8.50
Position/B+ in min. 22
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 32.00
Radius 78.00
Radius 2 81.50
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 175.00 mm
Width/holder arm 79.00
Amp 120

  • OEM
    F032115478, TG12C066, TG12C176, 1202330, 1204650, 2605325a, 13500331, 13588324

  • Konkurrentreferens
    A3329, A3329(VALEO), CAL15020, DRA1042, F042205147, 28-7538, 135.592.120, 228.304.1202, 11826N, 11826R, 440617, 849116, 849163, 12090602

  • Normaliserat artikelnummer
    a3329, a3329valeo, cal15020, dra1042, f032115478, f042205147, tg12c066, tg12c176, 11826n, 11826r, 287538, 440617, 849116, 849163, 1202330, 1204650, 2605325a, 12090602, 13500331, 13588324, 135592120, 2283041202

  • Passar modeller
    Chevrolet Model: Captiva Model series: Captiva Model type: 4WD Size of motor: 2.4 Brand of engine: LE9 (145CUL4) Type description: C100, C140 Body: SUV Fuel: Petrol Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Model type: 4x4 Size of motor: 2.4 Brand of engine: A24XE From date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Model type: 4x4 Size of motor: 2.4 Brand of engine: LE5 From date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Size of motor: 2.4 Brand of engine: A24XE From date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Size of motor: 2.4 Brand of engine: LE5 From date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Size of motor: 2.4 Brand of engine: LE5 Type description: C100, C140 Body: SUV Fuel: Petrol Approved: Yes
    Chevrolet Model: Malibu Model series: Malibu Size of motor: 2.4 Brand of engine: LE9 Type description: V300 From date: 01-01-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-09-2011 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-07-2011 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2011 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-04-2014 To date: 01-11-2014 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-04-2014 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Model type: Biopower Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-05-2010 To date: 01-01-2012 Fuel: Bi-Fuel Approved: Yes
    Saab Model: 9-5 Model series: 9-5 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-05-2010 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Antara Model series: Antara Size of motor: 2.4 Brand of engine: A24XE From date: 01-12-2010 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT From date: 01-09-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Vauxhall Model: Insignia Model series: Insignia Sports Tourer Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Estate From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NFT Body: Hatchback From date: 01-07-2011 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 2.0 Brand of engine: A20NHT From date: 01-07-2008 To date: 01-05-2017 Fuel: Gasoline Approved: Yes
