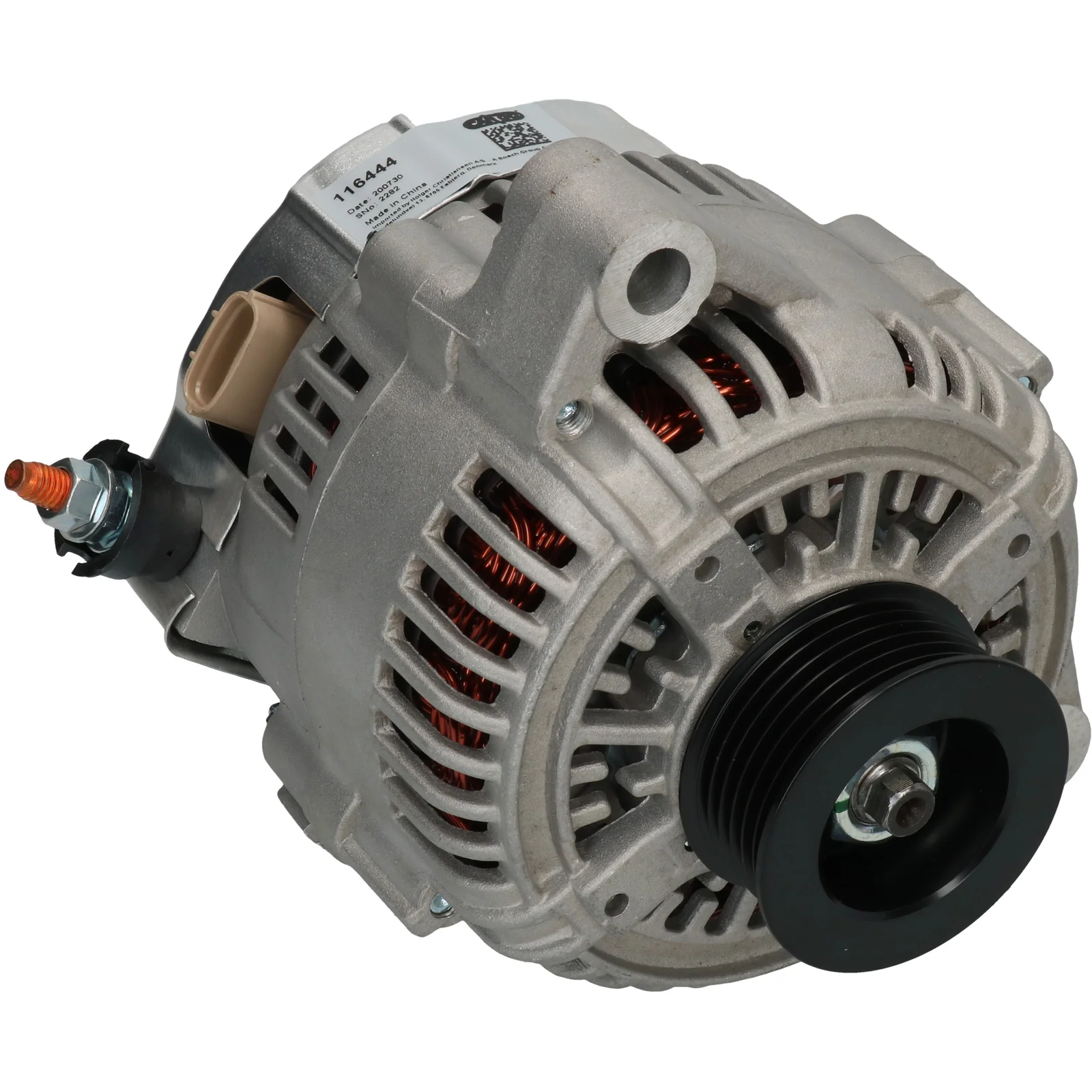

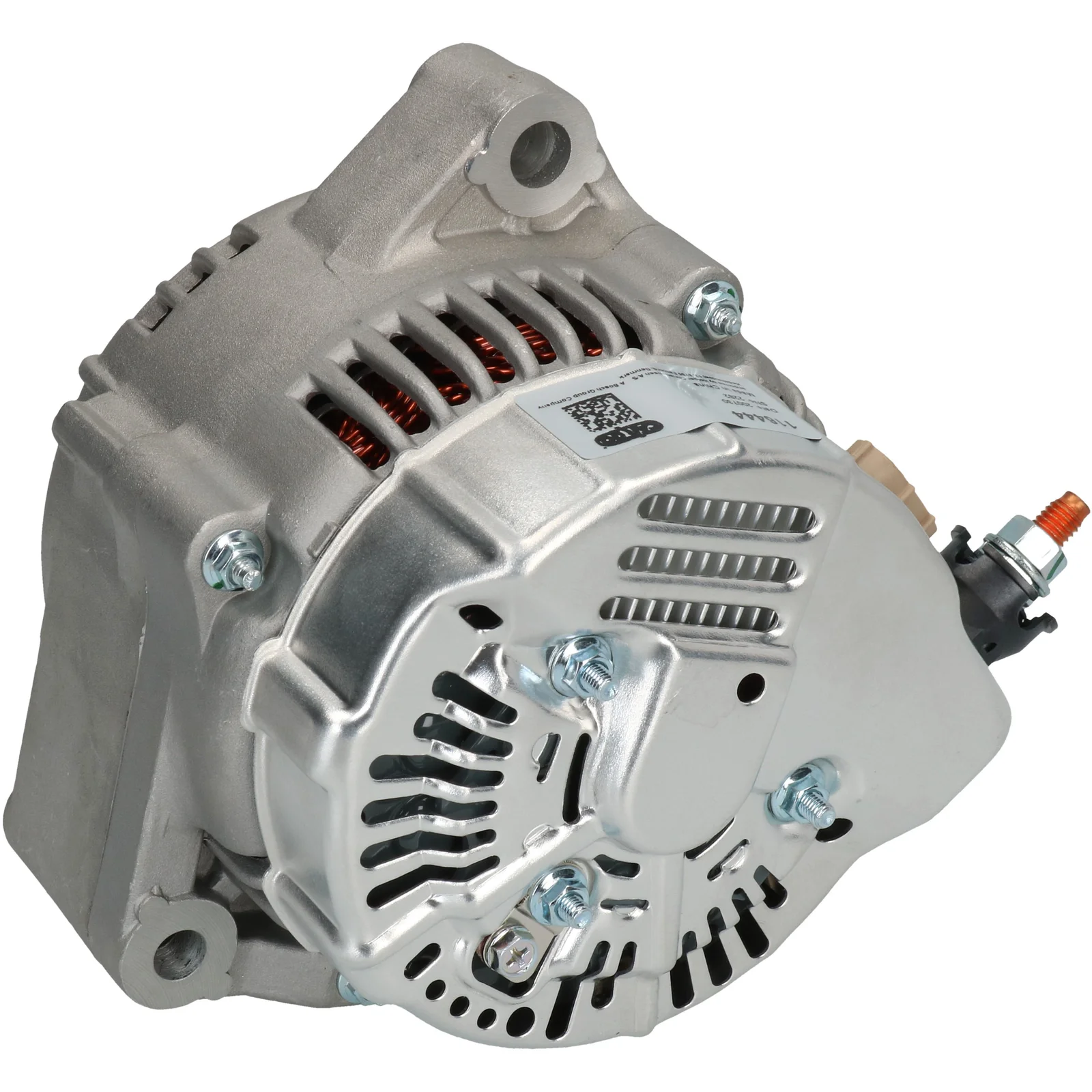

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116444

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Pulley dia.: 57.00, Radius: 85.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 88.00
Width/holder arm: 56.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 8
Belt. adj. bracket hole 1: 12.00
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 85.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 55
Plug no.: PL42
Total length mm: 170.00
Terminal type: L-IG-S
Lamp type: Inactive
Pulley: SP
Fan: IF

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 8
Plug no. PL42
Bracket hole 10.50
Position/B+ in min. 55
Pulley SP
Pulley dia. 57.00
Pulley dist. 88.00
Radius 85.00
Radius 2 84.00
Fan IF
Grooves/pulley 6
Lamp type Inactive
Terminal type L-IG-S
Voltage 14
Total length 170.00 mm
Width/holder arm 56.00
Amp 100

  • OEM
    F032116444, 27060-43220, 27060-46270, 27060-46300, 101211-7310, 101211-7800, 102211-0730

  • Konkurrentreferens
    CAL40252, DRA0657, J5112107, LRA01927, 1-3791N, 28-3813, 195.561.100, 13715N, 13791N, 553725RI, 9062107, 12060746

  • Normaliserat artikelnummer
    cal40252, dra0657, f032116444, j5112107, lra01927, 13715n, 13791n, 283813, 553725ri, 9062107, 12060746, 195561100, 1012117310, 1012117800, 1022110730, 2706043220, 2706046270, 2706046300

  • Passar modeller
    Lexus Model: GS Model series: GS 300 Model type: T3 Size of motor: 3.0 Brand of engine: 2JZ-GE From date: 01-08-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
    Lexus Model: GS Model series: GS 300 Size of motor: 3.0 Brand of engine: 2JZ-GE Type description: JZS160 From date: 01-10-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Lexus Model: GS Model series: GS 430 Size of motor: 4.3 Brand of engine: 3UZ-FE Type description: JZS160 From date: 01-11-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Lexus Model: LS Model series: LS 400 Size of motor: 4.0 Brand of engine: 1UZ-FE From date: 01-09-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 100
    Pulley dist.: 88.00
    Width/holder arm: 56.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 8
    Belt. adj. bracket hole 1: 12.00
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 55
    Plug no.: PL42
    Total length mm: 170.00
    Terminal type: L-IG-S
    Lamp type: Inactive
    Pulley: SP
    Fan: IF

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 8
    Plug no. PL42
    Bracket hole 10.50
    Position/B+ in min. 55
    Pulley SP
    Pulley dia. 57.00
    Pulley dist. 88.00
    Radius 85.00
    Radius 2 84.00
    Fan IF
    Grooves/pulley 6
    Lamp type Inactive
    Terminal type L-IG-S
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 56.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032116444, 27060-43220, 27060-46270, 27060-46300, 101211-7310, 101211-7800, 102211-0730

    • Konkurrentreferens
      CAL40252, DRA0657, J5112107, LRA01927, 1-3791N, 28-3813, 195.561.100, 13715N, 13791N, 553725RI, 9062107, 12060746

    • Normaliserat artikelnummer
      cal40252, dra0657, f032116444, j5112107, lra01927, 13715n, 13791n, 283813, 553725ri, 9062107, 12060746, 195561100, 1012117310, 1012117800, 1022110730, 2706043220, 2706046270, 2706046300

    • Passar modeller
      Lexus Model: GS Model series: GS 300 Model type: T3 Size of motor: 3.0 Brand of engine: 2JZ-GE From date: 01-08-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
      Lexus Model: GS Model series: GS 300 Size of motor: 3.0 Brand of engine: 2JZ-GE Type description: JZS160 From date: 01-10-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Lexus Model: GS Model series: GS 430 Size of motor: 4.3 Brand of engine: 3UZ-FE Type description: JZS160 From date: 01-11-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Lexus Model: LS Model series: LS 400 Size of motor: 4.0 Brand of engine: 1UZ-FE From date: 01-09-1997 To date: 01-10-2000 Fuel: Gasoline Approved: Yes
