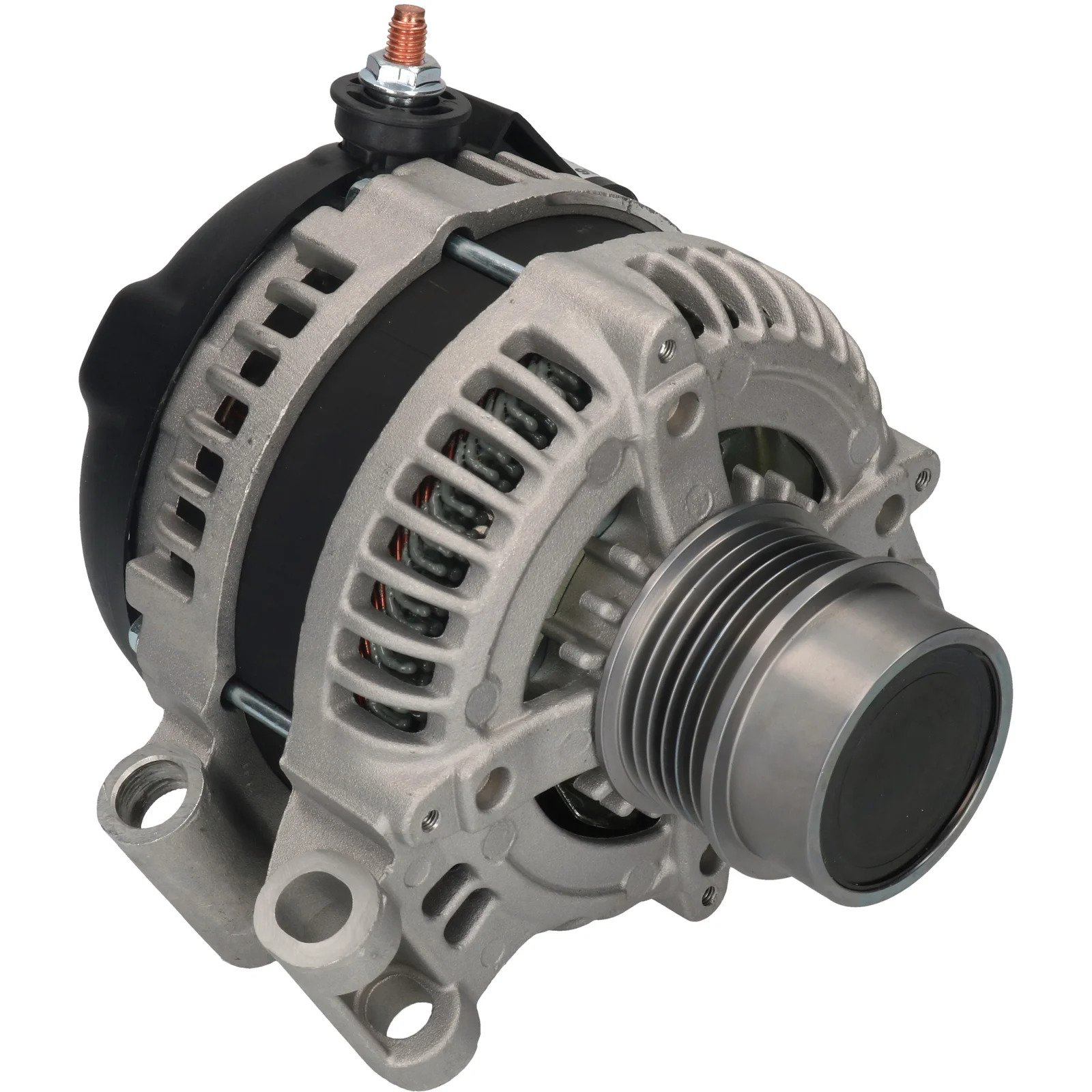

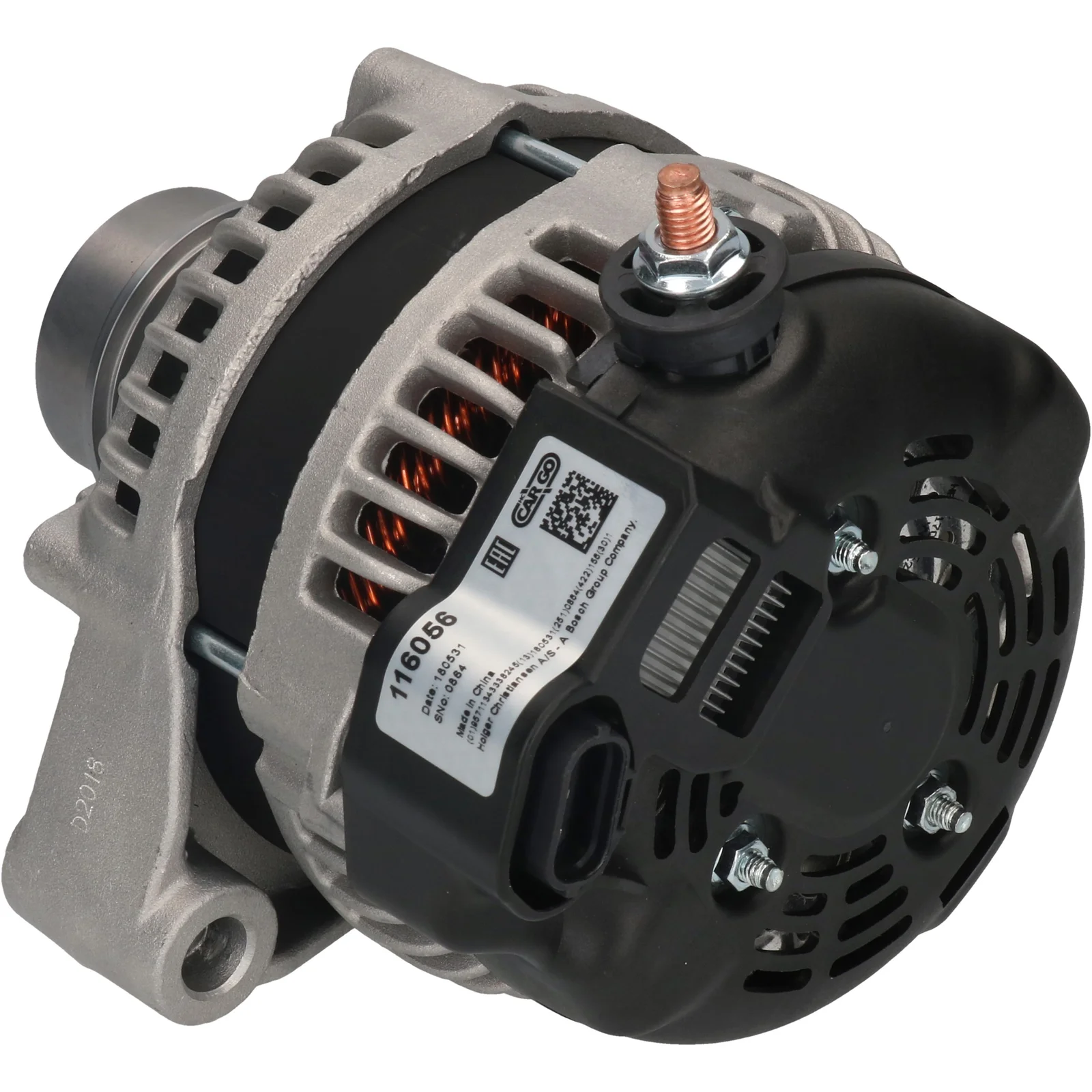

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116056

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 48.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 22.00
Width/holder arm: 50.00
Mount. bracket dist.: 48.00
Bracket hole: 12.00x14.60
Belt. adj. brackethole pos.: 8
Belt. adj. bracket hole 1: 11.50
Pulley dia.: 57.50
Grooves/pulley: 6
Radius: 84.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL136
Total length mm: 183.00
Pulley: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 48.00
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 8
Plug no. PL136
Bracket hole 12.00x14.60
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 57.50
Pulley dist. 22.00
Radius 84.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 183.00 mm
Width/holder arm 50.00
Amp 150

  • OEM
    c2c20533, F032116056, 4R8310300AB, 104210-3720

  • Konkurrentreferens
    A6175, CAL40255, DRA0254, LRA03123, 28-5735, 214.165.1502, 845.505.150, 24123, 24123R, 553399RI, 12060980, 32010001

  • Normaliserat artikelnummer
    a6175, c2c20533, cal40255, dra0254, f032116056, lra03123, 4r8310300ab, 24123, 24123r, 285735, 553399ri, 12060980, 32010001, 845505150, 1042103720, 2141651502

  • Passar modeller
    Jaguar Model: S-type Model series: S-type Model type: L Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD Type description: CCX From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
    Jaguar Model: XJ Model series: XJ 6 Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD From date: 01-10-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 22.00
    Width/holder arm: 50.00
    Mount. bracket dist.: 48.00
    Bracket hole: 12.00x14.60
    Belt. adj. brackethole pos.: 8
    Belt. adj. bracket hole 1: 11.50
    Pulley dia.: 57.50
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL136
    Total length mm: 183.00
    Pulley: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 48.00
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 8
    Plug no. PL136
    Bracket hole 12.00x14.60
    Position/B+ in min. 8
    Pulley SP/FW
    Pulley dia. 57.50
    Pulley dist. 22.00
    Radius 84.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 50.00
    Amp 150
  • Fordonsmatchning

    • OEM
      c2c20533, F032116056, 4R8310300AB, 104210-3720

    • Konkurrentreferens
      A6175, CAL40255, DRA0254, LRA03123, 28-5735, 214.165.1502, 845.505.150, 24123, 24123R, 553399RI, 12060980, 32010001

    • Normaliserat artikelnummer
      a6175, c2c20533, cal40255, dra0254, f032116056, lra03123, 4r8310300ab, 24123, 24123r, 285735, 553399ri, 12060980, 32010001, 845505150, 1042103720, 2141651502

    • Passar modeller
      Jaguar Model: S-type Model series: S-type Model type: L Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD Type description: CCX From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
      Jaguar Model: XJ Model series: XJ 6 Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD From date: 01-10-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
