- Generator
-
HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032113283

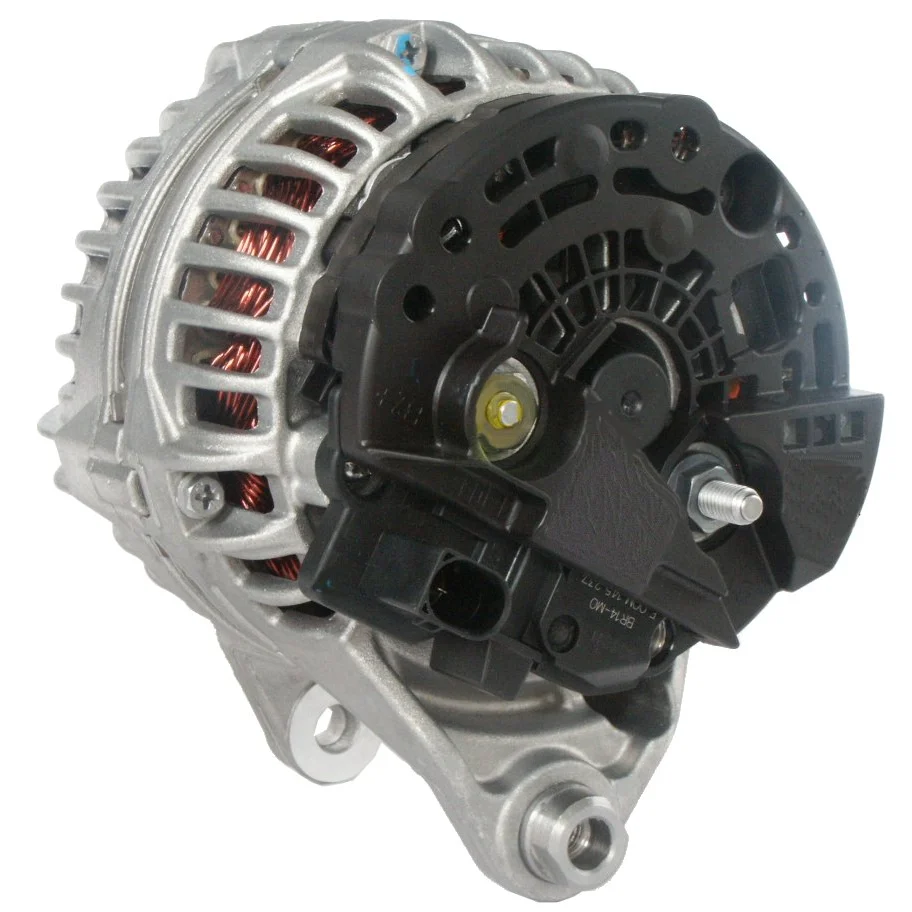

HC-Cargo Generator
Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 82.00
Beskrivning
Voltage: 14
Amp: 120
Pulley dist.: 34.20
Width/holder arm: 14.00
Mount. bracket dist.: 82.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 9.70
Pulley dia.: 56.20
Grooves/pulley: 5
Radius: 92.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL61
Total length mm: 181.50
Pulley: SP
Regulator type: IR
Servicing: Audi
Amp: 120
Pulley dist.: 34.20
Width/holder arm: 14.00
Mount. bracket dist.: 82.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 9.70
Pulley dia.: 56.20
Grooves/pulley: 5
Radius: 92.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL61
Total length mm: 181.50
Pulley: SP
Regulator type: IR
Servicing: Audi
Filer
Specifikation
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 82.00 |
| Belt. adj. bracket hole 1 | 9.70 |
| Belt. adj. brackethole pos. | 50 |
| Plug no. | PL61 |
| Bracket hole | 10.30 |
| Position/B+ in min. | 20 |
| Pulley | SP |
| Pulley dia. | 56.20 |
| Pulley dist. | 34.20 |
| Radius | 92.00 |
| Radius 2 | 96.00 |
| Regulator type | IR |
| Rotation | CW |
| Servicing | Audi |
| Grooves/pulley | 5 |
| Voltage | 14 |
| Total length | 181.50 mm |
| Width/holder arm | 14.00 |
| Amp | 120 |
-
OEM
A0573S, A3054, ALT-H123, ALT10374, ALT14184, CAL15251, dra0135, DRB4310, F032113283, F042A0H123, LRA01969, 06B903016F, 06B903016G, 8EL012426-111, 8EL737986-001, 28-3868, 038 903 018 F, 211.191.1202, 211.314.1202, 1986A00840, 13931, 13932, 13951, 13951N, 13951R, 23242R, 23244R, 210535, 210535A, 301664RI, 437176, 439263, 2542295, 2542295A, 9044310, 12044310, 32044310, 071903016E, 0124515027, 0124515030, 0124515034, 0986044310, 944390443100 -
Konkurrentreferens
A0573S, A3054, ALT-H123, ALT10374, ALT14184, CAL15251, dra0135, DRB4310, F042A0H123, LRA01969, 8EL012426-111, 8EL737986-001, 28-3868, 211.191.1202, 211.314.1202, 13931, 13932, 13951, 13951N, 13951R, 23242R, 23244R, 210535, 210535A, 301664RI, 437176, 439263, 9044310, 12044310, 32044310, 0986044310, 944390443100 -
Bilmärken
AUDI, SKODA, VW -
Normaliserat artikelnummer
a0573s, a3054, alt10374, alt14184, alth123, cal15251, dra0135, drb4310, f032113283, f042a0h123, lra01969, 06b903016f, 06b903016g, 8el012426111, 8el737986001, 1986a00840, 13931, 13932, 13951, 13951n, 13951r, 23242r, 23244r, 210535, 210535a, 283868, 301664ri, 437176, 439263, 2542295, 2542295a, 9044310, 12044310, 32044310, 038903018f, 071903016e, 0124515027, 0124515030, 0124515034, 0986044310, 2111911202, 2113141202, 944390443100 -
Passar modeller
AUDI A4 B5 (8D2) 1.6 Engine volume: 1.6 Engine type: AHL, ANA, ARM, ADP Year: 11.94-10.00 AUDI A4 B5 (8D2) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 07.00-11.00 AUDI A4 B5 (8D2) 1.8 Engine volume: 1.8 Engine type: AFY Year: 04.95-11.00 AUDI A4 B5 (8D2) 1.8 Engine volume: 1.8 Engine type: ARG, ADR, AVV, APT Year: 11.94-11.00 AUDI A4 B5 (8D2) 1.8 quattro Engine volume: 1.8 Engine type: AFY Year: 07.95-11.00 AUDI A4 B5 (8D2) 1.8 quattro Engine volume: 1.8 Engine type: ARG, ADR, APT Year: 01.95-11.00 AUDI A4 B5 (8D2) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 01.95-11.00 AUDI A4 B5 (8D2) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 12.97-11.00 AUDI A4 B5 (8D2) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-11.00 AUDI A4 B5 (8D2) 1.8 T quattro Engine volume: 1.8 Engine type: ATW, AEB, AWT, ARK, ANB, APU Year: 01.95-11.00 AUDI A4 B5 Avant (8D5) 1.6 Engine volume: 1.6 Engine type: AHL, ANA, ARM, ADP Year: 11.94-09.01 AUDI A4 B5 Avant (8D5) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 07.00-09.01 AUDI A4 B5 Avant (8D5) 1.8 Engine volume: 1.8 Engine type: AFY Year: 07.95-09.01 AUDI A4 B5 Avant (8D5) 1.8 Engine volume: 1.8 Engine type: ARG, ADR, AVV, APT Year: 02.96-09.01 AUDI A4 B5 Avant (8D5) 1.8 quattro Engine volume: 1.8 Engine type: AFY Year: 07.95-09.01 AUDI A4 B5 Avant (8D5) 1.8 quattro Engine volume: 1.8 Engine type: ARG, ADR, APT Year: 01.96-09.01 AUDI A4 B5 Avant (8D5) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 03.96-09.01 AUDI A4 B5 Avant (8D5) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 12.97-09.01 AUDI A4 B5 Avant (8D5) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-09.01 AUDI A4 B5 Avant (8D5) 1.8 T quattro Engine volume: 1.8 Engine type: ATW, AEB, AWT, ARK, ANB, APU Year: 01.96-09.01 AUDI A6 C5 (4B2, 4B4) 1.8 Engine volume: 1.8 Engine type: AFY Year: 05.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 Engine volume: 1.8 Engine type: ARH, AQE, AJP Year: 07.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 01.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 12.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T quattro Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 02.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 Engine volume: 1.8 Engine type: AFY Year: 02.98-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 Engine volume: 1.8 Engine type: ARH, AQE, AJP Year: 12.97-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 12.97-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 04.99-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-01.05 SKODA SUPERB I (3U4) 1.8 T Engine volume: 1.8 Engine type: AWT Year: 12.01-03.08 SKODA SUPERB I (3U4) 2.0 Engine volume: 2.0 Engine type: AZM Year: 12.01-03.08 VW PASSAT B5 (3B2) 1.6 Engine volume: 1.6 Engine type: AHL, ADP, ANA, ARM Year: 10.96-11.00 VW PASSAT B5 (3B2) 1.8 Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 10.96-11.00 VW PASSAT B5 (3B2) 1.8 Syncro/4motion Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 12.96-08.00 VW PASSAT B5 (3B2) 1.8 T Engine volume: 1.8 Engine type: ANB, APU, AEB Year: 10.96-11.00 VW PASSAT B5 (3B2) 2.3 VR5 Engine volume: 2.3 Engine type: AGZ Year: 10.96-11.00 VW PASSAT B5 (3B2) 2.3 VR5 Syncro/4motion Engine volume: 2.3 Engine type: AGZ Year: 10.97-11.00 VW PASSAT B5 Variant (3B5) 1.6 Engine volume: 1.6 Engine type: AHL, ADP, ANA, ARM Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 1.8 Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 1.8 Syncro/4motion Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 1.8 T Engine volume: 1.8 Engine type: ANB, APU, AEB Year: 05.97-11.00 VW PASSAT B5 Variant (3B5) 2.3 VR5 Engine volume: 2.3 Engine type: AGZ Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 2.3 VR5 Syncro/4motion Engine volume: 2.3 Engine type: AGZ Year: 10.97-11.00 VW PASSAT B5.5 (3B3) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 1.8 T 20V Engine volume: 1.8 Engine type: AWT Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 1.8 T 4motion Engine volume: 1.8 Engine type: AWM Year: 11.03-05.05 VW PASSAT B5.5 (3B3) 1.8 T Engine volume: 1.8 Engine type: AWM Year: 02.01-11.05 VW PASSAT B5.5 (3B3) 2.0 4motion Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 2.0 Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 2.3 V5 4motion Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 2.3 V5 Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 1.8 T Engine volume: 1.8 Engine type: AWM Year: 05.02-08.05 VW PASSAT B5.5 Variant (3B6) 2.0 4motion Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 2.0 Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 2.3 VR5 4motion Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 2.3 VR5 Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 1 / 12
-
Beskrivning
Voltage: 14
Amp: 120
Pulley dist.: 34.20
Width/holder arm: 14.00
Mount. bracket dist.: 82.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 9.70
Pulley dia.: 56.20
Grooves/pulley: 5
Radius: 92.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL61
Total length mm: 181.50
Pulley: SP
Regulator type: IR
Servicing: AudiFiler
-
Specifikation
B+ M8 Mount. bracket dist. 82.00 Belt. adj. bracket hole 1 9.70 Belt. adj. brackethole pos. 50 Plug no. PL61 Bracket hole 10.30 Position/B+ in min. 20 Pulley SP Pulley dia. 56.20 Pulley dist. 34.20 Radius 92.00 Radius 2 96.00 Regulator type IR Rotation CW Servicing Audi Grooves/pulley 5 Voltage 14 Total length 181.50 mm Width/holder arm 14.00 Amp 120 -
Fordonsmatchning
-
OEM
A0573S, A3054, ALT-H123, ALT10374, ALT14184, CAL15251, dra0135, DRB4310, F032113283, F042A0H123, LRA01969, 06B903016F, 06B903016G, 8EL012426-111, 8EL737986-001, 28-3868, 038 903 018 F, 211.191.1202, 211.314.1202, 1986A00840, 13931, 13932, 13951, 13951N, 13951R, 23242R, 23244R, 210535, 210535A, 301664RI, 437176, 439263, 2542295, 2542295A, 9044310, 12044310, 32044310, 071903016E, 0124515027, 0124515030, 0124515034, 0986044310, 944390443100 -
Konkurrentreferens
A0573S, A3054, ALT-H123, ALT10374, ALT14184, CAL15251, dra0135, DRB4310, F042A0H123, LRA01969, 8EL012426-111, 8EL737986-001, 28-3868, 211.191.1202, 211.314.1202, 13931, 13932, 13951, 13951N, 13951R, 23242R, 23244R, 210535, 210535A, 301664RI, 437176, 439263, 9044310, 12044310, 32044310, 0986044310, 944390443100 -
Bilmärken
AUDI, SKODA, VW -
Normaliserat artikelnummer
a0573s, a3054, alt10374, alt14184, alth123, cal15251, dra0135, drb4310, f032113283, f042a0h123, lra01969, 06b903016f, 06b903016g, 8el012426111, 8el737986001, 1986a00840, 13931, 13932, 13951, 13951n, 13951r, 23242r, 23244r, 210535, 210535a, 283868, 301664ri, 437176, 439263, 2542295, 2542295a, 9044310, 12044310, 32044310, 038903018f, 071903016e, 0124515027, 0124515030, 0124515034, 0986044310, 2111911202, 2113141202, 944390443100 -
Passar modeller
AUDI A4 B5 (8D2) 1.6 Engine volume: 1.6 Engine type: AHL, ANA, ARM, ADP Year: 11.94-10.00 AUDI A4 B5 (8D2) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 07.00-11.00 AUDI A4 B5 (8D2) 1.8 Engine volume: 1.8 Engine type: AFY Year: 04.95-11.00 AUDI A4 B5 (8D2) 1.8 Engine volume: 1.8 Engine type: ARG, ADR, AVV, APT Year: 11.94-11.00 AUDI A4 B5 (8D2) 1.8 quattro Engine volume: 1.8 Engine type: AFY Year: 07.95-11.00 AUDI A4 B5 (8D2) 1.8 quattro Engine volume: 1.8 Engine type: ARG, ADR, APT Year: 01.95-11.00 AUDI A4 B5 (8D2) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 01.95-11.00 AUDI A4 B5 (8D2) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 12.97-11.00 AUDI A4 B5 (8D2) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-11.00 AUDI A4 B5 (8D2) 1.8 T quattro Engine volume: 1.8 Engine type: ATW, AEB, AWT, ARK, ANB, APU Year: 01.95-11.00 AUDI A4 B5 Avant (8D5) 1.6 Engine volume: 1.6 Engine type: AHL, ANA, ARM, ADP Year: 11.94-09.01 AUDI A4 B5 Avant (8D5) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 07.00-09.01 AUDI A4 B5 Avant (8D5) 1.8 Engine volume: 1.8 Engine type: AFY Year: 07.95-09.01 AUDI A4 B5 Avant (8D5) 1.8 Engine volume: 1.8 Engine type: ARG, ADR, AVV, APT Year: 02.96-09.01 AUDI A4 B5 Avant (8D5) 1.8 quattro Engine volume: 1.8 Engine type: AFY Year: 07.95-09.01 AUDI A4 B5 Avant (8D5) 1.8 quattro Engine volume: 1.8 Engine type: ARG, ADR, APT Year: 01.96-09.01 AUDI A4 B5 Avant (8D5) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 03.96-09.01 AUDI A4 B5 Avant (8D5) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 12.97-09.01 AUDI A4 B5 Avant (8D5) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-09.01 AUDI A4 B5 Avant (8D5) 1.8 T quattro Engine volume: 1.8 Engine type: ATW, AEB, AWT, ARK, ANB, APU Year: 01.96-09.01 AUDI A6 C5 (4B2, 4B4) 1.8 Engine volume: 1.8 Engine type: AFY Year: 05.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 Engine volume: 1.8 Engine type: ARH, AQE, AJP Year: 07.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 01.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 12.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T quattro Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 02.97-01.05 AUDI A6 C5 (4B2, 4B4) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 Engine volume: 1.8 Engine type: AFY Year: 02.98-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 Engine volume: 1.8 Engine type: ARH, AQE, AJP Year: 12.97-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 T Engine volume: 1.8 Engine type: AEB, AWT, ARK, ANB, APU Year: 12.97-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 T Engine volume: 1.8 Engine type: AJL Year: 04.99-01.05 AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro Engine volume: 1.8 Engine type: AJL Year: 12.97-01.05 SKODA SUPERB I (3U4) 1.8 T Engine volume: 1.8 Engine type: AWT Year: 12.01-03.08 SKODA SUPERB I (3U4) 2.0 Engine volume: 2.0 Engine type: AZM Year: 12.01-03.08 VW PASSAT B5 (3B2) 1.6 Engine volume: 1.6 Engine type: AHL, ADP, ANA, ARM Year: 10.96-11.00 VW PASSAT B5 (3B2) 1.8 Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 10.96-11.00 VW PASSAT B5 (3B2) 1.8 Syncro/4motion Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 12.96-08.00 VW PASSAT B5 (3B2) 1.8 T Engine volume: 1.8 Engine type: ANB, APU, AEB Year: 10.96-11.00 VW PASSAT B5 (3B2) 2.3 VR5 Engine volume: 2.3 Engine type: AGZ Year: 10.96-11.00 VW PASSAT B5 (3B2) 2.3 VR5 Syncro/4motion Engine volume: 2.3 Engine type: AGZ Year: 10.97-11.00 VW PASSAT B5 Variant (3B5) 1.6 Engine volume: 1.6 Engine type: AHL, ADP, ANA, ARM Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 1.8 Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 1.8 Syncro/4motion Engine volume: 1.8 Engine type: ADR, APT, ARG Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 1.8 T Engine volume: 1.8 Engine type: ANB, APU, AEB Year: 05.97-11.00 VW PASSAT B5 Variant (3B5) 2.3 VR5 Engine volume: 2.3 Engine type: AGZ Year: 06.97-11.00 VW PASSAT B5 Variant (3B5) 2.3 VR5 Syncro/4motion Engine volume: 2.3 Engine type: AGZ Year: 10.97-11.00 VW PASSAT B5.5 (3B3) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 1.8 T 20V Engine volume: 1.8 Engine type: AWT Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 1.8 T 4motion Engine volume: 1.8 Engine type: AWM Year: 11.03-05.05 VW PASSAT B5.5 (3B3) 1.8 T Engine volume: 1.8 Engine type: AWM Year: 02.01-11.05 VW PASSAT B5.5 (3B3) 2.0 4motion Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 2.0 Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 2.3 V5 4motion Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 VW PASSAT B5.5 (3B3) 2.3 V5 Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 1.6 Engine volume: 1.6 Engine type: ALZ Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 1.8 T Engine volume: 1.8 Engine type: AWM Year: 05.02-08.05 VW PASSAT B5.5 Variant (3B6) 2.0 4motion Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 2.0 Engine volume: 2.0 Engine type: AZM Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 2.3 VR5 4motion Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 VW PASSAT B5.5 Variant (3B6) 2.3 VR5 Engine volume: 2.3 Engine type: AZX Year: 11.00-05.05 1 / 12
-
