Artikelnr: F032110563

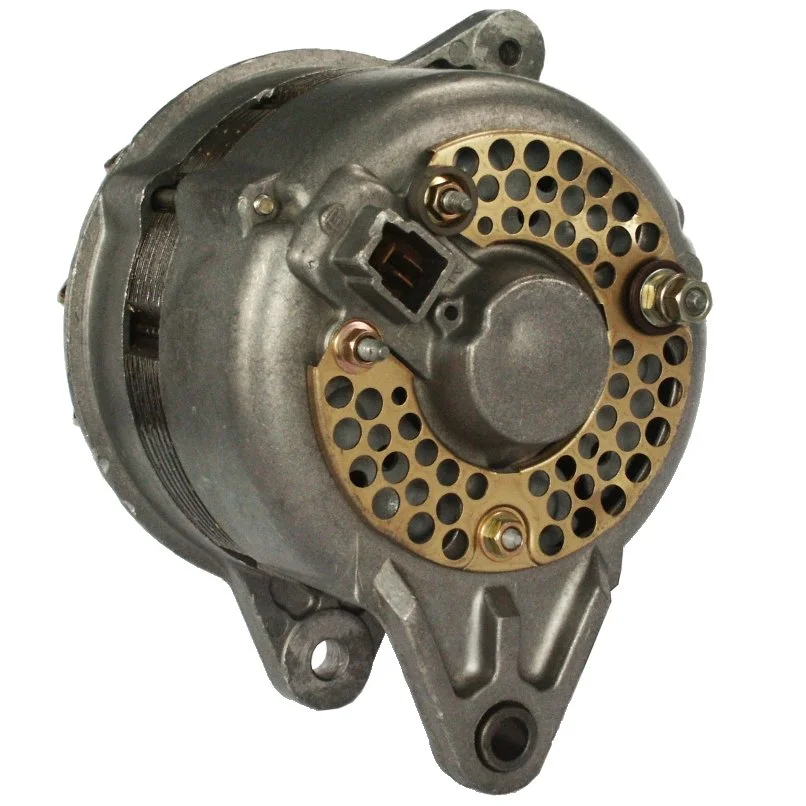

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 15, Rotation: CW, Mount. bracket dist.: 76.00

Beskrivning

Toyota Truck Generator 24V-25A 24V - 25A, E/R Regulator = VR-8521 För Yourex produkt order 90-558-2206

Voltage: 28
Amp: 15
Pulley dist.: 48.20
Width/holder arm: 12.20
Mount. bracket dist.: 76.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 84.70
Grooves/pulley: 1
Radius: 87.00
Radius 2: 87.50
B+: M6
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL15
Total length mm: 161.00
Pulley: P
Regulator: w/o
Prod. info: BN
Servicing: Toyota
Remarks: Regulator: HC-CARGO 132628.

Filer

Specifikation

B+ M6
Mount. bracket dist. 76.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 50
Plug no. PL15
Bracket hole 10.20
Position/B+ in min. 55
Prod. info BN
Pulley P
Pulley dia. 84.70
Pulley dist. 48.20
Radius 87.00
Radius 2 87.50
Regulator w/o
Remarks Regulator: HC-CARGO 132628.
Rotation CW
Servicing Toyota
Grooves/pulley 1
Voltage 28
Total length 161.00 mm
Width/holder arm 12.20
Amp 15

  • OEM
    F032110563, 11-0563, 021000-4270, 021000-4271, 021000-4510, 021000-4710, 021000-4711, 021000-8910, 27020-10940, 27020-78601-71, 27020-96601

  • Konkurrentreferens
    ALT30102, CAL40609, dra4341, 1-1888-01ND, 8el730125-001, 47-1588, 535.001.204, 535.002.204, 5421, 12020, 14578, 56238, 118221, 12060558, 32118807, 0986034341

  • Bilmärken
    Mitsui-Deutz, Toyota Forklift

  • Normaliserat artikelnummer
    alt30102, cal40609, dra4341, f032110563, 8el730125001, 5421, 12020, 14578, 56238, 110563, 118221, 471588, 1188801nd, 12060558, 32118807, 0210004270, 0210004271, 0210004510, 0210004710, 0210004711, 0210008910, 535001204, 535002204, 0986034341, 2702010940, 2702096601, 270207860171

  • Passar modeller
    Mitsui-Deutz Model: BF5L 913
    Mitsui-Deutz Model: BF6L 913
    Mitsui-Deutz Model: BF6L 913C
    Mitsui-Deutz Model: F4L 912
    Mitsui-Deutz Model: F5L 912
    Toyota Forklift Series: 2FD Model: 35 Engine type: 2H Year: 01-80-
    Toyota Forklift Series: 2FDC Model: 10 Engine type: 2J Year: 01.85-12.88
    Toyota Forklift Series: 2FDC Model: 20 / 25 / 30 Engine type: 2J Year: 01.76-12.88
    Toyota Forklift Series: 3FD Model: 10 / 14 / 15 / 18 Engine type: 2J Year: 01.76-12.88
    Toyota Forklift Series: 3FD Model: 20 / 25 Engine type: 2J Year: 01.78-12.82
    Toyota Forklift Series: 3FD Model: 28 / 30 Engine type: B Year: 01.76-
    Toyota Forklift Series: 3FD Model: 33 / 35 / 40 / 20 / 60 Engine type: 2H Year: 01.76-12.88
    Toyota Forklift Series: 3FDE Model: 35 Engine type: 2H Year: 01.76-12.88
    Toyota Forklift Series: 4FD Model: 20 / 23 / 25 Engine type: 2J / 2JT Year: 01.82-
    Toyota Forklift Series: FD Model: 18 Engine type: 2J Year: 01.78-12.88
    Toyota Forklift Series: FD Model: 23 / 25 Engine type: 2J Year: 01.78-12.82
    Toyota Forklift Series: FD Model: 45 Engine type: 2J Year: 01.76-12.88
    Toyota Forklift Series: FDC Model: 15 / 20 Engine type: 2J Year: 01.76-12.88
    Toyota Forklift Series: FDC Model: 18 / 23 Engine type: 2J Year: 01.80-12.88
    Toyota Forklift Series: FDC Model: 20 / 28 Engine type: 2J Year: 01.80-12.88
    Toyota Forklift Series: FDC Model: 25 Engine type: 2J Year: 01.76-12.80
    Toyota Forklift Series: FDC Model: 30 / 33 / 35 / 40 / 45 Engine type: 2H Year: 01.76-12.80
    Toyota Model: Land Cruiser Model series: Land Cruiser Size of motor: 4.2 Brand of engine: 2F Type description: FJ60 From date: 01-10-1981 To date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Softtop Model type: 4WD Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: _J4_ From date: 01-08-1980 To date: 01-10-1983 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.0 Brand of engine: B Type description: BJ40_V, BJ43_ From date: 01-03-1969 To date: 01-10-1984 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ42_V, BJ45_V, BJ46 From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ45_P Body: Pick Up From date: 01-08-1980 To date: 01-10-1984 Fuel: Diesel Approved: Yes
