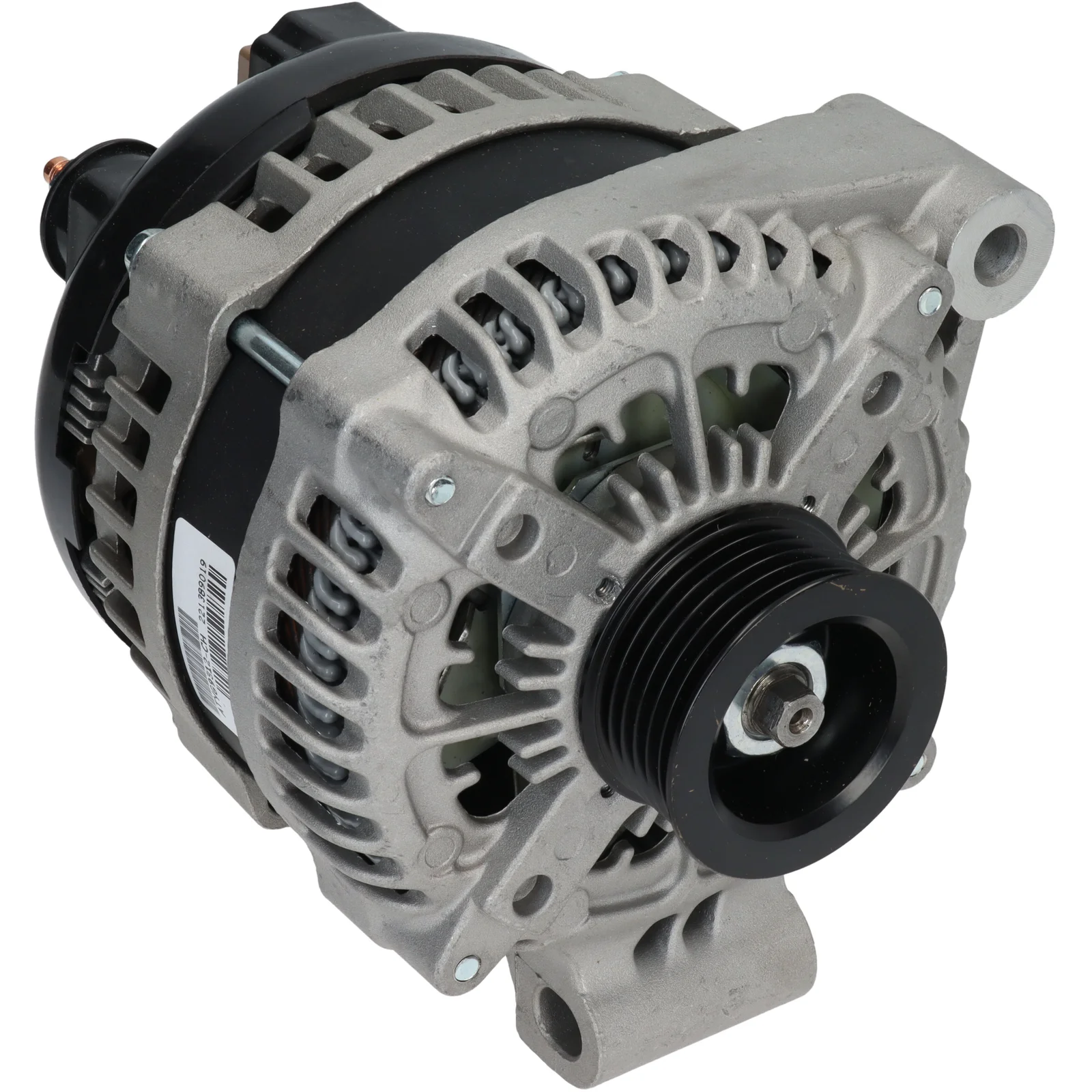

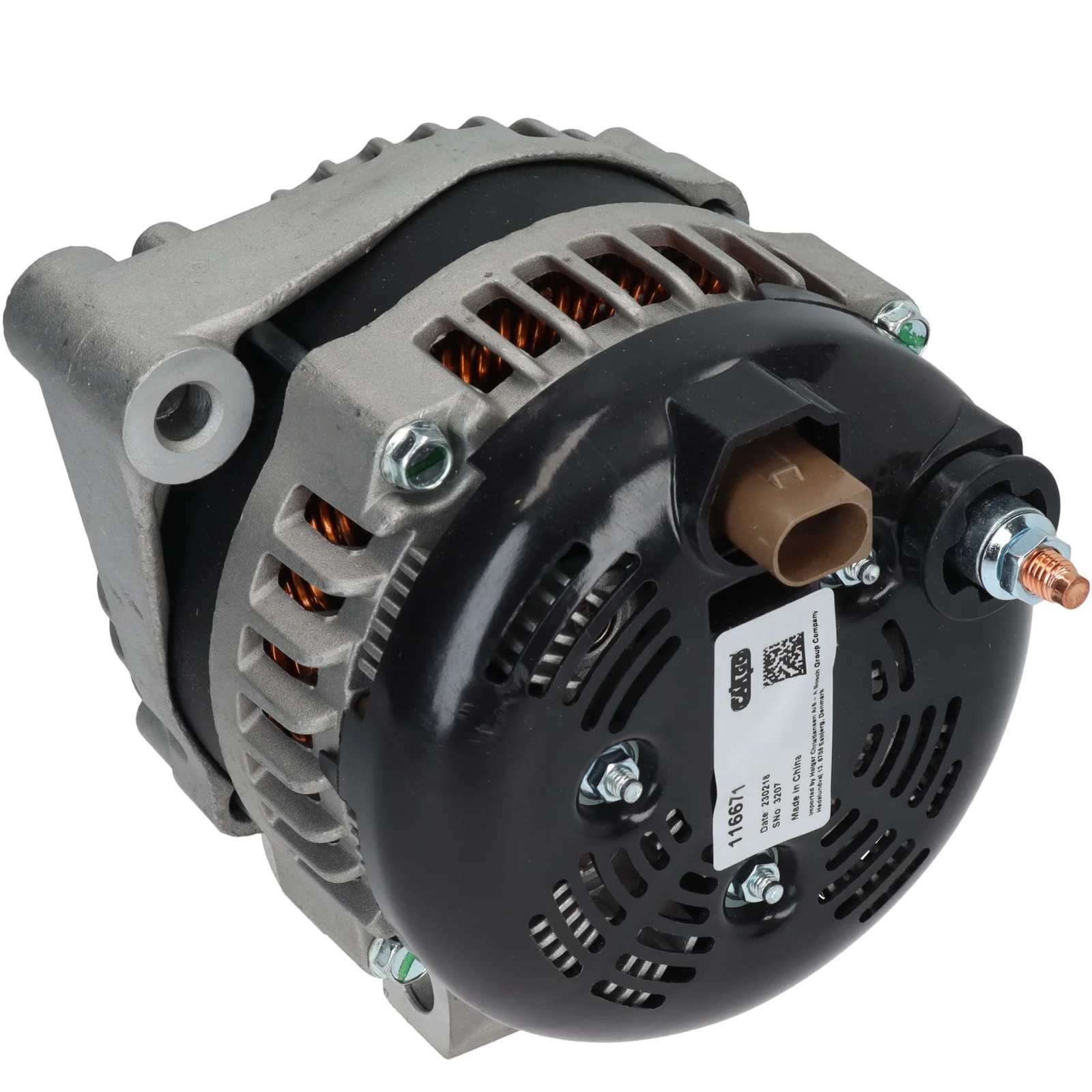

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116671

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 47.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 22.00
Width/holder arm: 50.00
Mount. bracket dist.: 47.00
Bracket hole: 11.50x14.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 52.50
Grooves/pulley: 6
Radius: 84.00
Radius 2: 87.00
B+ Length mm: 13.50
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL174
Total length mm: 194.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 50
Plug no. PL174
Bracket hole 11.50x14.00
Position/B+ in min. 10
Pulley SP
Pulley dia. 52.50
Pulley dist. 22.00
Radius 84.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 194.00 mm
Width/holder arm 50.00
Amp 220
B+ Length 13.50 mm

  • OEM
    BH4210300AC, F032116671, LR022528, LR055316, LR072762, 021080-0250, 104210-6280, 104210-6281

  • Konkurrentreferens
    A6403S, CAL40398, DAN1110, DRA1655, LRA03886, 8EL015637-601, 28-6996, 214.184.2202, 455.533.220, 21023OS, 40446, 209430, 209430A, 444259, 553742RI, 12090754, 32118826

  • Normaliserat artikelnummer
    a6403s, bh4210300ac, cal40398, dan1110, dra1655, f032116671, lr022528, lr055316, lr072762, lra03886, 8el015637601, 21023os, 40446, 209430, 209430a, 286996, 444259, 553742ri, 12090754, 32118826, 0210800250, 455533220, 1042106280, 1042106281, 2141842202

  • Passar modeller
    Land Rover Model: Range Rover Model series: Range Rover Model type: SDV8 4x4 Type of engine: Diesel Size of motor: 4.4 Brand of engine: 448DT Type description: L405 Body: SUV From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-07-2010 To date: 01-08-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-08-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Sport Model series: Range Rover Sport Model type: SDV8 4x4 Type of engine: TD Size of motor: 4.4 Brand of engine: 448DT Type description: LW Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 22.00
    Width/holder arm: 50.00
    Mount. bracket dist.: 47.00
    Bracket hole: 11.50x14.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.30
    Pulley dia.: 52.50
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 87.00
    B+ Length mm: 13.50
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL174
    Total length mm: 194.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 47.00
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 50
    Plug no. PL174
    Bracket hole 11.50x14.00
    Position/B+ in min. 10
    Pulley SP
    Pulley dia. 52.50
    Pulley dist. 22.00
    Radius 84.00
    Radius 2 87.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 194.00 mm
    Width/holder arm 50.00
    Amp 220
    B+ Length 13.50 mm
  • Fordonsmatchning

    • OEM
      BH4210300AC, F032116671, LR022528, LR055316, LR072762, 021080-0250, 104210-6280, 104210-6281

    • Konkurrentreferens
      A6403S, CAL40398, DAN1110, DRA1655, LRA03886, 8EL015637-601, 28-6996, 214.184.2202, 455.533.220, 21023OS, 40446, 209430, 209430A, 444259, 553742RI, 12090754, 32118826

    • Normaliserat artikelnummer
      a6403s, bh4210300ac, cal40398, dan1110, dra1655, f032116671, lr022528, lr055316, lr072762, lra03886, 8el015637601, 21023os, 40446, 209430, 209430a, 286996, 444259, 553742ri, 12090754, 32118826, 0210800250, 455533220, 1042106280, 1042106281, 2141842202

    • Passar modeller
      Land Rover Model: Range Rover Model series: Range Rover Model type: SDV8 4x4 Type of engine: Diesel Size of motor: 4.4 Brand of engine: 448DT Type description: L405 Body: SUV From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-07-2010 To date: 01-08-2012 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-08-2012 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Sport Model series: Range Rover Sport Model type: SDV8 4x4 Type of engine: TD Size of motor: 4.4 Brand of engine: 448DT Type description: LW Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
