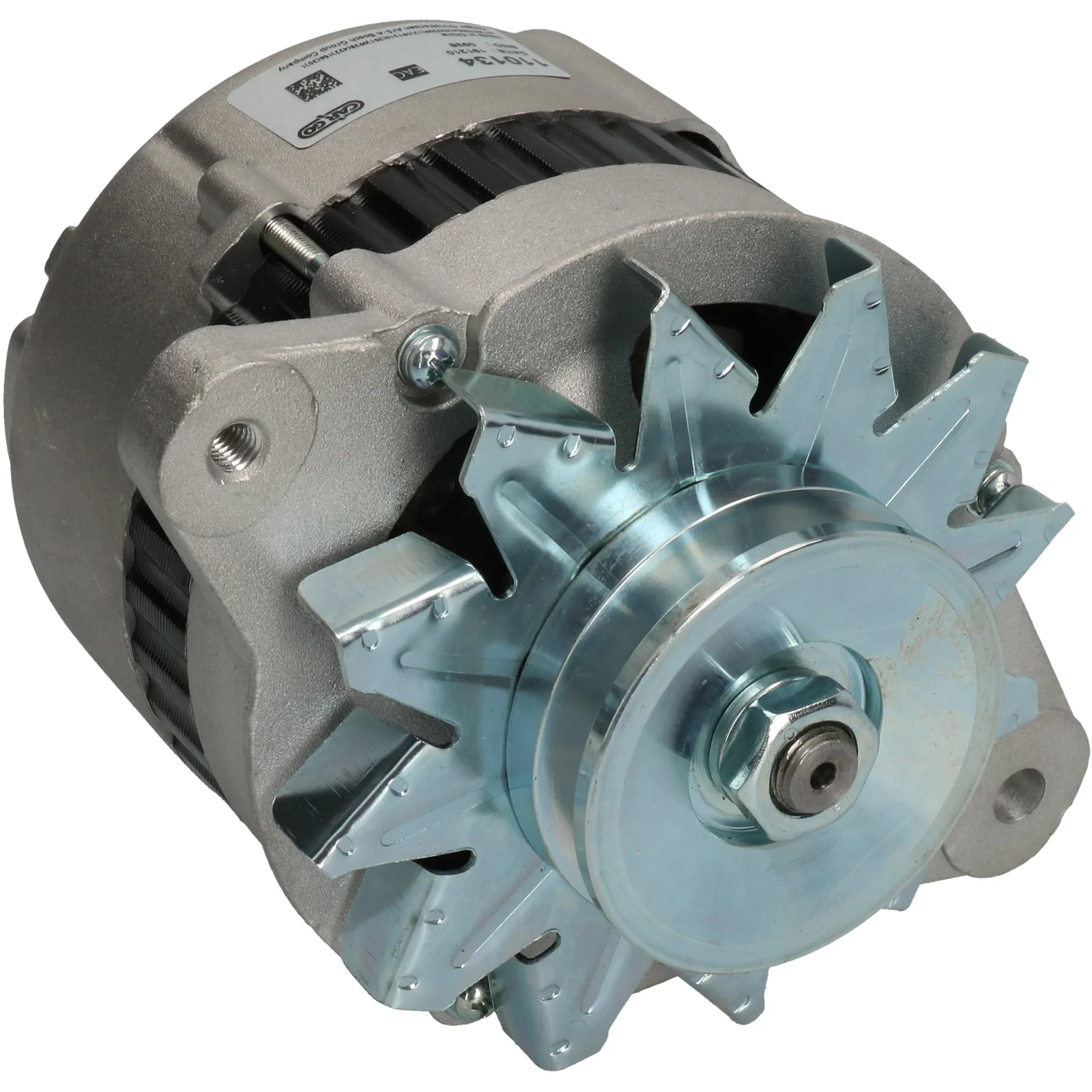

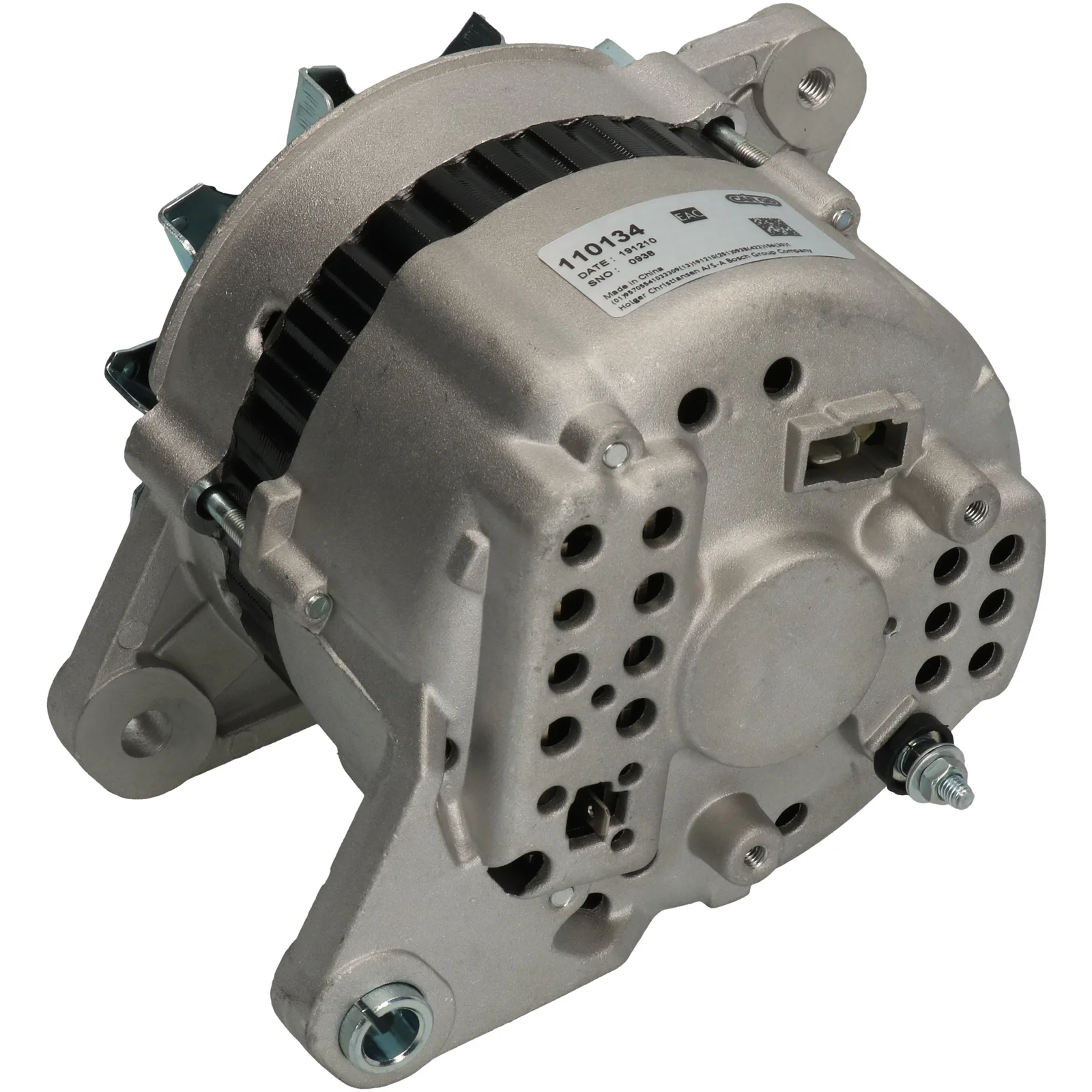

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032110134

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 55, Rotation: CW, Mount. bracket dist.: 80.50

Beskrivning

Voltage: 14
Amp: 55
Pulley dist.: 41.00
Width/holder arm: 12.50
Mount. bracket dist.: 80.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.50
Grooves/pulley: 1
Radius: 90.00
Radius 2: 84.50
B+: M5
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL09
Total length mm: 171.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Mazda

Filer

Specifikation

B+ M5
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.50
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 62.50
Pulley dist. 41.00
Radius 90.00
Radius 2 84.50
Regulator type IR
Rotation CW
Servicing Mazda
Grooves/pulley 1
Voltage 14
Total length 171.50 mm
Width/holder arm 12.50
Amp 55

  • OEM
    A002T21278, A002T23474, A002T23477, A005T20377, A005T20387, a2t21278, a2t23474, a2t23477, a5t20377, a5t20387, F032110134, HE41-18-300, HE45-18-300, HE45-18-300A, HE45-18-300XA, ja884ir, lr150-165, 1480-18-300, 1480-18-300A, 1480-18-300B, 8173-18-300, 8173-18-300B, 8173-18-300C, 8341-18-300, 5812003470, 9120060894

  • Konkurrentreferens
    ALT31093, ama-362, ama-366, DRA0425, dra2621, dra2641, dra5161, lra00399, lra00402, va227, va229, 1-1138-01MI, 24-51.302, 24-51.305, 28-0563, 28-563, 224.101.502, 3170, 12278, 14307N, 40884RI, 55759, 56027, 436549, 12060082, 0986032621, 0986035151

  • Normaliserat artikelnummer
    a002t21278, a002t23474, a002t23477, a005t20377, a005t20387, a2t21278, a2t23474, a2t23477, a5t20377, a5t20387, alt31093, ama362, ama366, dra0425, dra2621, dra2641, dra5161, f032110134, he4118300, he4518300, he4518300a, he4518300xa, ja884ir, lr150165, lra00399, lra00402, va227, va229, 3170, 12278, 14307n, 28563, 40884ri, 55759, 56027, 280563, 436549, 1113801mi, 2451302, 2451305, 12060082, 148018300, 148018300a, 148018300b, 224101502, 817318300, 817318300b, 817318300c, 834118300, 0986032621, 0986035151, 5812003470, 9120060894

  • Passar modeller
    Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: H6 Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: N Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 1.6 Brand of engine: NA Type description: CD From date: 01-05-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: HE3 Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: M Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 626 Model series: 626 Size of motor: 2.0 Brand of engine: MA Type description: CB From date: 01-03-1979 To date: 01-05-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HB Body: Coupe From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HB From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: HEE Type description: HV Body: Estate From date: 01-01-1983 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: M Type description: LA From date: 01-05-1979 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HB Body: Coupe From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HB From date: 01-05-1982 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: HV Body: Estate From date: 01-01-1983 To date: 01-12-1987 Fuel: Gasoline Approved: Yes
    Mazda Model: 929 Model series: 929 Size of motor: 2.0 Brand of engine: MA Type description: LA From date: 01-05-1979 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 1600 Size of motor: 1.6 Brand of engine: NA Body: Van From date: 01-08-1980 To date: 01-06-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE18 Type description: SR Body: Bus From date: 01-11-1984 To date: 01-05-1994 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE18 Type description: SR2 Body: Van From date: 01-05-1985 To date: 01-04-1989 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FE58 Type description: SR2 Body: Van From date: 01-05-1985 To date: 01-04-1989 Fuel: Gasoline Approved: Yes
    Mazda Model: E Model series: E 2000 Size of motor: 2.0 Brand of engine: FEV4 Type description: SR Body: Bus From date: 01-11-1984 To date: 01-05-1994 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 Brand of engine: 12AN2 Body: Coupe From date: 01-01-1981 To date: 01-03-1984 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 Brand of engine: 12AN2 Type description: SA Body: Coupe From date: 01-03-1984 To date: 01-03-1986 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 From date: 01-01-1979 To date: 01-01-1982 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Size of motor: 1.1 From date: 01-01-1983 To date: 01-01-1985 Fuel: Gasoline Approved: Yes
    Mazda Model: RX Model series: RX-7 Type of engine: Turbo Size of motor: 1.3 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    1 / 5
