- Generator
-

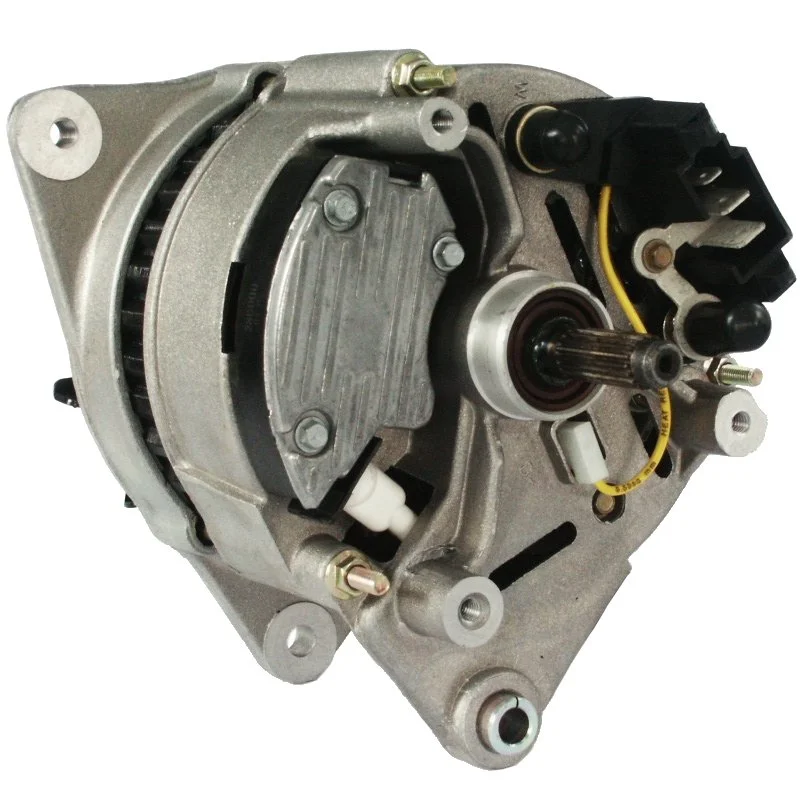

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032110607
HC-Cargo Generator
Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 83.00
Beskrivning
Ford Transit D. Gen. 70A 12V - 70A, 4 groove pulley, utan pump Vacuum pump ingår ej. = 57-161-4100, Komplett Generator med pump = 90-180-9611. För Yourex produkt order 90-180-3661
Voltage: 14
Amp: 70
Pulley dist.: 33.70
Width/holder arm: 11.30
Mount. bracket dist.: 83.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 4
Radius: 84.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 12
D+ Size: 6.30
Rotation: CW
Plug no.: PL22
Total length mm: 201.50
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Ford
Voltage: 14
Amp: 70
Pulley dist.: 33.70
Width/holder arm: 11.30
Mount. bracket dist.: 83.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 4
Radius: 84.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 12
D+ Size: 6.30
Rotation: CW
Plug no.: PL22
Total length mm: 201.50
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Ford
Filer
Specifikation
| B+ | M6 |
|---|---|
| Mount. bracket dist. | 83.00 |
| Belt. adj. bracket hole 1 | M8 |
| Belt. adj. brackethole pos. | 10 |
| Plug no. | PL22 |
| Bracket hole | 8.20 |
| Position/B+ in min. | 12 |
| Prod. info | BN |
| Pulley | SP |
| Pulley dia. | 67.00 |
| Pulley dist. | 33.70 |
| Radius | 84.00 |
| D+ Size | 6.30 |
| Radius 2 | 84.00 |
| Regulator type | IR |
| Rotation | CW |
| Servicing | Ford |
| Grooves/pulley | 4 |
| Voltage | 14 |
| Total length | 201.50 mm |
| Width/holder arm | 11.30 |
| Amp | 70 |
-
OEM
D954F10K359AA, D954F10K359AB, EGL1257, EGL1258, EGL1258R, EGL257, EGL258, F032110607, LRA 940, R894FX10300BA, r89fx10300ba, u88vg10k359aa, V86VB10K359AA, V86VB10K359AB, V86VG10K359AA, V88VG10K359AA, 11-0607, 611ir, 864F10K659GC, 884F10K359A, 884f10k359aa, 884f10k359ab, 884F10K359GB, 884FX10K359AB, 894f10300ba, 894fx10300aa, 894fx10300ba, 24188, 24188a, 24188B, 24188c, 24188D, 24188E, 24230, 24230a, 24230b, 24230E, 24264, 24264a, 24264B, 1516399R, 1658022, 1658023, 5026716, 5026721, 5026728, 6185402, 6983801, 54022130, 54022222, 54022248, 54022301, 54022351, 54022374, 54022513, 54022516, 54022557, 54022558, 63324264 -
Konkurrentreferens
ALT-4026, ALT4026, BAO3012, BAO3013, dra3063, DRA3367, dra3368, F042306002, F042A06002, LEA0039, lra00780, lra00940, MG507, QA0881, va248, va256, va259, 8el725713-001, 8el725894-001, 8el732700-001, 8el732701-001, 20-36.581, 20-36.591, 28-0922, 28-0992, 28-1885, 28-2514, 219.108.552, 219.108.702, 4911, 4924, 5003, 5004, 5106, 5172, 23615R, 23671RW, 23682N, 55728, 56294, 56531, 119000, 210085, 210085A, 210185, 210185A, 210210, 210210A, 436755, 12036610, 20100780, 20100940, 32001206, 32001207, 063324188, 063324264, 0986036581, 0986036590, 0986036611, 0986036612, 063324264010 -
Bilmärken
Ford EU -
Normaliserat artikelnummer
alt4026, bao3012, bao3013, d954f10k359aa, d954f10k359ab, dra3063, dra3367, dra3368, egl1257, egl1258, egl1258r, egl257, egl258, f032110607, f042306002, f042a06002, lea0039, lra00780, lra00940, lra940, mg507, qa0881, r894fx10300ba, r89fx10300ba, u88vg10k359aa, v86vb10k359aa, v86vb10k359ab, v86vg10k359aa, v88vg10k359aa, va248, va256, va259, 8el725713001, 8el725894001, 8el732700001, 8el732701001, 611ir, 864f10k659gc, 884f10k359a, 884f10k359aa, 884f10k359ab, 884f10k359gb, 884fx10k359ab, 894f10300ba, 894fx10300aa, 894fx10300ba, 4911, 4924, 5003, 5004, 5106, 5172, 23615r, 23671rw, 23682n, 24188, 24188a, 24188b, 24188c, 24188d, 24188e, 24230, 24230a, 24230b, 24230e, 24264, 24264a, 24264b, 55728, 56294, 56531, 110607, 119000, 210085, 210085a, 210185, 210185a, 210210, 210210a, 280922, 280992, 281885, 282514, 436755, 1516399r, 1658022, 1658023, 2036581, 2036591, 5026716, 5026721, 5026728, 6185402, 6983801, 12036610, 20100780, 20100940, 32001206, 32001207, 54022130, 54022222, 54022248, 54022301, 54022351, 54022374, 54022513, 54022516, 54022557, 54022558, 063324188, 063324264, 63324264, 219108552, 219108702, 0986036581, 0986036590, 0986036611, 0986036612, 063324264010 -
Passar modeller
Ford Europe Trucks & Vans Series: Transit (T__) Model: 2.5 D / DI Engine volume: 2.5 Year: 08.85-12.91 Ford Europe Trucks & Vans Series: TRANSIT Buss Model: 2.5 D Engine volume: 2.5 Engine type: 4AB Year: 12.85-01-89 Ford Europe Trucks & Vans Series: TRANSIT Buss Model: 2.5 D Engine volume: 2.5 Engine type: 4BA/4CA Year: 09.88-09.92 Ford Europe Trucks & Vans Series: TRANSIT Flak/chassi Model: 2.5 D Engine volume: 2.5 Engine type: 4AB Year: 01.86-01.89 Ford Europe Trucks & Vans Series: TRANSIT Flak/chassi Model: 2.5 DI Engine volume: 2.5 Engine type: 4BA/4BB/4CA/4CB Year: 09.88-09.92 Ford Europe Trucks & Vans Series: TRANSIT Skåp Model: 2.5 D Engine volume: 2.5 Engine type: 4AB Year: 01.86-09.91 Ford Europe Trucks & Vans Series: TRANSIT Skåp Model: 2.5 D Engine volume: 2.5 Engine type: 4BA/4CA Year: 10.88-09.91 Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4AB Type description: TAL,TAS,TGL,TWS Body: Van From date: 01-01-1986 To date: 01-09-1991 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4AB Type description: TBS,TCL,TCS,TEL,TES Body: Bus From date: 01-12-1985 To date: 01-01-1989 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4AB Type description: TTL,TTS,TUL Body: Platform / Chassis From date: 01-01-1986 To date: 01-01-1989 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4BA Type description: TAL,TAS,TGL,TWS Body: Van From date: 01-10-1988 To date: 01-09-1991 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4BA Type description: TBS,TEL,TES Body: Bus From date: 01-09-1988 To date: 01-09-1992 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4BA Type description: TTE,TTL,TTS Body: Platform / Chassis From date: 01-09-1988 To date: 01-09-1992 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4CA Type description: TAL,TAS,TGL,TWS Body: Van From date: 01-10-1988 To date: 01-09-1991 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4CA Type description: TBS,TEL,TES Body: Bus From date: 01-09-1988 To date: 01-09-1992 Fuel: Diesel Approved: Yes Ford Model: Transit Model series: Transit Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4CA Type description: TTE,TTL,TTS Body: Platform / Chassis From date: 01-09-1988 To date: 01-09-1992 Fuel: Diesel Approved: Yes 1 / 4
-
