HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115953

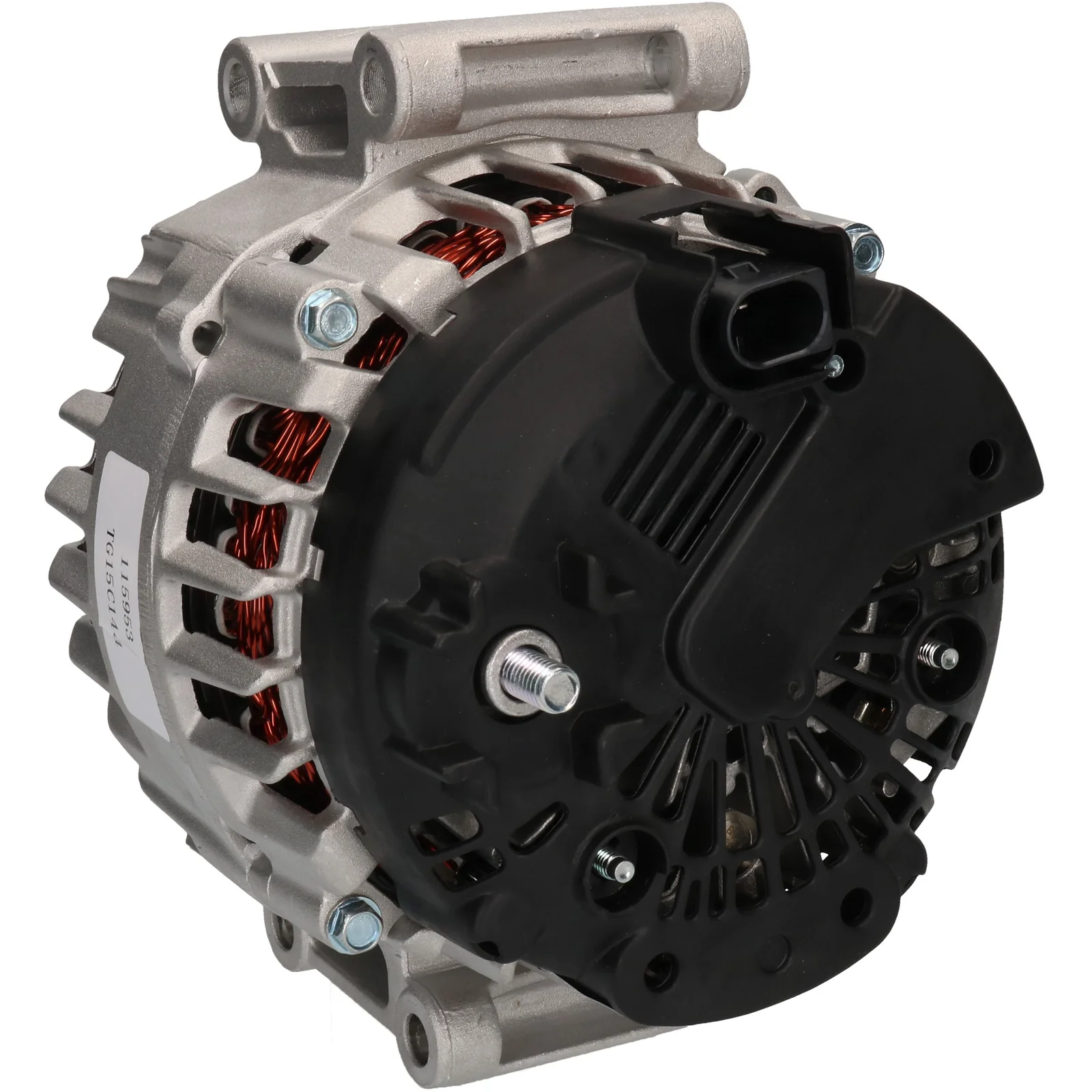

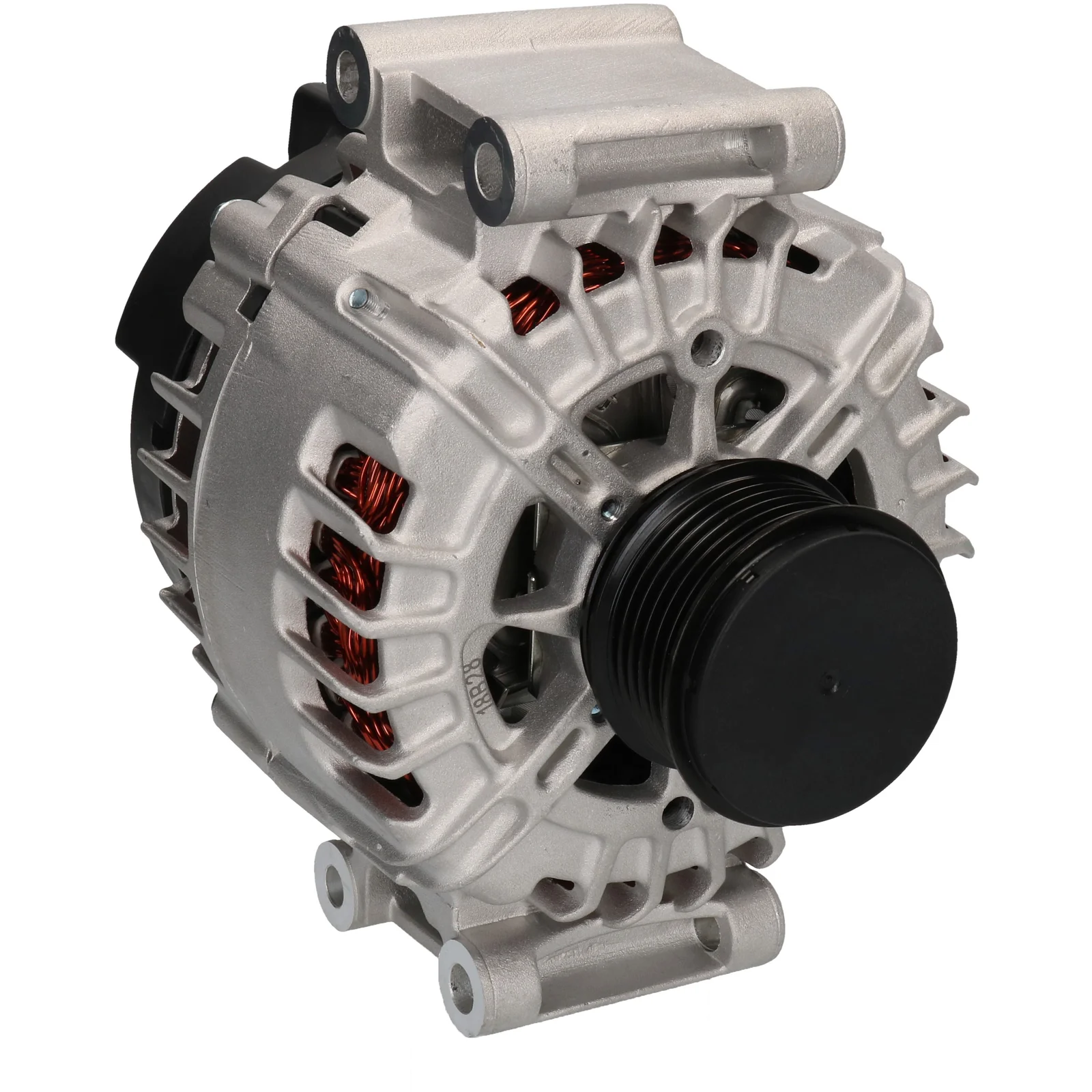

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 30.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL86
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.50
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Width/holder arm 70.00
Amp 150

  • OEM
    F032115953, TG15C144, 06D903016D, 06D903016DX, 06E903016DX, 06H903017S, 2606017

  • Konkurrentreferens
    28-7832, 205.548.150, 211.555.1502, 20585N, 439656, 440242, 442134, 12090674, 12090880, 32000021

  • Normaliserat artikelnummer
    f032115953, tg15c144, 06d903016d, 06d903016dx, 06e903016dx, 06h903017s, 20585n, 287832, 439656, 440242, 442134, 2606017, 12090674, 12090880, 32000021, 205548150, 2115551502

  • Passar modeller
    Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BYK Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 30.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.50
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL86
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.50
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Width/holder arm 70.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032115953, TG15C144, 06D903016D, 06D903016DX, 06E903016DX, 06H903017S, 2606017

    • Konkurrentreferens
      28-7832, 205.548.150, 211.555.1502, 20585N, 439656, 440242, 442134, 12090674, 12090880, 32000021

    • Normaliserat artikelnummer
      f032115953, tg15c144, 06d903016d, 06d903016dx, 06e903016dx, 06h903017s, 20585n, 287832, 439656, 440242, 442134, 2606017, 12090674, 12090880, 32000021, 205548150, 2115551502

    • Passar modeller
      Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BYK Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
