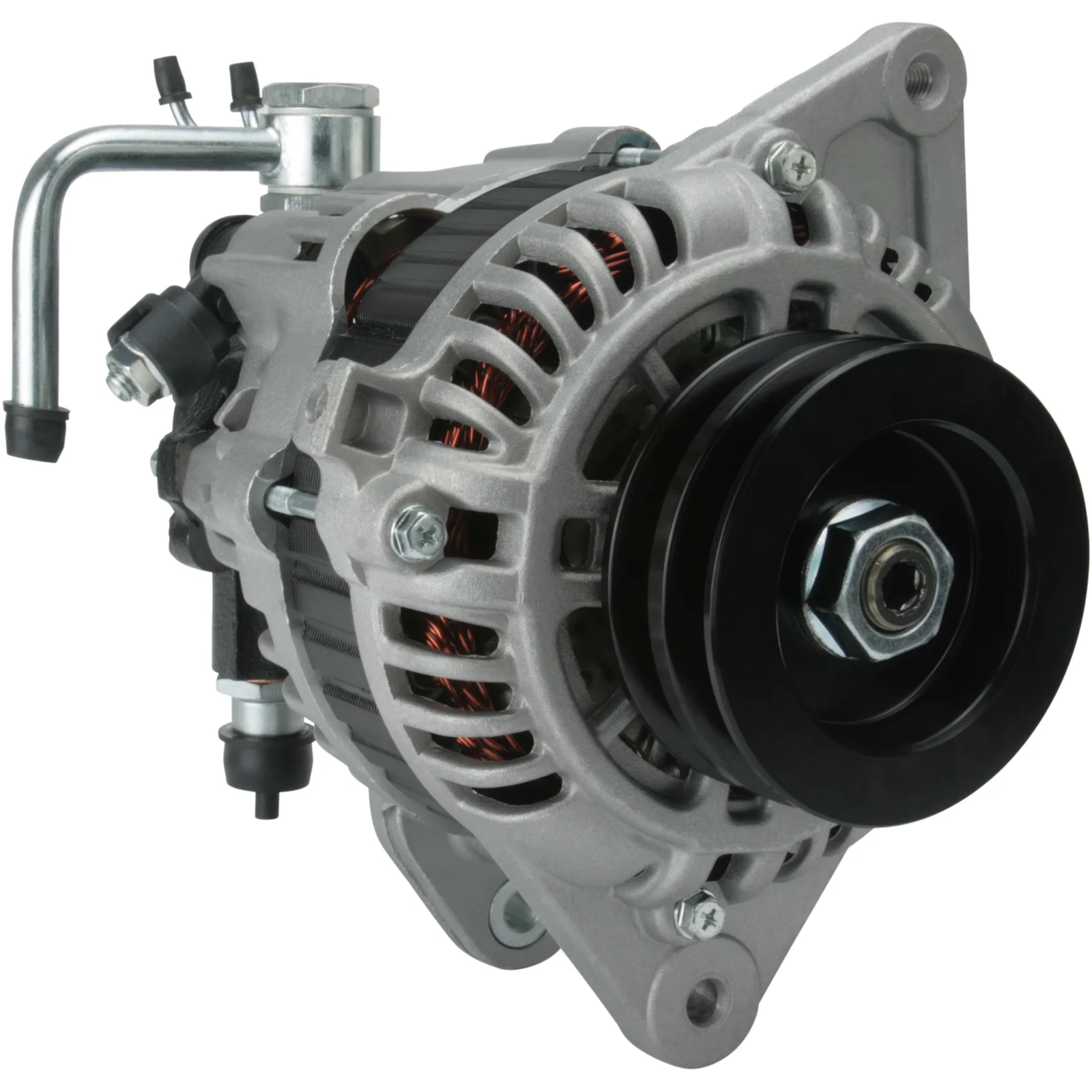

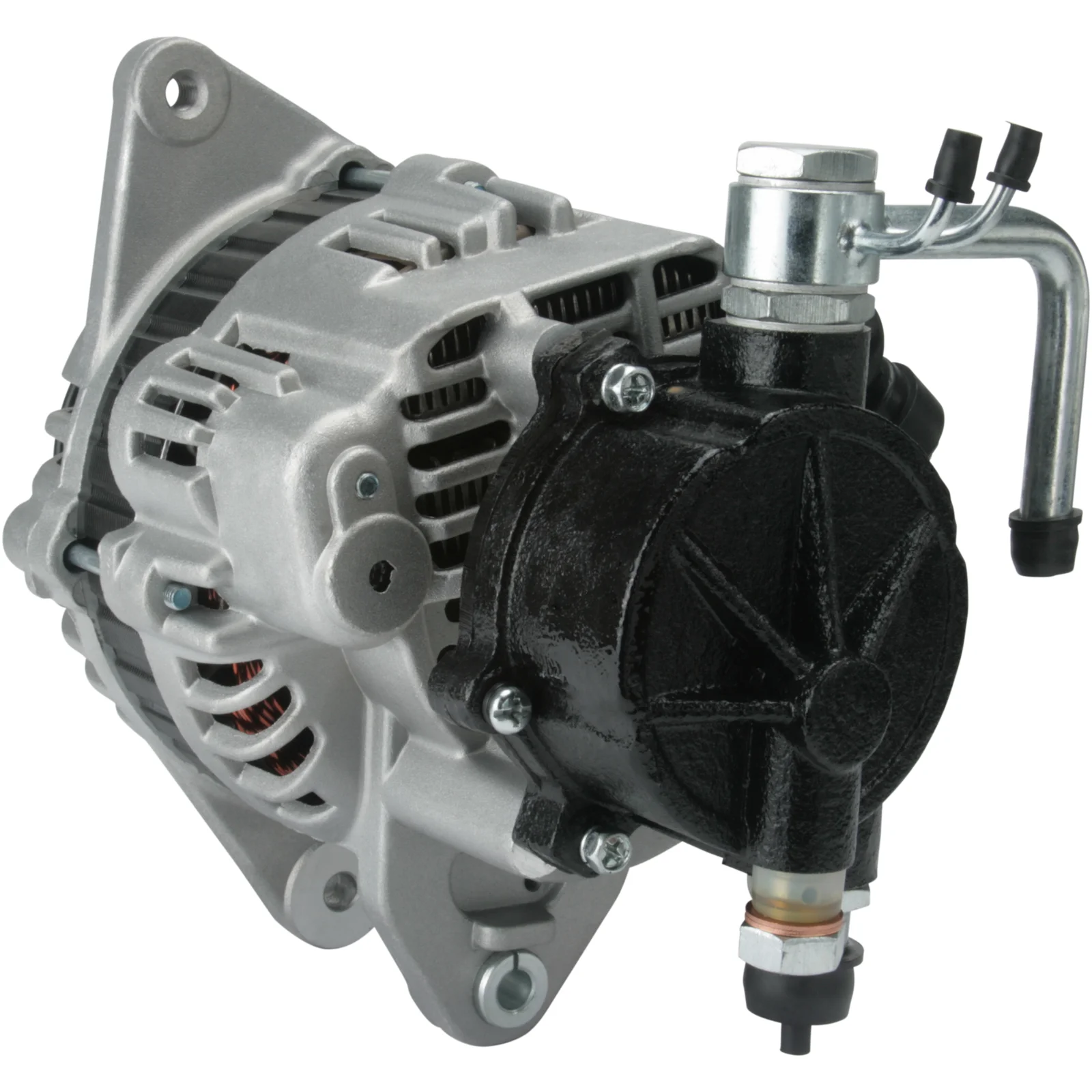

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112333

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 55.00

Beskrivning

Voltage: 14
Amp: 110
Pulley dist.: 42.20
Width/holder arm: 13.00
Mount. bracket dist.: 55.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 85.00
Grooves/pulley: 2
Radius: 90.50
Radius 2: 97.50
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL07
Total length mm: 233.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Hyundai

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 8.50
Position/B+ in min. 10
Prod. info BN
Pulley DP
Pulley dia. 85.00
Pulley dist. 42.20
Radius 90.50
Radius 2 97.50
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 233.00 mm
Width/holder arm 13.00
Amp 110

  • OEM
    af111364, F032112333, ja1518ir, TA000A57301, 37300-32354, 37300-42353, 37300-42354, 37300-42355, 37300-42356, 37300-42357, 37300-42358, 37300-42359, 37300-42360

  • Konkurrentreferens
    A3244(VALEO), A5161, A9001, ALT-H091, ALT-V063, CAL32108, DRA4173, DRA4173N, DRA4173X, F04230D002, F042A0H091, j5110501, J5110521, LRA01862, 8EL011711-131, 8EL737772-001, 28-3721, 526.126.1102, 22862N, 22862R, 119936, 210371, 210371A, 401518RI, 600012, 600211, 12060734, 063532608, 0986080020, 063532608010

  • Normaliserat artikelnummer
    a3244valeo, a5161, a9001, af111364, alth091, altv063, cal32108, dra4173, dra4173n, dra4173x, f032112333, f04230d002, f042a0h091, j5110501, j5110521, ja1518ir, lra01862, ta000a57301, 8el011711131, 8el737772001, 22862n, 22862r, 119936, 210371, 210371a, 283721, 401518ri, 600012, 600211, 12060734, 063532608, 0986080020, 3730032354, 3730042353, 3730042354, 3730042355, 3730042356, 3730042357, 3730042358, 3730042359, 3730042360, 5261261102, 063532608010

  • Passar modeller
    Hyundai Model: H-1 / Starex Bus Model series: H-1 / Starex Bus Model type: CRDi Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: A1 Body: Bus Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Starex Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: KMF Body: Bus From date: 01-06-2006 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Starex Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BF Type description: KMF Body: Bus From date: 01-10-1997 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Body: Platform / Chassis From date: 01-06-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: Van From date: 01-03-2000 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-03-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-10-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Van Model series: H-1 Van Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: A1 Body: Van From date: 01-10-1998 To date: 01-04-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: Satellite Model series: Satellite Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TC Body: Bus From date: 01-10-1997 Fuel: Diesel Approved: Yes
    Hyundai Model: Starex Model series: Starex Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: MPV From date: 01-02-1998 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: Starex Model series: Starex Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: H1 Body: MPV From date: 01-06-1997 To date: 01-04-2004 Fuel: Diesel Approved: Yes
