Artikelnr: F032111605

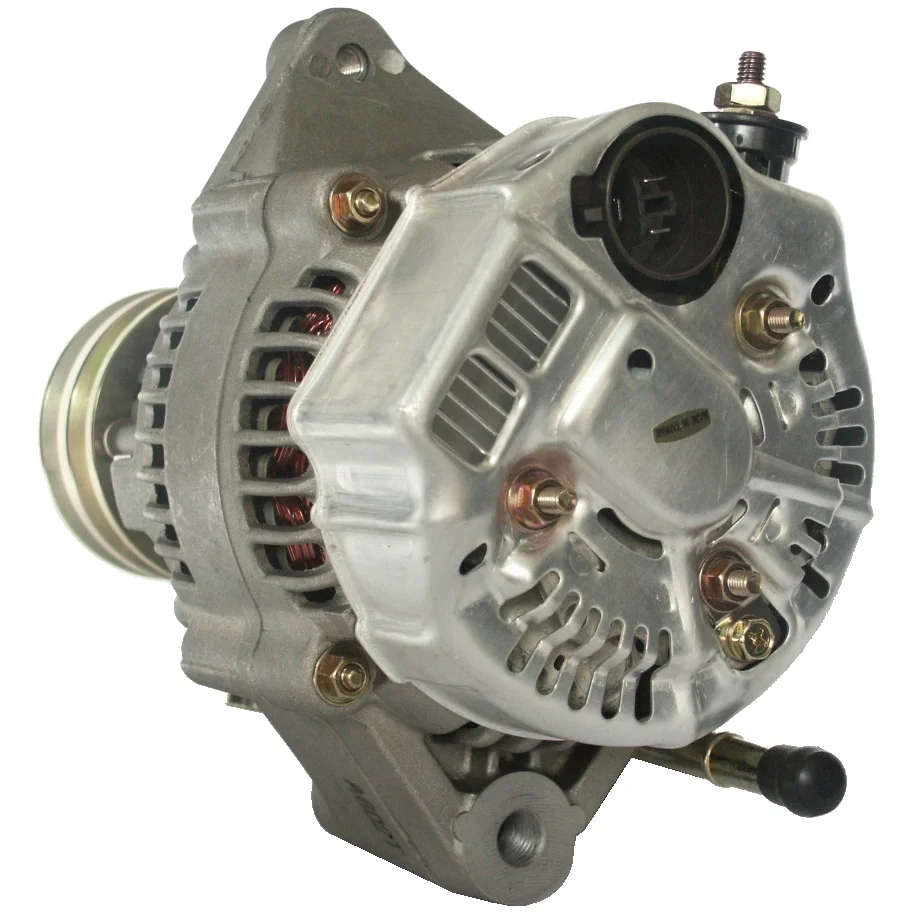

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley dia.: 76.80

Beskrivning

Toyota Van Diesel pump gen. 12V - 70A, 2V, (S, IG, L) För Yourex produkt order 90-555-5407

Voltage: 14
Amp: 70
Pulley dist.: 146.50
Width/holder arm: 69.50
Bracket hole: 10.30
Belt. adj. brackethole pos.: 2
Belt. adj. bracket hole 1: M8
Pulley dia.: 76.80
Grooves/pulley: 2
Radius: 77.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL12
Total length mm: 231.00
Pulley: DP
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 2
Plug no. PL12
Bracket hole 10.30
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 76.80
Pulley dist. 146.50
Radius 77.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 231.00 mm
Width/holder arm 69.50
Amp 70

  • OEM
    F032111605, ja881ir, 27040-54130, 27040-54160, 27040-54170, 27040-54190, 27040-54191, 27040-54210, 27040-54220, 27040-54230, 27040-54231, 27040-54240, 27060-54030, 27060-54070, 27060-54080, 100211-5090, 100213-0941, 100213-1011, 100213-1030, 100213-1040, 100213-1050, 100213-1130, 100213-1140, 100213-1150, 100213-1230, 100213-1240, 100213-1250, 100213-1790, 111605

  • Konkurrentreferens
    A6524S, A6525S, ALT30024, ALT30064, ata-458, CAL40130, dra3504, LRA01436, LRA01936, QA3057, 8el732727-001, 28-1760, 28-1942, 28-3826, 39-51.285, 235.132.702, 235.132.802, 235.165.702, 235.178.702, 5455, 22435R, 40881RI, 119551, 119990, 12060390, 12060391, 12060732, 0986043001

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a6524s, a6525s, alt30024, alt30064, ata458, cal40130, dra3504, f032111605, ja881ir, lra01436, lra01936, qa3057, 8el732727001, 5455, 22435r, 40881ri, 111605, 119551, 119990, 281760, 281942, 283826, 3951285, 12060390, 12060391, 12060732, 235132702, 235132802, 235165702, 235178702, 0986043001, 1002115090, 1002130941, 1002131011, 1002131030, 1002131040, 1002131050, 1002131130, 1002131140, 1002131150, 1002131230, 1002131240, 1002131250, 1002131790, 2704054130, 2704054160, 2704054170, 2704054190, 2704054191, 2704054210, 2704054220, 2704054230, 2704054231, 2704054240, 2706054030, 2706054070, 2706054080

  • Passar modeller
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Van From date: 01-08-1989 To date: 01-08-2004 Fuel: Diesel Approved: Yes
    Toyota Series: Cressida (_X8_) Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.88-01.93
    Toyota Series: HIACE IV Buss Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.89-07.93
    Toyota Series: HIACE IV Skåp Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.89-07.93
    Toyota Series: HIACE IV Skåp Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 09.89-07.93
    1 / 2
  • Beskrivning
    Toyota Van Diesel pump gen. 12V - 70A, 2V, (S, IG, L) För Yourex produkt order 90-555-5407

    Voltage: 14
    Amp: 70
    Pulley dist.: 146.50
    Width/holder arm: 69.50
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 2
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 76.80
    Grooves/pulley: 2
    Radius: 77.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL12
    Total length mm: 231.00
    Pulley: DP
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 2
    Plug no. PL12
    Bracket hole 10.30
    Position/B+ in min. 5
    Prod. info BN
    Pulley DP
    Pulley dia. 76.80
    Pulley dist. 146.50
    Radius 77.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 231.00 mm
    Width/holder arm 69.50
    Amp 70
  • Fordonsmatchning

    • OEM
      F032111605, ja881ir, 27040-54130, 27040-54160, 27040-54170, 27040-54190, 27040-54191, 27040-54210, 27040-54220, 27040-54230, 27040-54231, 27040-54240, 27060-54030, 27060-54070, 27060-54080, 100211-5090, 100213-0941, 100213-1011, 100213-1030, 100213-1040, 100213-1050, 100213-1130, 100213-1140, 100213-1150, 100213-1230, 100213-1240, 100213-1250, 100213-1790, 111605

    • Konkurrentreferens
      A6524S, A6525S, ALT30024, ALT30064, ata-458, CAL40130, dra3504, LRA01436, LRA01936, QA3057, 8el732727-001, 28-1760, 28-1942, 28-3826, 39-51.285, 235.132.702, 235.132.802, 235.165.702, 235.178.702, 5455, 22435R, 40881RI, 119551, 119990, 12060390, 12060391, 12060732, 0986043001

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      a6524s, a6525s, alt30024, alt30064, ata458, cal40130, dra3504, f032111605, ja881ir, lra01436, lra01936, qa3057, 8el732727001, 5455, 22435r, 40881ri, 111605, 119551, 119990, 281760, 281942, 283826, 3951285, 12060390, 12060391, 12060732, 235132702, 235132802, 235165702, 235178702, 0986043001, 1002115090, 1002130941, 1002131011, 1002131030, 1002131040, 1002131050, 1002131130, 1002131140, 1002131150, 1002131230, 1002131240, 1002131250, 1002131790, 2704054130, 2704054160, 2704054170, 2704054190, 2704054191, 2704054210, 2704054220, 2704054230, 2704054231, 2704054240, 2706054030, 2706054070, 2706054080

    • Passar modeller
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Van From date: 01-08-1989 To date: 01-08-2004 Fuel: Diesel Approved: Yes
      Toyota Series: Cressida (_X8_) Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.88-01.93
      Toyota Series: HIACE IV Buss Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.89-07.93
      Toyota Series: HIACE IV Skåp Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 08.89-07.93
      Toyota Series: HIACE IV Skåp Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 09.89-07.93
