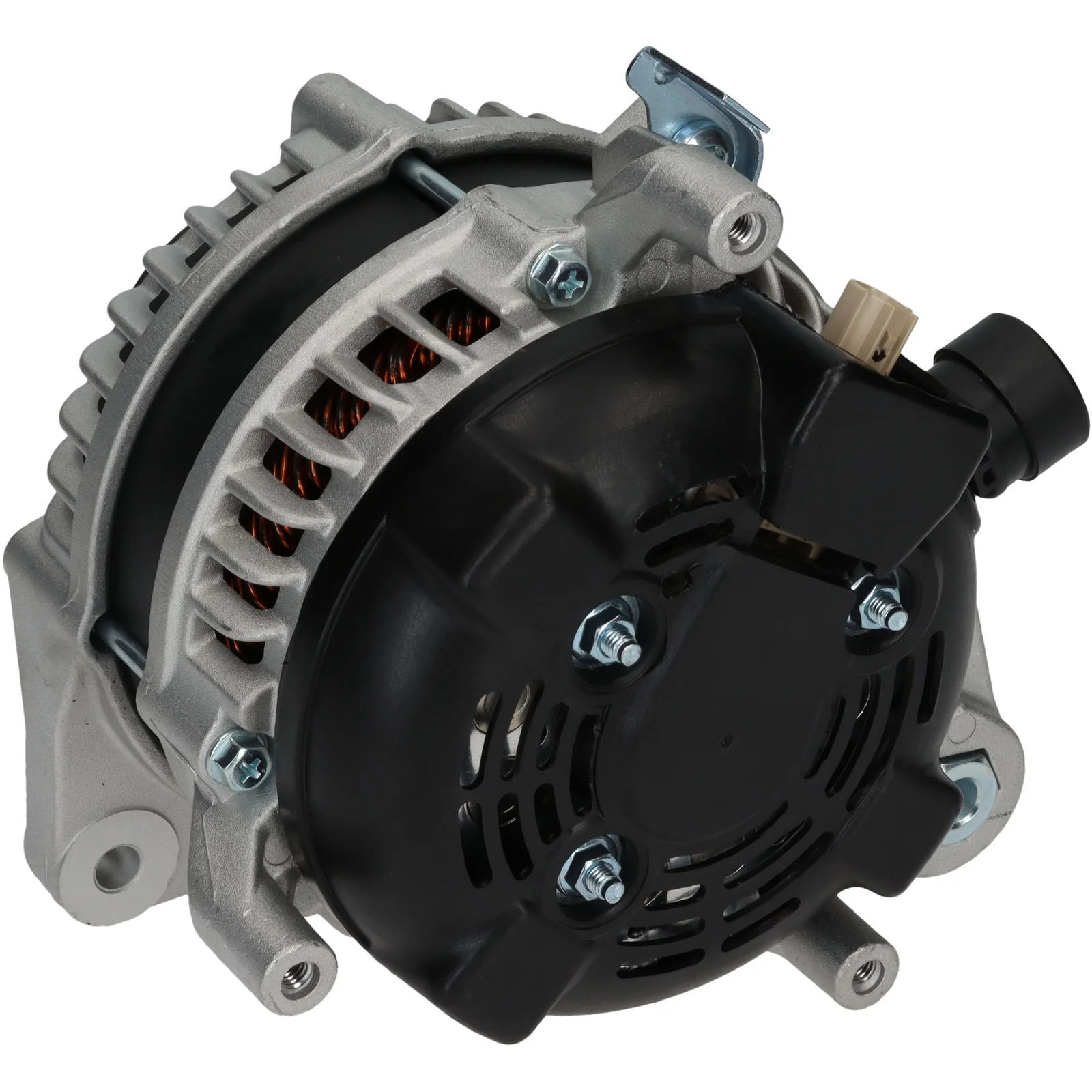

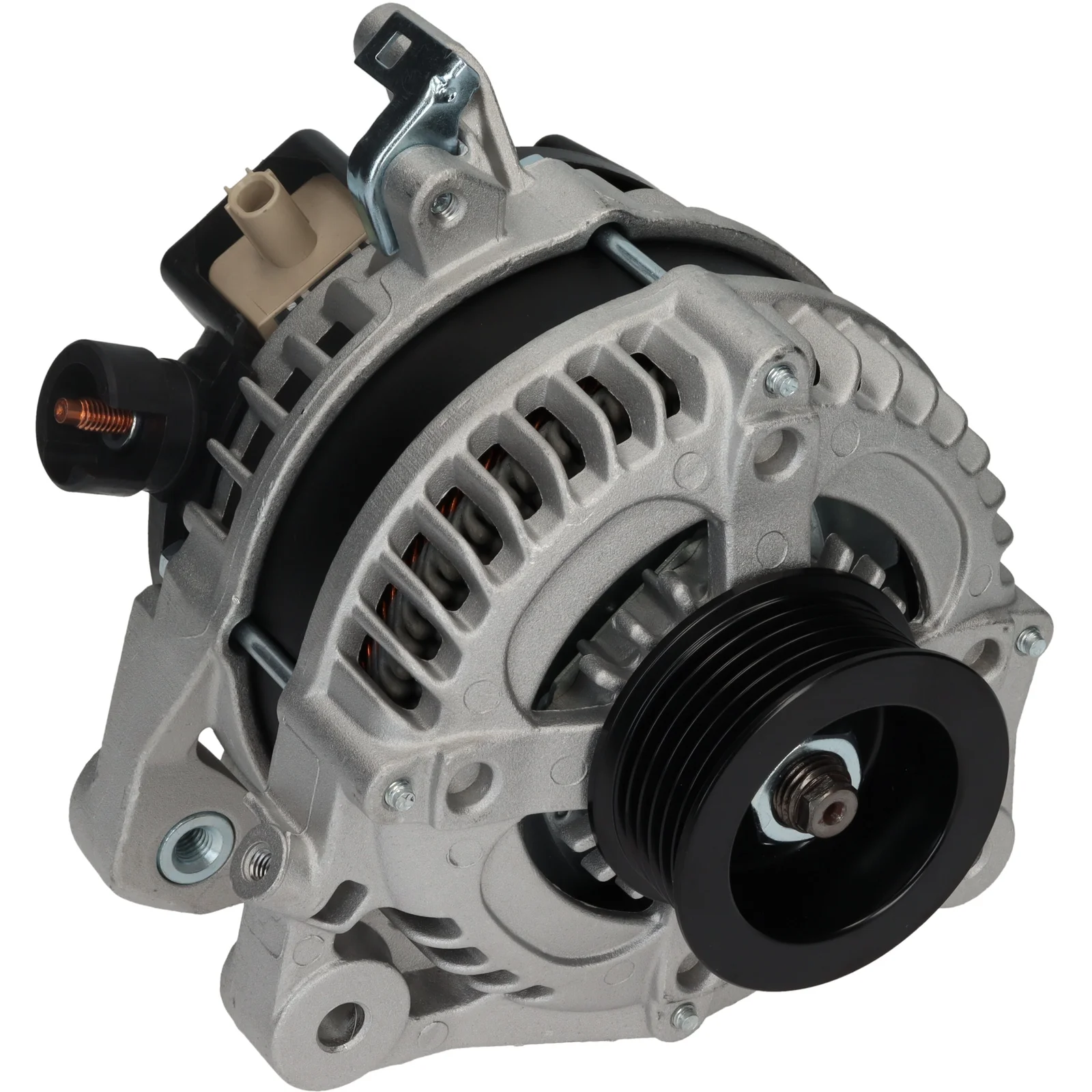

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116590

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 105, Rotation: CW, Mount. bracket dist.: 38.00

Beskrivning

Voltage: 14
Amp: 105
Pulley dist.: 46.00
Width/holder arm: 20.00
Mount. bracket dist.: 38.00
Bracket hole: 9.00
Belt. adj. brackethole pos.: 13
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 60.30
Grooves/pulley: 6
Radius: 85.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL205
Total length mm: 158.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M6
Communication LIN
Mount. bracket dist. 38.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 13
Plug no. PL205
Bracket hole 9.00
Position/B+ in min. 20
Pulley SP
Pulley dia. 60.30
Pulley dist. 46.00
Radius 85.00
Radius 2 86.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 158.00 mm
Width/holder arm 20.00
Amp 105

  • OEM
    CSJ54, F032116590, 31100-R1P-H01, 104210-1540

  • Konkurrentreferens
    A6232, CAL40520, DAN1370, DRA1192, LRA04018, 28-7627, 125.582.105, 40211, 554980, 12061101, 89216716

  • Normaliserat artikelnummer
    a6232, cal40520, csj54, dan1370, dra1192, f032116590, lra04018, 31100r1ph01, 40211, 287627, 554980, 12061101, 89216716, 125582105, 1042101540

  • Passar modeller
    Honda (Dongfeng) Model: CR-V Model series: CR-V Model type: 4WD Size of motor: 2.0 From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Honda (Dongfeng) Model: CR-V Model series: CR-V Size of motor: 2.0 From date: 01-02-2012 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    Honda (Dongfeng) Model: Spirior Model series: Spirior Size of motor: 2.0 Brand of engine: R20Z8 From date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Honda (GAC) Model: Accord Model series: Accord Size of motor: 2.0 From date: 01-09-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
    Honda Model: Civic Model series: Civic Saloon Model type: LXR Flex (FB3) Size of motor: 2.0 Brand of engine: R20A Type description: FB Body: Saloon From date: 01-01-2013 To date: 01-12-2016 Fuel: Petrol/Ethanol Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: AWD Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Model type: Flex AWD Size of motor: 2.0 Brand of engine: R20A1 Type description: RM_ Body: SUV From date: 01-07-2015 To date: 01-12-2017 Fuel: Petrol/Ethanol Approved: Yes
    Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 105
    Pulley dist.: 46.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 38.00
    Bracket hole: 9.00
    Belt. adj. brackethole pos.: 13
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 60.30
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL205
    Total length mm: 158.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M6
    Communication LIN
    Mount. bracket dist. 38.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 13
    Plug no. PL205
    Bracket hole 9.00
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 60.30
    Pulley dist. 46.00
    Radius 85.00
    Radius 2 86.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 158.00 mm
    Width/holder arm 20.00
    Amp 105
  • Fordonsmatchning

    • OEM
      CSJ54, F032116590, 31100-R1P-H01, 104210-1540

    • Konkurrentreferens
      A6232, CAL40520, DAN1370, DRA1192, LRA04018, 28-7627, 125.582.105, 40211, 554980, 12061101, 89216716

    • Normaliserat artikelnummer
      a6232, cal40520, csj54, dan1370, dra1192, f032116590, lra04018, 31100r1ph01, 40211, 287627, 554980, 12061101, 89216716, 125582105, 1042101540

    • Passar modeller
      Honda (Dongfeng) Model: CR-V Model series: CR-V Model type: 4WD Size of motor: 2.0 From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Honda (Dongfeng) Model: CR-V Model series: CR-V Size of motor: 2.0 From date: 01-02-2012 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      Honda (Dongfeng) Model: Spirior Model series: Spirior Size of motor: 2.0 Brand of engine: R20Z8 From date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Honda (GAC) Model: Accord Model series: Accord Size of motor: 2.0 From date: 01-09-2013 To date: 01-12-2018 Fuel: Gasoline Approved: Yes
      Honda Model: Civic Model series: Civic Saloon Model type: LXR Flex (FB3) Size of motor: 2.0 Brand of engine: R20A Type description: FB Body: Saloon From date: 01-01-2013 To date: 01-12-2016 Fuel: Petrol/Ethanol Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: AWD Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Model type: Flex AWD Size of motor: 2.0 Brand of engine: R20A1 Type description: RM_ Body: SUV From date: 01-07-2015 To date: 01-12-2017 Fuel: Petrol/Ethanol Approved: Yes
      Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: R20A9 From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      1 / 2
