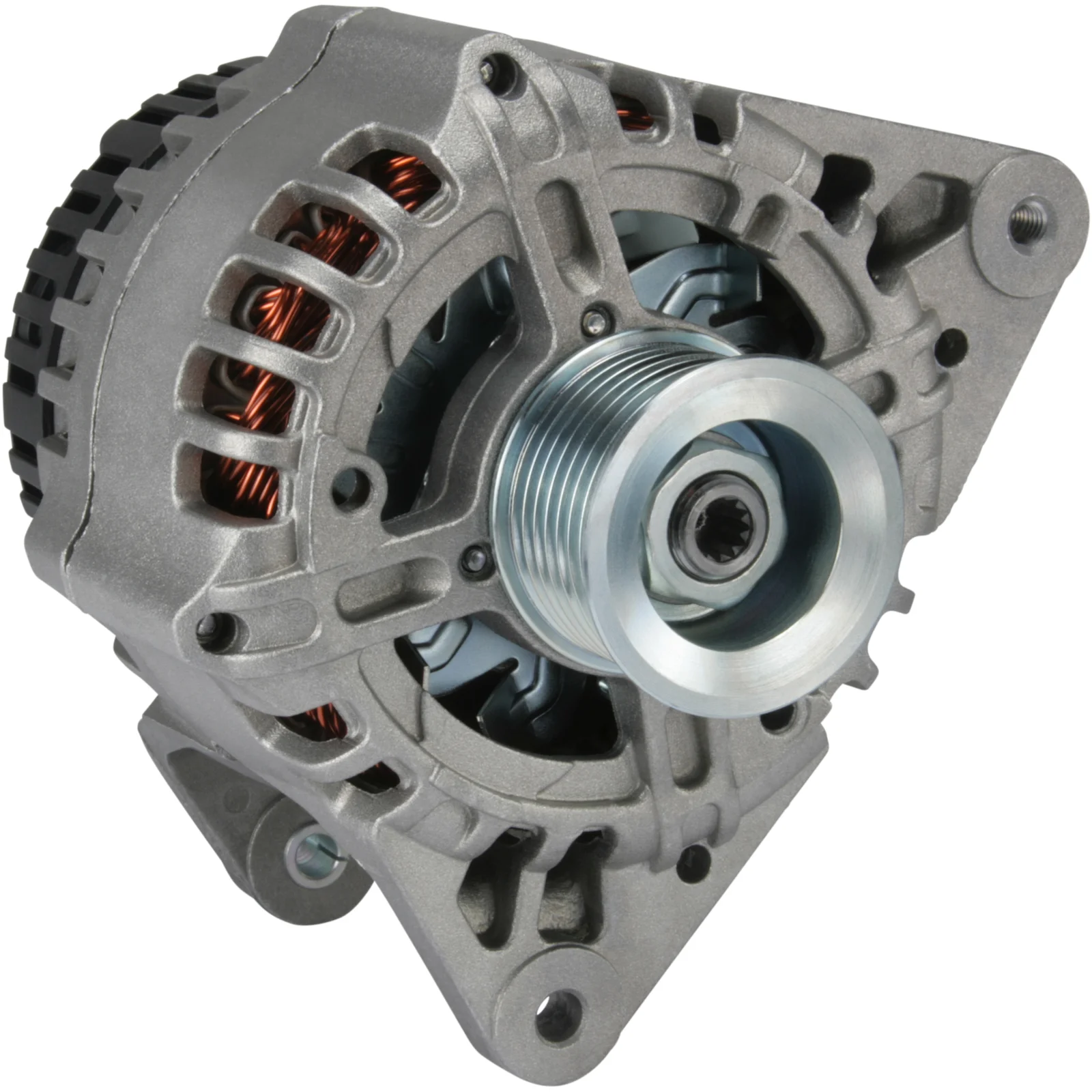

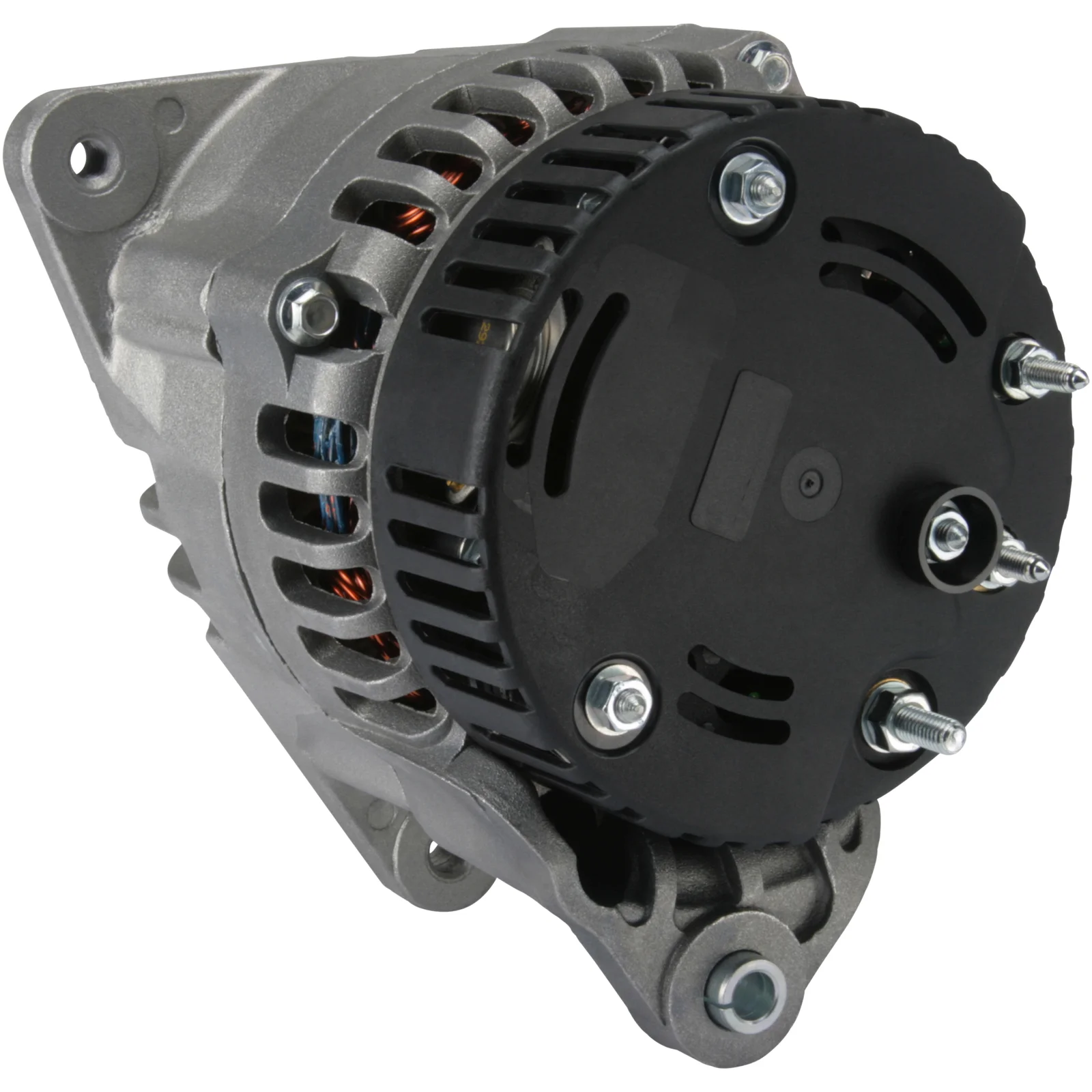

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112021

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 83.50

Beskrivning

Voltage: 14
Amp: 100
Terminal: W
Pulley dist.: 31.00
Width/holder arm: 13.50
Mount. bracket dist.: 83.50
Bracket hole: 8.00
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: M8
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 87.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 10
D+ Size: M5
Rotation: CW
Plug no.: PL70
W plug type: M5-6.30
Total length mm: 194.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Land Rover

Filer

Specifikation

B+ M6
Mount. bracket dist. 83.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 10
Plug no. PL70
Bracket hole 8.00
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 49.00
Pulley dist. 31.00
Radius 87.00
D+ Size M5
Radius 2 87.00
Regulator type IR
Rotation CW
Servicing Land Rover
Grooves/pulley 7
Terminal W
Voltage 14
W plug type M5-6.30
Total length 194.00 mm
Width/holder arm 13.50
Amp 100

  • OEM
    aak5396, AMR4248, AMR4249, amr5425, AMR5425E, F032112021, RTC5681N, STC233, yle10075, yle10113, 11.203.205, 1337ir, 54022459, 54022498, 63321321, 63321358, 63340004, 63341321, 63341358

  • Konkurrentreferens
    A4032, A4055, A4055(DENSO), ALT10057, ALT10058, ALT12025, BAO3177, BAO3195, CAL30159, CAL30160, DAN008, DENDAN008, dra3587, dra3679, IA1134, LEA0638, lrb00207, lrb00384, MG552, QA2097, 8EL012240-611, 8EL012426-741, 8EL012426-851, 8el737211-001, 8el737520-001, 28-3566, 28-5506, 214.114.1002, 214.128.1002, 595.559.100, 595.909.100, 4615, 5622, 5990, 21810N, 21810R, 21811N, 21811R, 56528, 210067, 210067A, 210149, 210149A, 301191RI, 437825, 746995, 12044760, 32341321, 0986044761, 0986080820, 063341321010, 063341351010, 944390903040

  • Normaliserat artikelnummer
    a4032, a4055, a4055denso, aak5396, alt10057, alt10058, alt12025, amr4248, amr4249, amr5425, amr5425e, bao3177, bao3195, cal30159, cal30160, dan008, dendan008, dra3587, dra3679, f032112021, ia1134, lea0638, lrb00207, lrb00384, mg552, qa2097, rtc5681n, stc233, yle10075, yle10113, 8el012240611, 8el012426741, 8el012426851, 8el737211001, 8el737520001, 1337ir, 4615, 5622, 5990, 21810n, 21810r, 21811n, 21811r, 56528, 210067, 210067a, 210149, 210149a, 283566, 285506, 301191ri, 437825, 746995, 11203205, 12044760, 32341321, 54022459, 54022498, 63321321, 63321358, 63340004, 63341321, 63341358, 595559100, 595909100, 0986044761, 0986080820, 2141141002, 2141281002, 063341321010, 063341351010, 944390903040

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Model type: D 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 19L Type description: LJ Body: Closed Off-Road Vehicle From date: 01-10-1993 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 12L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 17L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 19L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TDi Size of motor: 2.5 Brand of engine: 21L Type description: LJ, LG From date: 01-10-1989 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: 4x4 Type of engine: TD Size of motor: 2.4 Brand of engine: 11A Type description: AE, AN, HAA, HAB, HAM, HBM, RE From date: 01-04-1986 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: Diesel Size of motor: 2.5 Brand of engine: 256T From date: 01-07-1994 To date: 01-03-2002 Fuel: Diesel Approved: Yes
