Artikelnr: F032113577

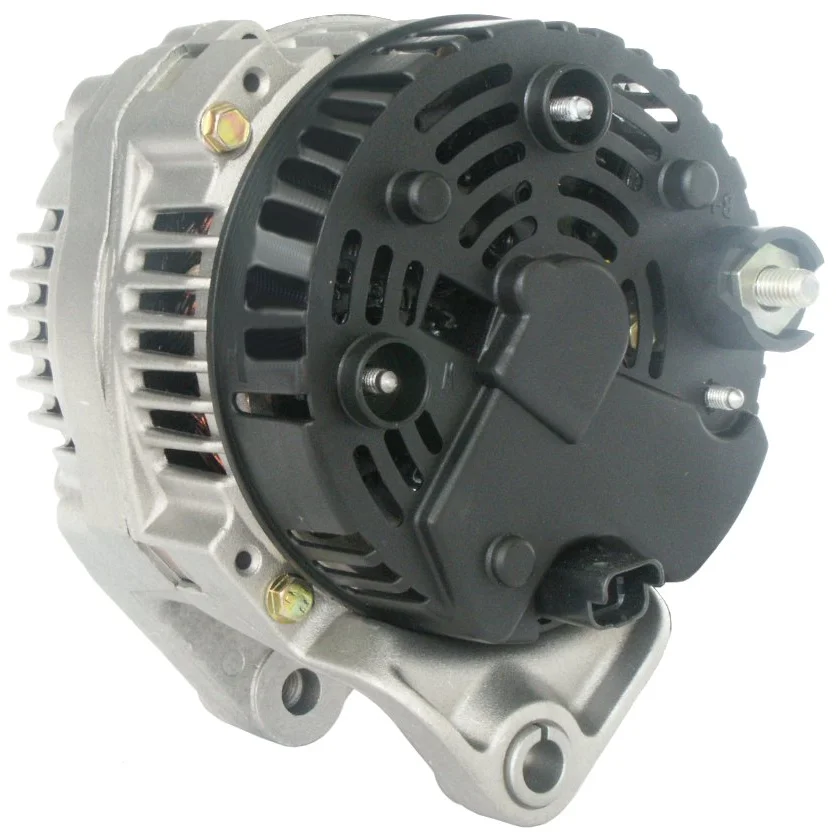

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 75, Rotation: CW, Mount. bracket dist.: 64.70

Beskrivning

Voltage: 14
Amp: 75
Pulley dist.: 46.20
Width/holder arm: 27.00
Mount. bracket dist.: 64.70
Bracket hole: M10
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 9.00x35.50
Pulley dia.: 59.20
Grooves/pulley: 4
Radius: 84.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW
Plug no.: PL55
Total length mm: 169.00
Pulley: SP
Regulator type: IR
Prod. info: BN/OE

Filer

Specifikation

B+ M8
Mount. bracket dist. 64.70
Belt. adj. bracket hole 1 9.00x35.50
Belt. adj. brackethole pos. 50
Plug no. PL55
Bracket hole M10
Position/B+ in min. 13
Prod. info BN/OE
Pulley SP
Pulley dia. 59.20
Pulley dist. 46.20
Radius 84.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 169.00 mm
Width/holder arm 27.00
Amp 75

  • OEM
    a11vi111, a11vi98, F032113577, SG7S028, SG7S074, 1298ir, 2542252, 2542252A, 2542480, 2542480A, 8253534, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488

  • Konkurrentreferens
    A3188, ALT-H148, CAL15133, dra3714, DRA3714X, F042A0H148, LRA01976, lrb00396, NA552, 8EL012429-981, 8el737438-001, 28-3877, 230.157.752, 4539, 5938, 22976R, 111610, 118937, 200160, 210285, 210285A, 301298RI, 437119, 437313, 439308, 746086, 746886, 12045220, 32045221, 0986045221, 943354074010

  • Normaliserat artikelnummer
    a11vi111, a11vi98, a3188, alth148, cal15133, dra3714, dra3714x, f032113577, f042a0h148, lra01976, lrb00396, na552, sg7s028, sg7s074, 8el012429981, 8el737438001, 1298ir, 4539, 5938, 22976r, 111610, 118937, 200160, 210285, 210285a, 283877, 301298ri, 437119, 437313, 439308, 746086, 746886, 2542252, 2542252a, 2542480, 2542480a, 8253534, 12045220, 32045221, 230157752, 0986045221, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488, 943354074010

  • Passar modeller
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F720 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F726 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Type description: B/C57 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F746 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F764 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F766 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Size of motor: 1.2 Brand of engine: D7F710 Body: Van From date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Size of motor: 1.2 Brand of engine: D7F746 Body: MPV From date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Hatchback Van Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Hatchback Van From date: 01-03-1997 To date: 01-08-2003 Fuel: Petrol Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C067 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F702 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F702 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F704 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F704 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F706 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 75
    Pulley dist.: 46.20
    Width/holder arm: 27.00
    Mount. bracket dist.: 64.70
    Bracket hole: M10
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 9.00x35.50
    Pulley dia.: 59.20
    Grooves/pulley: 4
    Radius: 84.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 13
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL55
    Total length mm: 169.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN/OE

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 64.70
    Belt. adj. bracket hole 1 9.00x35.50
    Belt. adj. brackethole pos. 50
    Plug no. PL55
    Bracket hole M10
    Position/B+ in min. 13
    Prod. info BN/OE
    Pulley SP
    Pulley dia. 59.20
    Pulley dist. 46.20
    Radius 84.00
    D+ Size Plug
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 169.00 mm
    Width/holder arm 27.00
    Amp 75
  • Fordonsmatchning

    • OEM
      a11vi111, a11vi98, F032113577, SG7S028, SG7S074, 1298ir, 2542252, 2542252A, 2542480, 2542480A, 8253534, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488

    • Konkurrentreferens
      A3188, ALT-H148, CAL15133, dra3714, DRA3714X, F042A0H148, LRA01976, lrb00396, NA552, 8EL012429-981, 8el737438-001, 28-3877, 230.157.752, 4539, 5938, 22976R, 111610, 118937, 200160, 210285, 210285A, 301298RI, 437119, 437313, 439308, 746086, 746886, 12045220, 32045221, 0986045221, 943354074010

    • Normaliserat artikelnummer
      a11vi111, a11vi98, a3188, alth148, cal15133, dra3714, dra3714x, f032113577, f042a0h148, lra01976, lrb00396, na552, sg7s028, sg7s074, 8el012429981, 8el737438001, 1298ir, 4539, 5938, 22976r, 111610, 118937, 200160, 210285, 210285a, 283877, 301298ri, 437119, 437313, 439308, 746086, 746886, 2542252, 2542252a, 2542480, 2542480a, 8253534, 12045220, 32045221, 230157752, 0986045221, 7700427880, 7700433069, 7701058244, 7711134216, 8200060488, 943354074010

    • Passar modeller
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F720 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F726 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Type description: B/C57 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F746 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F764 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F766 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Model type: Express Size of motor: 1.2 Brand of engine: D7F710 Body: Van From date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Renault Model: Kangoo Model series: Kangoo Size of motor: 1.2 Brand of engine: D7F746 Body: MPV From date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Hatchback Van Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Hatchback Van From date: 01-03-1997 To date: 01-08-2003 Fuel: Petrol Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C067 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F702 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F702 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F704 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F704 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F706 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
