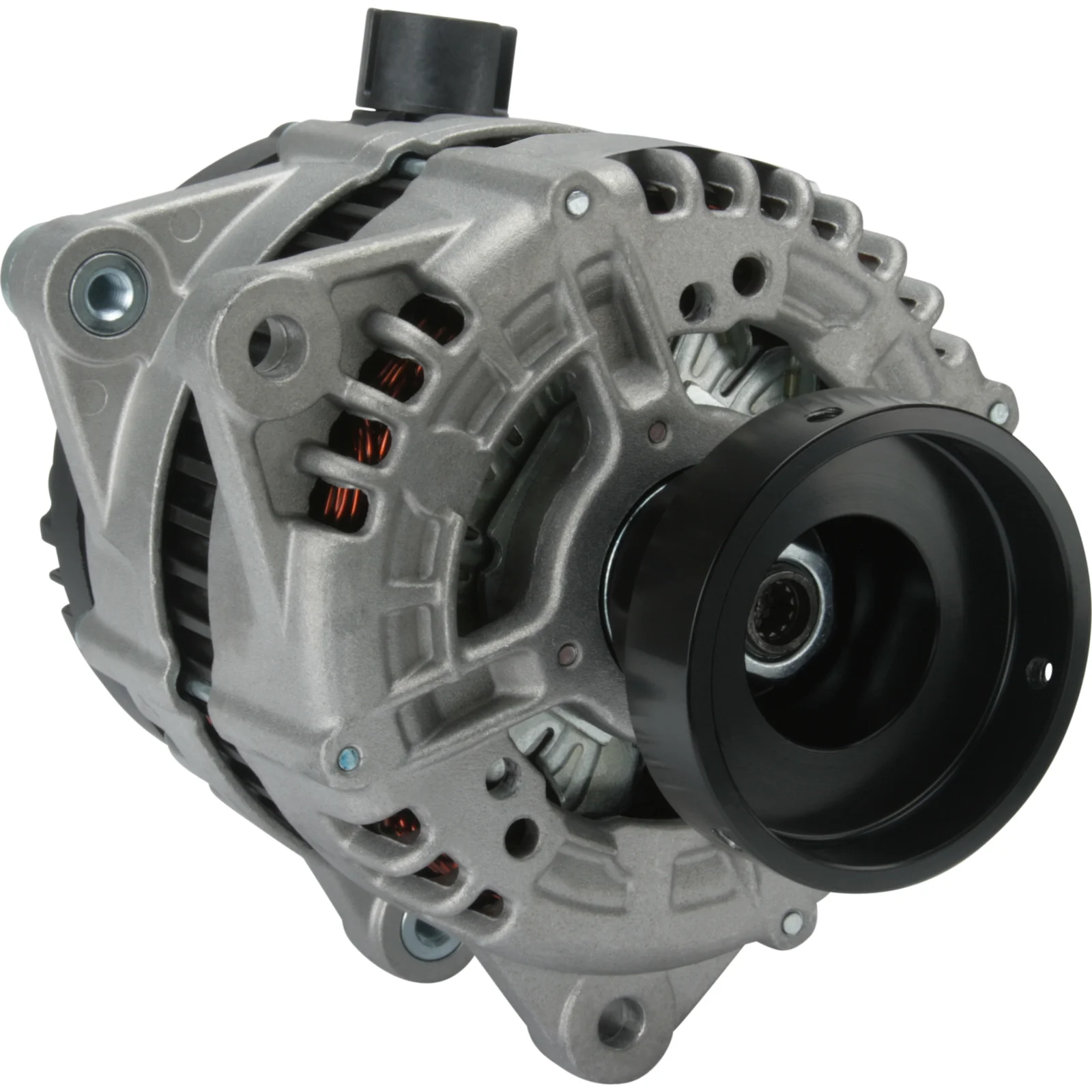

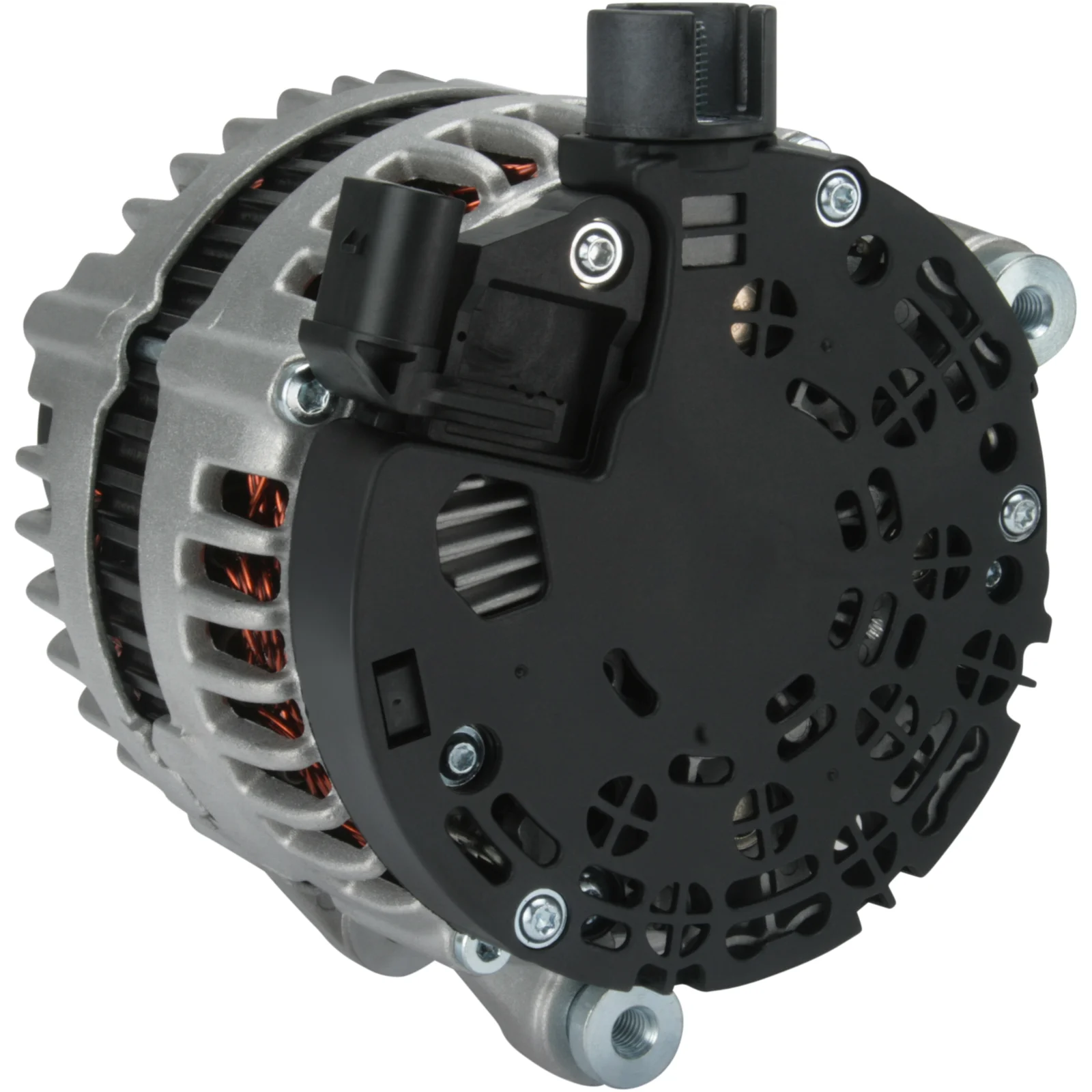

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114898

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 51.50

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 80.00
Width/holder arm: 14.50
Mount. bracket dist.: 51.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 78.00
Radius: 85.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 18
Rotation: CW
Plug no.: PL137
Terminal type: COM
Communication: LIN
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 51.50
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 10
Plug no. PL137
Bracket hole 8.50
Position/B+ in min. 18
Pulley dia. 78.00
Pulley dist. 80.00
Radius 85.00
Radius 2 82.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Terminal type COM
Voltage 14
Width/holder arm 14.50
Amp 150

  • OEM
    F032114898, 6G9J10300UA, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 01210AA7PB, 1919ir, 1986A00762, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 0121615008, 0121615108

  • Konkurrentreferens
    A0283, CAL10310, dra0296, DRB8380, DRB8380N, LRA02979, 8EL011712-331, 8EL012240-521, 8EL738211-921, 28-5593, 219.195.1502, 595.562.150, 4726, 23979N, 112245, 112664, 200248, 210423, 210423A, 210435, 210435A, 301919RI, 440421, 553301RI, 9048380, 12048380, 12090248, 32048380, 944390483, 0986048380, 944390483800, 944390904720

  • Normaliserat artikelnummer
    a0283, cal10310, dra0296, drb8380, drb8380n, f032114898, lra02979, 6g9j10300ua, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 8el011712331, 8el012240521, 8el738211921, 01210aa7pb, 1919ir, 1986a00762, 4726, 23979n, 112245, 112664, 200248, 210423, 210423a, 210435, 210435a, 285593, 301919ri, 440421, 553301ri, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 9048380, 12048380, 12090248, 32048380, 0121615008, 0121615108, 595562150, 944390483, 0986048380, 2191951502, 944390483800, 944390904720

  • Passar modeller
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Type description: BD_ From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Type description: WA_ Body: MPV From date: 01-01-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 80.00
    Width/holder arm: 14.50
    Mount. bracket dist.: 51.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 78.00
    Radius: 85.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 18
    Rotation: CW
    Plug no.: PL137
    Terminal type: COM
    Communication: LIN
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 51.50
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 10
    Plug no. PL137
    Bracket hole 8.50
    Position/B+ in min. 18
    Pulley dia. 78.00
    Pulley dist. 80.00
    Radius 85.00
    Radius 2 82.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Terminal type COM
    Voltage 14
    Width/holder arm 14.50
    Amp 150
  • Fordonsmatchning

    • OEM
      F032114898, 6G9J10300UA, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 01210AA7PB, 1919ir, 1986A00762, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 0121615008, 0121615108

    • Konkurrentreferens
      A0283, CAL10310, dra0296, DRB8380, DRB8380N, LRA02979, 8EL011712-331, 8EL012240-521, 8EL738211-921, 28-5593, 219.195.1502, 595.562.150, 4726, 23979N, 112245, 112664, 200248, 210423, 210423A, 210435, 210435A, 301919RI, 440421, 553301RI, 9048380, 12048380, 12090248, 32048380, 944390483, 0986048380, 944390483800, 944390904720

    • Normaliserat artikelnummer
      a0283, cal10310, dra0296, drb8380, drb8380n, f032114898, lra02979, 6g9j10300ua, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 8el011712331, 8el012240521, 8el738211921, 01210aa7pb, 1919ir, 1986a00762, 4726, 23979n, 112245, 112664, 200248, 210423, 210423a, 210435, 210435a, 285593, 301919ri, 440421, 553301ri, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 9048380, 12048380, 12090248, 32048380, 0121615008, 0121615108, 595562150, 944390483, 0986048380, 2191951502, 944390483800, 944390904720

    • Passar modeller
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Type description: BD_ From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Type description: WA_ Body: MPV From date: 01-01-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      1 / 3
