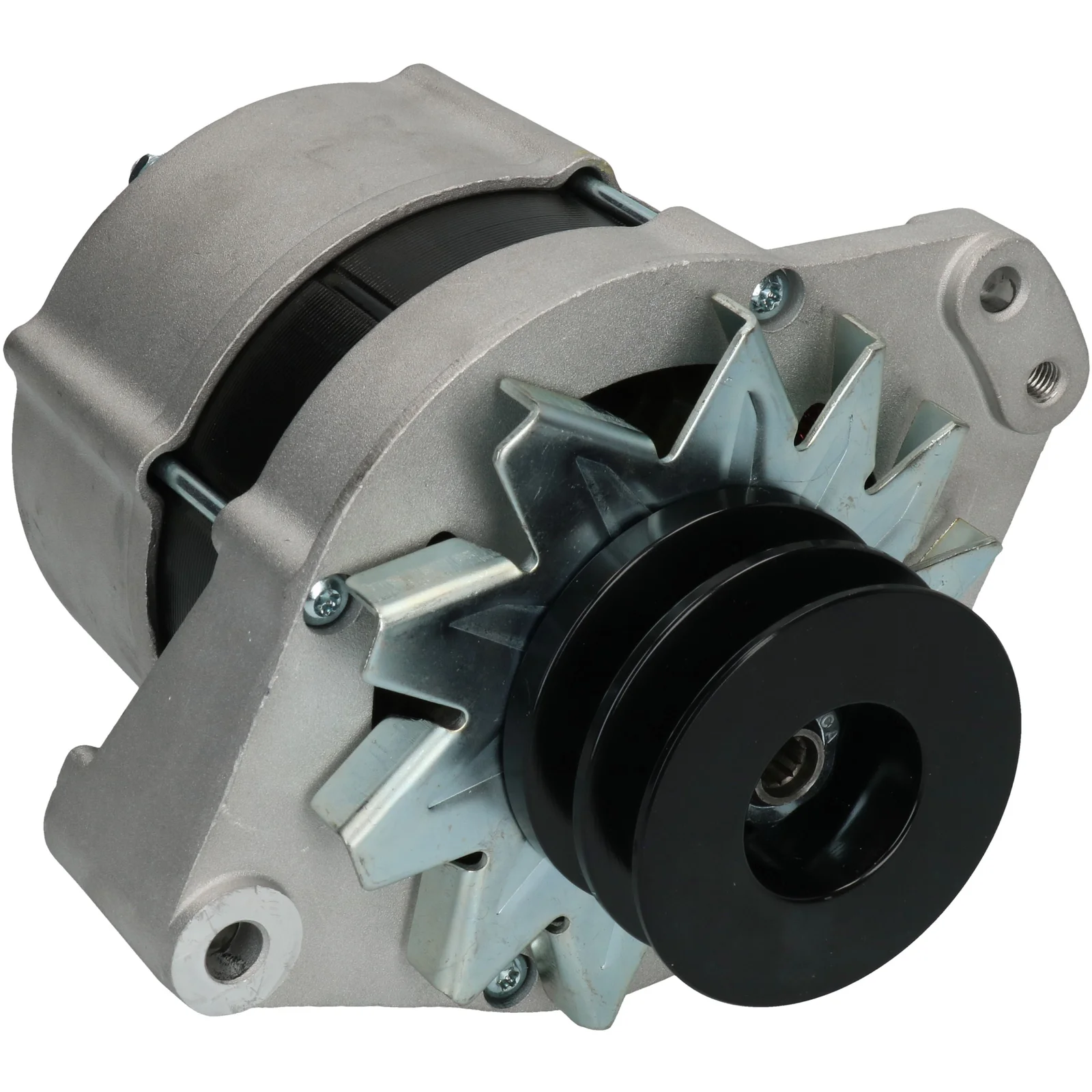

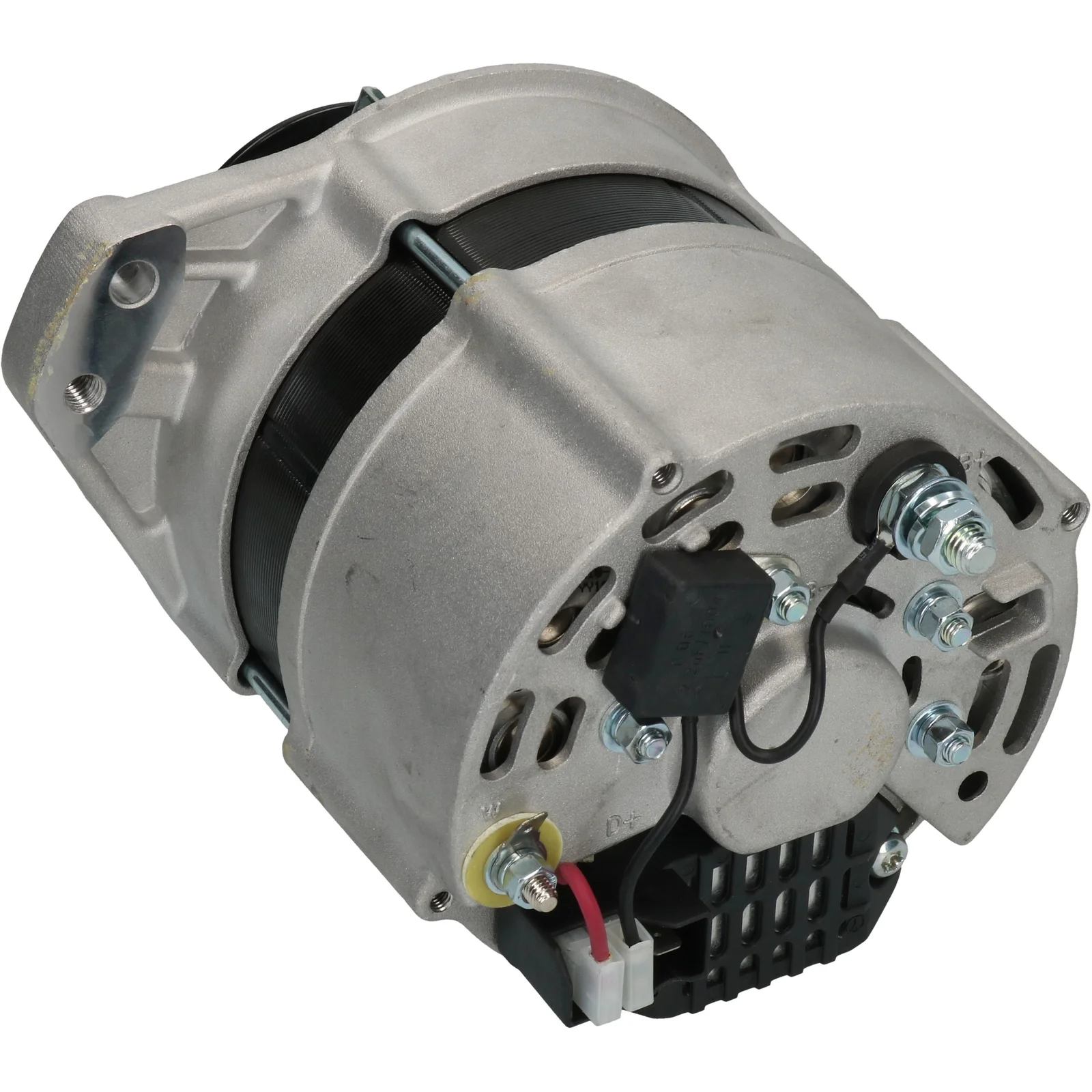

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113552

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley dia.: 71.50

Beskrivning

Voltage: 14
Amp: 120
Terminal: W
Pulley dist.: 77.00
Width/holder arm: 50.80
Bracket hole: 10.20
Belt. adj. brackethole pos.: 58
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 8.00
Belt. adj. bracket hole 2: M8
Pulley dia.: 71.50
Grooves/pulley: 2
Radius: 86.00
Radius 2: 87.00
Radius 3: 87.00
B+: M8
Position/B+ in min.: 15
D+ Size: 6.30
Rotation: CW
W plug type: M5
Total length mm: 198.00
Pulley: DP
Regulator type: IR
Prod. info: BN
Servicing: Case

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 58
Belt. adj. brackethole pos. 2 60
Bracket hole 10.20
Position/B+ in min. 15
Prod. info BN
Pulley DP
Pulley dia. 71.50
Pulley dist. 77.00
Radius 86.00
D+ Size 6.30
Radius 2 87.00
Radius 3 87.00
Regulator type IR
Rotation CW
Servicing Case
Grooves/pulley 2
Terminal W
Voltage 14
W plug type M5
Total length 198.00 mm
Width/holder arm 50.80
Amp 120

  • OEM
    F032113552, 9515112, 9515122, 9515125, 87326219, 142000090120, 142000090220, 162000090120

  • Konkurrentreferens
    A9031, 635.008.095, 635.008.120, 553320RI

  • Normaliserat artikelnummer
    a9031, f032113552, 553320ri, 9515112, 9515122, 9515125, 87326219, 635008095, 635008120, 142000090120, 142000090220, 162000090120

  • Passar modeller
    Case Model: 100 Series Model series: 170 CBX Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 120
    Terminal: W
    Pulley dist.: 77.00
    Width/holder arm: 50.80
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 58
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 8.00
    Belt. adj. bracket hole 2: M8
    Pulley dia.: 71.50
    Grooves/pulley: 2
    Radius: 86.00
    Radius 2: 87.00
    Radius 3: 87.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: 6.30
    Rotation: CW
    W plug type: M5
    Total length mm: 198.00
    Pulley: DP
    Regulator type: IR
    Prod. info: BN
    Servicing: Case

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 M8
    Belt. adj. brackethole pos. 58
    Belt. adj. brackethole pos. 2 60
    Bracket hole 10.20
    Position/B+ in min. 15
    Prod. info BN
    Pulley DP
    Pulley dia. 71.50
    Pulley dist. 77.00
    Radius 86.00
    D+ Size 6.30
    Radius 2 87.00
    Radius 3 87.00
    Regulator type IR
    Rotation CW
    Servicing Case
    Grooves/pulley 2
    Terminal W
    Voltage 14
    W plug type M5
    Total length 198.00 mm
    Width/holder arm 50.80
    Amp 120
  • Fordonsmatchning

    • OEM
      F032113552, 9515112, 9515122, 9515125, 87326219, 142000090120, 142000090220, 162000090120

    • Konkurrentreferens
      A9031, 635.008.095, 635.008.120, 553320RI

    • Normaliserat artikelnummer
      a9031, f032113552, 553320ri, 9515112, 9515122, 9515125, 87326219, 635008095, 635008120, 142000090120, 142000090220, 162000090120

    • Passar modeller
      Case Model: 100 Series Model series: 170 CBX Approved: Yes
      Case Model: Various Models Model series: Various Models Approved: Yes
