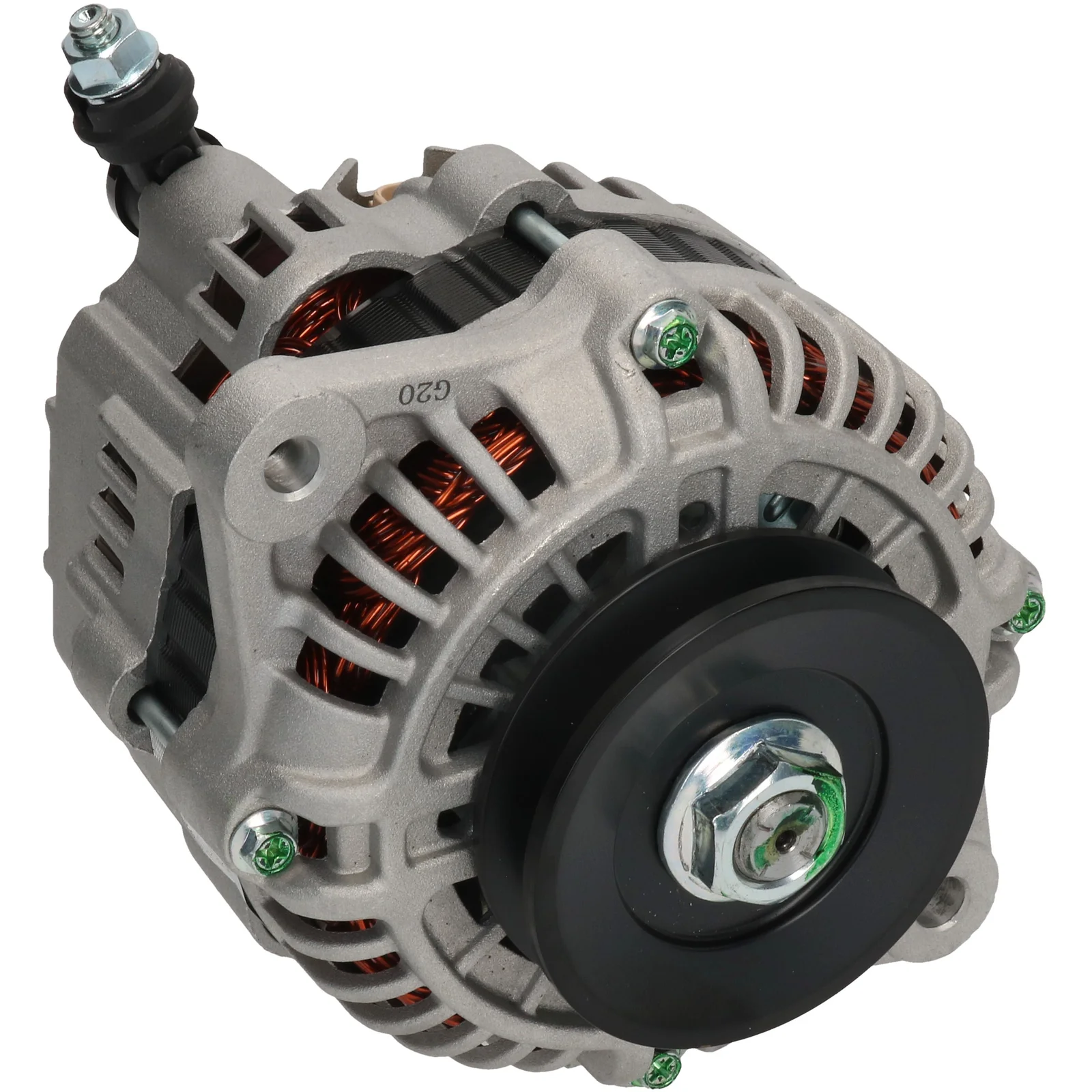

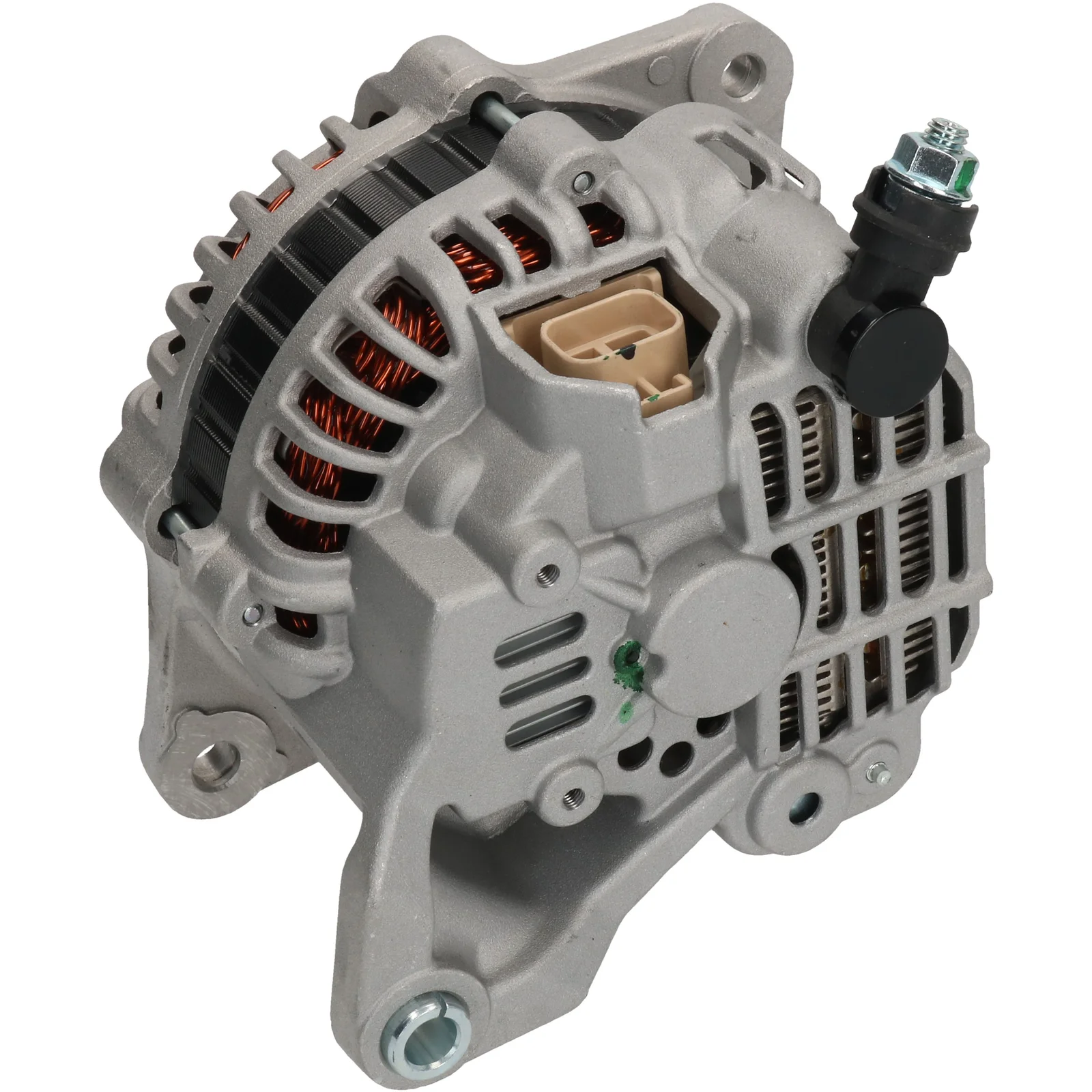

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113440

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 41.50
Width/holder arm: 13.20
Mount. bracket dist.: 81.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 80.50
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 166.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 50
Prod. info BN
Pulley P
Pulley dia. 80.50
Pulley dist. 41.50
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Voltage 14
Total length 166.00 mm
Width/holder arm 13.20
Amp 100

  • OEM
    F032113440, ja1611ir, lr1100-724, LR1100-724B, LR1100-724C, 1986A01411, 23100-BN00A, 23100-bn300, 23100-BN305

  • Konkurrentreferens
    A2105PR, A6270(DENSO), ALT-H139, ALT10080, DAN1030, DENDAN1030, DRA3944, F042A0H139, J5111085, LRB00500, 8EL011711-211, 8EL737955-001, 28-3818, 227.176.1002, 9213, 21501R, 111735, 210555, 210555A, 401611RI, 440105, 9051185, 9212374, 12060784, 0986049710, 063377546010

  • Normaliserat artikelnummer
    a2105pr, a6270denso, alt10080, alth139, dan1030, dendan1030, dra3944, f032113440, f042a0h139, j5111085, ja1611ir, lr1100724, lr1100724b, lr1100724c, lrb00500, 8el011711211, 8el737955001, 1986a01411, 9213, 21501r, 23100bn00a, 23100bn300, 23100bn305, 111735, 210555, 210555a, 283818, 401611ri, 440105, 9051185, 9212374, 12060784, 0986049710, 2271761002, 063377546010

  • Passar modeller
    Nissan Model: Almera Model series: Almera Tino Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: V10 Body: MPV From date: 01-09-2003 To date: 01-02-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Tino Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: V10 Body: MPV From date: 01-08-2000 To date: 01-02-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-07-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-03-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
