HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114353

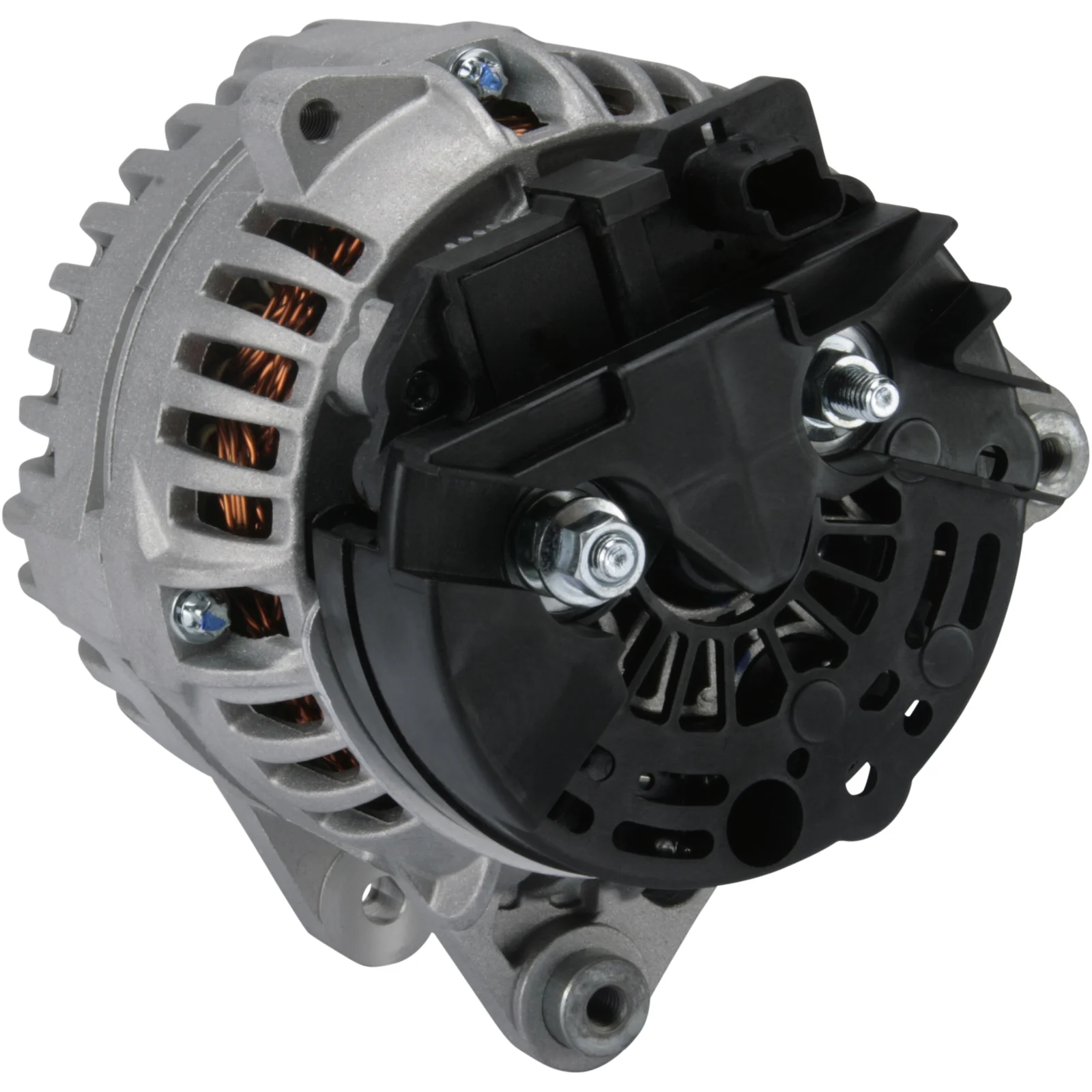

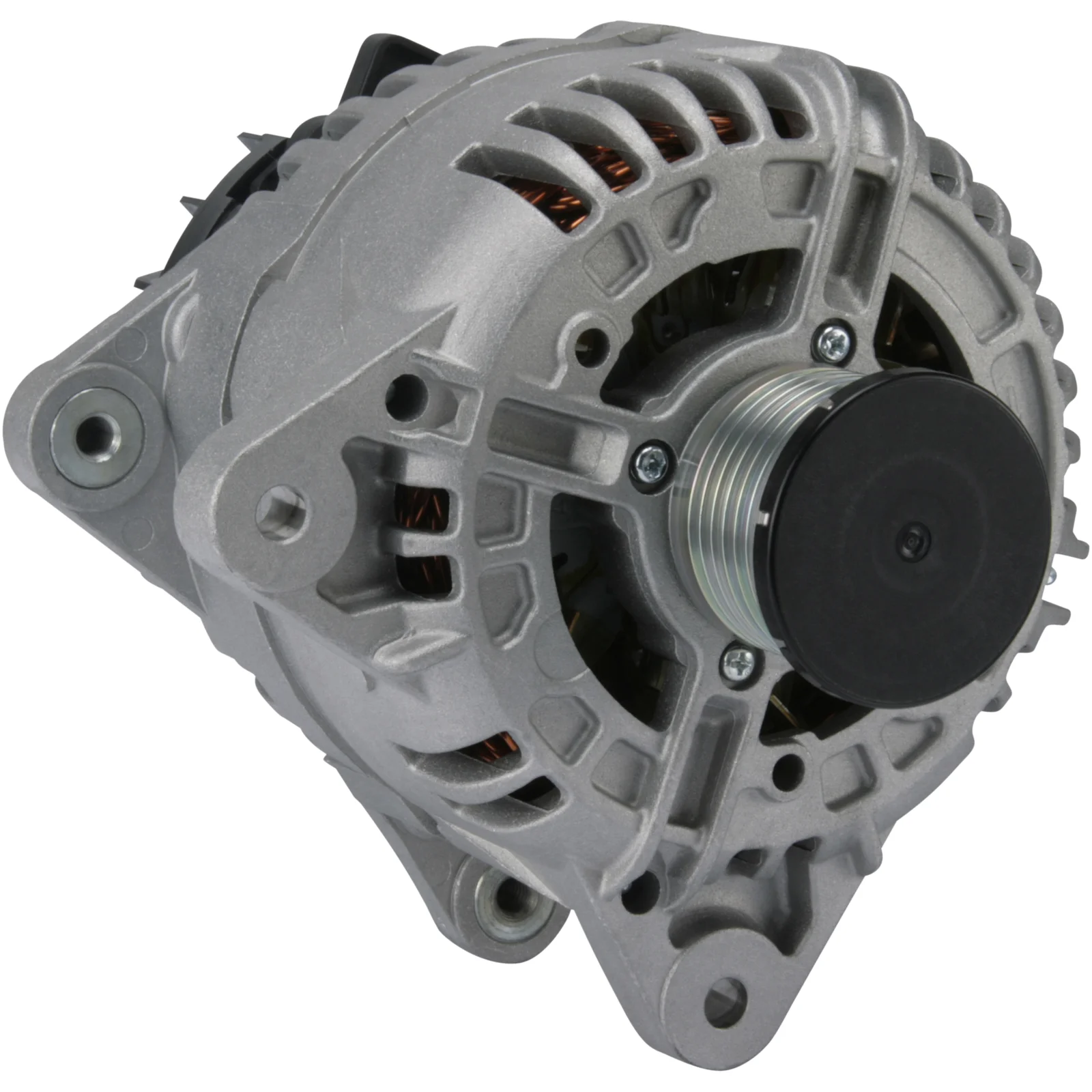

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 60.20

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 33.00
Width/holder arm: 14.20
Mount. bracket dist.: 60.20
Bracket hole: 8.50
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 194.50
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.20
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL72
Bracket hole 8.50
Position/B+ in min. 7
Prod. info BN
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 33.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 194.50 mm
Width/holder arm 14.20
Amp 150

  • OEM
    F032114353, 1863ir, 0124525047, 7711135942, 8200229907

  • Konkurrentreferens
    A0167, ALT-2094U, CAL10301, DRB6280, F042301106, F042A01106, 8EL012429-281, 28-4874, 230.197.1502, 4686, 23368N, 111570, 200251, 209053, 209053A, 301863RI, 443436, 12046280, 32046280, 0986046280

  • Normaliserat artikelnummer
    a0167, alt2094u, cal10301, drb6280, f032114353, f042301106, f042a01106, 8el012429281, 1863ir, 4686, 23368n, 111570, 200251, 209053, 209053a, 284874, 301863ri, 443436, 12046280, 32046280, 0124525047, 0986046280, 2301971502, 7711135942, 8200229907

  • Passar modeller
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q718 Type description: BG0/1 Body: Hatchback From date: 01-03-2001 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q718 Type description: KG0/1 Body: Estate From date: 01-03-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q752 Type description: B74_ Body: Hatchback From date: 01-06-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q752 Type description: K74_ KG0E Body: Estate From date: 01-06-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q752 Type description: KGO Body: Estate From date: 01-10-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q754 Type description: BG0 Body: Hatchback From date: 01-10-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q754 Type description: BG0/1 Body: Hatchback From date: 01-03-2001 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q754 Type description: KG0/1 Body: Estate From date: 01-03-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q756 Type description: K74_ Body: Estate From date: 01-03-2001 To date: 01-09-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 33.00
    Width/holder arm: 14.20
    Mount. bracket dist.: 60.20
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 194.50
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 60.20
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL72
    Bracket hole 8.50
    Position/B+ in min. 7
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 33.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 194.50 mm
    Width/holder arm 14.20
    Amp 150
  • Fordonsmatchning

    • OEM
      F032114353, 1863ir, 0124525047, 7711135942, 8200229907

    • Konkurrentreferens
      A0167, ALT-2094U, CAL10301, DRB6280, F042301106, F042A01106, 8EL012429-281, 28-4874, 230.197.1502, 4686, 23368N, 111570, 200251, 209053, 209053A, 301863RI, 443436, 12046280, 32046280, 0986046280

    • Normaliserat artikelnummer
      a0167, alt2094u, cal10301, drb6280, f032114353, f042301106, f042a01106, 8el012429281, 1863ir, 4686, 23368n, 111570, 200251, 209053, 209053a, 284874, 301863ri, 443436, 12046280, 32046280, 0124525047, 0986046280, 2301971502, 7711135942, 8200229907

    • Passar modeller
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q718 Type description: BG0/1 Body: Hatchback From date: 01-03-2001 To date: 01-09-2007 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q718 Type description: KG0/1 Body: Estate From date: 01-03-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q752 Type description: B74_ Body: Hatchback From date: 01-06-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q752 Type description: K74_ KG0E Body: Estate From date: 01-06-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q752 Type description: KGO Body: Estate From date: 01-10-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q754 Type description: BG0 Body: Hatchback From date: 01-10-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q754 Type description: BG0/1 Body: Hatchback From date: 01-03-2001 To date: 01-09-2007 Fuel: Diesel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q754 Type description: KG0/1 Body: Estate From date: 01-03-2001 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q756 Type description: K74_ Body: Estate From date: 01-03-2001 To date: 01-09-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
      1 / 2
