Artikelnr: F032112351

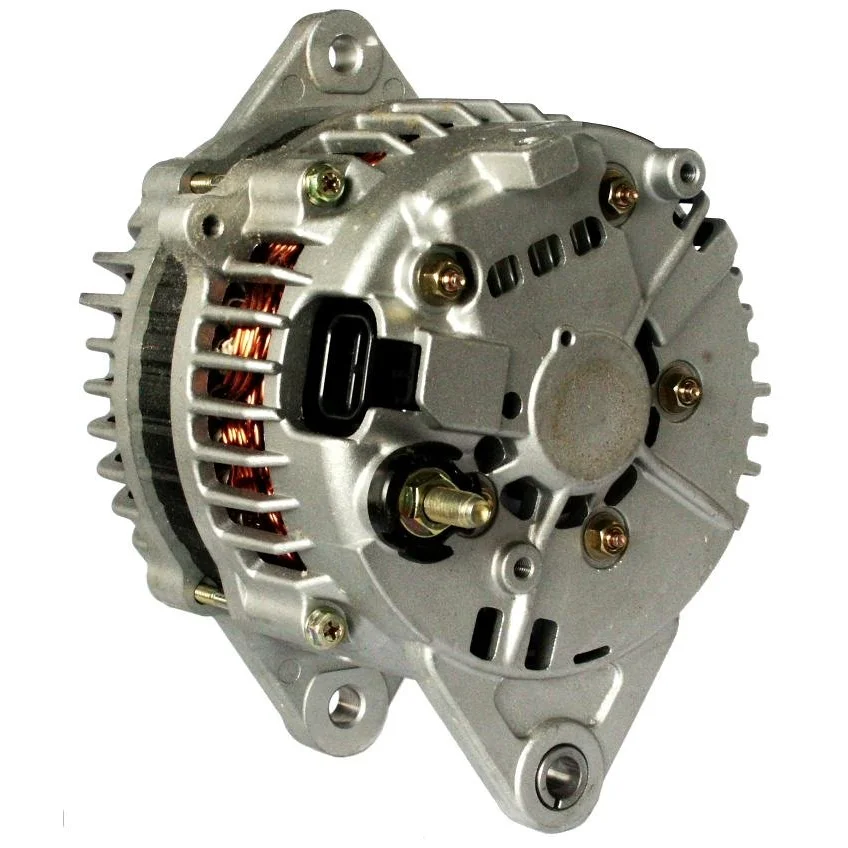

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 86.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 48
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 171.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.40
Position/B+ in min. 48
Prod. info BN
Pulley P
Pulley dia. 86.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Voltage 14
Total length 171.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    F032112351, ja1528ir, lr170-756, LR170-756B, lr190-734, LR190-734A, lr190-734b, lr190-734c, LR190-734D, lr190-734e, LR190-734F, lr190-734g, LR190-734H, 23100-2j600, 23100-2j601, 23100-7f700, 23100-7F701

  • Konkurrentreferens
    A2021, A2021SR, ALT-H093, ALT32062, CAL20137, DRA0099, F042A0H093, J5111079, LRA02341, LRB00501, 8EL011711-171, 28-2890, 227.169.902, 9217, 13285N, 13285R, 22671R, 23341R, 111601, 112856, 210561, 210561A, 401528RI, 440874, 9212317, 12060741, 12060847, 0986045651, 944390511790

  • Normaliserat artikelnummer
    a2021, a2021sr, alt32062, alth093, cal20137, dra0099, f032112351, f042a0h093, j5111079, ja1528ir, lr170756, lr170756b, lr190734, lr190734a, lr190734b, lr190734c, lr190734d, lr190734e, lr190734f, lr190734g, lr190734h, lra02341, lrb00501, 8el011711171, 9217, 13285n, 13285r, 22671r, 23341r, 111601, 112856, 210561, 210561a, 231002j600, 231002j601, 231007f700, 231007f701, 282890, 401528ri, 440874, 9212317, 12060741, 12060847, 227169902, 0986045651, 944390511790

  • Passar modeller
    Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Estate From date: 01-04-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Hatchback From date: 01-09-1996 To date: 01-07-2002 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 From date: 01-09-1996 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 From date: 01-05-1996 To date: 01-09-2007 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 86.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 48
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 171.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Nissan

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.40
    Position/B+ in min. 48
    Prod. info BN
    Pulley P
    Pulley dia. 86.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 1
    Voltage 14
    Total length 171.00 mm
    Width/holder arm 13.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032112351, ja1528ir, lr170-756, LR170-756B, lr190-734, LR190-734A, lr190-734b, lr190-734c, LR190-734D, lr190-734e, LR190-734F, lr190-734g, LR190-734H, 23100-2j600, 23100-2j601, 23100-7f700, 23100-7F701

    • Konkurrentreferens
      A2021, A2021SR, ALT-H093, ALT32062, CAL20137, DRA0099, F042A0H093, J5111079, LRA02341, LRB00501, 8EL011711-171, 28-2890, 227.169.902, 9217, 13285N, 13285R, 22671R, 23341R, 111601, 112856, 210561, 210561A, 401528RI, 440874, 9212317, 12060741, 12060847, 0986045651, 944390511790

    • Normaliserat artikelnummer
      a2021, a2021sr, alt32062, alth093, cal20137, dra0099, f032112351, f042a0h093, j5111079, ja1528ir, lr170756, lr170756b, lr190734, lr190734a, lr190734b, lr190734c, lr190734d, lr190734e, lr190734f, lr190734g, lr190734h, lra02341, lrb00501, 8el011711171, 9217, 13285n, 13285r, 22671r, 23341r, 111601, 112856, 210561, 210561a, 231002j600, 231002j601, 231007f700, 231007f701, 282890, 401528ri, 440874, 9212317, 12060741, 12060847, 227169902, 0986045651, 944390511790

    • Passar modeller
      Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Estate From date: 01-04-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Hatchback From date: 01-09-1996 To date: 01-07-2002 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 From date: 01-09-1996 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 From date: 01-05-1996 To date: 01-09-2007 Fuel: Diesel Approved: Yes
