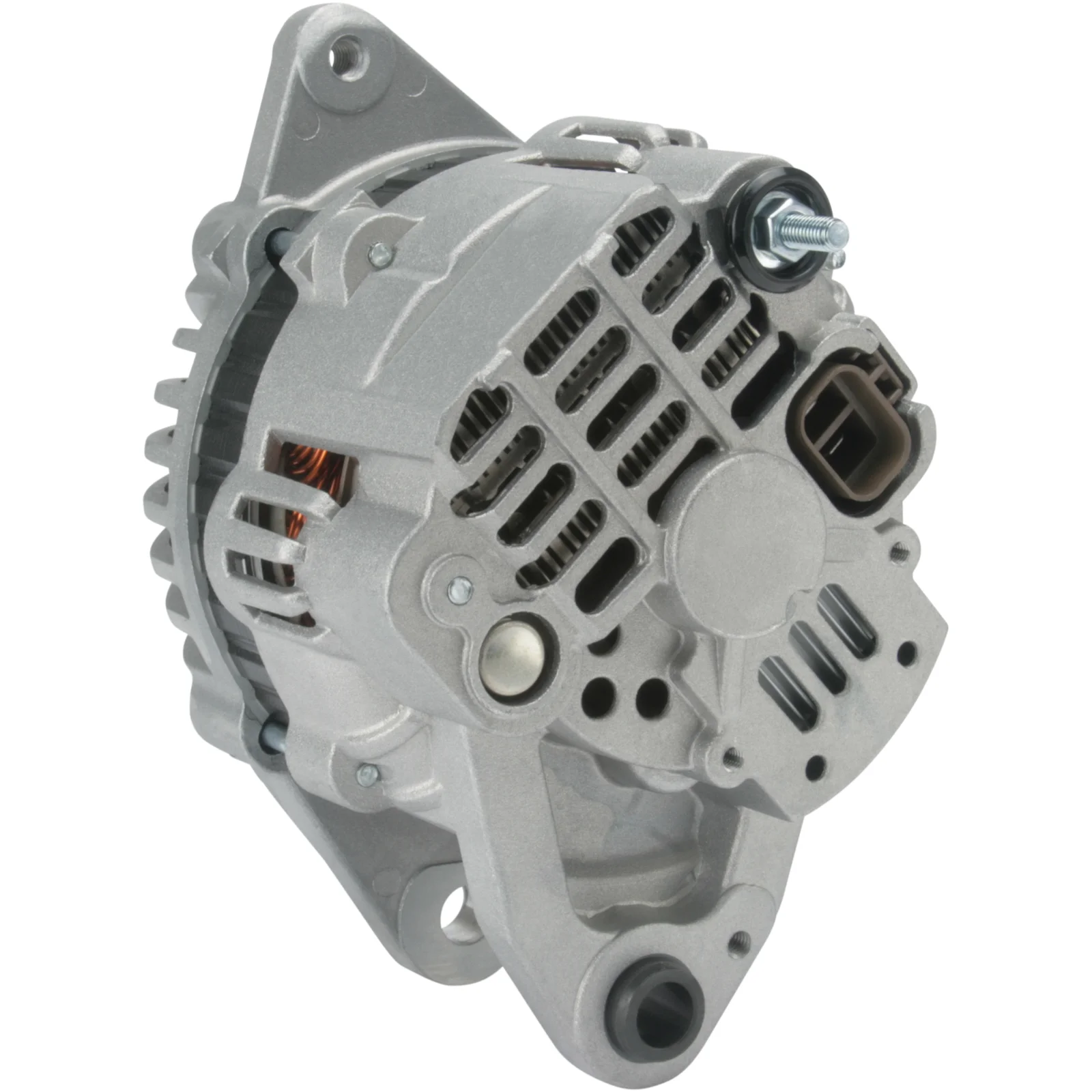

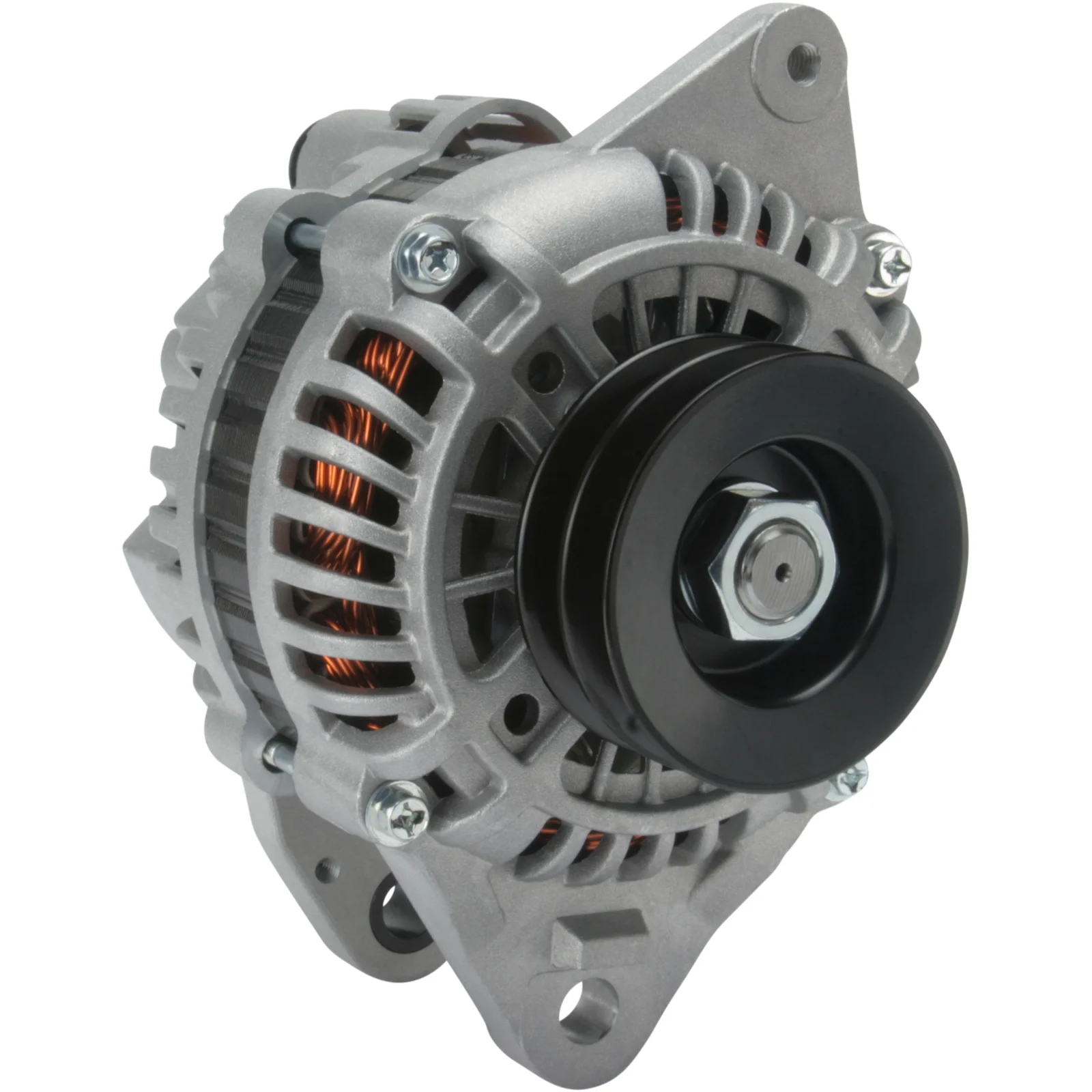

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111626

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 54.60

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 42.00
Width/holder arm: 13.20
Mount. bracket dist.: 54.60
Bracket hole: 12.60
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: M8
Pulley dia.: 74.40
Grooves/pulley: 2
Radius: 90.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 1
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 178.00
Pulley: DP
Regulator type: IR
Prod. info: BN
Servicing: Mitsubishi

Filer

Specifikation

B+ M8
Mount. bracket dist. 54.60
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL07
Bracket hole 12.60
Position/B+ in min. 1
Prod. info BN
Pulley DP
Pulley dia. 74.40
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 87.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 2
Voltage 14
Total length 178.00 mm
Width/holder arm 13.20
Amp 90

  • OEM
    A003T09198, A003TA3098, A003TA3098A, a3t09198, a3ta3098, a3ta3098a, a3tb1399, F032111626, ja1376ir, lra0468, md200695, me200695, me201745, me201837, me202755

  • Konkurrentreferens
    A5017, A5413S, ALT-3040A, ALT31027, ALT31061, CAL35130, CAL35181, dra3473, DRA3875, DRA3875N, DRA3875X, F042303010, F042303012, F042A03010, F042A03012, LEA0468, LRA01746, LRA02741, 8EL011711-701, 28-3536, 28-3538, 226.142.902, 226.147.902, 9157, 12626N, 12626R, 12636R, 111244, 210491, 210491A, 401376RI, 437697, 444252, 12060203, 12060207, 12060891, 20130191, 0986044661, 0986049880, 944390903030

  • Normaliserat artikelnummer
    a003t09198, a003ta3098, a003ta3098a, a3t09198, a3ta3098, a3ta3098a, a3tb1399, a5017, a5413s, alt3040a, alt31027, alt31061, cal35130, cal35181, dra3473, dra3875, dra3875n, dra3875x, f032111626, f042303010, f042303012, f042a03010, f042a03012, ja1376ir, lea0468, lra01746, lra02741, lra0468, md200695, me200695, me201745, me201837, me202755, 8el011711701, 9157, 12626n, 12626r, 12636r, 111244, 210491, 210491a, 283536, 283538, 401376ri, 437697, 444252, 12060203, 12060207, 12060891, 20130191, 226142902, 226147902, 0986044661, 0986049880, 944390903030

  • Passar modeller
    Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-2AT Body: Platform / Chassis From date: 01-07-1998 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: Diesel Size of motor: 2.8 Brand of engine: 4M40-T Type description: V3_W, V2_W, V4_W, V5_W Body: Closed Off-Road Vehicle From date: 01-11-1993 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.8 Brand of engine: 4M40-T Type description: V46W From date: 01-06-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 42.00
    Width/holder arm: 13.20
    Mount. bracket dist.: 54.60
    Bracket hole: 12.60
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 74.40
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 1
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 178.00
    Pulley: DP
    Regulator type: IR
    Prod. info: BN
    Servicing: Mitsubishi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 54.60
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL07
    Bracket hole 12.60
    Position/B+ in min. 1
    Prod. info BN
    Pulley DP
    Pulley dia. 74.40
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 87.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 2
    Voltage 14
    Total length 178.00 mm
    Width/holder arm 13.20
    Amp 90
  • Fordonsmatchning

    • OEM
      A003T09198, A003TA3098, A003TA3098A, a3t09198, a3ta3098, a3ta3098a, a3tb1399, F032111626, ja1376ir, lra0468, md200695, me200695, me201745, me201837, me202755

    • Konkurrentreferens
      A5017, A5413S, ALT-3040A, ALT31027, ALT31061, CAL35130, CAL35181, dra3473, DRA3875, DRA3875N, DRA3875X, F042303010, F042303012, F042A03010, F042A03012, LEA0468, LRA01746, LRA02741, 8EL011711-701, 28-3536, 28-3538, 226.142.902, 226.147.902, 9157, 12626N, 12626R, 12636R, 111244, 210491, 210491A, 401376RI, 437697, 444252, 12060203, 12060207, 12060891, 20130191, 0986044661, 0986049880, 944390903030

    • Normaliserat artikelnummer
      a003t09198, a003ta3098, a003ta3098a, a3t09198, a3ta3098, a3ta3098a, a3tb1399, a5017, a5413s, alt3040a, alt31027, alt31061, cal35130, cal35181, dra3473, dra3875, dra3875n, dra3875x, f032111626, f042303010, f042303012, f042a03010, f042a03012, ja1376ir, lea0468, lra01746, lra02741, lra0468, md200695, me200695, me201745, me201837, me202755, 8el011711701, 9157, 12626n, 12626r, 12636r, 111244, 210491, 210491a, 283536, 283538, 401376ri, 437697, 444252, 12060203, 12060207, 12060891, 20130191, 226142902, 226147902, 0986044661, 0986049880, 944390903030

    • Passar modeller
      Mitsubishi Model: Canter Model series: Canter 35 Size of motor: 2.8 Brand of engine: 4M40-2AT Body: Platform / Chassis From date: 01-07-1998 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: Diesel Size of motor: 2.8 Brand of engine: 4M40-T Type description: V3_W, V2_W, V4_W, V5_W Body: Closed Off-Road Vehicle From date: 01-11-1993 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.8 Brand of engine: 4M40-T Type description: V46W From date: 01-06-1994 To date: 01-10-1999 Fuel: Diesel Approved: Yes
