Artikelnr: F032112470

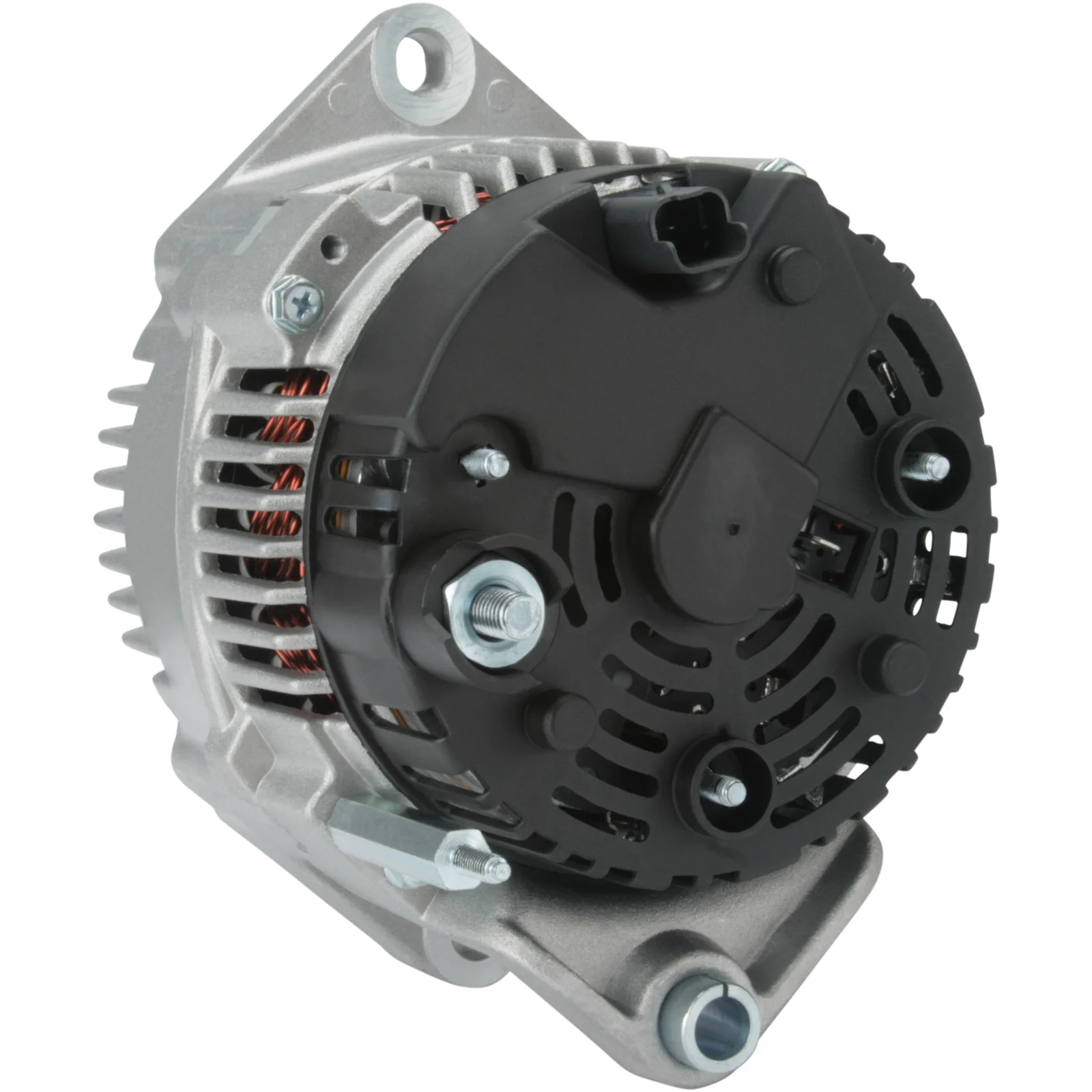

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 66.50

Beskrivning

Voltage: 14
Amp: 110
Terminal: W
Pulley dist.: 47.00
Width/holder arm: 26.50
Mount. bracket dist.: 66.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL55
W plug type: 6.30
Total length mm: 181.50
Pulley: SP
Regulator type: IR
Servicing: Renault

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 60
Plug no. PL55
Bracket hole 10.50
Position/B+ in min. 45
Pulley SP
Pulley dia. 55.00
Pulley dist. 47.00
Radius 84.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 6
Terminal W
Voltage 14
W plug type 6.30
Total length 181.50 mm
Width/holder arm 26.50
Amp 110

  • OEM
    a13vi238, a13vi253, F032112470, 1621ir, 1986A00076, 2542302A, 2542327, 2542327B, 7700428035, 7700430183, 7700431944, 7701499971

  • Konkurrentreferens
    A3292, A3443S, DRA0049, DRA3915, DRA4047, LRB00505, 8EL012426-931, 28-4612, 230.173.1102, 118943, 200150, 200189, 210570, 210570A, 301621RI, 437200, 439284, 747056, 839051, 9212291, 12090198, 0986049650, 0986081720

  • Normaliserat artikelnummer
    a13vi238, a13vi253, a3292, a3443s, dra0049, dra3915, dra4047, f032112470, lrb00505, 8el012426931, 1621ir, 1986a00076, 118943, 200150, 200189, 210570, 210570a, 284612, 301621ri, 437200, 439284, 747056, 839051, 2542302a, 2542327, 2542327b, 9212291, 12090198, 0986049650, 0986081720, 2301731102, 7700428035, 7700430183, 7700431944, 7701499971

  • Passar modeller
    Renault Model: Clio Model series: Clio Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q780 Type description: B/CB0U Body: Hatchback From date: 01-12-1999 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q630 Body: Van From date: 01-08-1997 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q662 Body: Van From date: 01-08-1997 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q780 Body: Van From date: 01-02-2000 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q630 Body: MPV From date: 01-08-1997 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q662 Body: MPV From date: 01-08-1997 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q780 Type description: KC0U Body: MPV From date: 01-02-2000 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M710 Type description: B74_ Body: Hatchback From date: 01-03-2001 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.8 Brand of engine: F4P760 Type description: B56 Body: Hatchback From date: 01-04-1998 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.8 Brand of engine: F4P760 Type description: K56 Body: Estate From date: 01-04-1998 To date: 01-03-2001 Fuel: Gasoline Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.8 Brand of engine: F4P770 Type description: BG0C,BG0V Body: Hatchback From date: 01-03-2001 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.8 Brand of engine: F4P770 Type description: K74_ Body: Estate From date: 01-03-2001 To date: 01-05-2005 Fuel: Gasoline Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: F4R780 Type description: B56 Body: Hatchback From date: 01-09-1999 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Model type: Kombi Van Type of engine: Diesel Size of motor: 1.9 Brand of engine: F9Q744 Type description: KA_ Body: Box Body / Estate From date: 01-04-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes Manufacture type: Kombi Van
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q732 Type description: DA05, DA1F Body: Coupe From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: coach
    Renault Model: Megane Model series: Megane Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q622 Type description: KA0J,KA0R Body: Estate From date: 01-04-1999 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Megane Model series: Megane Type of engine: Diesel Size of motor: 1.9 Brand of engine: F8Q790 Type description: KA0J,KA0R Body: Estate From date: 01-04-1999 To date: 01-08-2003 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Megane Model series: Megane Type of engine: DTi Size of motor: 1.9 Brand of engine: F9Q744 Type description: BA1U Body: Hatchback From date: 01-02-2001 To date: 01-08-2003 Fuel: Diesel Approved: Yes
