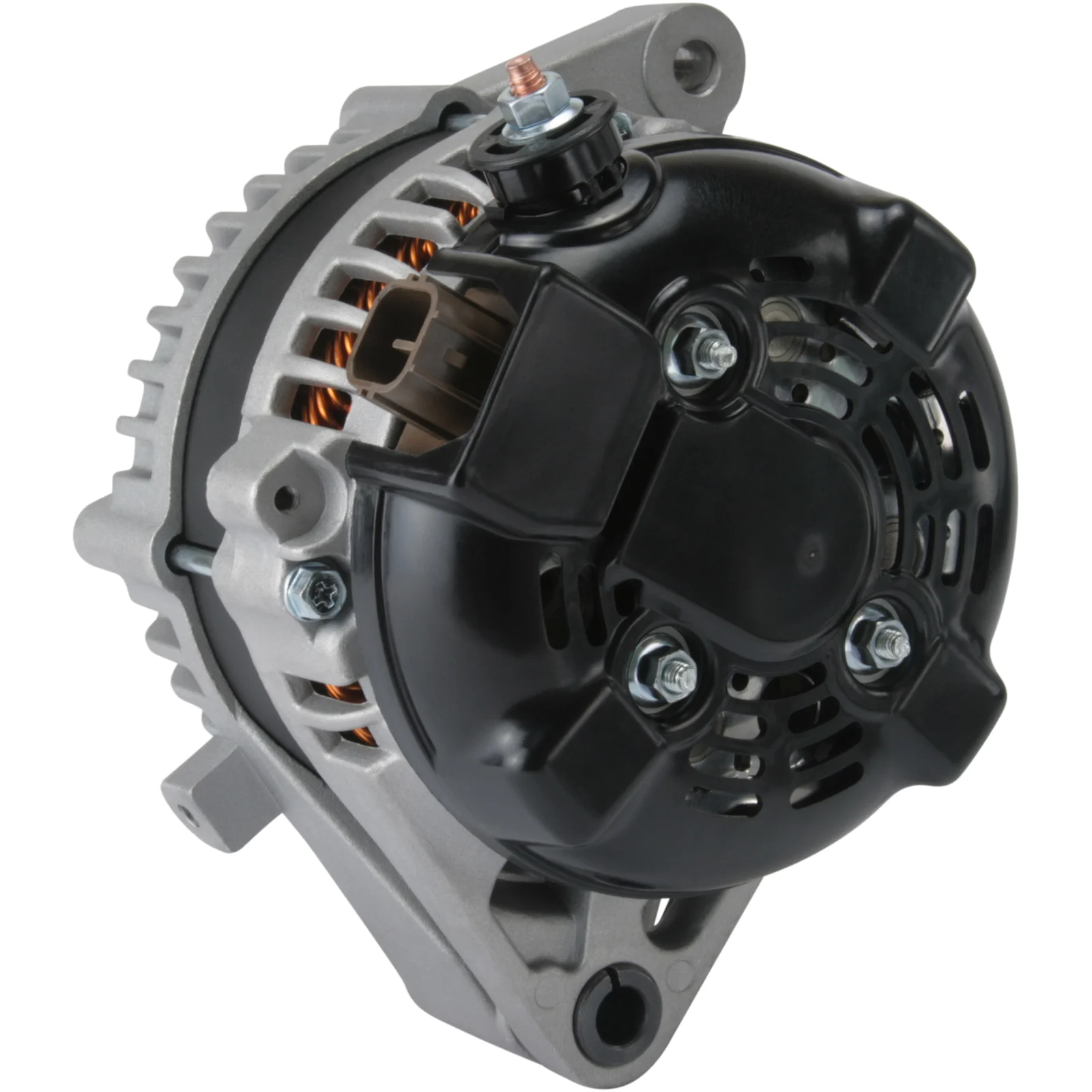

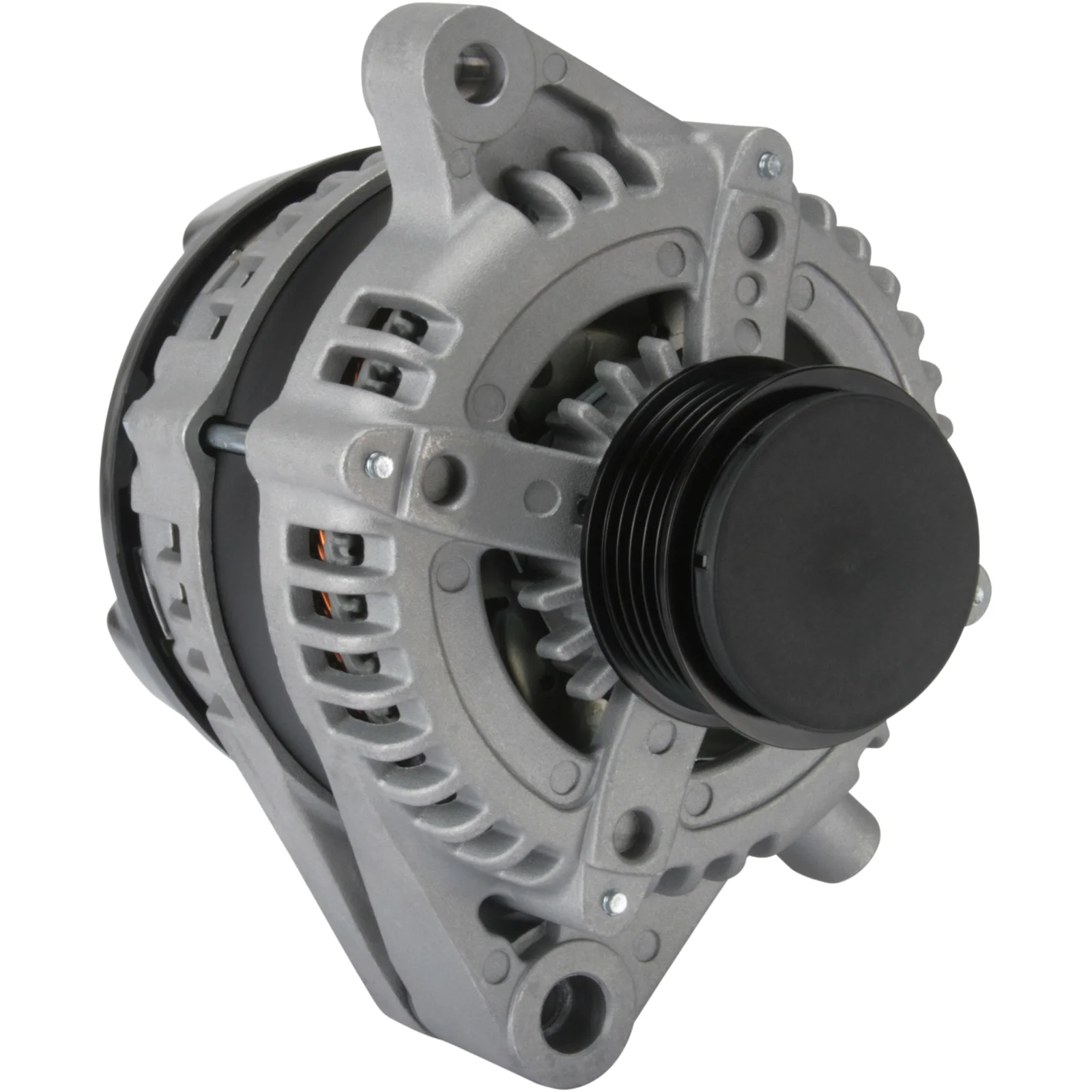

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114010

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Pulley dia.: 58.00

Beskrivning

Voltage: 14
Amp: 100
Pulley dist.: 93.00
Width/holder arm: 53.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 58.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 157.00
Lamp type: Inactive
Pulley: SP/FW
Fan: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 55
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 55
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 93.00
Radius 90.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Lamp type Inactive
Voltage 14
Total length 157.00 mm
Width/holder arm 53.00
Amp 100

  • OEM
    F032114010, 1950ir, 1986A01410, 27060-27060, 27060-27080, 27060-27090, 27060-2709084, 102211-2760, 104210-3430, 104210-3431, 9664219343

  • Konkurrentreferens
    A6007, A6007(P), A6007PR, A6384S, CAL40171, CAL40331, dan941, DENDAN941, DRA0831, DRA4284, J5112112, LRA02316, 8EL012240-961, 28-4809, 28-5900, 195.572.100, 235.190.1002, 235.190.902, 9315, 23316R, 23947N, 23947R, 209346, 209346A, 210930, 210930A, 301950RI, 301951RI, 444222, 12060828, 0986082030, 063377502010

  • Normaliserat artikelnummer
    a6007, a6007p, a6007pr, a6384s, cal40171, cal40331, dan941, dendan941, dra0831, dra4284, f032114010, j5112112, lra02316, 8el012240961, 1950ir, 1986a01410, 9315, 23316r, 23947n, 23947r, 209346, 209346a, 210930, 210930a, 284809, 285900, 301950ri, 301951ri, 444222, 12060828, 195572100, 235190902, 0986082030, 1022112760, 1042103430, 1042103431, 2351901002, 2706027060, 2706027080, 2706027090, 9664219343, 063377502010, 270602709084

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12J_, _E12T_ Body: Estate From date: 01-04-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12_, _E12T_ From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
