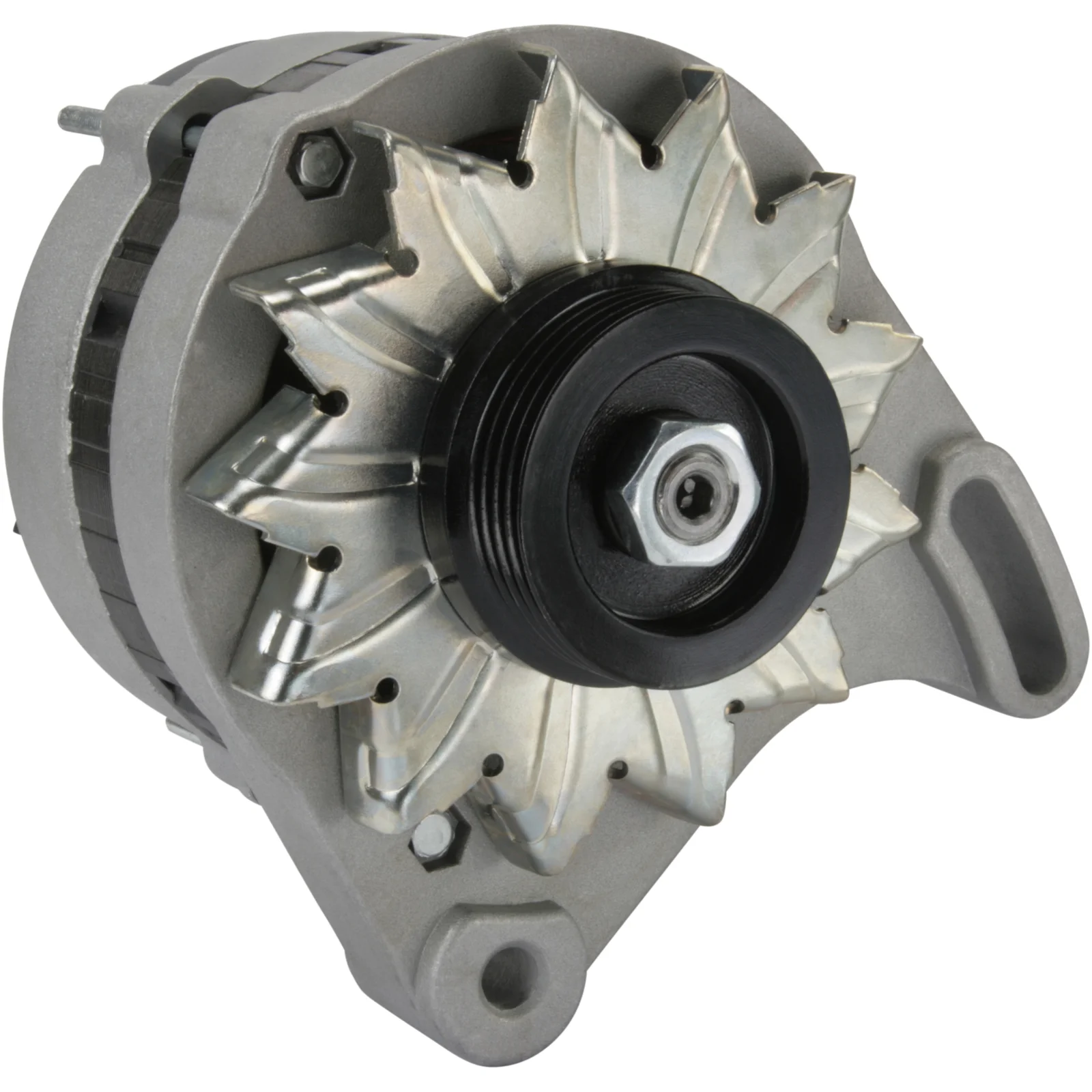

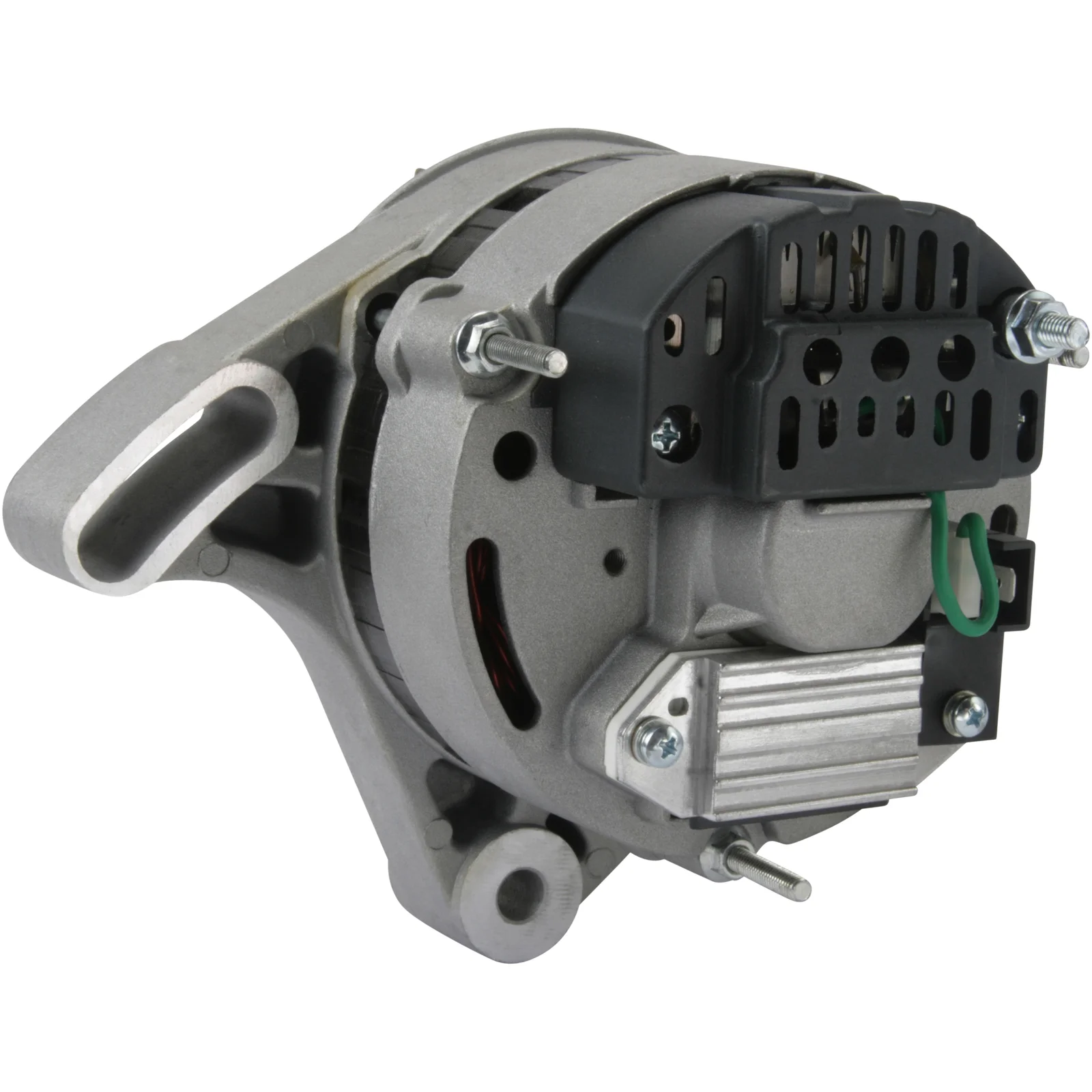

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113471

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 65, Rotation: CW, Pulley dia.: 59.50

Beskrivning

Voltage: 14
Amp: 65
Pulley dist.: 54.50
Width/holder arm: 32.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: 10.50x44.00
Pulley dia.: 59.50
Grooves/pulley: 4
Radius: 84.50
Radius 2: 115.00
B+: M6
Position/B+ in min.: 5
D+ Size: 6.30
Rotation: CW
Total length mm: 162.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Fiat

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 10.50x44.00
Belt. adj. brackethole pos. 15
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 59.50
Pulley dist. 54.50
Radius 84.50
D+ Size 6.30
Radius 2 115.00
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 4
Voltage 14
Total length 162.00 mm
Width/holder arm 32.00
Amp 65

  • OEM
    A13E63, aak4556, F032113471, 11.201.695, 851ir, 1986A01782, 7636428, 7636431, 7713140, 46231658, 46528046, 63320040, 63320140, 63320319, 63321082, 63321136, 63321141, 63321173, 63321488, 77347410, 063321173000

  • Konkurrentreferens
    A4018, A9239, ALT-4071, ALT12037, CAL21132, CAL30117, dra3408, dra3418, DRA3418X, F032UA0025, F042307030, F042A07030, F042A0H240, ia0695, LEA0676, lrb00326, MG360, 8EL011711-671, 8el731712-001, 28-2673, 218.142.652, 4506, 5268, 21525N, 30851RI, 56108, 200076, 210219, 210219A, 210230, 210230A, 437551, 439034, 746068, 9038621, 12038620, 12047740, 32201695, 063321082, 063321173, 943321082, 943321141, 943321173, 0986038621, 0986039471

  • Normaliserat artikelnummer
    a13e63, a4018, a9239, aak4556, alt12037, alt4071, cal21132, cal30117, dra3408, dra3418, dra3418x, f032113471, f032ua0025, f042307030, f042a07030, f042a0h240, ia0695, lea0676, lrb00326, mg360, 8el011711671, 8el731712001, 851ir, 1986a01782, 4506, 5268, 21525n, 30851ri, 56108, 200076, 210219, 210219a, 210230, 210230a, 282673, 437551, 439034, 746068, 7636428, 7636431, 7713140, 9038621, 11201695, 12038620, 12047740, 32201695, 46231658, 46528046, 63320040, 63320140, 63320319, 063321082, 63321082, 63321136, 63321141, 063321173, 63321173, 63321488, 77347410, 218142652, 943321082, 943321141, 943321173, 0986038621, 0986039471, 063321173000

  • Passar modeller
    Fiat Model: Cinquecento Model series: Cinquecento Model type: Sporting Size of motor: 1.1 Brand of engine: 176B2.000 Body: Hatchback From date: 01-10-1994 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 1.1 Brand of engine: 176B2.000 Type description: 170 Body: Box Body / Hatchback From date: 01-10-1994 To date: 01-02-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 trekking Size of motor: 1.1 Brand of engine: 156C.046 Type description: 141AS Body: Hatchback From date: 01-10-1991 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: i.e. Size of motor: 1.0 Brand of engine: 141C2.000 Type description: 141AN Body: Hatchback From date: 01-05-1986 To date: 01-12-1994 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: 4x4 Type of engine: i.e. Size of motor: 1.0 Brand of engine: 176B2.000 Body: Hatchback From date: 01-02-1995 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Selecta Size of motor: 1.1 Brand of engine: 156C.046 Type description: 141AS Body: Hatchback From date: 01-05-1991 To date: 01-12-1999 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Selecta Size of motor: 1.1 Brand of engine: 176B2.000 Body: Hatchback From date: 01-02-1995 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Model type: Selecta Size of motor: 1.1 Brand of engine: 187A1.000 Body: Hatchback From date: 01-02-1995 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 1.0 Brand of engine: 156A.3000 Type description: 141AE Body: Hatchback From date: 01-01-1985 To date: 01-12-1992 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Type of engine: i.e. Size of motor: 1.0 Brand of engine: 141C2.000 Type description: 141AN Body: Hatchback From date: 01-10-1987 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Type of engine: i.e. Size of motor: 1.0 Brand of engine: 156A2.246 Type description: 141AN Body: Hatchback From date: 01-10-1987 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Type of engine: i.e. Size of motor: 1.0 Brand of engine: 156A2.246 Type description: 141_ Body: Van From date: 01-08-1992 To date: 01-02-2004 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 176B2.000 Body: Van From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 1.1 Brand of engine: 176B2.000 Type description: 187 Body: Hatchback From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Lancia Model: Y Model series: Y10 Model type: Avenue 4WD Size of motor: 1.1 Brand of engine: 176B2.000 Body: Hatchback From date: 01-01-1995 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Lancia Model: Y Model series: Y10 Model type: Avenue Size of motor: 1.1 Brand of engine: 176B2.000 Body: Hatchback From date: 01-01-1995 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Lancia Model: Y Model series: Y10 Model type: Fire Type of engine: i.e. Size of motor: 1.1 Brand of engine: 156C.046 Body: Hatchback From date: 01-07-1989 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Lancia Model: Y10 Model series: Y10 Model type: 4X4 Size of motor: 1.1 Brand of engine: 156C.046 Type description: 156_ Body: Hatchback From date: 01-09-1992 To date: 01-12-1995 Fuel: Petrol Approved: Yes
