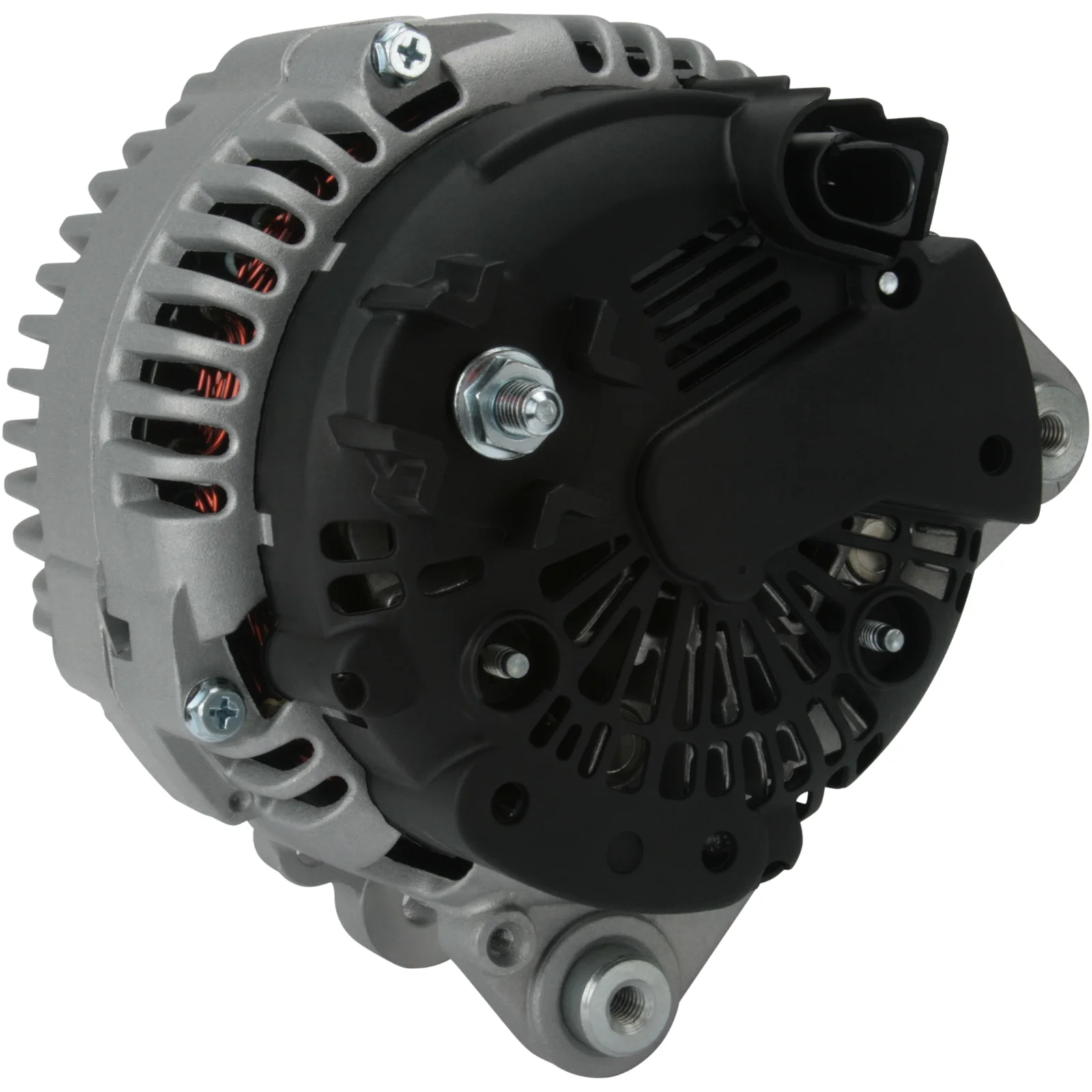

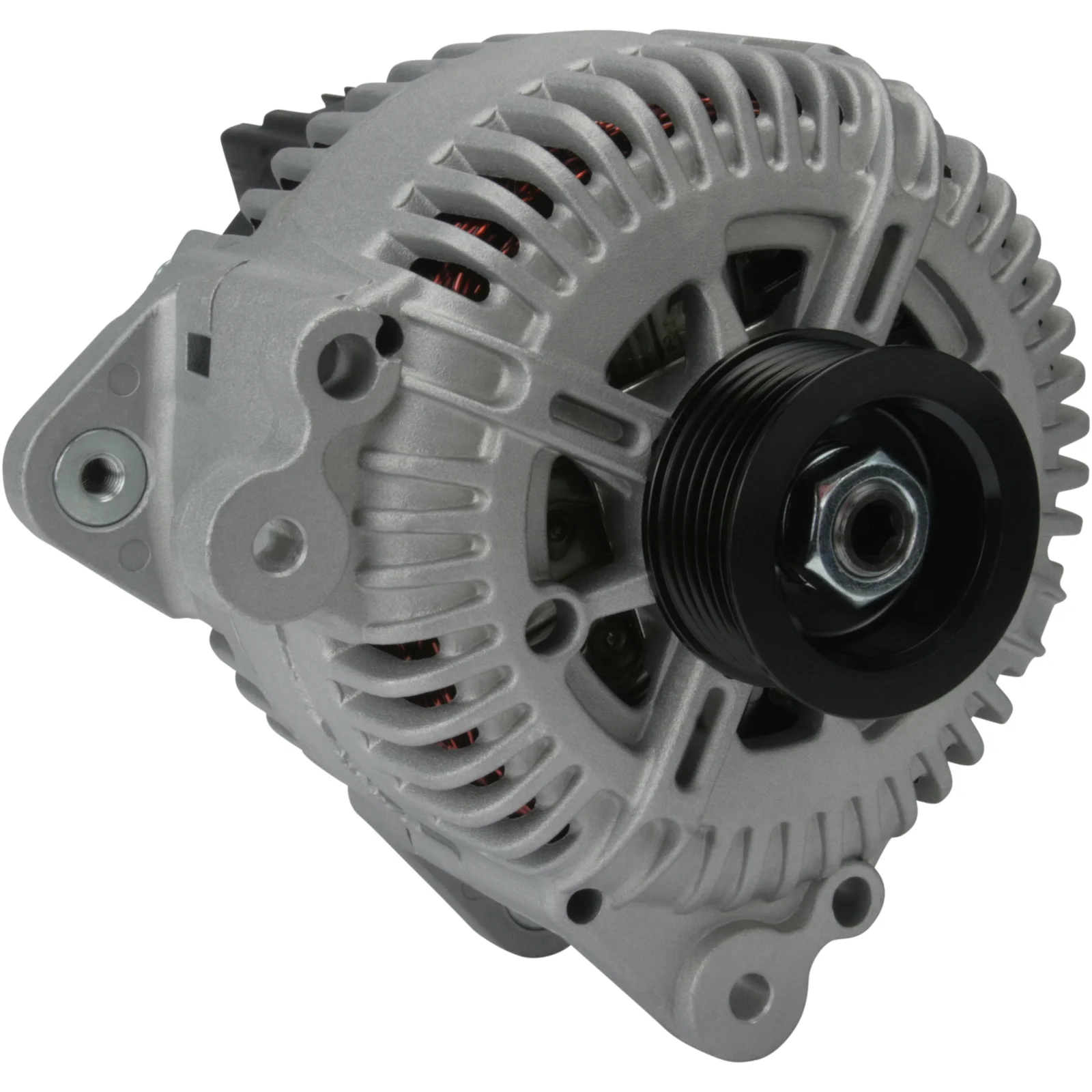

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115856

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 185.00
Terminal type: L-DFM
Pulley: SP
Fan: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL61
Bracket hole 8.50
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 57.00
Pulley dist. 30.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-DFM
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032115856, TG15C048, tg16c013, 1911ir, 2542891, 2543264, 2543264A, 2543264B, 059903016D, 059903016DX, 059903023B, 059903023BX, 0124525075, 0124525094

  • Konkurrentreferens
    A3080, CAL15351, DRA0124, 28-5781, 205.522.150, 20024R, 112514, 209277, 209277A, 301911RI, 437554, 439557, 12090324, 32000019

  • Normaliserat artikelnummer
    a3080, cal15351, dra0124, f032115856, tg15c048, tg16c013, 1911ir, 20024r, 112514, 209277, 209277a, 285781, 301911ri, 437554, 439557, 2542891, 2543264, 2543264a, 2543264b, 12090324, 32000019, 059903016d, 059903016dx, 059903023b, 059903023bx, 0124525075, 0124525094, 205522150

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8EC From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8ED Body: Estate From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8H7, 8HE Body: Convertible From date: 01-01-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8H7, 8HE Body: Convertible From date: 01-01-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8EC From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8ED Body: Estate From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8H7, 8HE Body: Convertible From date: 01-06-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8EC From date: 01-11-2005 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8ED Body: Estate From date: 01-11-2005 Fuel: Diesel Approved: Yes Manufacture type: Avant
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8ED Body: Estate From date: 01-11-2005 To date: 01-03-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 30.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 185.00
    Terminal type: L-DFM
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL61
    Bracket hole 8.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP
    Pulley dia. 57.00
    Pulley dist. 30.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type L-DFM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 14.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032115856, TG15C048, tg16c013, 1911ir, 2542891, 2543264, 2543264A, 2543264B, 059903016D, 059903016DX, 059903023B, 059903023BX, 0124525075, 0124525094

    • Konkurrentreferens
      A3080, CAL15351, DRA0124, 28-5781, 205.522.150, 20024R, 112514, 209277, 209277A, 301911RI, 437554, 439557, 12090324, 32000019

    • Normaliserat artikelnummer
      a3080, cal15351, dra0124, f032115856, tg15c048, tg16c013, 1911ir, 20024r, 112514, 209277, 209277a, 285781, 301911ri, 437554, 439557, 2542891, 2543264, 2543264a, 2543264b, 12090324, 32000019, 059903016d, 059903016dx, 059903023b, 059903023bx, 0124525075, 0124525094, 205522150

    • Passar modeller
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8EC From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8ED Body: Estate From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: ASB Type description: 8H7, 8HE Body: Convertible From date: 01-01-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8EC From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8ED Body: Estate From date: 01-11-2004 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BKN Type description: 8H7, 8HE Body: Convertible From date: 01-01-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8EC From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8ED Body: Estate From date: 01-01-2006 To date: 01-06-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BPP Type description: 8H7, 8HE Body: Convertible From date: 01-06-2006 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8EC From date: 01-11-2005 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8ED Body: Estate From date: 01-11-2005 Fuel: Diesel Approved: Yes Manufacture type: Avant
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 2.7 Brand of engine: BSG Type description: 8ED Body: Estate From date: 01-11-2005 To date: 01-03-2008 Fuel: Diesel Approved: Yes Manufacture type: AVANT
