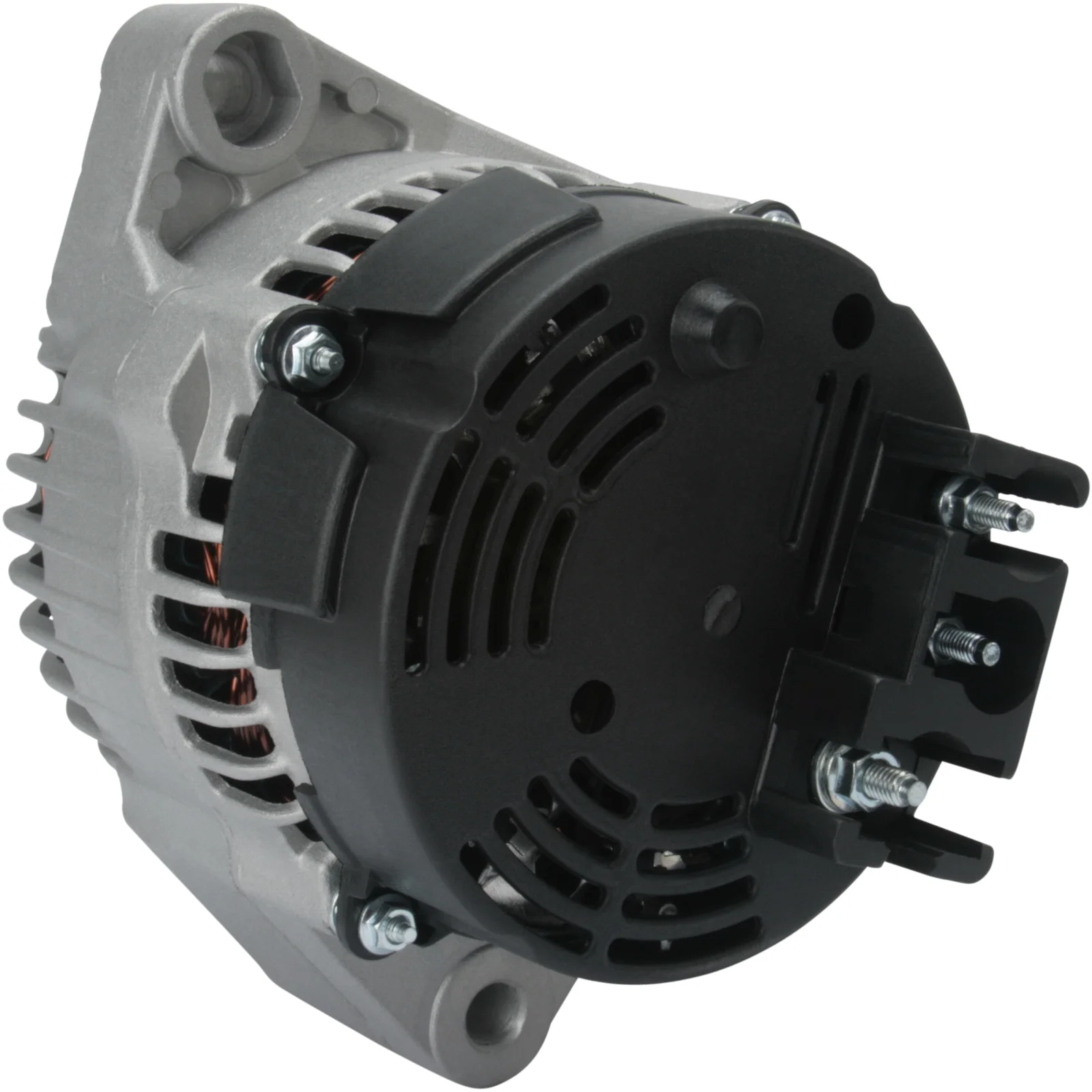

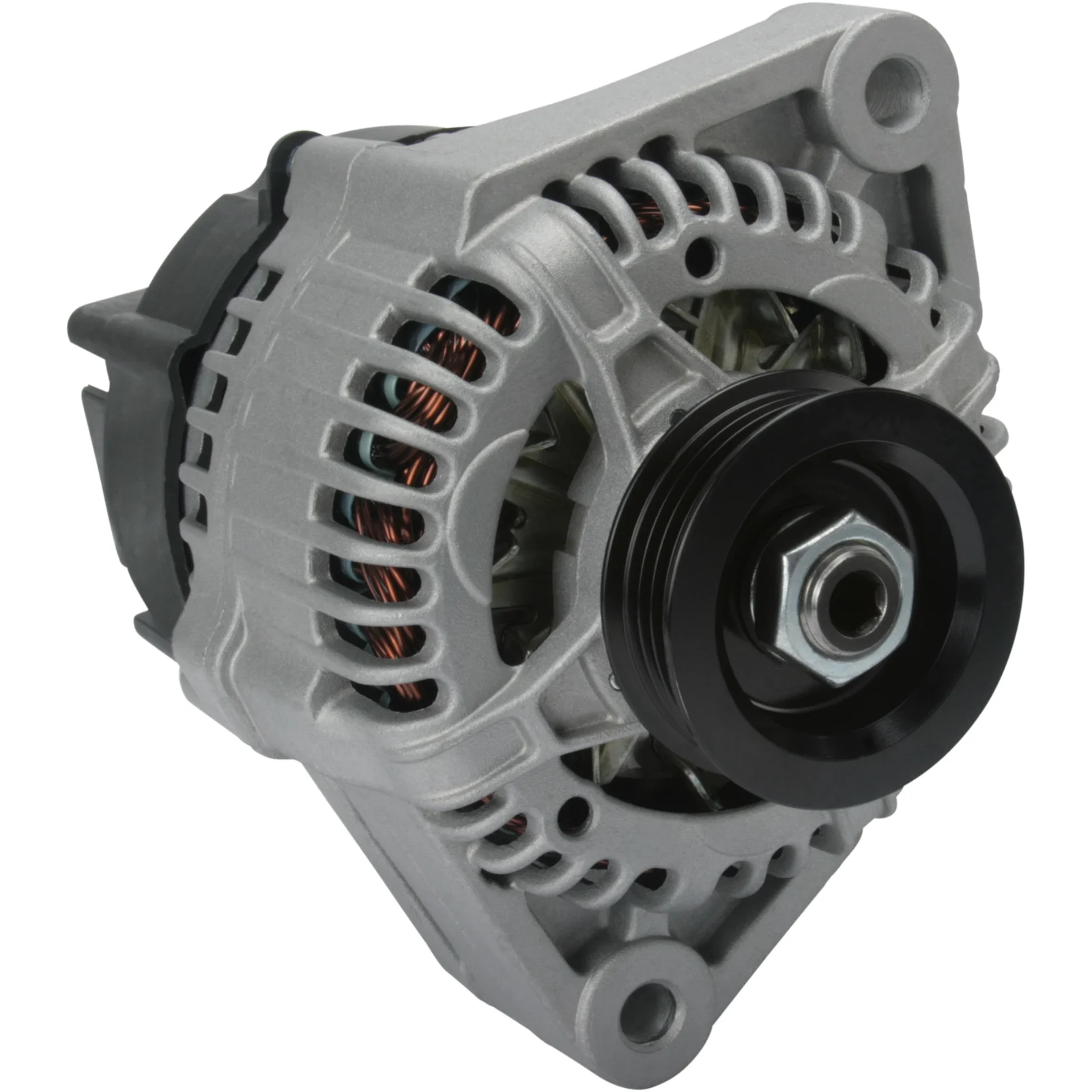

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112384

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 75, Rotation: CW, Pulley dia.: 58.00

Beskrivning

Voltage: 14
Amp: 75
Pulley dist.: 90.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: 11.30
Pulley dia.: 58.00
Grooves/pulley: 4
Radius: 80.00
Radius 2: 80.00
B+: M6
Position/B+ in min.: 22
D+ Size: M5
Rotation: CW
Plug no.: PL105
Total length mm: 176.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Smart (MCC)
Remarks: Please note! If 3 connections = HC-CARGO 112384. If 2 connections = HC-CARGO 114025. They cannot replace each other.

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 11.30
Belt. adj. brackethole pos. 4
Plug no. PL105
Bracket hole 10.30
Position/B+ in min. 22
Prod. info BN
Pulley SP
Pulley dia. 58.00
Pulley dist. 90.00
Radius 80.00
D+ Size M5
Radius 2 80.00
Regulator type IR
Remarks Please note! If 3 connections = HC-CARGO 112384. If 2 connections = HC-CARGO 114025. They cannot replace each other.
Rotation CW
Servicing Smart (MCC)
Grooves/pulley 4
Voltage 14
Total length 176.00 mm
Width/holder arm 58.00
Amp 75

  • OEM
    A1601540301, A1601540401, A1601540501, A1601540601, F032112384, Q0002801V005, Q0002801V005000000, Q0002801V006, Q0002801V006000000, Q0003250V009, Q0003250V009000000, Q0003250V010, Q0003250V010000000, Q0003250V011, Q0003250V011000000, 1734ir, 1986A01191, 0002801V005, 0002801V006, 0003250V009, 0003250V010, 0003250v011, 63321658, 63321702, 63341658, 63341702, 1601540301, 1601540401, 1601540501, 1601540601

  • Konkurrentreferens
    A4062, A4062PR, A4062SR, A6476(DENSO), ALT-H100, ALT12069, CAL30132, CAL30213, DAN521, DAN647, DENDAN521, DRA0301, DRA0389, DRA4115, F042A0H100, LRA02077, 8EL012427-051, 8EL012430-631, 8EL737895-001, 27-3907, 525.120.752, 23001N, 111798, 119960, 210529, 210529A, 210667, 210667A, 301734RI, 443095, 444263, 12090076, 32063341, 0986049111, 063341658010, 063341702010, 944390901730

  • Normaliserat artikelnummer
    a1601540301, a1601540401, a1601540501, a1601540601, a4062, a4062pr, a4062sr, a6476denso, alt12069, alth100, cal30132, cal30213, dan521, dan647, dendan521, dra0301, dra0389, dra4115, f032112384, f042a0h100, lra02077, q0002801v005, q0002801v005000000, q0002801v006, q0002801v006000000, q0003250v009, q0003250v009000000, q0003250v010, q0003250v010000000, q0003250v011, q0003250v011000000, 8el012427051, 8el012430631, 8el737895001, 1734ir, 1986a01191, 0002801v005, 0002801v006, 0003250v009, 0003250v010, 0003250v011, 23001n, 111798, 119960, 210529, 210529a, 210667, 210667a, 273907, 301734ri, 443095, 444263, 12090076, 32063341, 63321658, 63321702, 63341658, 63341702, 525120752, 0986049111, 1601540301, 1601540401, 1601540501, 1601540601, 063341658010, 063341702010, 944390901730

  • Passar modeller
    Smart (MCC) Model: Cabrio Model series: Cabrio Size of motor: 0.6 Brand of engine: M160.920 Body: Convertible From date: 01-06-2002 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Cabrio Model series: Cabrio Size of motor: 0.7 Brand of engine: M160.910 Body: Convertible From date: 01-01-2003 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: City Model series: City Size of motor: 0.6 Brand of engine: M160.920 Type description: MCO1 Body: Hatchback From date: 01-06-2002 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: City Model series: City Size of motor: 0.7 Brand of engine: M160.910 Body: Hatchback From date: 01-01-2003 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Crossblade Model series: Crossblade Size of motor: 0.6 Brand of engine: M160.920 Body: Convertible From date: 01-06-2002 To date: 01-12-2003 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Size of motor: 0.6 Brand of engine: M160.910 Type description: 450 Body: Coupe From date: 01-01-2004 To date: 01-02-2007 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Size of motor: 0.7 Brand of engine: M160.910 Body: Convertible From date: 01-01-2004 To date: 01-01-2007 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Size of motor: 0.7 Brand of engine: M160.910 Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Size of motor: 0.7 Brand of engine: M160.910 Type description: 450 Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Roadster Model series: Roadster Model type: Brabus Size of motor: 0.7 Brand of engine: M160.923 Body: Convertible From date: 01-12-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Roadster Model series: Roadster Model type: Brabus Size of motor: 0.7 Brand of engine: M160.923 Body: Coupe From date: 01-12-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Roadster Model series: Roadster Size of motor: 0.7 Brand of engine: 160.921 Type description: 452 Body: Convertible From date: 01-04-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Roadster Model series: Roadster Size of motor: 0.7 Brand of engine: 160.922 Body: Coupe From date: 01-04-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Roadster Model series: Roadster Size of motor: 0.7 Brand of engine: 160.922 Type description: 452, 434 Body: Convertible From date: 01-04-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Roadster Model series: Roadster Size of motor: 0.7 Brand of engine: M160.921 Type description: 452, 332 Body: Convertible From date: 01-06-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160.910 Body: Convertible From date: 01-01-2001 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160.920 Body: Convertible From date: 01-03-2000 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160.920 Body: Hatchback From date: 01-07-1998 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160.920 Type description: MC01 Body: Hatchback From date: 01-01-2001 To date: 01-01-2004 Fuel: Gasoline Approved: Yes Manufacture type: CITY-COUPE
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160E6ALB03 Body: Hatchback From date: 01-07-1998 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160E6ALB04 Body: Hatchback From date: 01-07-1998 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160E6ALB05 Body: Convertible From date: 01-01-2001 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160E6ALB05 Type description: MC01 Body: Hatchback From date: 01-01-2001 To date: 01-01-2004 Fuel: Gasoline Approved: Yes Manufacture type: CITY-COUPE
    Smart (MCC) Model: Smart Model series: Smart Size of motor: 0.6 Brand of engine: M160E6ALBO3 Body: Convertible From date: 01-03-2000 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Smart Model: Fortwo Model series: Fortwo Cabrio Size of motor: 0.6 Brand of engine: M160.910 Type description: 450 Body: Convertible From date: 01-01-2004 To date: 01-12-2006 Fuel: Petrol Approved: Yes
    Smart Model: Fortwo Model series: Fortwo Coupe Size of motor: 0.7 Type description: 450 Body: Coupe From date: 01-09-2004 To date: 01-02-2007 Fuel: Petrol Approved: Yes
