Artikelnr: F032111980

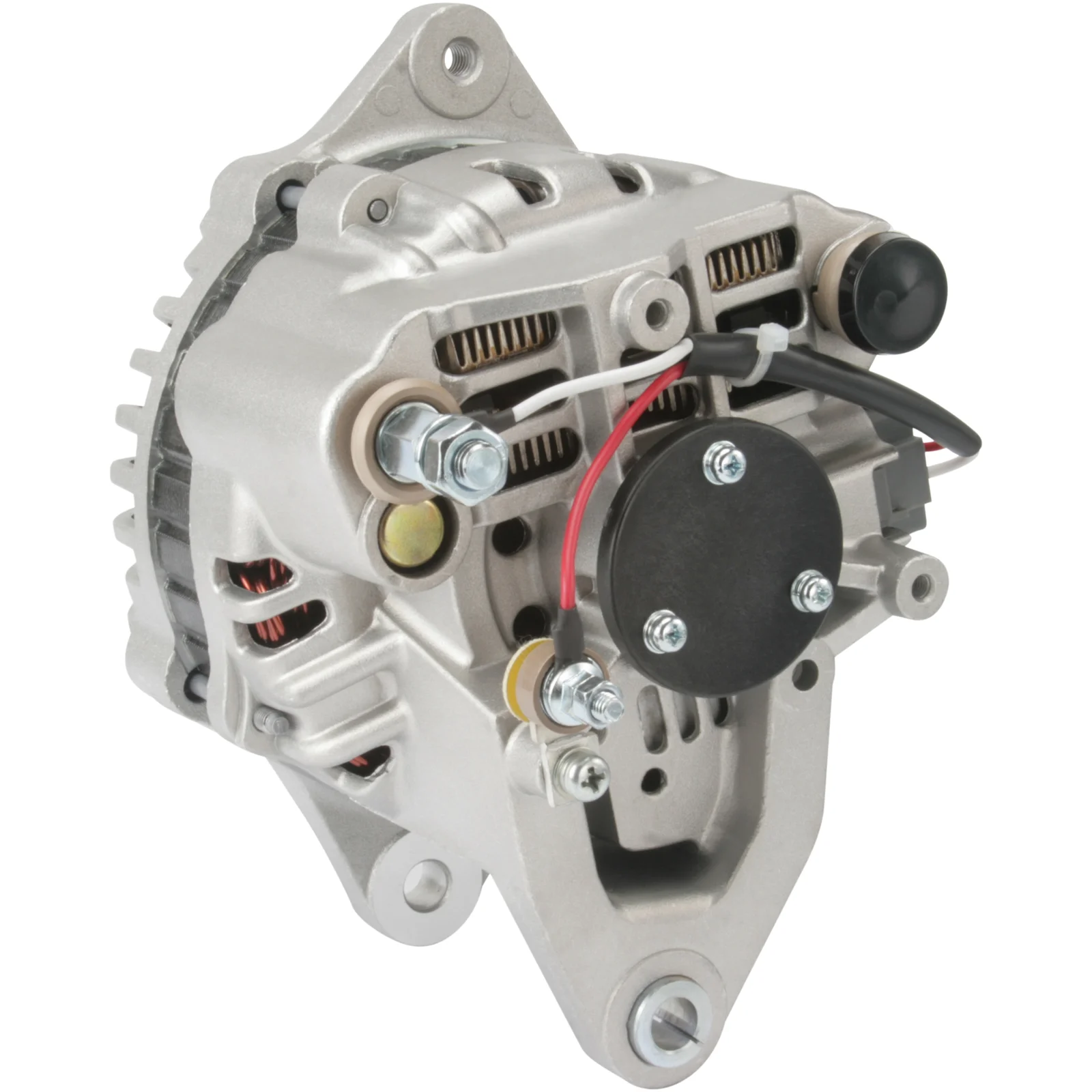

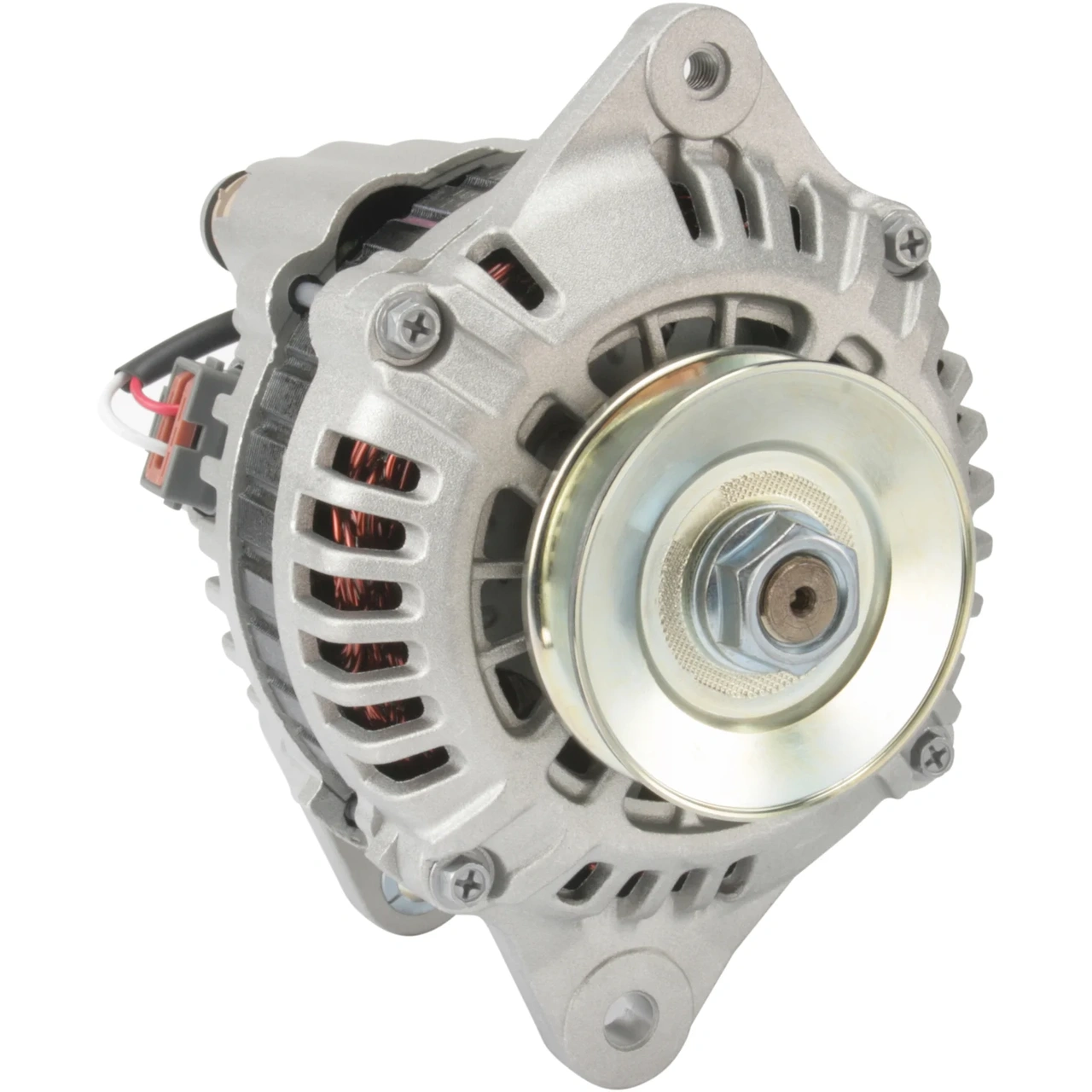

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 78.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
Total length mm: 179.00
Pulley: P
Regulator type: IR
Prod. info: BN/OE
Servicing: Nissan
Info: No W terminal

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Bracket hole 10.20
Position/B+ in min. 50
Prod. info BN/OE
Pulley P
Pulley dia. 78.00
Pulley dist. 42.00
Radius 90.00
D+ Size M5
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Info No W terminal
Voltage 14
Total length 179.00 mm
Width/holder arm 13.00
Amp 70
  • OEM

    F032111980, ja1364ir, 1986A01475, 23100-7f000, 23100-7f001, 1959007, 0123310033, 0123310051
  • Konkurrentreferens

    A0731S, ALT-H075, ALT10171, CAL10330, CAL45111, drb0850, F042A0H075, J5111106, LRA01712, 8EL011711-691, 8el737548-001, 28-2968, 227.160.702, 6011, 9222, 22712R, 118984, 210110, 210110A, 401364RI, 437715, 12060725, 12060800, 0986040850, 943355029010, 944390408500
  • Normaliserat artikelnummer

    a0731s, alt10171, alth075, cal10330, cal45111, drb0850, f032111980, f042a0h075, j5111106, ja1364ir, lra01712, 8el011711691, 8el737548001, 1986a01475, 6011, 9222, 22712r, 118984, 210110, 210110a, 231007f000, 231007f001, 282968, 401364ri, 437715, 1959007, 12060725, 12060800, 0123310033, 0123310051, 227160702, 0986040850, 943355029010, 944390408500
  • Passar modeller

    Ford Model: Maverick Model series: Maverick Type of engine: TD Size of motor: 2.7 Brand of engine: TD27E Type description: UDS,UNS From date: 01-09-1996 To date: 01-04-1998 Fuel: Diesel Approved: Yes
    Nissan Model: King Cab Model series: King Cab Model type: 4WD Type of engine: i Size of motor: 2.4 Brand of engine: Z24i Type description: D21 Body: Pick Up From date: 01-03-1986 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 Body: Van From date: 01-06-1998 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 From date: 01-05-1996 To date: 01-09-2007 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 78.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    Total length mm: 179.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN/OE
    Servicing: Nissan
    Info: No W terminal
  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Bracket hole 10.20
    Position/B+ in min. 50
    Prod. info BN/OE
    Pulley P
    Pulley dia. 78.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size M5
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 1
    Info No W terminal
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 13.00
    Amp 70
  • Fordonsmatchning
    • OEM

      F032111980, ja1364ir, 1986A01475, 23100-7f000, 23100-7f001, 1959007, 0123310033, 0123310051
    • Konkurrentreferens

      A0731S, ALT-H075, ALT10171, CAL10330, CAL45111, drb0850, F042A0H075, J5111106, LRA01712, 8EL011711-691, 8el737548-001, 28-2968, 227.160.702, 6011, 9222, 22712R, 118984, 210110, 210110A, 401364RI, 437715, 12060725, 12060800, 0986040850, 943355029010, 944390408500
    • Normaliserat artikelnummer

      a0731s, alt10171, alth075, cal10330, cal45111, drb0850, f032111980, f042a0h075, j5111106, ja1364ir, lra01712, 8el011711691, 8el737548001, 1986a01475, 6011, 9222, 22712r, 118984, 210110, 210110a, 231007f000, 231007f001, 282968, 401364ri, 437715, 1959007, 12060725, 12060800, 0123310033, 0123310051, 227160702, 0986040850, 943355029010, 944390408500
    • Passar modeller

      Ford Model: Maverick Model series: Maverick Type of engine: TD Size of motor: 2.7 Brand of engine: TD27E Type description: UDS,UNS From date: 01-09-1996 To date: 01-04-1998 Fuel: Diesel Approved: Yes
      Nissan Model: King Cab Model series: King Cab Model type: 4WD Type of engine: i Size of motor: 2.4 Brand of engine: Z24i Type description: D21 Body: Pick Up From date: 01-03-1986 To date: 01-04-1992 Fuel: Gasoline Approved: Yes
      Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 Body: Van From date: 01-06-1998 To date: 01-09-2007 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 From date: 01-05-1996 To date: 01-09-2007 Fuel: Diesel Approved: Yes
