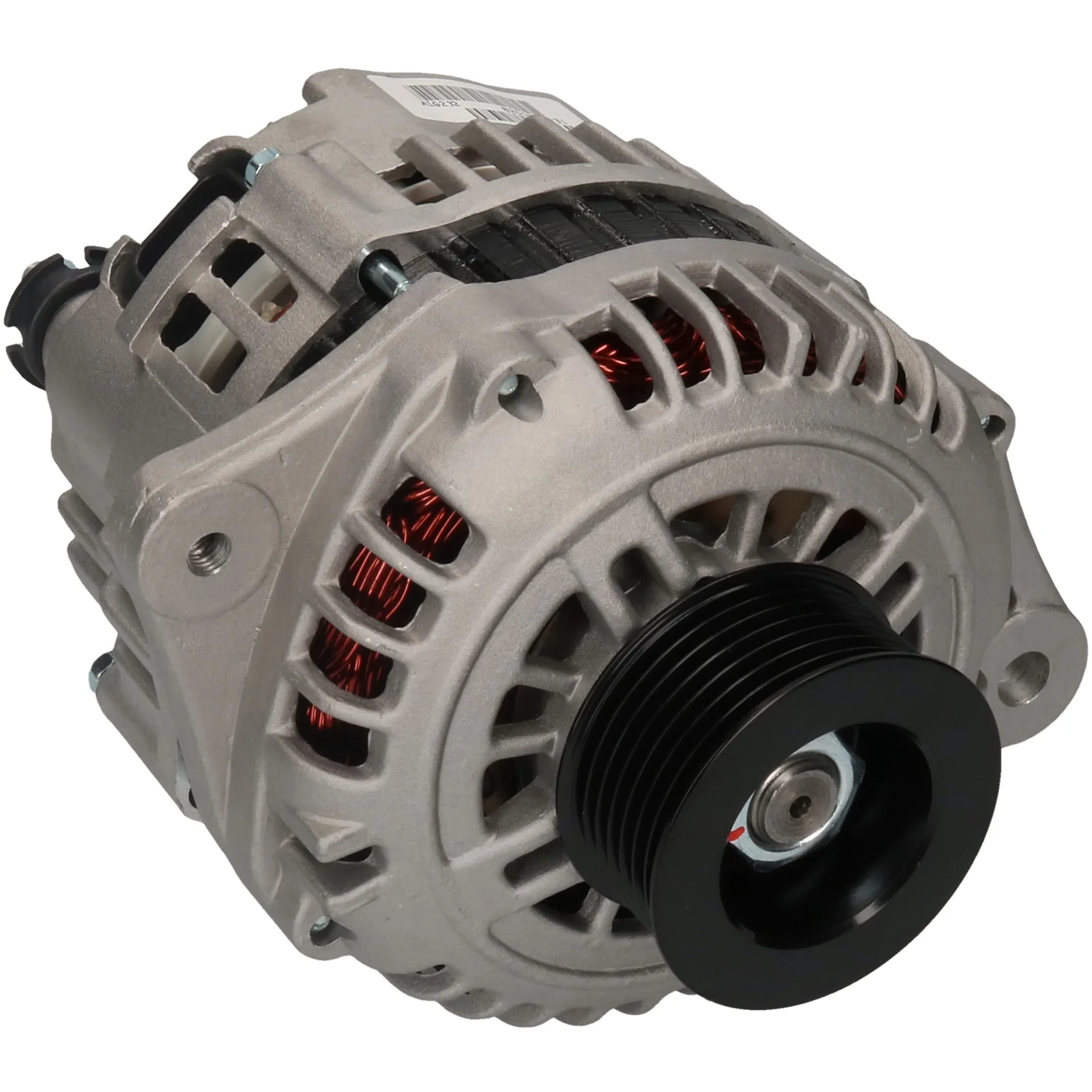

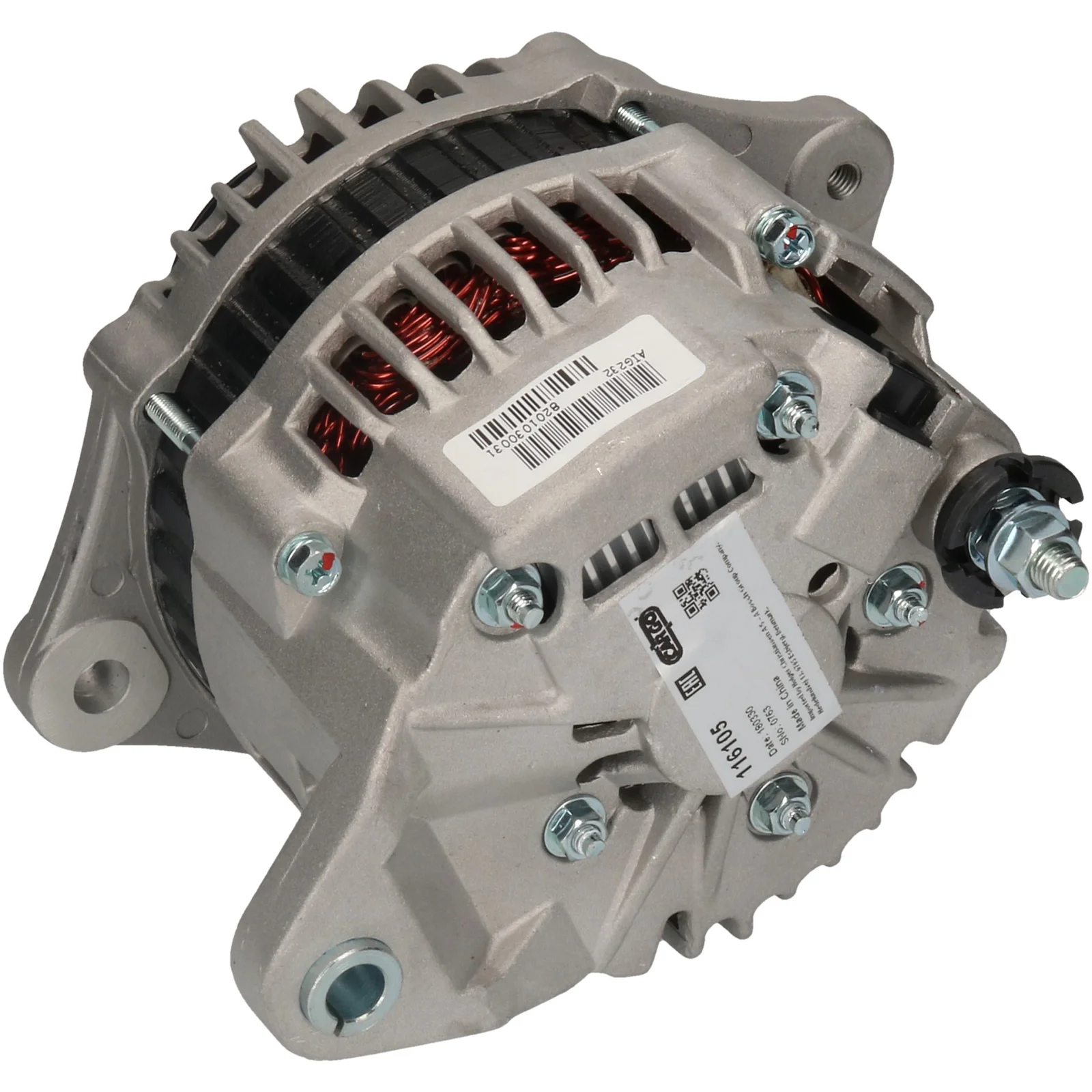

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116105

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Generator 12V-90A (3.0 DiTD) 12V - 90A, 7gr, (S, L) För Yourex produkt order 90-250-9768

Voltage: 14
Amp: 90
Pulley dist.: 39.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 1
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.00
Grooves/pulley: 7
Radius: 80.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 184.00
Pulley: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 1
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 60
Pulley SP
Pulley dia. 59.00
Pulley dist. 39.00
Radius 80.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 184.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    F032116105, LR190-763, LR190-768, 104210-903, 116105, 898006-0840, 8973618710, 8980060840

  • Konkurrentreferens
    CAL20233, F042205024, 28-5909, 135.568.090, 243.129.902, 20212N, 553542RI, 12060969

  • Bilmärken
    Isuzu

  • Normaliserat artikelnummer
    cal20233, f032116105, f042205024, lr190763, lr190768, 20212n, 116105, 285909, 553542ri, 12060969, 104210903, 135568090, 243129902, 8973618710, 8980060840

  • Passar modeller
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Series: D-MAX Model: 3.0 DiTD 4X4 Engine volume: 3.0 Engine type: 4JJ1-TC Year: 01.07-06.12
    Isuzu Series: D-MAX Model: 3.0 DiTD Engine volume: 3.0 Engine type: 4JJ1-TC Year: 01.07-06.12
  • Beskrivning
    Generator 12V-90A (3.0 DiTD) 12V - 90A, 7gr, (S, L) För Yourex produkt order 90-250-9768

    Voltage: 14
    Amp: 90
    Pulley dist.: 39.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 1
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.00
    Grooves/pulley: 7
    Radius: 80.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 184.00
    Pulley: SP
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 1
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 60
    Pulley SP
    Pulley dia. 59.00
    Pulley dist. 39.00
    Radius 80.00
    D+ Size Plug
    Radius 2 80.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 13.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032116105, LR190-763, LR190-768, 104210-903, 116105, 898006-0840, 8973618710, 8980060840

    • Konkurrentreferens
      CAL20233, F042205024, 28-5909, 135.568.090, 243.129.902, 20212N, 553542RI, 12060969

    • Bilmärken
      Isuzu

    • Normaliserat artikelnummer
      cal20233, f032116105, f042205024, lr190763, lr190768, 20212n, 116105, 285909, 553542ri, 12060969, 104210903, 135568090, 243129902, 8973618710, 8980060840

    • Passar modeller
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Series: D-MAX Model: 3.0 DiTD 4X4 Engine volume: 3.0 Engine type: 4JJ1-TC Year: 01.07-06.12
      Isuzu Series: D-MAX Model: 3.0 DiTD Engine volume: 3.0 Engine type: 4JJ1-TC Year: 01.07-06.12
