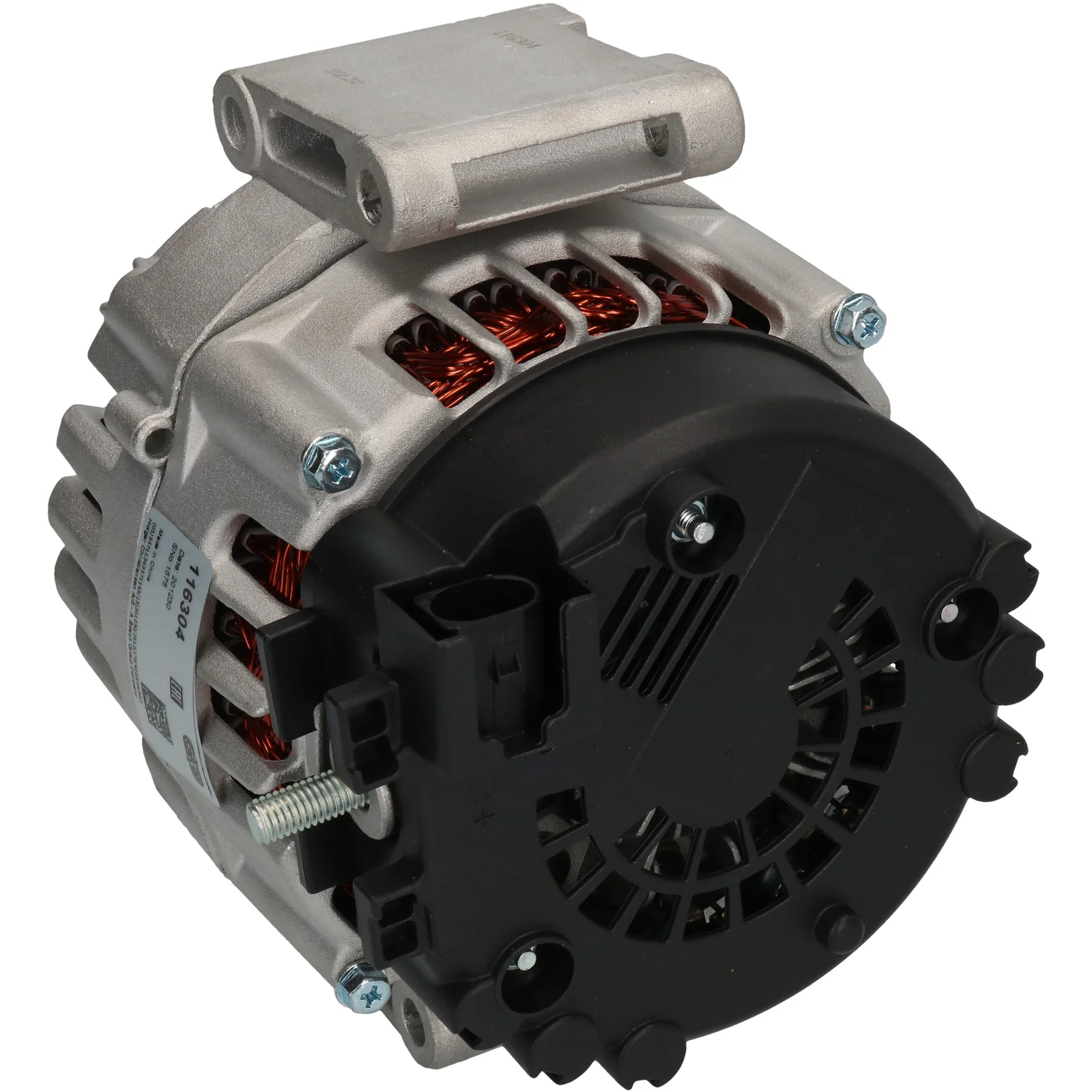

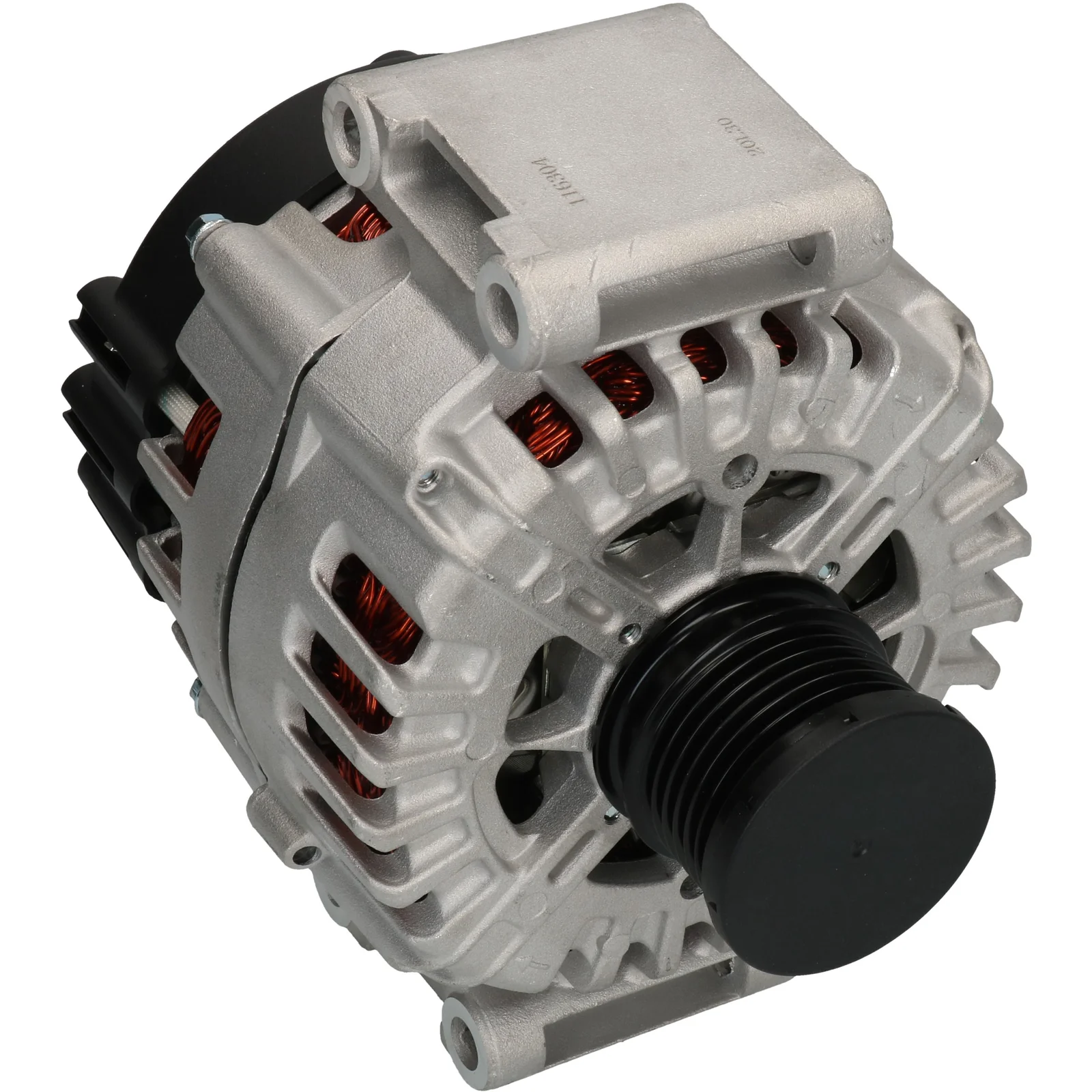

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116304

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 55.80

Beskrivning

Generator 12V-180A (MB) 12V - 180A, 6gr.frg, (LIN) Bilar UTAN Start/Stopp Bilar UTAN Start/Stopp För Yourex produkt order 90-365-1439

Voltage: 14
Amp: 180
Pulley dist.: 31.60
Width/holder arm: 70.00
Mount. bracket dist.: 55.80
Bracket hole: 9.20
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 15
Rotation: CW
Plug no.: PL125
Total length mm: 193.00
Terminal type: COM
ID Code: 41
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 55.80
Belt. adj. bracket hole 1 8.50
Plug no. PL125
Bracket hole 9.20
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.60
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 41
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    A014 1543902, A0141543902, A01415439020080, A0141543902080, A014154390280, A3466S, CAL15564, DRA1067, F032116304, FG18S 047, FG18S047, FGN18S047, LRA03471, 014 154 3902, 28-6581, 95 608 852, 225.304.1802, 555.592.180, 11738N, 116304, 209175, 209175A, 439704, 440295, 553550RI, 2607384, 2607384A, 9090678, 12090646, 0141543902, 141543902, 014154390280, 0141543902080, 01415439020080

  • Konkurrentreferens
    A3466S, CAL15564, DRA1067, LRA03471, 28-6581, 225.304.1802, 555.592.180, 11738N, 209175, 209175A, 439704, 440295, 553550RI, 9090678, 12090646

  • Bilmärken
    MERCEDES-BENZ

  • Normaliserat artikelnummer
    a0141543902, a01415439020080, a0141543902080, a014154390280, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 95608852, 0141543902, 141543902, 555592180, 2253041802, 014154390280, 0141543902080, 01415439020080

  • Passar modeller
    MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
    MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
  • Beskrivning
    Generator 12V-180A (MB) 12V - 180A, 6gr.frg, (LIN) Bilar UTAN Start/Stopp Bilar UTAN Start/Stopp För Yourex produkt order 90-365-1439

    Voltage: 14
    Amp: 180
    Pulley dist.: 31.60
    Width/holder arm: 70.00
    Mount. bracket dist.: 55.80
    Bracket hole: 9.20
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 15
    Rotation: CW
    Plug no.: PL125
    Total length mm: 193.00
    Terminal type: COM
    ID Code: 41
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 55.80
    Belt. adj. bracket hole 1 8.50
    Plug no. PL125
    Bracket hole 9.20
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.60
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 41
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 70.00
    Amp 180
  • Fordonsmatchning

    • OEM
      A014 1543902, A0141543902, A01415439020080, A0141543902080, A014154390280, A3466S, CAL15564, DRA1067, F032116304, FG18S 047, FG18S047, FGN18S047, LRA03471, 014 154 3902, 28-6581, 95 608 852, 225.304.1802, 555.592.180, 11738N, 116304, 209175, 209175A, 439704, 440295, 553550RI, 2607384, 2607384A, 9090678, 12090646, 0141543902, 141543902, 014154390280, 0141543902080, 01415439020080

    • Konkurrentreferens
      A3466S, CAL15564, DRA1067, LRA03471, 28-6581, 225.304.1802, 555.592.180, 11738N, 209175, 209175A, 439704, 440295, 553550RI, 9090678, 12090646

    • Bilmärken
      MERCEDES-BENZ

    • Normaliserat artikelnummer
      a0141543902, a01415439020080, a0141543902080, a014154390280, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 95608852, 0141543902, 141543902, 555592180, 2253041802, 014154390280, 0141543902080, 01415439020080

    • Passar modeller
      MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
      MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
