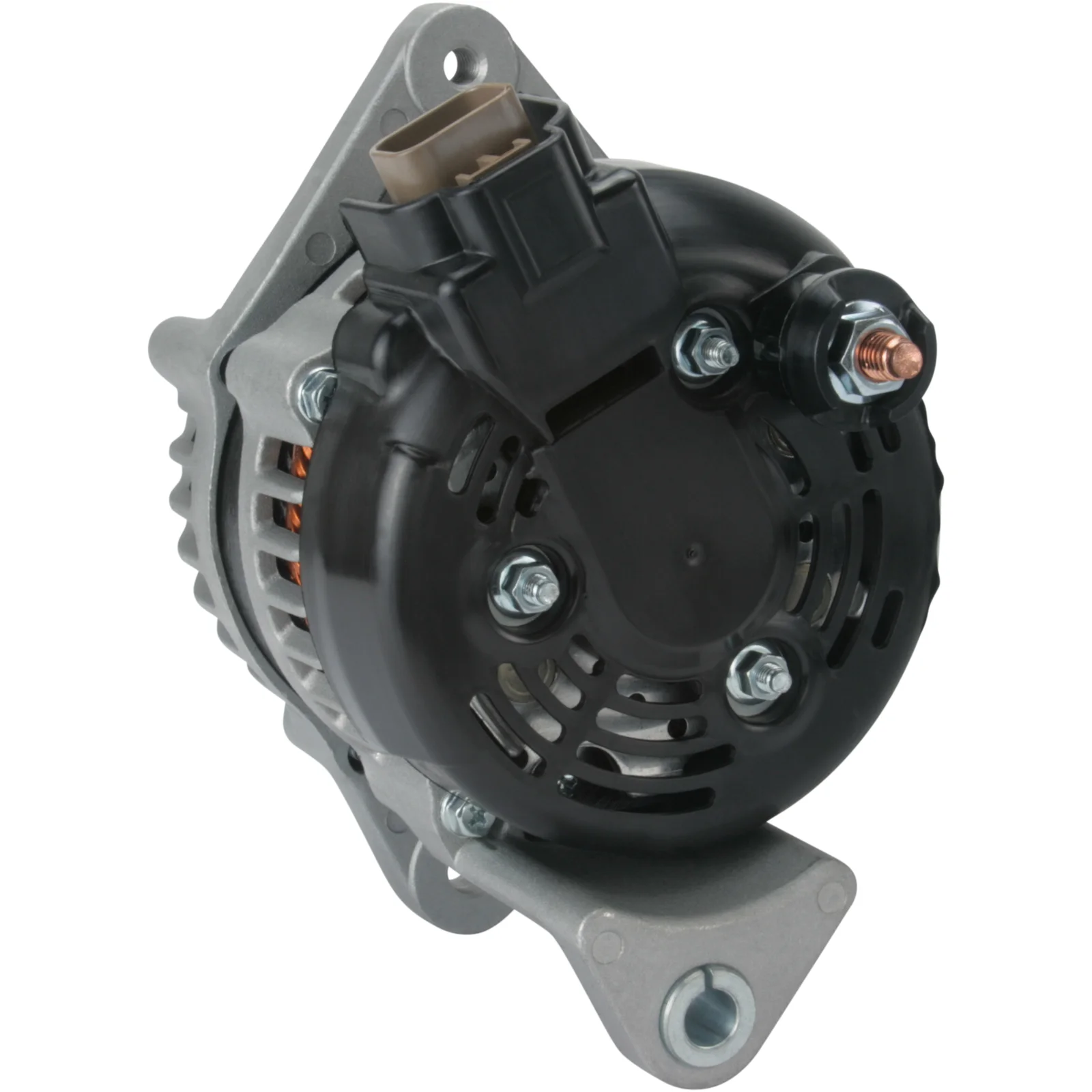

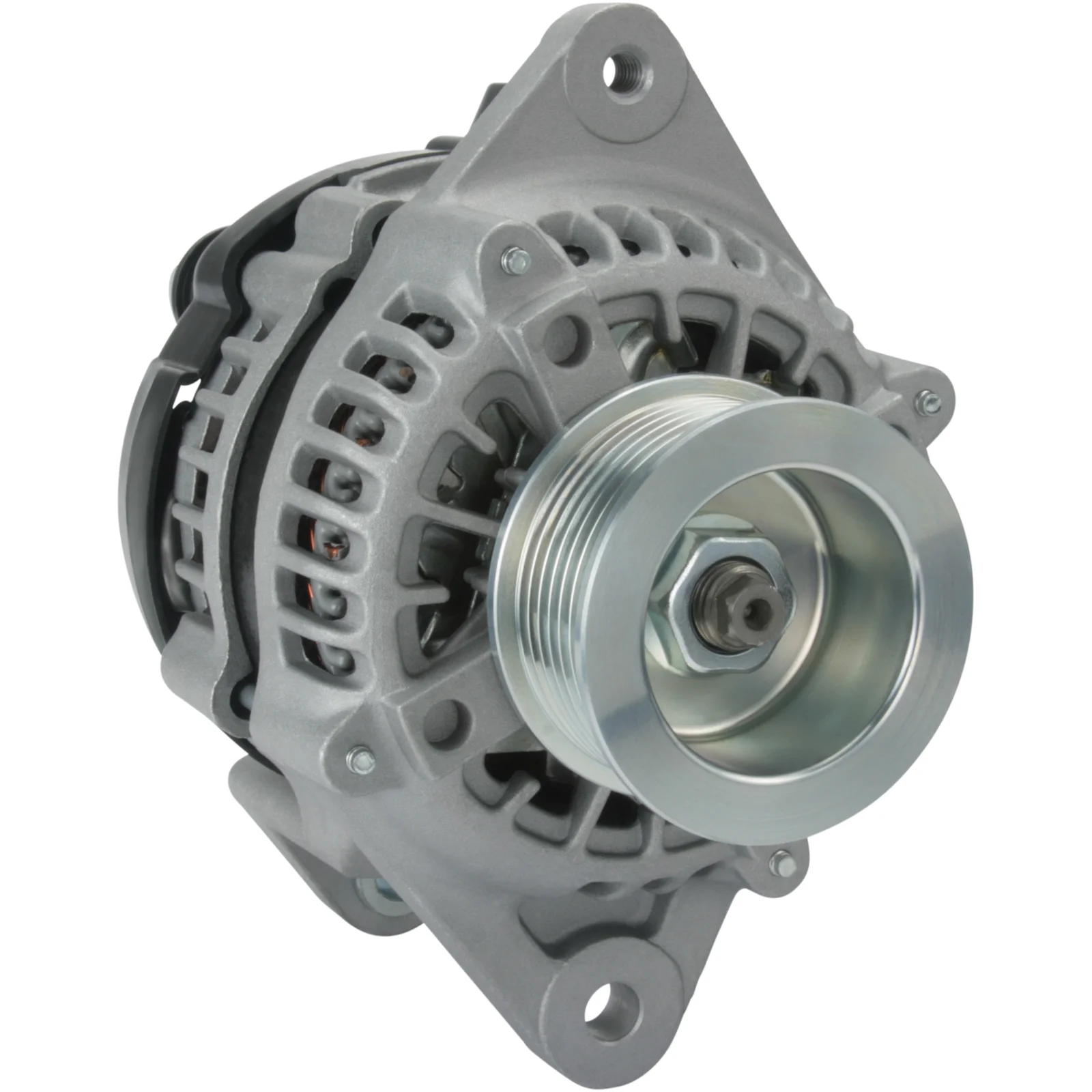

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115683

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 85, Rotation: CW, Mount. bracket dist.: 80.00

Beskrivning

Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7gr, ( - , L) För Yourex produkt order 90-250-4903

Voltage: 14
Amp: 85
Pulley dist.: 43.00
Width/holder arm: 13.00
Mount. bracket dist.: 80.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.50
Grooves/pulley: 7
Radius: 80.50
Radius 2: 80.50
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Total length mm: 185.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL100
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 62.50
Pulley dist. 43.00
Radius 80.50
D+ Size Plug
Radius 2 80.50
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 185.00 mm
Width/holder arm 13.00
Amp 85

  • OEM
    F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Konkurrentreferens
    A6152, A6611S, CAL40313, CAL40584, DAN1487, DRA1314, F042205224, LRA03597, 8EL015630-551, 28-6707, 28-7628, 28-7641, 135.573.080, 135.573.090, 135.928.090, 243.130.802, 20212N, 554321RI, 12060997

  • Bilmärken
    Isuzu

  • Normaliserat artikelnummer
    a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Passar modeller
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Series: D-MAX I Model: 2.5 DiTD 4x4 Engine volume: 2.5 Engine type: 4JK1-TC Year: 01.07-06.12
    Isuzu Series: D-MAX II Model: 2.5 CRDi 4x4 Engine volume: 2.5 Engine type: 4JK1... Year: 06.12-
    1 / 3
  • Beskrivning
    Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7gr, ( - , L) För Yourex produkt order 90-250-4903

    Voltage: 14
    Amp: 85
    Pulley dist.: 43.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 62.50
    Grooves/pulley: 7
    Radius: 80.50
    Radius 2: 80.50
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Total length mm: 185.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL100
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 62.50
    Pulley dist. 43.00
    Radius 80.50
    D+ Size Plug
    Radius 2 80.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 13.00
    Amp 85
  • Fordonsmatchning

    • OEM
      F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

    • Konkurrentreferens
      A6152, A6611S, CAL40313, CAL40584, DAN1487, DRA1314, F042205224, LRA03597, 8EL015630-551, 28-6707, 28-7628, 28-7641, 135.573.080, 135.573.090, 135.928.090, 243.130.802, 20212N, 554321RI, 12060997

    • Bilmärken
      Isuzu

    • Normaliserat artikelnummer
      a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

    • Passar modeller
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Series: D-MAX I Model: 2.5 DiTD 4x4 Engine volume: 2.5 Engine type: 4JK1-TC Year: 01.07-06.12
      Isuzu Series: D-MAX II Model: 2.5 CRDi 4x4 Engine volume: 2.5 Engine type: 4JK1... Year: 06.12-
