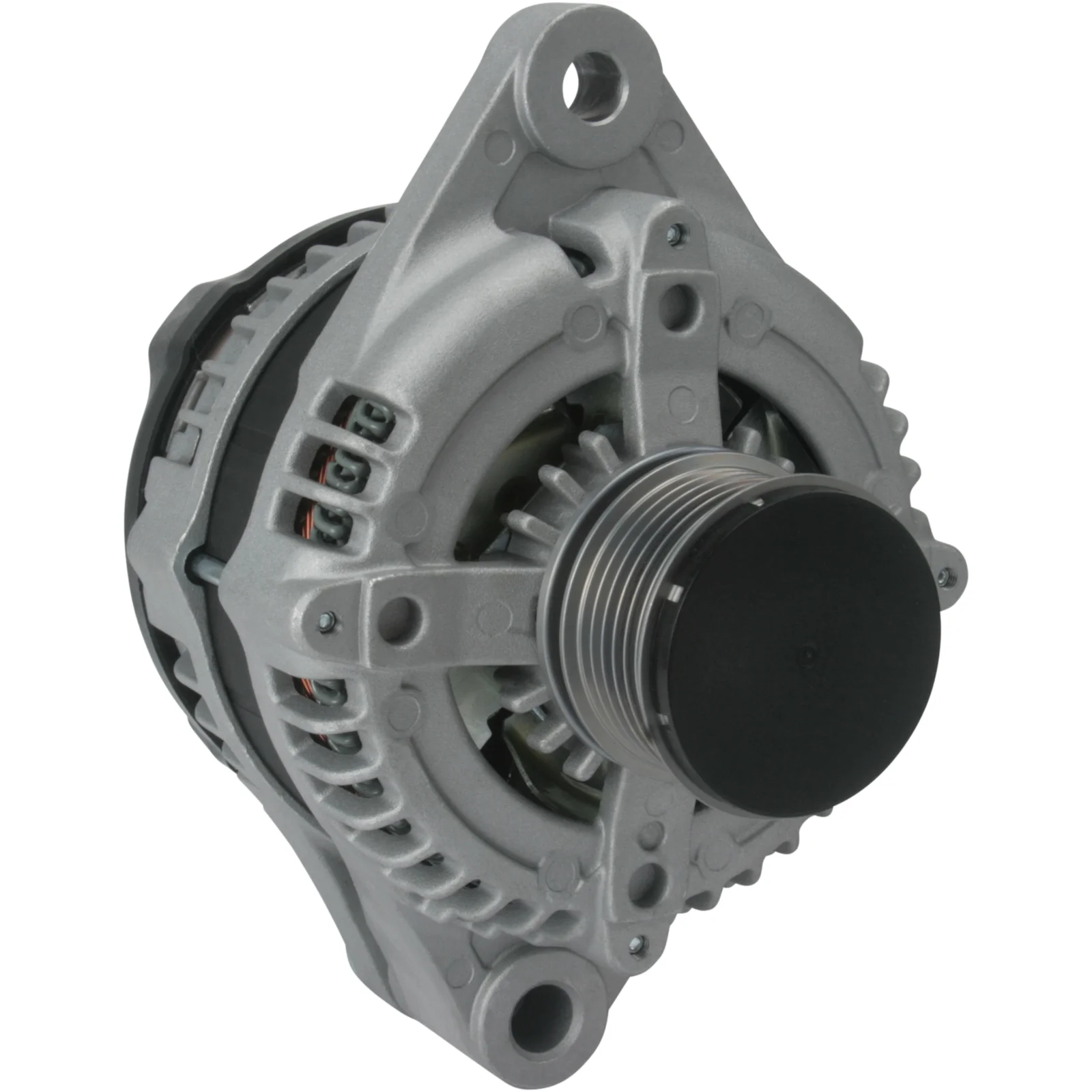

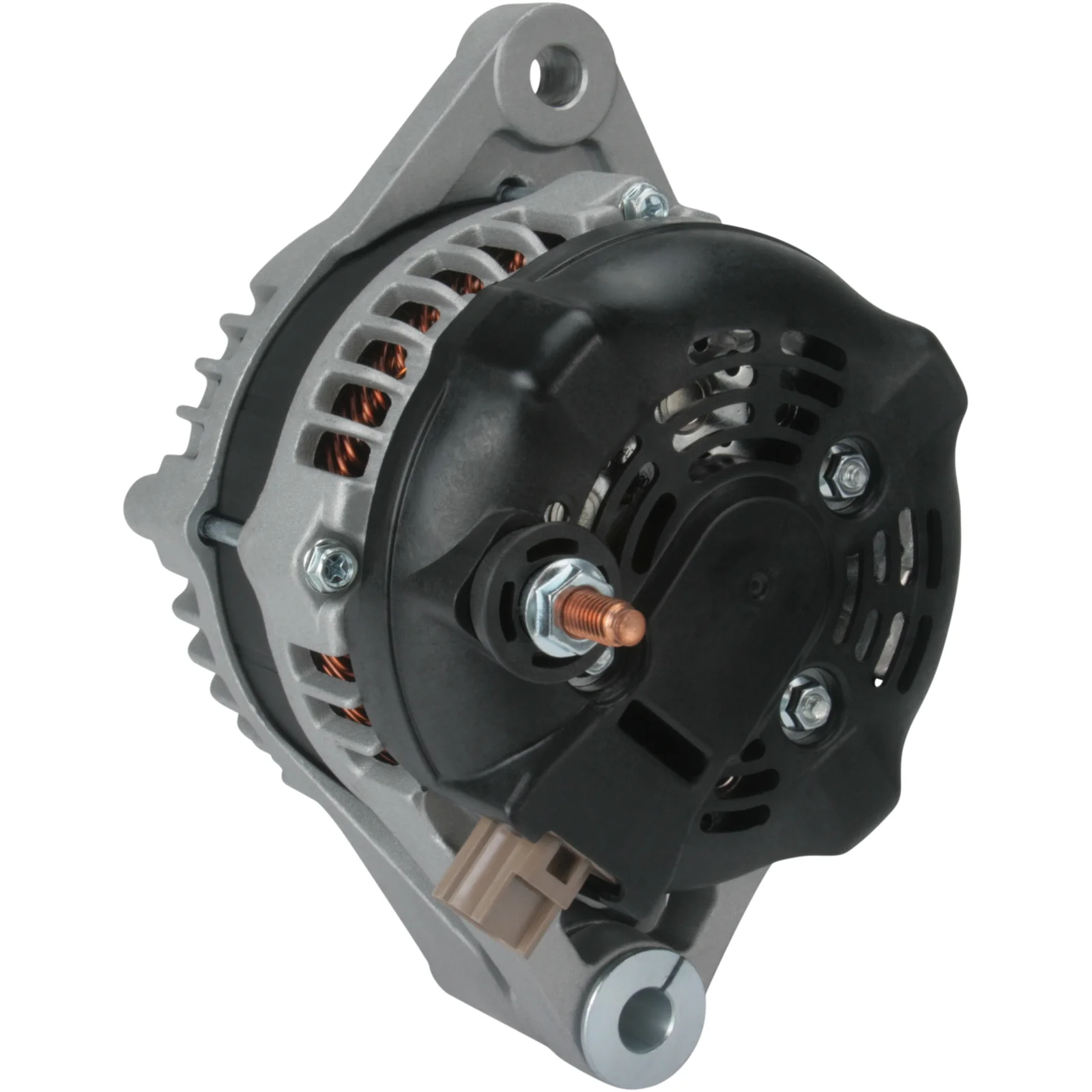

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115679

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Pulley dia.: 53.80

Beskrivning

Dodge/Fiat D Gen. 12V-130A 12V - 130A, 6gr.frg, ( - LIN - ) För Yourex produkt order 90-165-1840

Voltage: 14
Amp: 130
Pulley dist.: 113.50
Width/holder arm: 61.50
Bracket hole: 14.00
Belt. adj. brackethole pos.: 59
Belt. adj. bracket hole 1: 12.30
Pulley dia.: 53.80
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL154
Total length mm: 197.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Belt. adj. bracket hole 1 12.30
Belt. adj. brackethole pos. 59
Plug no. PL154
Bracket hole 14.00
Position/B+ in min. 45
Prod. info BN
Pulley SP/FW
Pulley dia. 53.80
Pulley dist. 113.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 197.00 mm
Width/holder arm 61.50
Amp 130

  • OEM
    F032115679, K56029574 AA, K56029574AA, P56029574AA, TN104210-1840, 104210-1840, 115679, 56029574 AA, 56029574AA

  • Konkurrentreferens
    A6217, A6217PR, A6218, CAL40416, DRA1496, lra03707, 28-6768, 218.326.1302, 835.921.130, 835.921.150, 20917, 209002, 209002A, 440981, 554099RI, 12090570

  • Bilmärken
    Fiat

  • Normaliserat artikelnummer
    a6217, a6217pr, a6218, cal40416, dra1496, f032115679, k56029574aa, lra03707, p56029574aa, tn1042101840, 20917, 115679, 209002, 209002a, 286768, 440981, 554099ri, 12090570, 56029574aa, 835921130, 835921150, 1042101840, 2183261302

  • Passar modeller
    Chrysler Model: Delta Model series: Delta Type of engine: Multijet Size of motor: 2.0 Brand of engine: 198A5.000 Body: Hatchback From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC_ Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 940A5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
    Fiat Series: Freemont (345_) Model: 2.0 JTD 4x4 Engine volume: 2.0 Engine type: 939.B5.000 Year: 08.11-
    Fiat Series: Freemont (345_) Model: 2.0 JTD Engine volume: 2.0 Engine type: 939 B5.000 Year: 08.11-
    1 / 2
  • Beskrivning
    Dodge/Fiat D Gen. 12V-130A 12V - 130A, 6gr.frg, ( - LIN - ) För Yourex produkt order 90-165-1840

    Voltage: 14
    Amp: 130
    Pulley dist.: 113.50
    Width/holder arm: 61.50
    Bracket hole: 14.00
    Belt. adj. brackethole pos.: 59
    Belt. adj. bracket hole 1: 12.30
    Pulley dia.: 53.80
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL154
    Total length mm: 197.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Belt. adj. bracket hole 1 12.30
    Belt. adj. brackethole pos. 59
    Plug no. PL154
    Bracket hole 14.00
    Position/B+ in min. 45
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 53.80
    Pulley dist. 113.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 197.00 mm
    Width/holder arm 61.50
    Amp 130
  • Fordonsmatchning

    • OEM
      F032115679, K56029574 AA, K56029574AA, P56029574AA, TN104210-1840, 104210-1840, 115679, 56029574 AA, 56029574AA

    • Konkurrentreferens
      A6217, A6217PR, A6218, CAL40416, DRA1496, lra03707, 28-6768, 218.326.1302, 835.921.130, 835.921.150, 20917, 209002, 209002A, 440981, 554099RI, 12090570

    • Bilmärken
      Fiat

    • Normaliserat artikelnummer
      a6217, a6217pr, a6218, cal40416, dra1496, f032115679, k56029574aa, lra03707, p56029574aa, tn1042101840, 20917, 115679, 209002, 209002a, 286768, 440981, 554099ri, 12090570, 56029574aa, 835921130, 835921150, 1042101840, 2183261302

    • Passar modeller
      Chrysler Model: Delta Model series: Delta Type of engine: Multijet Size of motor: 2.0 Brand of engine: 198A5.000 Body: Hatchback From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Model type: 4x4 Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC_ Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 939B5.000 Type description: JC Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Freemont Model series: Freemont Type of engine: JTD Size of motor: 2.0 Brand of engine: 940A5.000 Body: Estate From date: 01-08-2011 Fuel: Diesel Approved: Yes
      Fiat Series: Freemont (345_) Model: 2.0 JTD 4x4 Engine volume: 2.0 Engine type: 939.B5.000 Year: 08.11-
      Fiat Series: Freemont (345_) Model: 2.0 JTD Engine volume: 2.0 Engine type: 939 B5.000 Year: 08.11-
      1 / 2
